8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#3099) — 53 parça
çizim 5054
15 17 15 328 359
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 ACTUATOR; ENG STOP
AUTO ENG SHUTOFF<KB6> 		1-82840-135-0 01 1 9307-9310 ●
15 ACTUATOR; ENG STOP
AUTO ENG SHUTOFF<KB6> 		1-82840-083-7 01 1 9311-9401 ●
15 ACTUATOR; ENG STOP
AUTO ENG SHUTOFF<KB6> 		1-82840-135-2 01 1 9402- ●
17 CLIP; ACTUATOR TO HARNESS
AUTO ENG SHUTOFF<KB6> L=140 		5-09707-031-1 01 1 9307- ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9002- ● ● ● ●
328 NUT
AUTO ENG SHUTOFF<KB6> (A) 		8-94279-504-1 02 1 9307- ●
359 BRACKET ASM; MAG VLV
GOVERNOR CONTROL<W69> 		1-79997-137-0 01 1 9002-9306 ● ●
359 BRACKET ASM; MAG VLV
GOVERNOR CONTROL<W69> 		1-79997-137-0 01 1 9307- ●

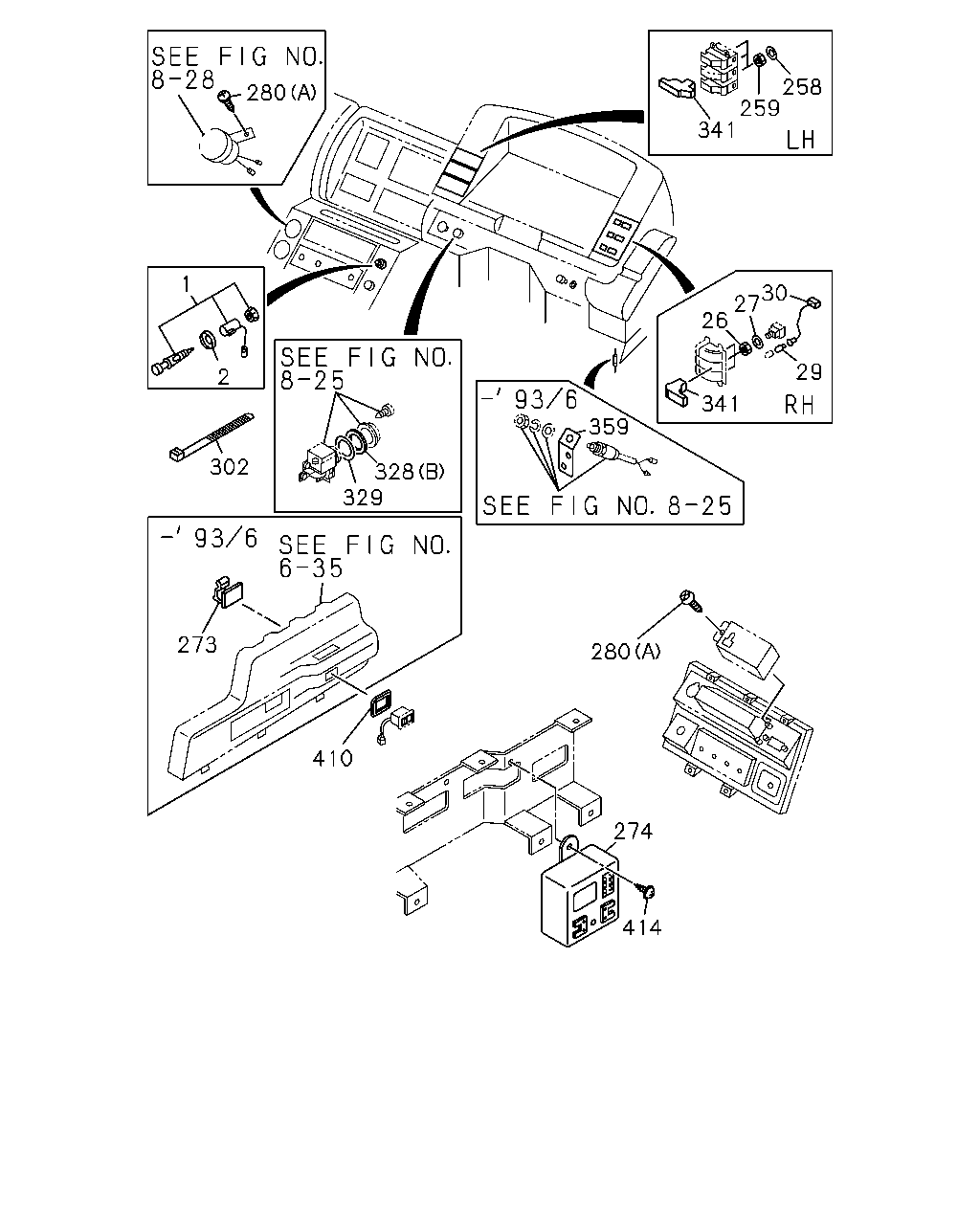

çizim 36516
414 274 280 410 273 329 328 359 341 29 30 27 26 341 259 258 280 1 2 302
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LIGHTER; CIGAR 1-84190-023-0 01 1 9002- ● ● ● ●
2 BEZEL; CIGAR LIGHTER 8-94232-213-1 01 1 9002- ● ● ● ●
26 NUT; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) M12 		1-09400-066-0 03 1 9002- ● ● ● ●
26 NUT; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M12 		1-09400-066-0 02 1 9002- ● ● ● ●
27 WASHER; WAVE,SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09550-006-0 03 1 9002- ● ● ● ●
27 WASHER; WAVE,SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-09550-006-0 02 1 9002- ● ● ● ●
29 BULB; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.2W 		1-82194-027-0 03 1 9002- ● ● ● ●
29 BULB; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.2W 		1-82194-027-0 02 1 9002- ● ● ● ●
30 CORD ASM; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82359-034-0 01 1 9002- ● ● ● ●
30 CORD ASM; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82359-033-0 01 1 9002- ● ● ● ●
258 WASHER; WAVE,HOLE COVER 1-09550-006-0 01 1 9002- ● ● ● ●
259 NUT; HOLE COVER
M12 		1-09400-066-0 01 1 9002- ● ● ● ●
273 CLIP; HARNESS
POWER WINDOW<A30> 1 SET=5 PIECE 		1-09987-214-0 02 1 9009-9306 ● ●
274 UNIT; CORNERING LAMP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-83470-044-1 01 1 9307- ●
280 SCREW; BUZZER,SEAT BELT
ENGINE OVERRUN BUZZER<SK4> (A) M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
280 SCREW; BUZZER,SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) (B) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-9306 ● ●
302 CLIP; A/C HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 01 1 9002- ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9002- ● ● ● ●
328 NUT
AUTO ENG SHUTOFF<KB6> (A) 		8-94279-504-1 02 1 9307- ●
329 WASHER
INTAKE HEATER<SL2> 		1-09503-100-0 01 1 9002- ● ● ● ●
341 COVER ASM 1-82353-011-0 01 1 9002- ● ● ● ●
341 COVER ASM
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82359-059-0 01 1 9002- ● ● ● ●
359 BRACKET ASM; MAG VLV
GOVERNOR CONTROL<W69> 		1-79997-137-0 01 1 9002-9306 ● ●
359 BRACKET ASM; MAG VLV
GOVERNOR CONTROL<W69> 		1-79997-137-0 01 1 9307- ●
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-381-0 02 1 9205- ● ●
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-416-0 02 1 9009-9306 ● ●
414 SCREW; CORNERING LAMP UNIT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9307- ●

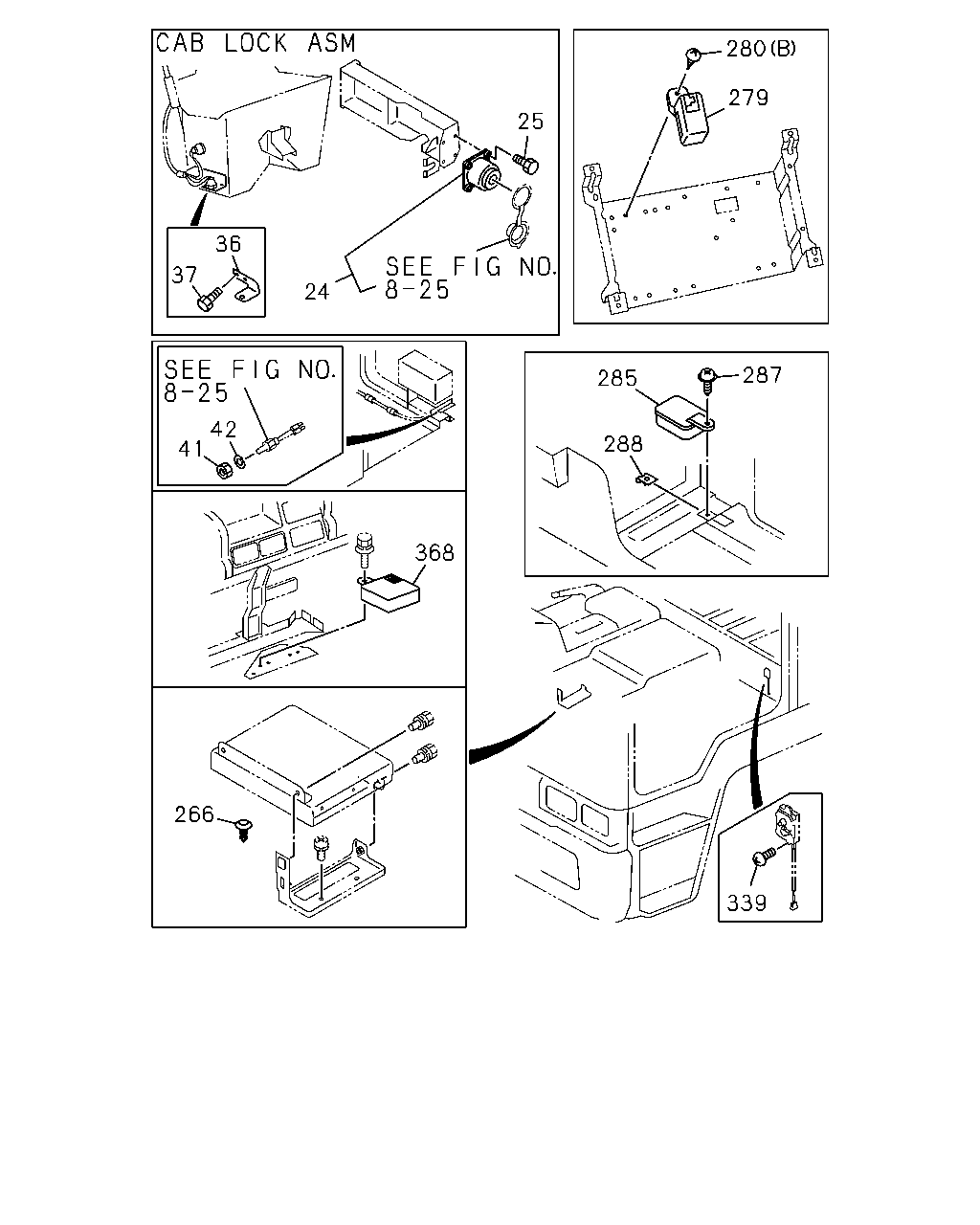

çizim 36542
339 266 368 288 285 287 279 280 25 24 36 37 42 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 9002-9306 ● ●
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		9-01960-620-0 04 1 9002-9204 ● ●
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9205-9306 ● ●
36 BRACKET; LIMIT SW
AUTO CAB TILT<WV2> 		1-82385-003-0 01 1 9002-9306 ● ●
37 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M6X16 W/LK WASHER 		0-50000-616-0 02 1 9002-9204 ● ●
37 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M6X16 W/LK WASHER 		0-50080-616-0 02 1 9205-9306 ● ●
41 NUT; SUB STARTER SW 9-82755-020-0 01 1 9002-9306 ● ● ● ●
42 WASHER; LK,SUB STARTER SW
ID=14.2 		9-09150-514-0 01 1 9002-9306 ● ● ● ●
266 PLUG; BRKT HOLE,CONT UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) D4.7X11 		1-76378-154-0 04 1 9002- ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9002-9306 ● ●
280 SCREW; BUZZER,SEAT BELT
ENGINE OVERRUN BUZZER<SK4> (A) M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
280 SCREW; BUZZER,SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) (B) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-9306 ● ●
285 BUZZER ASM; ALARM CLOCK
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-83460-053-0 01 1 9308- ● ●
287 SCREW; BUZZER
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-09981-388-1 01 1 9308- ● ●
288 NUT; SPIRE
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) M5 SPIRE NUT 		8-94279-051-0 01 1 9308- ● ●
339 SCREW; ACTUATOR
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-176-0 02 1 9211-9302 ● ●
339 SCREW; ACTUATOR
POWER WINDOW<A30> M4X30 		8-94279-360-0 02 1 9303- ● ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94437-633-1 01 1 9203- ● ●
