8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#3098) — 116 parça

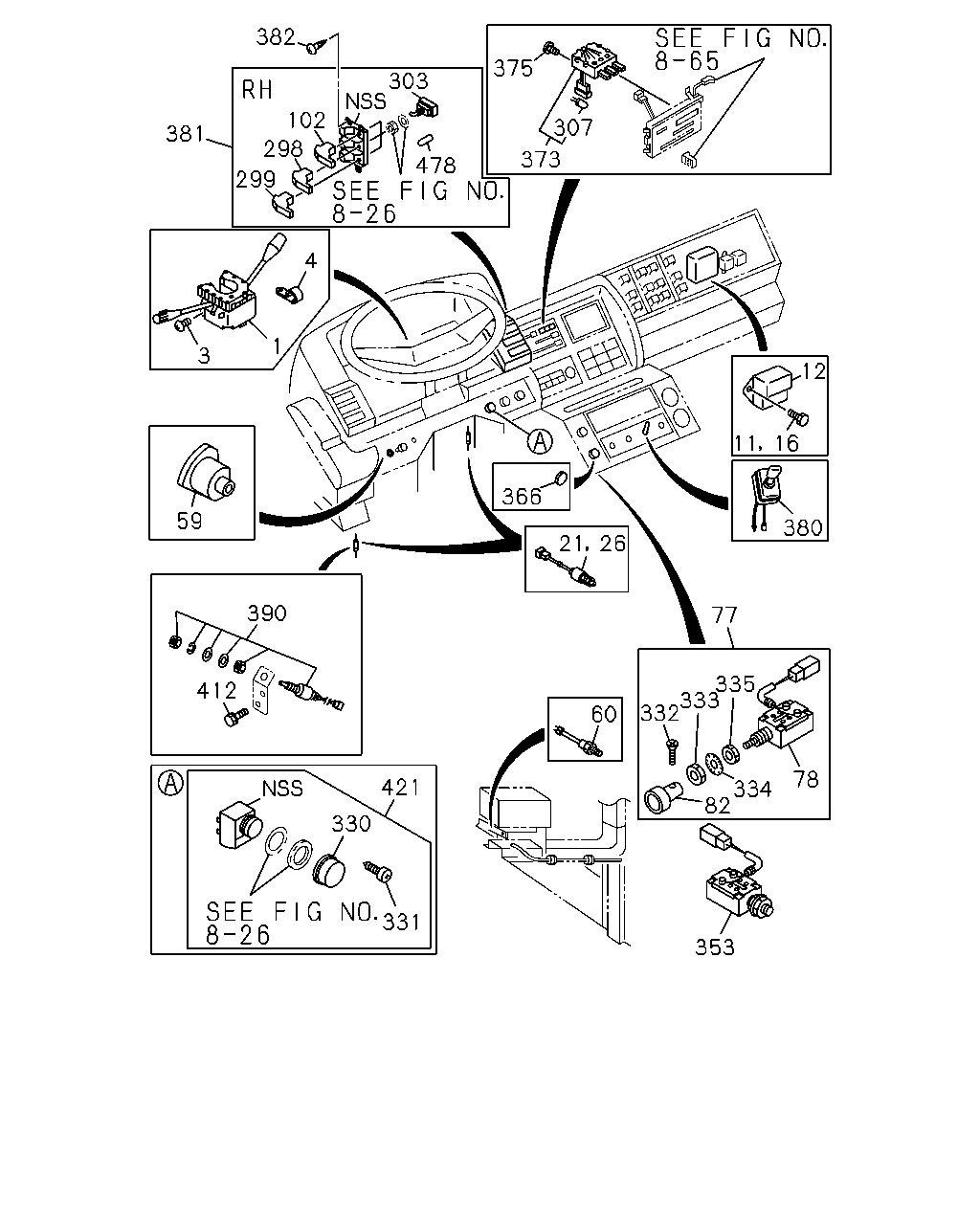

çizim 4558
353 82 334 78 335 333 332 60 77 380 16 11 12 307 373 375 303 382 381 102 298 299 478 4 1 3 59 390 412 421 330 331 366 21 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		1-82360-255-6 01 1 9002- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		1-82360-258-6 01 1 9002- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		1-82360-241-7 01 1 9002- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		1-82360-240-7 01 1 9002- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9002- ● ● ● ●
4 CLIP; COMB SW
ID=13 L=20 		9-09525-232-0 01 1 9002- ● ● ● ●
11 BOLT; POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-438-0 02 1 9109- ● ● ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-259-0 01 1 9009-9104 ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9112-9202 ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9203- ● ● ● ●
16 SCREW; RELAY,POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-176-0 02 1 9009-9108 ● ●
21 SWITCH; CLU 1-82380-009-3 01 1 9002- ● ● ● ●
26 SWITCH; ACCEL 1-82380-089-0 01 1 9002- ● ●
26 SWITCH; ACCEL 1-82380-009-3 01 1 9002- ● ●
59 SWITCH; IGNITION 1-82313-009-1 01 1 9002- ● ● ● ●
60 SWITCH; STARTER SUB 1-82380-065-0 01 1 9002-9306 ● ● ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9307- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-192-0 01 1 9002- ● ● ● ●
78 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-193-0 01 1 9002- ● ● ● ●
82 KNOB; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82346-057-1 01 1 9002- ● ● ● ●
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9002- ● ● ● ●
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9002- ● ● ● ●
299 KNOB ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82356-083-0 01 1 9002- ● ● ● ●
303 SWITCH; MICRO
FOG LAMP 		1-82350-127-0 01 1 9002- ● ● ● ●
303 SWITCH; MICRO
AIR CONDITIONER MANUAL CONTROL(C60) PARKING,AIRCON 		1-82350-091-0 02 1 9002- ● ● ● ●
303 SWITCH; MICRO
EXC. AIR CONDITIONER MANUAL CONTROL(C60) PARKING 		1-82350-091-0 01 1 9002- ● ● ● ●
307 BULB ASM; SW
28V 1.4W 		1-82194-050-0 03 1 9002- ● ● ● ●
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 9002- ● ● ● ●
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 9002- ● ● ● ●
332 SCREW; KNOB
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09106-002-0 01 1 9002- ● ● ● ●
333 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09449-033-0 01 1 9002- ● ● ● ●
334 WASHER; LK,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002- ● ● ● ●
335 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09400-035-0 01 1 9002- ● ● ● ●
353 SWITCH ASM; PARKING BRAKE
PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) CONNECTOR 6PIN 		1-82440-028-0 01 1 9002-9009 ● ●
366 SEAL; SW HOLE DIFF LK
OD=36 		1-76778-007-0 01 1 9002-9306 ● ● ● ●
366 SEAL; SW HOLE DIFF LK
OD=36 		5-76777-035-0 01 1 9307- ● ● ● ●
373 SWITCH; A/C 1-82380-061-2 01 1 9002- ● ● ● ●
375 SCREW; A/C SW
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ● ●
380 SWITCH; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82350-019-1 01 1 9002-9306 ● ●
381 SWITCH ASM; METER CLUSTER SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-179-0 01 1 9002- ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-153-0 01 1 9002- ● ● ● ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9002- ● ● ● ●
390 SWITCH ASM; GOV CONT
GOVERNOR CONTROL<W69> 		1-82340-195-0 01 1 9002-9504 ● ●
390 SWITCH ASM; GOV CONT
GOVERNOR CONTROL<W69> 		1-82380-077-1 01 1 9505- ●
412 BOLT; BRKT SW
GOVERNOR CONTROL<W69> M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9002-9411 ●
412 BOLT; BRKT SW
GOVERNOR CONTROL<W69> M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505- ●
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 9002- ● ● ● ●
478 CAP; COLLAR 1-82199-008-0 03 1 9002- ● ● ● ●
çizim 5401
9 29 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) ASSIST 		1-82380-124-0 02 1 9203- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) DRIVER 		1-82380-123-0 01 1 9203- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) ASSIST 		8-94316-197-0 02 1 9009-9201 ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) ASSIST 		1-82380-124-0 02 1 9202-9306 ● ●
29 SWITCH; DOOR 1-82440-051-3 01 1 9002-9105 ● ● ● ●
29 SWITCH; DOOR 1-82440-091-0 01 1 9106- ● ● ● ●
37 SEAL; DOOR SW HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9002- ● ● ● ●

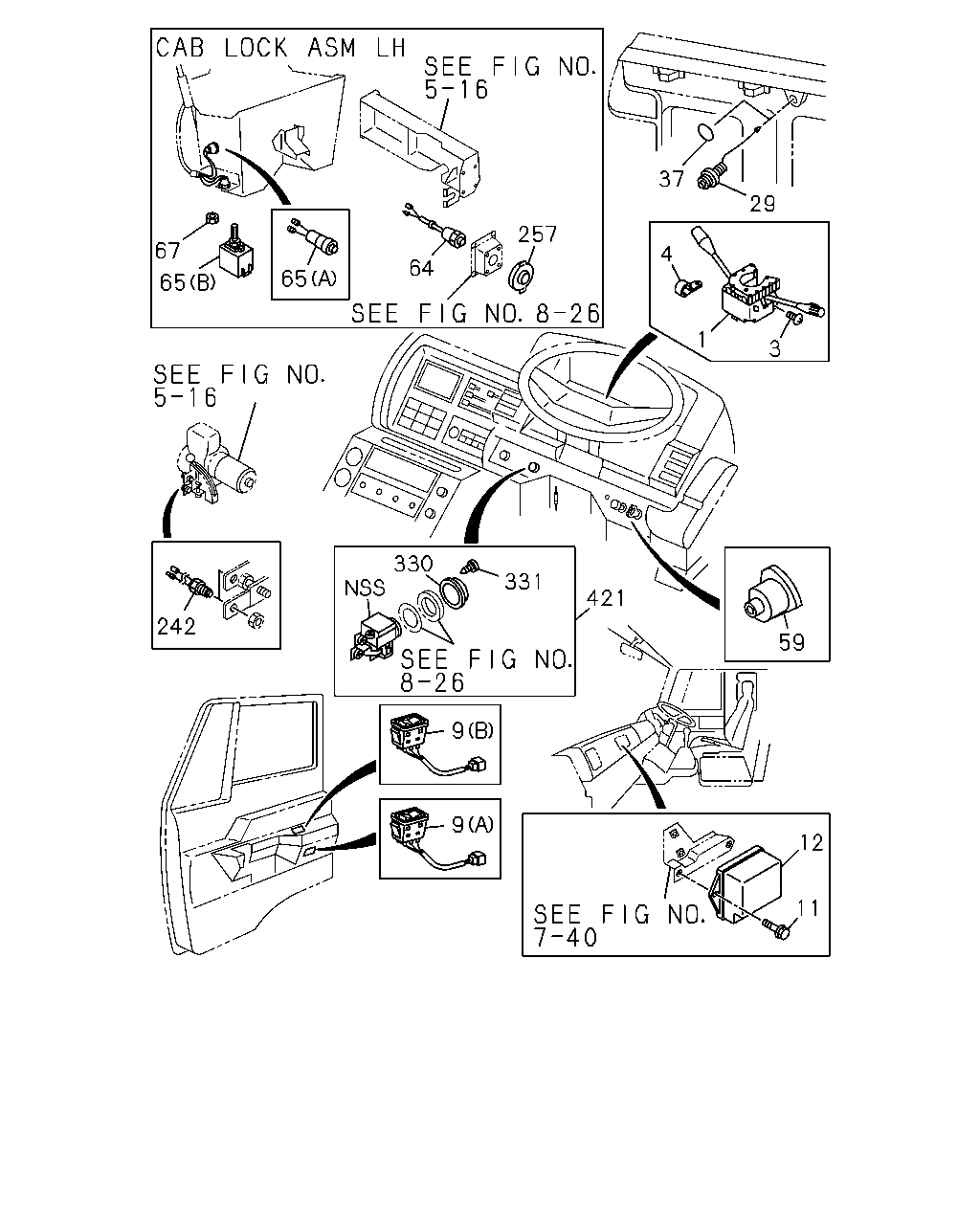

çizim 35394
11 12 9 9 330 331 421 59 242 257 64 65 65 67 37 29 4 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		1-82360-255-6 01 1 9002- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		1-82360-258-6 01 1 9002- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		1-82360-241-7 01 1 9002- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		1-82360-240-7 01 1 9002- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9002- ● ● ● ●
4 CLIP; COMB SW
ID=13 L=20 		9-09525-232-0 01 1 9002- ● ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) ASSIST 		1-82380-124-0 02 1 9203- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) DRIVER 		1-82380-123-0 01 1 9203- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) ASSIST 		8-94316-197-0 02 1 9009-9201 ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) ASSIST 		1-82380-124-0 02 1 9202-9306 ● ●
11 BOLT; POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-438-0 02 1 9109- ● ● ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-259-0 01 1 9009-9104 ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9112-9202 ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9203- ● ● ● ●
29 SWITCH; DOOR 1-82440-051-3 01 1 9002-9105 ● ● ● ●
29 SWITCH; DOOR 1-82440-091-0 01 1 9106- ● ● ● ●
37 SEAL; DOOR SW HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9002- ● ● ● ●
59 SWITCH; IGNITION 1-82313-009-1 01 1 9002- ● ● ● ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-069-0 01 1 9002-9306 ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) LOCK SWITCH 		1-82380-066-1 01 1 9002-9306 ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) ILLUM CONTROL SWITCH 		1-82380-070-1 03 1 9002-9306 ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 9002-9306 ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=10.0 		9-99111-416-0 04 1 9002-9306 ● ●
242 SWITCH
AUTO CAB TILT<WV2> 		1-82380-074-0 02 1 9002-9306 ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> 		1-82389-008-0 01 1 9002-9306 ● ●
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 9002- ● ● ● ●
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 9002- ● ● ● ●
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 9002- ● ● ● ●

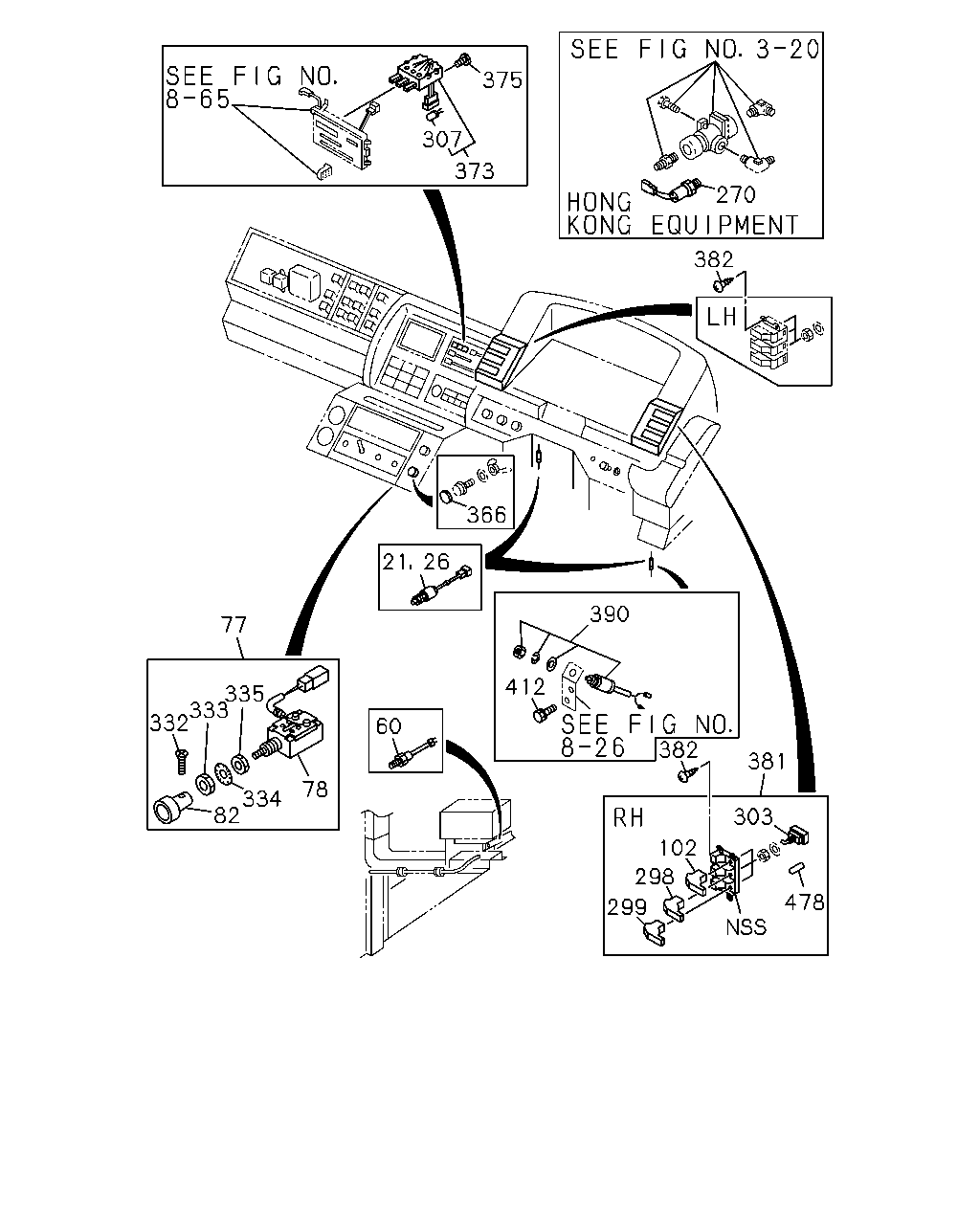

çizim 35931
303 102 298 299 381 382 390 412 60 78 334 82 332 333 335 77 21 26 366 382 270 373 307 375 478
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 SWITCH; CLU 1-82380-009-3 01 1 9002- ● ● ● ●
26 SWITCH; ACCEL 1-82380-089-0 01 1 9002- ● ●
26 SWITCH; ACCEL 1-82380-009-3 01 1 9002- ● ●
60 SWITCH; STARTER SUB 1-82380-065-0 01 1 9002-9306 ● ● ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9307- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-192-0 01 1 9002- ● ● ● ●
78 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-193-0 01 1 9002- ● ● ● ●
82 KNOB; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82346-057-1 01 1 9002- ● ● ● ●
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9002- ● ● ● ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) 		1-48340-044-0 01 1 9309-9411 ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) 		1-48340-057-0 01 1 9412- ●
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9002- ● ● ● ●
299 KNOB ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82356-083-0 01 1 9002- ● ● ● ●
303 SWITCH; MICRO
FOG LAMP 		1-82350-127-0 01 1 9002- ● ● ● ●
303 SWITCH; MICRO
AIR CONDITIONER MANUAL CONTROL(C60) PARKING,AIRCON 		1-82350-091-0 02 1 9002- ● ● ● ●
303 SWITCH; MICRO
EXC. AIR CONDITIONER MANUAL CONTROL(C60) PARKING 		1-82350-091-0 01 1 9002- ● ● ● ●
307 BULB ASM; SW
28V 1.4W 		1-82194-050-0 03 1 9002- ● ● ● ●
332 SCREW; KNOB
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09106-002-0 01 1 9002- ● ● ● ●
333 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09449-033-0 01 1 9002- ● ● ● ●
334 WASHER; LK,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002- ● ● ● ●
335 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09400-035-0 01 1 9002- ● ● ● ●
366 SEAL; SW HOLE DIFF LK
OD=36 		1-76778-007-0 01 1 9002-9306 ● ● ● ●
366 SEAL; SW HOLE DIFF LK
OD=36 		5-76777-035-0 01 1 9307- ● ● ● ●
373 SWITCH; A/C 1-82380-061-2 01 1 9002- ● ● ● ●
375 SCREW; A/C SW
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-179-0 01 1 9002- ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-153-0 01 1 9002- ● ● ● ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9002- ● ● ● ●
390 SWITCH ASM; GOV CONT
GOVERNOR CONTROL<W69> 		1-82340-195-0 01 1 9002-9504 ● ●
390 SWITCH ASM; GOV CONT
GOVERNOR CONTROL<W69> 		1-82380-077-1 01 1 9505- ●
412 BOLT; BRKT SW
GOVERNOR CONTROL<W69> M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9002-9411 ●
412 BOLT; BRKT SW
GOVERNOR CONTROL<W69> M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505- ●
478 CAP; COLLAR 1-82199-008-0 03 1 9002- ● ● ● ●
