Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-71 - COMPRESSOR; AIR CONDITIONING
▶

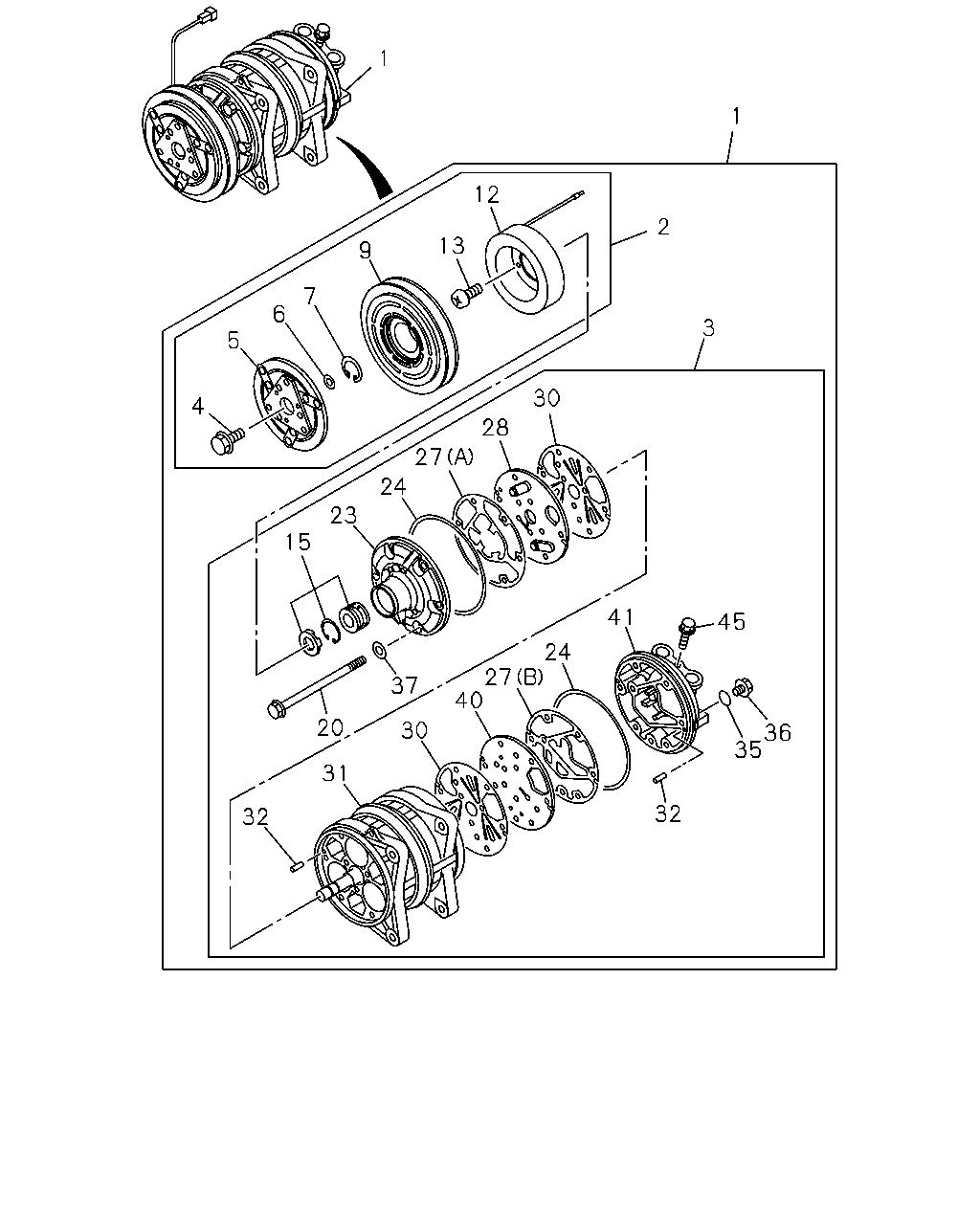

8-71 — COMPRESSOR; AIR CONDITIONING
(#30975) — 28 parça
1
1
12
2
13
9
7
6
3
5
30
4
28
27
24
23
15
41
45
24
27
40
37
20
30
36
35
31
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; A/C
1-83532-287-1
01
1
0107-
2
CLUTCH; MAGNET,A/C
1-83533-037-0
01
1
0107-
3
COMPRESSOR ASM; A/C
1-83532-290-0
01
1
0107-
4
BOLT; MAGNET CLU
8-94164-439-0
01
1
0107-
5
ARMATURE ASM; MAGNET CLU,A/C
8-97034-788-0
01
1
0107-
6
SHIM; MAGNET CLU
T=0.1
8-94120-721-0
AR
1
0107-
6
SHIM; MAGNET CLU
T=0.3
8-94120-722-0
AR
1
0107-
6
SHIM; MAGNET CLU
T=0.5
8-94120-723-0
AR
1
0107-
7
RING; SNAP,PULLEY
8-94120-724-0
01
1
0107-
9
PULLEY; MAGNET CLU
1-83579-609-1
01
1
0107-
12
COIL; FIELD,MAGNET CLU
1-83578-091-0
01
1
0107-
13
SCREW; COIL FIELD
8-94120-727-0
03
1
0107-
15
SEAL; SHAFT
1-83578-090-0
01
1
0107-
20
BOLT; CMPR
8-97233-738-0
06
1
0107-
23
HEAD; CYL,FRT
8-97178-401-0
01
1
0107-
24
GASKET; CMPR
1-83579-953-0
02
1
0107-
27
GASKET; CYL HD
(A)
8-97170-930-0
01
1
0107-
27
GASKET; CYL HD
(B)
8-97170-933-0
01
1
0107-
28
PLATE; VLV,CMPR
8-97170-932-1
01
1
0107-
30
VALVE; SUCTION
8-97134-755-0
02
1
0107-
31
CYLINDER & SHAFT ASM; AIR CMPR
8-97138-175-0
01
1
0107-
32
PIN; CMPR
8-94154-711-0
04
1
0107-
35
GASKET; PLUG,CYL
"R-134A"
8-97081-395-0
01
1
0107-
36
PLUG; CYL
8-94164-473-0
01
1
0107-
37
GASKET; CMPR
8-97233-739-0
06
1
0107-
40
PLATE; VLV,RR
8-97170-931-1
01
1
0107-
41
HEAD; CYL,RR
8-97178-402-0
01
1
0107-
45
BOLT; PLATE TO CYL HD
M10X35 W/LK&PL WASHER
9-01971-035-0
01
1
0107-
