0-35 — ENGINE CONTROL VALVE AND LEVER (#30972) — 69 parça

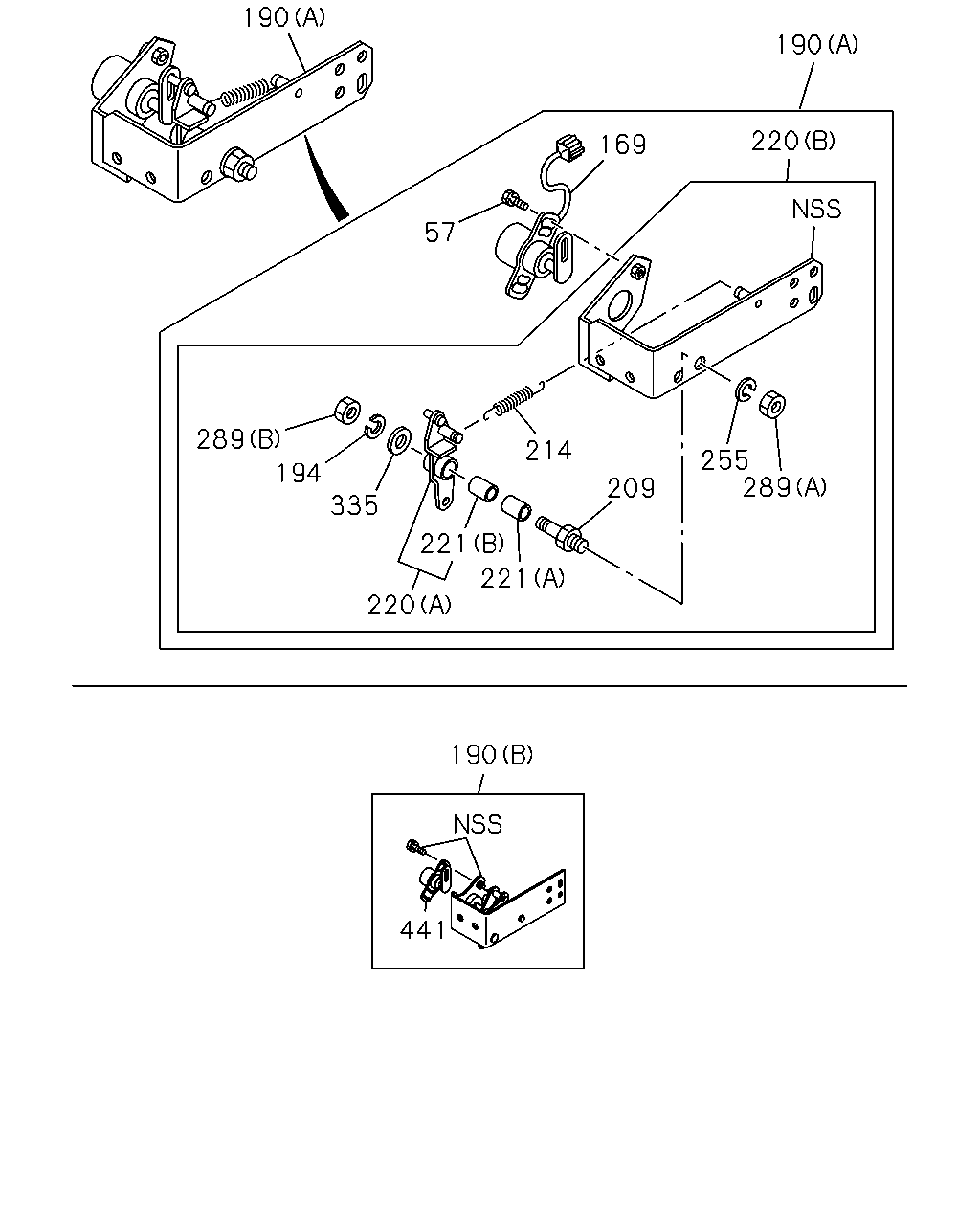

çizim 86045
190 190 220 169 57 289 214 255 289 194 335 209 221 221 220 190 441
BalonParca AdiParca NoAdetTipApplied Date A B C D
57 BOLT; BRKT
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0107-0112 ●
169 SENSOR
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-81534-010-0 01 1 0107-0112 ●
190 LEVER; ENG CONT
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-23335-504-0 01 1 0107-0112 ●
190 LEVER; ENG CONT
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-97219-466-4 01 1 0201- ●
194 WASHER; LK,LEVER
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.2 		9-09150-508-0 01 1 0107-0112 ●
209 SHAFT; ENG CONT
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-14336-002-1 01 1 0107-0112 ●
214 SPRING; ENG CONT RETURN
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94481-840-1 01 1 0107-0112 ●
220 LEVER ASM
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-23311-357-0 01 1 0107-0112 ●
220 LEVER ASM
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-23335-505-0 01 1 0107-0112 ●
221 BUSHING; LEVER
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-09330-057-0 01 1 0107-0112 ●
221 BUSHING; LEVER
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-09330-058-0 01 1 0107-0112 ●
255 WASHER; LK,LEVER
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 01 1 0107-0112 ●
289 NUT; LEVER
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M10 		9-09110-410-0 01 1 0107-0112 ●
289 NUT; LEVER
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8 		9-09111-408-0 01 1 0107-0112 ●
335 WASHER; PL LEVER
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		5-09503-135-0 01 1 0107-0112 ●
441 SENSOR; THROTTLE POSITION
MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97200-308-0 01 1 0201- ●

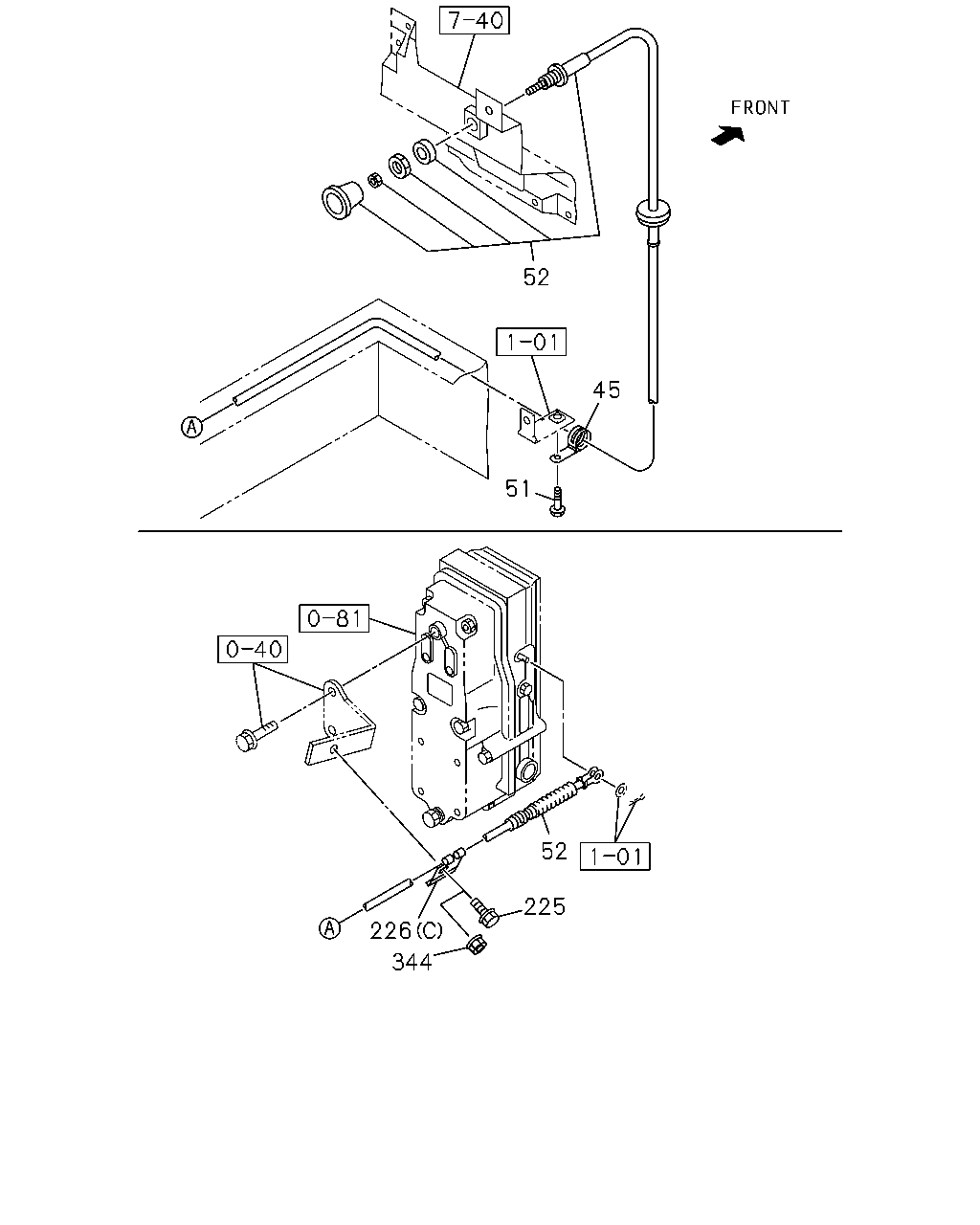

çizim 104746
52 45 51 52 225 226 344
BalonParca AdiParca NoAdetTipApplied Date A B C D
45 CLIP; FUEL CUT CABLE
ID=11 L=20 		9-09525-035-0 01 1 0107-0606 ●
45 CLIP; FUEL CUT CABLE
ID=11 L=20 		0-95235-035-0 01 1 0607- ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-0904 ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
52 CABLE; FUEL CUT 1-73908-395-0 01 1 0107- ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
225 BOLT; CLIP FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
225 BOLT; CLIP FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9610-9612 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9701-9803 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9804-0106 ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0308 ●
225 BOLT; CLIP FIX
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0106 ●
226 CLIP; CABLE END
(A) 		1-09700-787-1 01 1 9601-9609 ●
226 CLIP; CABLE END
(A) 		1-09700-787-1 01 1 9610-9705 ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) 		1-09700-787-1 01 1 9610-9705 ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) 		1-09700-787-1 01 1 9706-9803 ● ●
226 CLIP; CABLE END
(B) 		1-23219-032-0 01 1 9601-9609 ●
226 CLIP; CABLE END
(B) 		1-23219-032-0 01 1 9610-9803 ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> (B) 		1-23219-032-0 01 1 9610-9803 ●
226 CLIP; CABLE END
(B) 		1-23219-032-0 01 1 9804-0106 ● ●
226 CLIP; CABLE END
(C) 		1-14319-082-0 01 1 0107- ●
344 NUT; CABLE END
M8 FLANGE 		0-91150-108-0 01 1 0309-0602 ●
344 NUT; CABLE END
M8 FLANGE 		0-91180-108-0 01 1 0603- ●

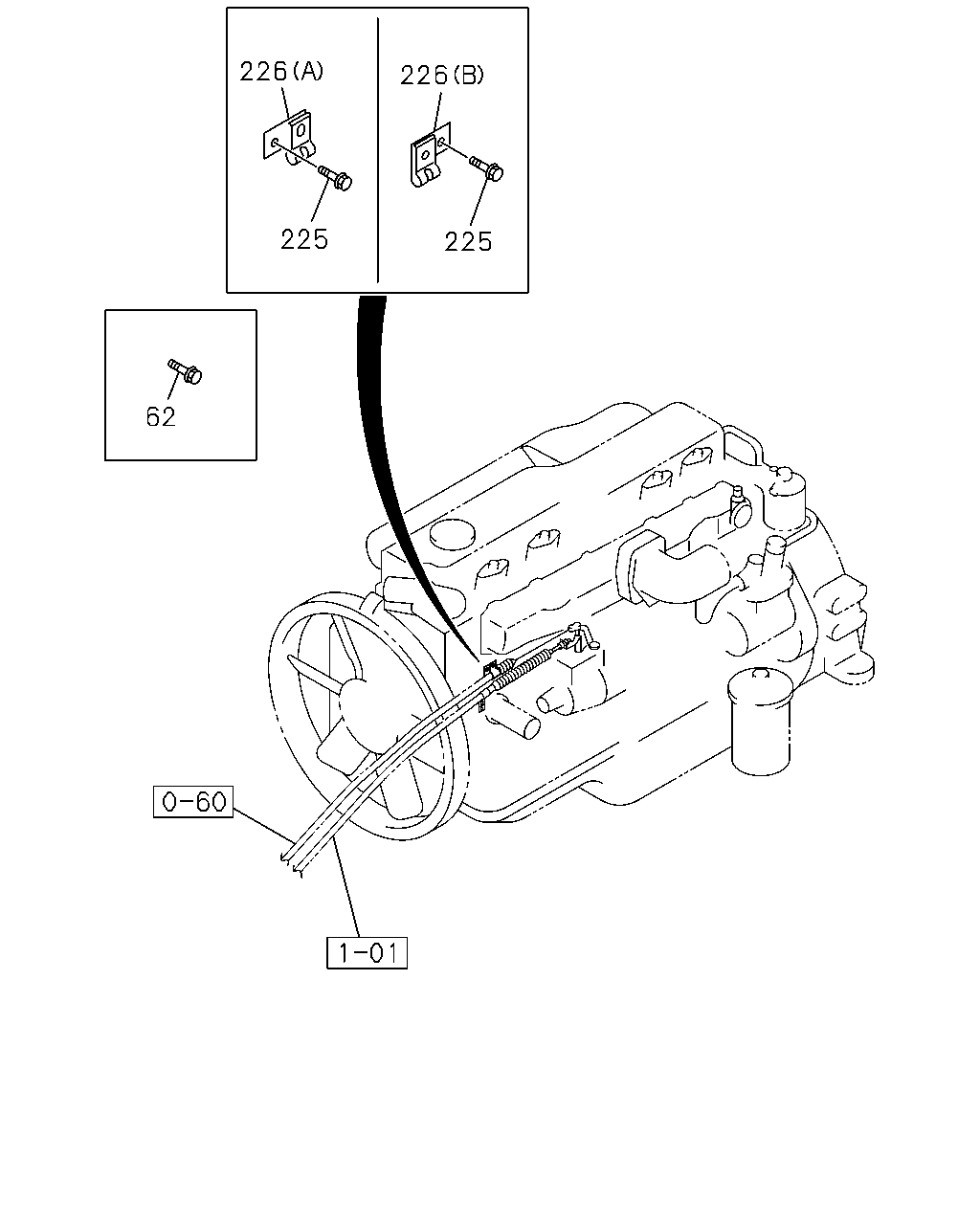

çizim 104747
226 226 225 225 62
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 BOLT; CABLE END
M6X20 FLANGE 		0-28080-620-0 02 1 9601-9606 ●
62 BOLT; CABLE END
M6X25 FLANGE 		0-28680-625-0 02 1 9607-9609 ●
62 BOLT; CABLE END
M6X25 FLANGE 		0-28680-625-0 02 1 9610-9702 ●
62 BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> M6X25 FLANGE 		0-28680-625-0 02 1 9610-9702 ●
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9601-9606 ●
62 BOLT; CABLE END
M6X20 FLANGE 		0-28680-620-0 02 1 9607-9702 ●
62 BOLT; CABLE END
M6X20 FLANGE 		0-28680-620-0 02 1 9703-9705 ● ●
62 BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE 		0-28680-620-0 02 1 9703-9705 ●
62 BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE 		0-28680-620-0 02 1 9706-9803 ● ●
62 BOLT; CABLE END
M6X20 FLANGE 		0-28680-620-0 02 1 9706-9803 ●
62 BOLT; CABLE END
M6X20 FLANGE 		0-28680-620-0 02 1 9804-0106 ●
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 01 1 9610-9705 ●
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 01 1 9706-9803 ● ●
62 BOLT; CABLE END
M8X20 FLANGE 		0-28680-820-0 01 1 9804-0106 ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
225 BOLT; CLIP FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
225 BOLT; CLIP FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9610-9612 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9701-9803 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9804-0106 ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0308 ●
225 BOLT; CLIP FIX
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0106 ●
226 CLIP; CABLE END
(A) 		1-09700-787-1 01 1 9601-9609 ●
226 CLIP; CABLE END
(A) 		1-09700-787-1 01 1 9610-9705 ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) 		1-09700-787-1 01 1 9610-9705 ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) 		1-09700-787-1 01 1 9706-9803 ● ●
226 CLIP; CABLE END
(B) 		1-23219-032-0 01 1 9601-9609 ●
226 CLIP; CABLE END
(B) 		1-23219-032-0 01 1 9610-9803 ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> (B) 		1-23219-032-0 01 1 9610-9803 ●
226 CLIP; CABLE END
(B) 		1-23219-032-0 01 1 9804-0106 ● ●
226 CLIP; CABLE END
(C) 		1-14319-082-0 01 1 0107- ●
