Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#30966) — 304 parça

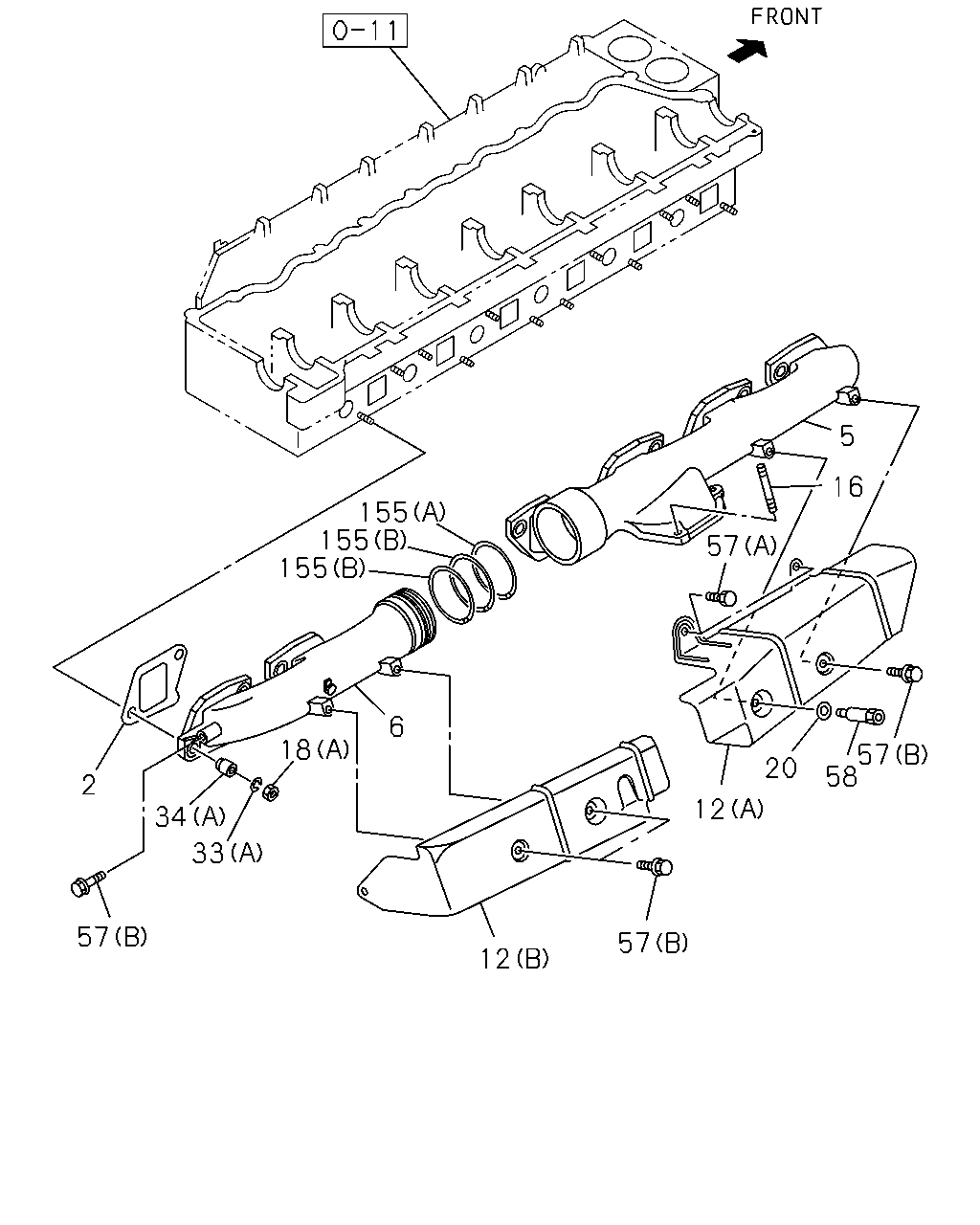

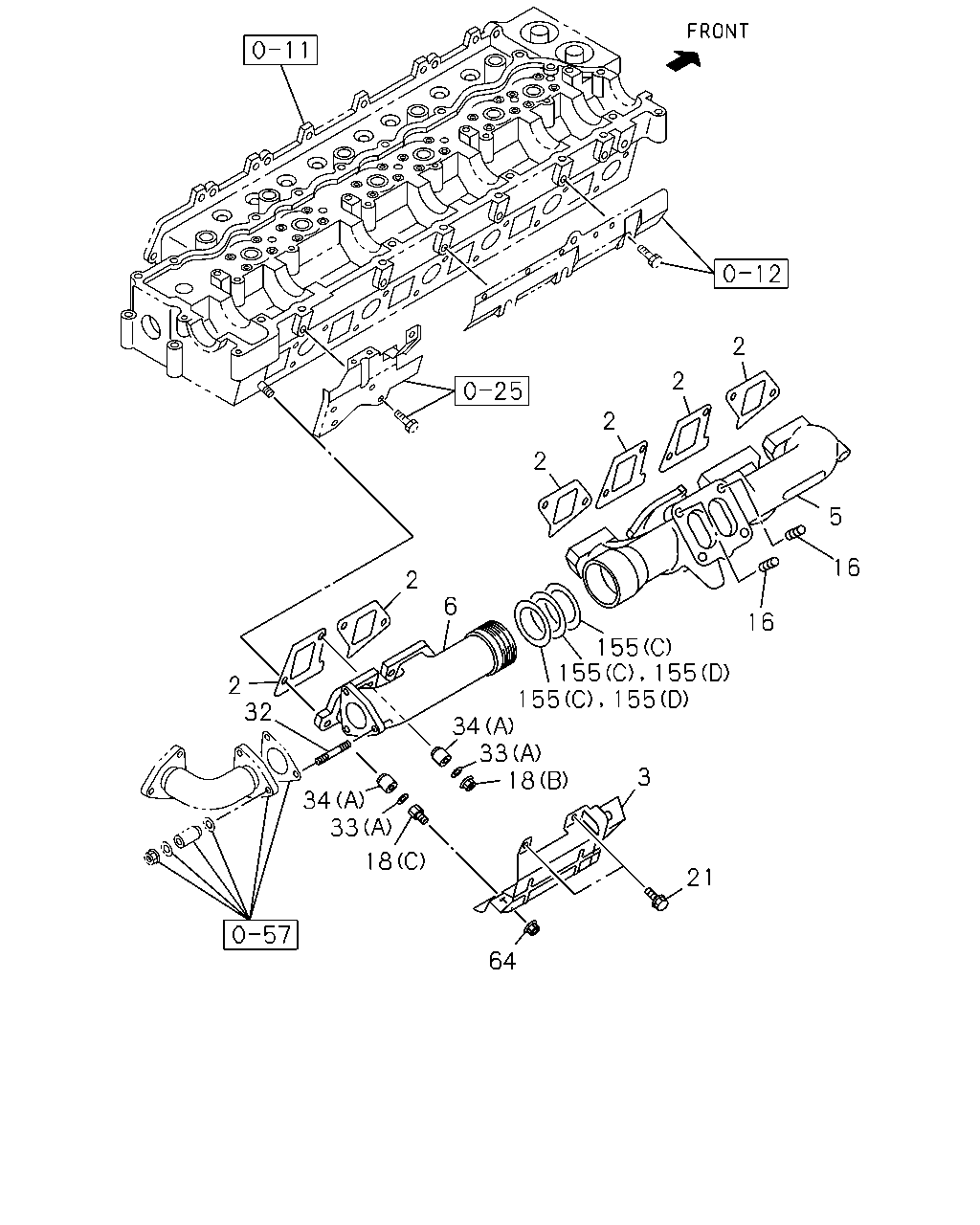

2 2 2 2 5 16 2 6 16 155 155 155 155 155 34 33 18 2 32 3 34 33 18 21 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9601-9609	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9610-9803	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9804-0106		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0107-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	9601-				●
3	PROTECTOR; HEAT,EXH MANIF	8-94394-385-1	01	1	9610-9901		●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	9902-0106		●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0107-			●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9601-9803	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9610-0104		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0106		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0107-			●
6	MANIFOLD; EXH,RR	8-94394-755-3	01	1	9601-9803	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9610-0104		●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0106		●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0107-			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9601-9803	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9610-0106		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0107-			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9601-9803	●			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9804-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-				●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9610-0106		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	0107-0602			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	9610-0106		●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	0107-1202			●
18	NUT; EXH MANIF (C)	8-98205-394-0	02	1	1203-			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9610-0106		●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0107-0512			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	9601-0106				●
32	STUD; EXH PIPE M8X55 L=67	9-04110-855-0	03	1	0107-0604			●
32	STUD; EXH PIPE M8X55 L=67	0-41010-855-0	03	1	0605-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9609	●			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9610-9803	●	●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9804-0106		●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0107-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0106				●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9601-9609	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9610-9803	●	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9804-0106		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	0107-0209			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-			●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	08	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	04	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	08	1	0107-				●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9610-0106		●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0107-0602			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-			●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	04	1	0502-				●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	9601-9803	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9601-9803	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9601-0501				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	9610-0106		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0107-0501			●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-			●

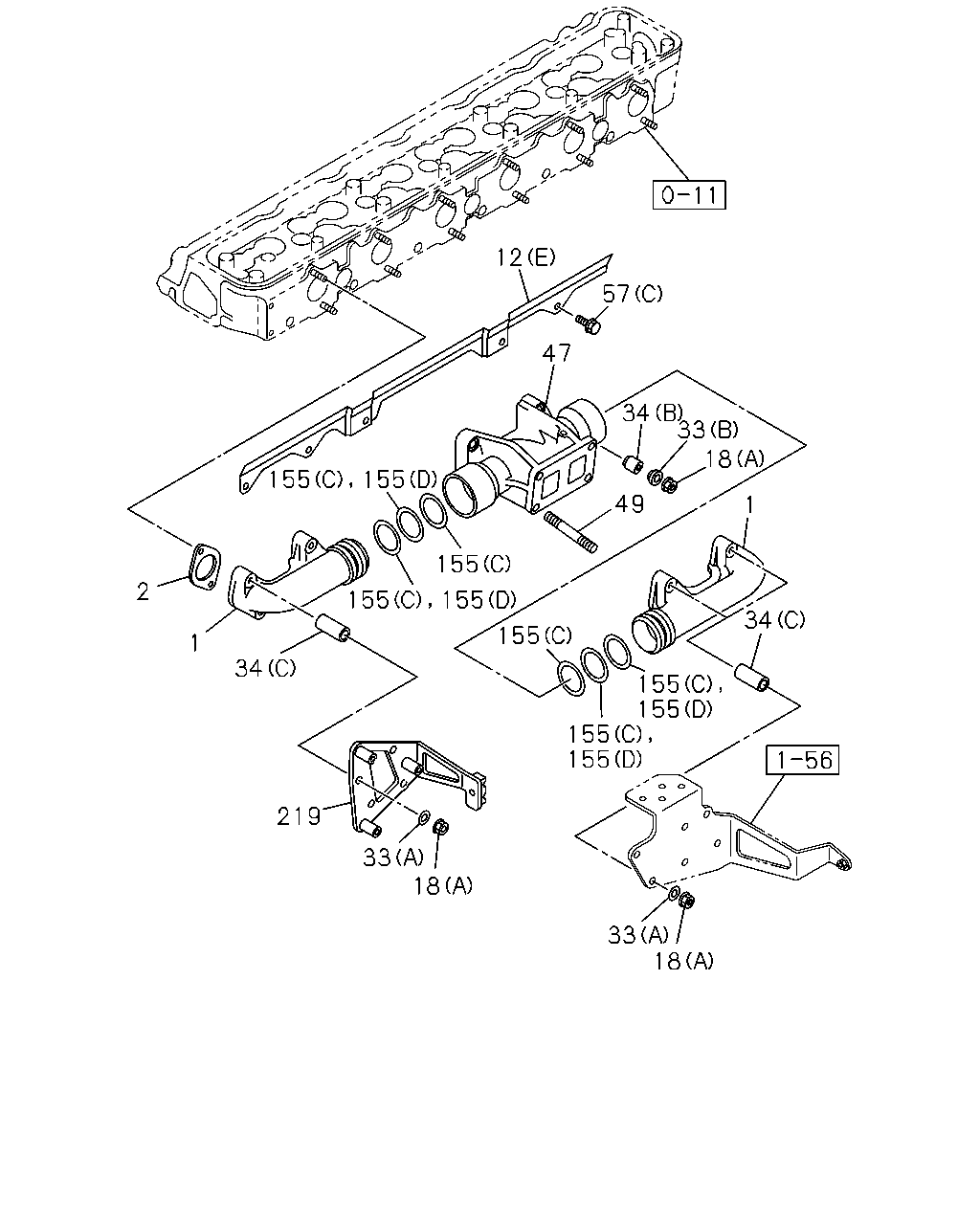

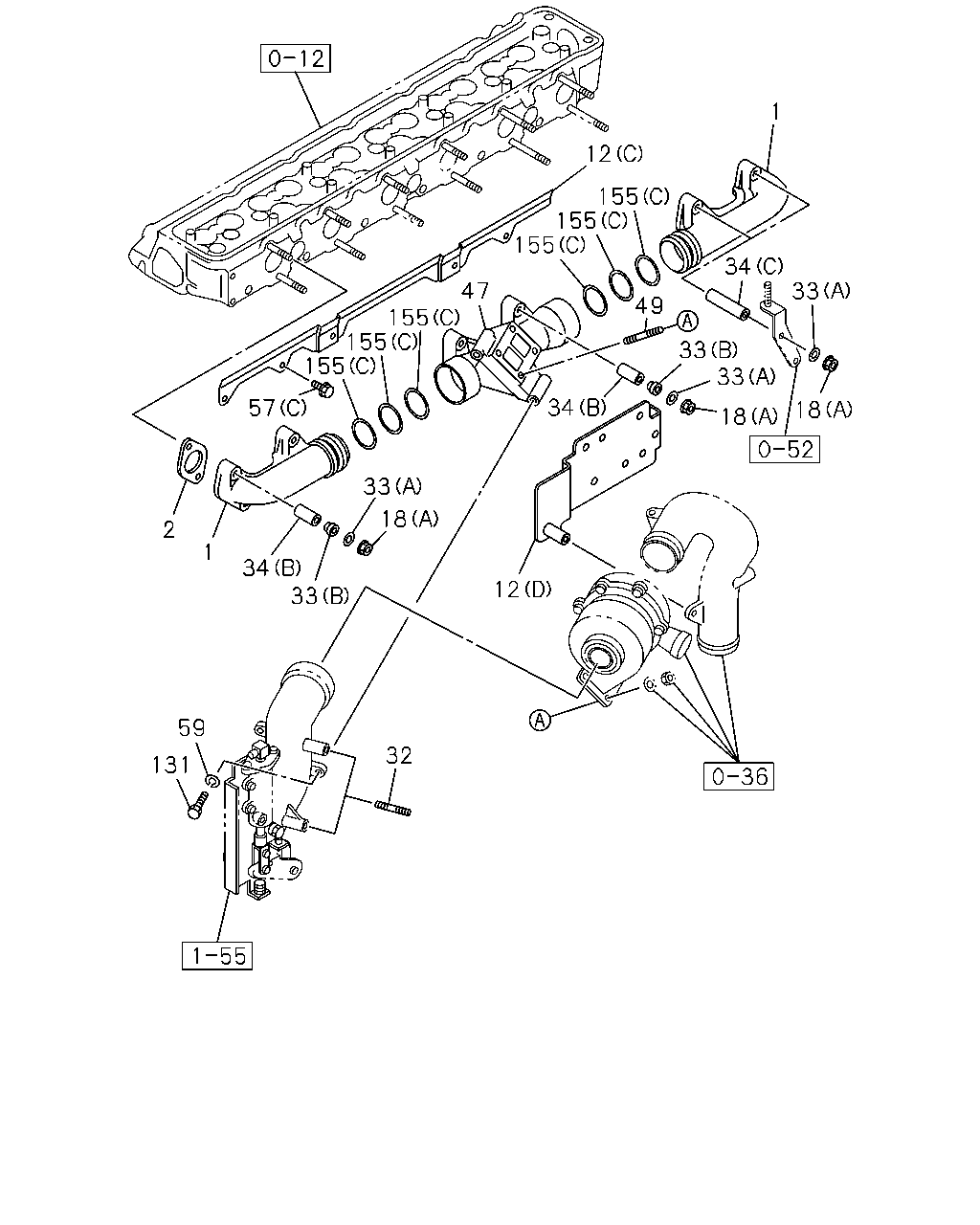

1 12 155 155 155 34 33 47 155 155 155 49 33 33 34 57 18 18 33 18 2 1 34 33 12 59 32 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	9601-				●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9601-9609	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9610-9803	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9804-0106		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0107-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	9601-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9601-9803	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9601-9609	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9803	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14119-396-0	01	1	9601-0106				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (E)	1-14181-236-0	01	1	0107-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (D)	1-14181-234-0	01	1	9601-0106				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9601-9803	●			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9804-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-				●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9610-0106		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	0107-0602			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	9610-0106		●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	0107-1202			●
18	NUT; EXH MANIF (C)	8-98205-394-0	02	1	1203-			●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	9601-0106				●
32	STUD; EXH PIPE M8X55 L=67	9-04110-855-0	03	1	0107-0604			●
32	STUD; EXH PIPE M8X55 L=67	0-41010-855-0	03	1	0605-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9609	●			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9610-9803	●	●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9804-0106		●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0107-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0106				●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9601-9609	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9610-9803	●	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9804-0106		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	0107-0209			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-			●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	08	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	04	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	08	1	0107-				●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	9601-0106				●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0107-				●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	9601-0106				●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0107-0408				●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28181-016-0	01	1	0107-0512				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28151-016-0	01	1	0601-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9601-9803	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	04	1	9601-9803	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X12 FLANGE	0-28080-812-0	01	1	9601-0106				●
59	WASHER; LK,EXH PIPE ID=10	1-09503-033-1	02	1	9601-0106				●
131	BOLT; MTG	9-09804-206-0	02	1	9601-0106				●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	04	1	0502-				●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	9601-9803	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9601-9803	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9601-0501				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	9610-0106		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0107-0501			●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-			●

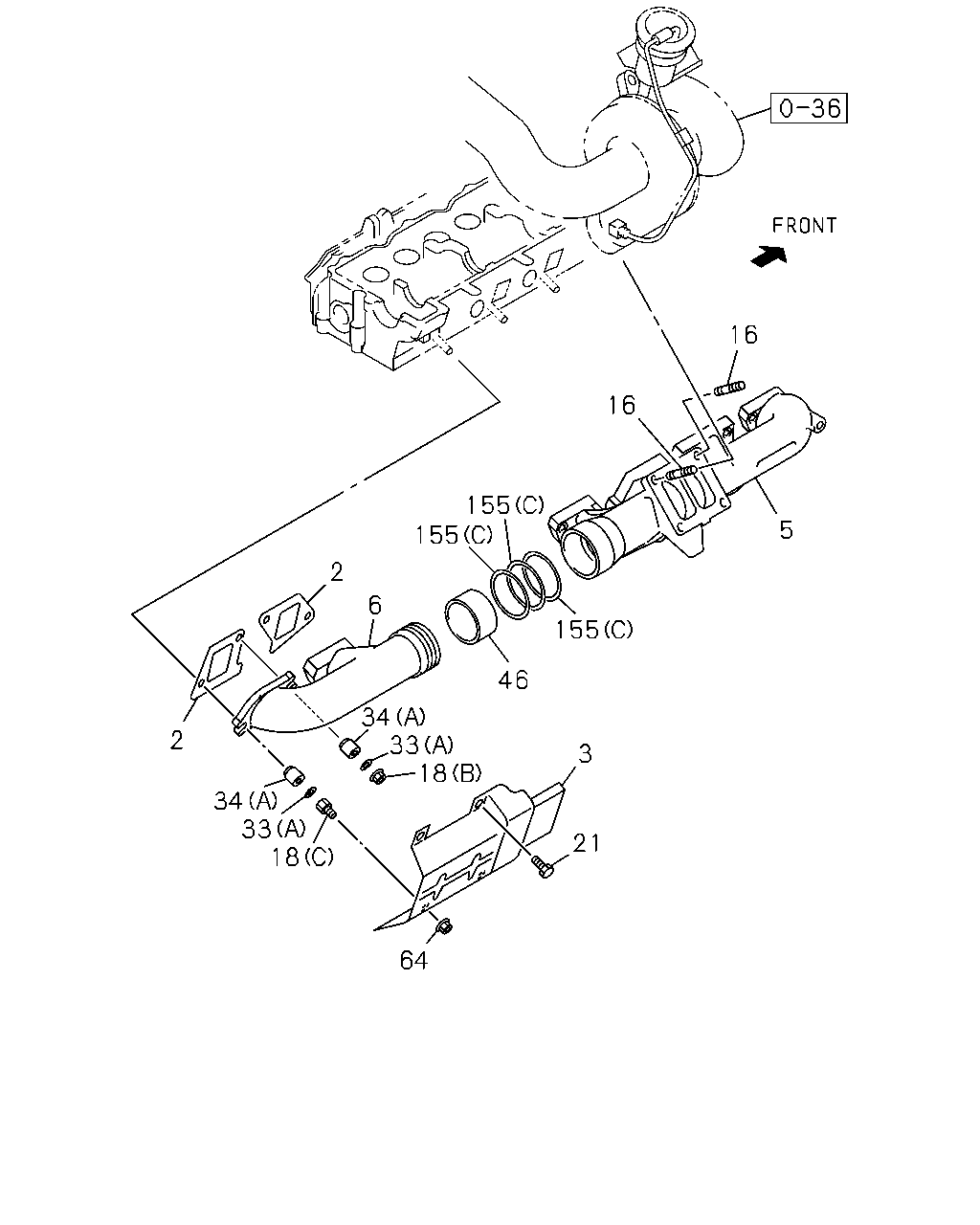

16 16 155 155 5 2 6 155 46 34 33 18 2 3 34 33 18 21 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9601-9609	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9610-9803	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9804-0106		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0107-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	9601-				●
3	PROTECTOR; HEAT,EXH MANIF	8-94394-385-1	01	1	9610-9901		●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	9902-0106		●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0107-			●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9601-9803	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9610-0104		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0106		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0107-			●
6	MANIFOLD; EXH,RR	8-94394-755-3	01	1	9601-9803	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9610-0104		●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0106		●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0107-			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9601-9803	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9610-0106		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0107-			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9601-9803	●			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9804-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-				●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9610-0106		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	0107-0602			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	9610-0106		●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	0107-1202			●
18	NUT; EXH MANIF (C)	8-98205-394-0	02	1	1203-			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9610-0106		●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0107-0512			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9609	●			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9610-9803	●	●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9804-0106		●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0107-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0106				●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9601-9609	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9610-9803	●	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9804-0106		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	0107-0209			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-			●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	08	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	04	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	08	1	0107-				●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9610-0104		●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9610-0106		●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0107-0602			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-			●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	04	1	0502-				●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	9601-9803	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9601-9803	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9601-0501				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	9610-0106		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0107-0501			●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-			●

5 16 155 155 155 57 6 18 57 58 20 2 12 34 33 57 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9601-9609	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9610-9803	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9804-0106		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0107-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	9601-				●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9601-9803	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9610-0104		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0106		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0107-			●
6	MANIFOLD; EXH,RR	8-94394-755-3	01	1	9601-9803	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9610-0104		●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0106		●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0107-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9601-9803	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9601-9609	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9803	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14119-396-0	01	1	9601-0106				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (E)	1-14181-236-0	01	1	0107-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (D)	1-14181-234-0	01	1	9601-0106				●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9601-9803	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9610-0106		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0107-			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9601-9803	●			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9804-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-				●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9610-0106		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	0107-0602			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	9610-0106		●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	0107-1202			●
18	NUT; EXH MANIF (C)	8-98205-394-0	02	1	1203-			●
20	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	01	1	9601-9803	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9609	●			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9610-9803	●	●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9804-0106		●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0107-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0106				●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9601-9609	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9610-9803	●	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9804-0106		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	0107-0209			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-			●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	08	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	04	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	08	1	0107-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28181-016-0	01	1	0107-0512				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28151-016-0	01	1	0601-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9601-9803	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	04	1	9601-9803	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X12 FLANGE	0-28080-812-0	01	1	9601-0106				●
58	STUD; HEAT PROTECTOR	8-94396-828-2	01	1	9601-9803	●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	04	1	0502-				●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	9601-9803	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9601-9803	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9601-0501				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	9610-0106		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0107-0501			●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-			●

12 57 47 34 33 18 155 155 49 1 155 2 155 155 34 155 1 34 155 155 155 155 219 33 18 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	9601-				●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9601-9609	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9610-9803	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9804-0106		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0107-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	9601-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9601-9803	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9601-9609	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9803	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14119-396-0	01	1	9601-0106				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (E)	1-14181-236-0	01	1	0107-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (D)	1-14181-234-0	01	1	9601-0106				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9601-9803	●			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9804-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-				●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9610-0106		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	0107-0602			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	9610-0106		●
18	NUT; EXH MANIF (C) M10 L=51	8-94394-991-1	02	1	0107-1202			●
18	NUT; EXH MANIF (C)	8-98205-394-0	02	1	1203-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9609	●			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9610-9803	●	●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9804-0106		●		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0107-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0106				●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9601-9609	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9610-9803	●	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9804-0106		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	0107-0209			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-			●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	08	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (B) L=43	1-14149-048-1	03	1	0107-				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	04	1	9601-0106				●
34	COLLAR; DIST,EXH MANIF (C) L=83	1-14149-134-0	08	1	0107-				●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	9601-0106				●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0107-				●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	9601-0106				●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0107-0408				●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28181-016-0	01	1	0107-0512				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28151-016-0	01	1	0601-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9601-9803	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	04	1	9601-9803	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X12 FLANGE	0-28080-812-0	01	1	9601-0106				●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	04	1	0502-				●
155	RING; SEAL,EXH MANIF (D)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	9601-9803	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9601-9803	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	06	1	9601-0501				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	9610-0106		●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0107-0501			●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-			●
219	BRACKET; DUCT	1-14149-244-0	01	1	0107-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
