Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#30963) — 559 parça

1 36 32 38 36 87 89 54 338 93 179 483 38 403 28 310 36 35 51 51 51 51 51 51 54 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

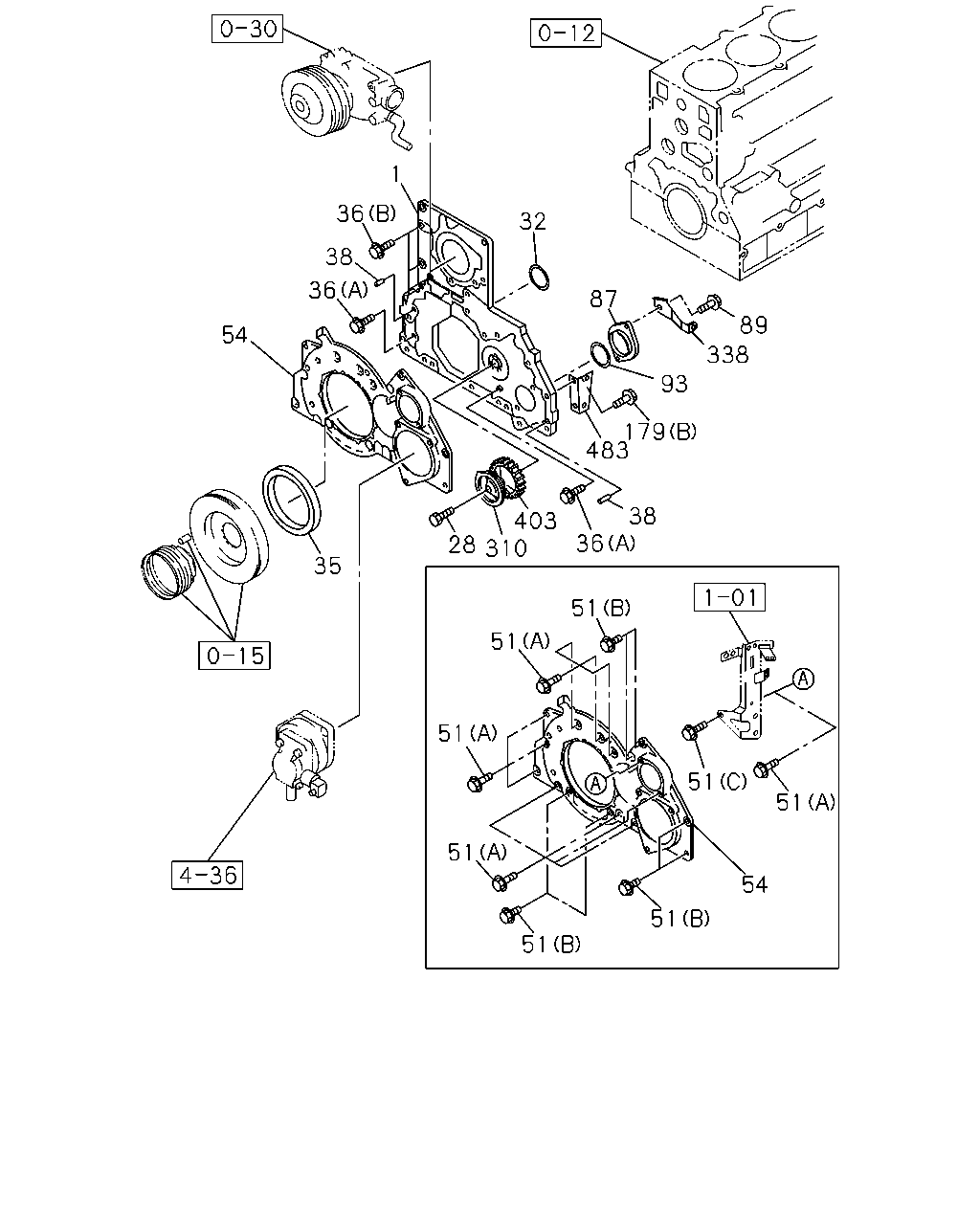

1	CASE; TIMING GEAR	8-94393-110-2	01	1	9601-9609	●
1	CASE; TIMING GEAR	8-94393-110-2	01	1	9610-9802	●	●
1	CASE; TIMING GEAR	8-94396-434-5	01	1	9803-9803	●	●
1	CASE; TIMING GEAR	8-94396-434-5	01	1	9804-0106		●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0107-			●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9601-9609	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9610-9803	●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9804-0106		●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0107-			●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9601-9609	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9610-9803	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9804-9805		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-0106		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0107-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9601-9609	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9610-9803	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9804-0106		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0107-0112			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-540-3	01	1	9601-				●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9601-9609	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9610-9803	●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9804-0106		●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0107-0801			●
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-			●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9601-9609	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9610-9803	●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9804-0106		●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0107-0801			●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-			●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9601-9609	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9610-9803	●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9804-0106		●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0107-			●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9601-9803	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	9610-0106		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0107-0512			●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-			●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9601-9803	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9601-9609	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9610-9803	●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9804-0106		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0107-0512			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-			●
51	BOLT; GEAR CASE COVER (D) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9601-0906				●
51	BOLT; GEAR CASE COVER (D) M8X45 W/LK&PL WASHER	0-50640-845-0	08	1	0907-				●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9601-9609	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9610-9803	●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9804-0106		●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0107-			●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9601-9609	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9610-9803	●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9804-0106		●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0107-			●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9601-9609	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9610-9803	●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9804-0106		●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0107-			●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9601-9609	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9610-9803	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9804-0106		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0107-			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9609	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9610-9803	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9804-0106		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9601-9609	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9610-9803	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9804-0106		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9601-9609	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9610-9803	●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9804-0106		●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0107-			●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9601-9609	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9610-9803	●	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9804-0106		●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0107-			●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9601-9609	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9610-9803	●	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9804-0106		●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0107-			●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9601-9609	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9610-9803	●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9804-0106		●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0107-			●

268 51 80 270 177 35 229 177 290 216 222 115 485 62 278 213 115 177 26 175 2 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

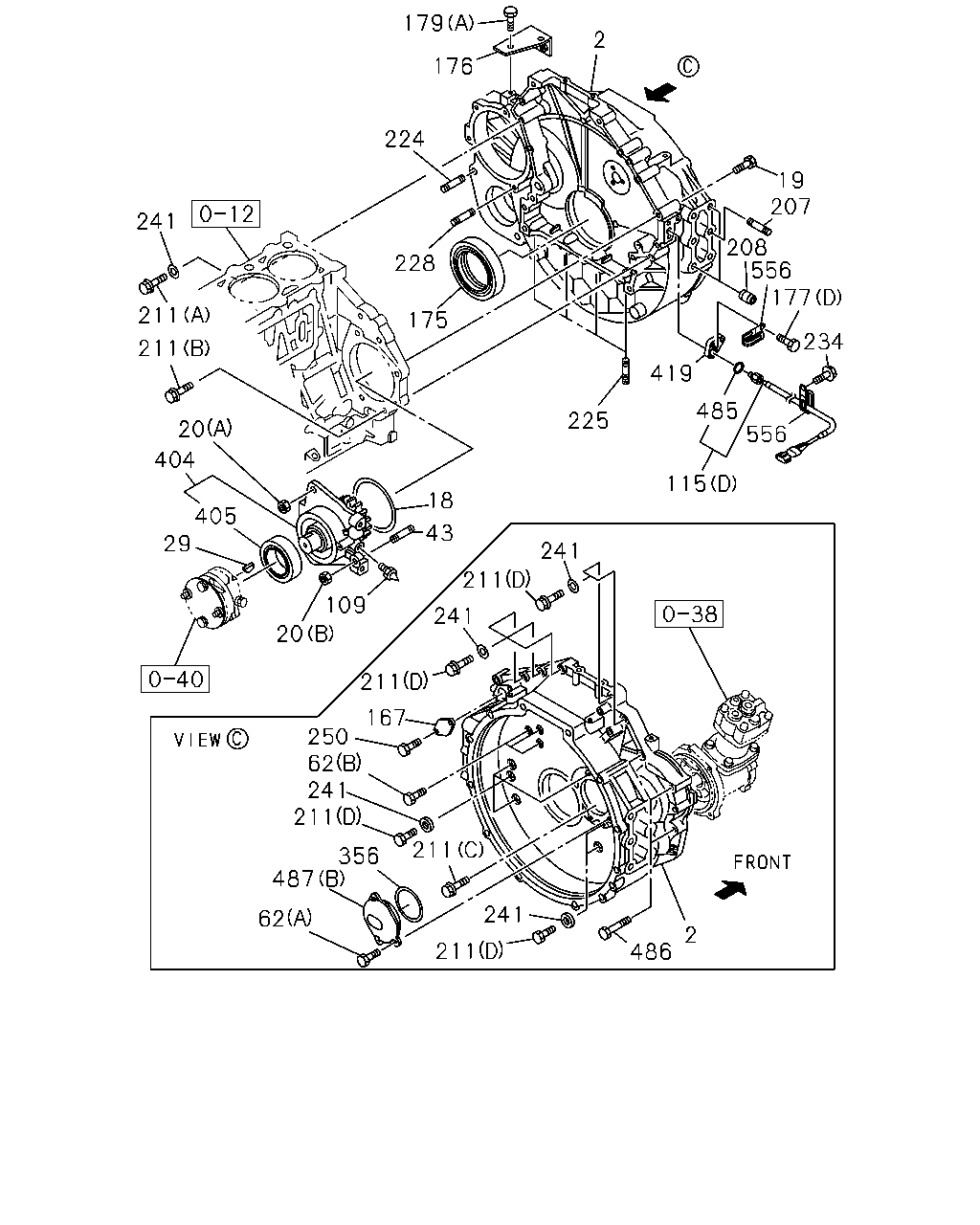

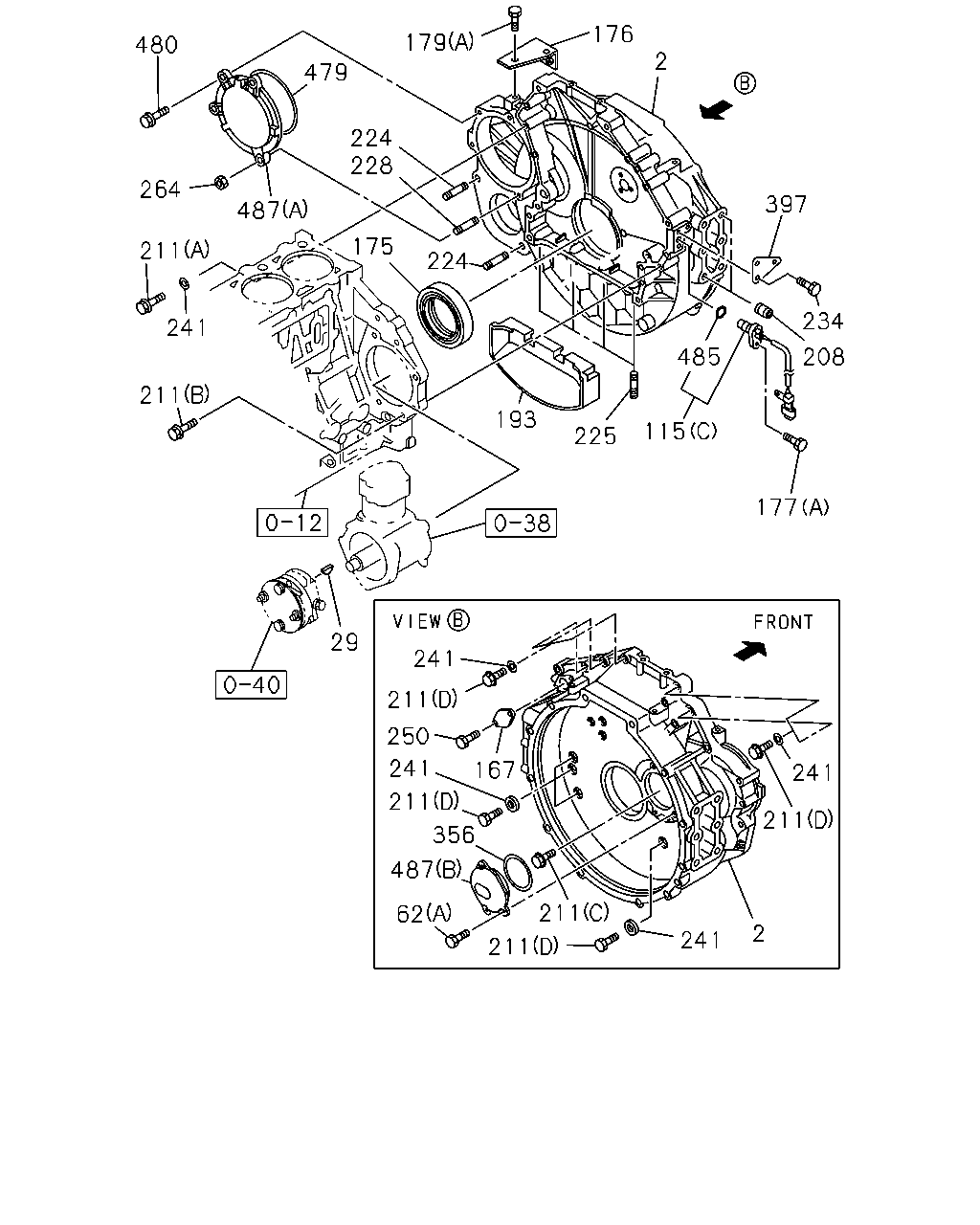

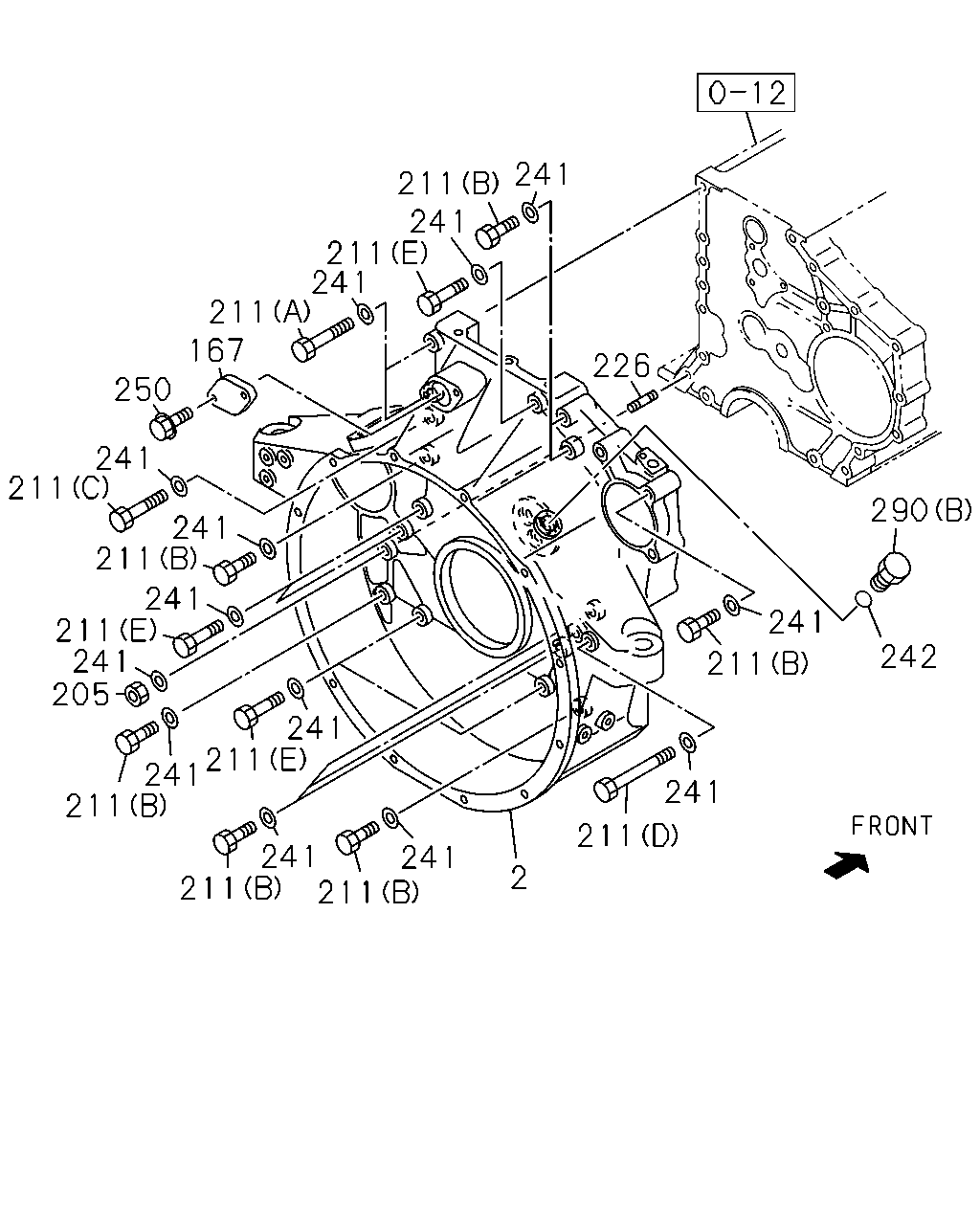

2	HOUSING; FLYWHEEL	8-94395-972-1	01	1	9601-9803	●
2	HOUSING; FLYWHEEL	1-11341-498-1	01	1	9601-9609				●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	1-11341-498-3	01	1	9610-9803				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	1-11341-521-4	01	1	9610-9803				●
2	HOUSING; FLYWHEEL	1-11341-521-5	01	1	9804-0106				●
2	HOUSING; FLYWHEEL	1-11341-579-0	01	1	0107-0110				●
2	HOUSING; FLYWHEEL	1-11341-668-1	01	1	0111-				●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9610-9902		●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	9903-0106		●
2	HOUSING; FLYWHEEL	8-97601-766-1	01	1	0107-			●
26	ADAPTER EURO2 SPECIFICATION<THN>	1-81519-012-0	01	1	9610-9803				●
26	ADAPTER	1-81519-012-0	01	1	9804-0106				●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9601-9609	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9610-9803	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9804-0106		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0107-0112			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-540-3	01	1	9601-				●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9601-9803	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	9610-0106		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0107-0512			●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-			●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9601-9803	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9601-9609	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9610-9803	●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9804-0106		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0107-0512			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-			●
51	BOLT; GEAR CASE COVER (D) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9601-0906				●
51	BOLT; GEAR CASE COVER (D) M8X45 W/LK&PL WASHER	0-50640-845-0	08	1	0907-				●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9601-9609	●			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9610-9803	●	●		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9804-0106		●		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0107-			●	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9610-0106		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0107-0512			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-			●
80	NUT; COVER M10 FLANGE	0-91150-110-0	04	1	9601-0602				●
80	NUT; COVER M10 FLANGE	0-91180-110-0	04	1	0603-				●
115	SENSOR; REVOLUTION,ENG SPD (C)	1-81510-561-0	01	1	9601-9803	●
115	SENSOR; REVOLUTION,ENG SPD (A)	1-81510-343-2	01	1	9601-9609				●
115	SENSOR; REVOLUTION,ENG SPD EXC. EURO2 SPECIFICATION<THN> (A)	1-81510-343-2	01	1	9610-9803				●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN> (B)	1-80240-003-1	01	1	9610-9803				●
115	SENSOR; REVOLUTION,ENG SPD (B)	1-80240-003-1	01	1	9804-0106				●
115	SENSOR; REVOLUTION,ENG SPD (B)	8-94390-279-0	01	1	0107-				●
115	SENSOR; REVOLUTION,ENG SPD (D)	1-81510-549-1	01	1	9610-0002		●
115	SENSOR; REVOLUTION,ENG SPD (D)	8-97601-117-0	01	1	0003-0106		●
115	SENSOR; REVOLUTION,ENG SPD (D)	8-97601-747-4	01	1	0107-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9601-9609	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9610-9803	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9804-0106		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0107-0112			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-541-2	01	1	9601-				●
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28080-616-0	01	1	9601-9803	●
177	BOLT; SENSOR (B) M6X18 W/LK WASHER	0-50040-618-0	01	1	9601-0106				●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28680-820-0	01	1	9610-9803				●
177	BOLT; SENSOR (C) M8X20 FLANGE	0-28680-820-0	01	1	9804-0106				●
177	BOLT; SENSOR (C) M6X16 FLANGE	0-28680-616-0	01	1	0107-0512				●
177	BOLT; SENSOR (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-				●
177	BOLT; SENSOR (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-0106		●
177	BOLT; SENSOR (D) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512			●
177	BOLT; SENSOR (D) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	9601-0106				●
213	POINTER; FLYWHEEL HSG	1-11342-027-0	01	1	0107-0203				●
213	POINTER; FLYWHEEL HSG	1-11342-029-0	01	1	0204-				●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	9601-				●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91150-108-0	02	1	9601-0602				●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91180-108-0	02	1	0603-				●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9601-9609	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9610-9803	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9804-0106		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0107-0604			●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-			●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9601-0604				●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-				●
229	COVER; TIMING CHECK HOLE	1-11349-126-0	01	1	9601-				●
268	COVER; FRT	1-11321-085-3	01	1	9601-				●
270	STUD; FRT COVER M8X20	9-04010-820-0	06	1	9601-				●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9601-				●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-0106				●
290	PLUG; SENSOR HOLE EURO2 SPECIFICATION<THN> (A)	1-11349-157-0	01	1	9610-9803				●
290	PLUG; SENSOR HOLE (A)	1-11349-157-0	01	1	9804-0106				●
485	GASKET; SENSOR	9-09565-212-0	01	1	9601-9609	●			●
485	GASKET; SENSOR	9-09565-212-0	01	1	9610-9803	●
485	GASKET; SENSOR EXC. EURO2 SPECIFICATION<THN>	9-09565-212-0	01	1	9610-9803				●

241 211 241 211 241 211 167 226 250 241 211 290 241 211 241 211 241 205 241 242 211 241 211 241 211 241 211 241 241 211 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOUSING; FLYWHEEL	8-94395-972-1	01	1	9601-9803	●
2	HOUSING; FLYWHEEL	1-11341-498-1	01	1	9601-9609				●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	1-11341-498-3	01	1	9610-9803				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	1-11341-521-4	01	1	9610-9803				●
2	HOUSING; FLYWHEEL	1-11341-521-5	01	1	9804-0106				●
2	HOUSING; FLYWHEEL	1-11341-579-0	01	1	0107-0110				●
2	HOUSING; FLYWHEEL	1-11341-668-1	01	1	0111-				●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9610-9902		●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	9903-0106		●
2	HOUSING; FLYWHEEL	8-97601-766-1	01	1	0107-			●
167	COVER; OIL	1-11219-163-0	01	1	9601-9609	●
167	COVER; OIL	1-11219-163-0	01	1	9610-9803	●	●
167	COVER; OIL	1-11219-163-0	01	1	9804-0106		●
167	COVER; OIL	1-11219-163-0	01	1	0107-			●
167	COVER; OIL	1-11749-103-0	01	1	9601-				●
205	NUT; HSG M12	9-99110-412-0	01	1	9601-0512				●
205	NUT; HSG M12	0-91110-512-0	01	1	0601-				●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9601-9607	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9601-9609	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9610-9803	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9804-0106		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0107-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
211	BOLT; HSG (A) M14X40 FLANGE	0-28791-440-0	01	1	9601-9803	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9601-9609	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9610-9803	●	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9804-0106		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0107-			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9601-9609	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9610-9803	●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9804-0106		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0107-0512			●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-			●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-0512				●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-				●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-0512				●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-				●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-0512				●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-				●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-				●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-				●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9610-9703		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9704-9803	●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9804-0106		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0107-0512			●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-			●
226	STUD; HSG M12X60 L=78	9-94411-260-0	01	1	9601-0604				●
226	STUD; HSG M12X60 L=78	0-44011-260-0	01	1	0605-				●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9601-9609	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9610-9803	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9804-0106		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0107-			●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9601-				●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	9601-0106				●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9601-9609	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9610-9803	●	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9804-0106		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0107-			●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9601-0512				●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-0106				●
290	PLUG; SENSOR HOLE EURO2 SPECIFICATION<THN> (A)	1-11349-157-0	01	1	9610-9803				●
290	PLUG; SENSOR HOLE (A)	1-11349-157-0	01	1	9804-0106				●

176 179 480 2 479 224 228 264 397 487 175 211 224 234 241 485 208 211 193 115 225 177 29 241 211 250 241 167 241 211 211 356 487 211 62 2 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOUSING; FLYWHEEL	8-94395-972-1	01	1	9601-9803	●
2	HOUSING; FLYWHEEL	1-11341-498-1	01	1	9601-9609				●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	1-11341-498-3	01	1	9610-9803				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	1-11341-521-4	01	1	9610-9803				●
2	HOUSING; FLYWHEEL	1-11341-521-5	01	1	9804-0106				●
2	HOUSING; FLYWHEEL	1-11341-579-0	01	1	0107-0110				●
2	HOUSING; FLYWHEEL	1-11341-668-1	01	1	0111-				●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9610-9902		●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	9903-0106		●
2	HOUSING; FLYWHEEL	8-97601-766-1	01	1	0107-			●
29	KEY; COUPLING	9-08055-416-0	01	1	9601-9803	●
29	KEY; COUPLING	9-08055-516-0	01	1	9610-0106		●
29	KEY; COUPLING	9-08055-516-0	02	1	0107-0109			●
29	KEY; COUPLING	9-08055-516-0	01	1	0110-			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9601-9609	●			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9610-9803	●	●		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9804-0106		●		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0107-			●	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9610-0106		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0107-0512			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-			●
115	SENSOR; REVOLUTION,ENG SPD (C)	1-81510-561-0	01	1	9601-9803	●
115	SENSOR; REVOLUTION,ENG SPD (A)	1-81510-343-2	01	1	9601-9609				●
115	SENSOR; REVOLUTION,ENG SPD EXC. EURO2 SPECIFICATION<THN> (A)	1-81510-343-2	01	1	9610-9803				●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN> (B)	1-80240-003-1	01	1	9610-9803				●
115	SENSOR; REVOLUTION,ENG SPD (B)	1-80240-003-1	01	1	9804-0106				●
115	SENSOR; REVOLUTION,ENG SPD (B)	8-94390-279-0	01	1	0107-				●
115	SENSOR; REVOLUTION,ENG SPD (D)	1-81510-549-1	01	1	9610-0002		●
115	SENSOR; REVOLUTION,ENG SPD (D)	8-97601-117-0	01	1	0003-0106		●
115	SENSOR; REVOLUTION,ENG SPD (D)	8-97601-747-4	01	1	0107-			●
167	COVER; OIL	1-11219-163-0	01	1	9601-9609	●
167	COVER; OIL	1-11219-163-0	01	1	9610-9803	●	●
167	COVER; OIL	1-11219-163-0	01	1	9804-0106		●
167	COVER; OIL	1-11219-163-0	01	1	0107-			●
167	COVER; OIL	1-11749-103-0	01	1	9601-				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9601-9609	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9610-9803	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9804-0106		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0107-0112			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-541-2	01	1	9601-				●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9601-9609	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9610-9803	●	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9804-0106		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0107-			●
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28080-616-0	01	1	9601-9803	●
177	BOLT; SENSOR (B) M6X18 W/LK WASHER	0-50040-618-0	01	1	9601-0106				●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28680-820-0	01	1	9610-9803				●
177	BOLT; SENSOR (C) M8X20 FLANGE	0-28680-820-0	01	1	9804-0106				●
177	BOLT; SENSOR (C) M6X16 FLANGE	0-28680-616-0	01	1	0107-0512				●
177	BOLT; SENSOR (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-				●
177	BOLT; SENSOR (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-0106		●
177	BOLT; SENSOR (D) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512			●
177	BOLT; SENSOR (D) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9609	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9610-9803	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9804-0106		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9601-9609	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9610-9803	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9804-0106		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
193	SPACER; STAY TO OIL,PAN	8-94395-674-0	01	1	9601-9803	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9601-9609	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9610-9803	●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9804-9908		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0001-0106		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0107-			●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9601-9607	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9601-9609	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9610-9803	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9804-0106		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0107-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
211	BOLT; HSG (A) M14X40 FLANGE	0-28791-440-0	01	1	9601-9803	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9601-9609	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9610-9803	●	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9804-0106		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0107-			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9601-9609	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9610-9803	●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9804-0106		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0107-0512			●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-			●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-0512				●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-				●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-0512				●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-				●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-0512				●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-				●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-				●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-				●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9610-9703		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9704-9803	●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9804-0106		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0107-0512			●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-			●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9601-9609	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9610-9803	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9804-0106		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0107-0604			●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-			●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9601-0604				●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-				●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9601-9609	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9610-9803	●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9804-0106		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0107-			●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9601-9803	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9804-0106		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0107-0604			●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-			●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9610-9701		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9702-9803	●	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9601-9803	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0107-0512			●
234	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9601-9609	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9610-9803	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9804-0106		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0107-			●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9601-				●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9601-9609	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9610-9803	●	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9804-0106		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0107-			●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9601-0512				●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
264	NUT; COVER M12 FLANGE	0-91150-212-0	01	1	9601-9803	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9601-9609	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9610-9803	●	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9804-0106		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0107-			●
397	BRACKET; CONNECTOR	8-94394-411-1	01	1	9601-9803	●
479	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9601-9803	●
480	BOLT; COVER M12X70 FLANGE	0-28181-270-0	03	1	9601-9803	●
485	GASKET; SENSOR	9-09565-212-0	01	1	9601-9609	●			●
485	GASKET; SENSOR	9-09565-212-0	01	1	9610-9803	●
485	GASKET; SENSOR EXC. EURO2 SPECIFICATION<THN>	9-09565-212-0	01	1	9610-9803				●
487	COVER; HOLE (A)	8-94394-381-1	01	1	9601-9803	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9601-9609	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9610-9803	●	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9804-0106		●
487	COVER; HOLE (B)	8-94394-513-1	01	1	0107-0805			●
487	COVER; HOLE (B)	8-98023-824-1	01	1	0806-			●

179 2 176 224 19 207 241 208 556 177 228 211 175 234 211 419 485 556 225 20 404 115 18 405 29 43 241 211 109 241 20 211 167 250 62 241 211 211 356 487 241 62 2 211 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOUSING; FLYWHEEL	8-94395-972-1	01	1	9601-9803	●
2	HOUSING; FLYWHEEL	1-11341-498-1	01	1	9601-9609				●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	1-11341-498-3	01	1	9610-9803				●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	1-11341-521-4	01	1	9610-9803				●
2	HOUSING; FLYWHEEL	1-11341-521-5	01	1	9804-0106				●
2	HOUSING; FLYWHEEL	1-11341-579-0	01	1	0107-0110				●
2	HOUSING; FLYWHEEL	1-11341-668-1	01	1	0111-				●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9610-9902		●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	9903-0106		●
2	HOUSING; FLYWHEEL	8-97601-766-1	01	1	0107-			●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9610-0106		●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0107-			●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	9610-0106		●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	0107-0512			●
19	BOLT; BRG CASE M12X100 FLANGE	0-28151-200-0	01	1	0601-			●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	9610-0106		●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	0107-0602			●
20	NUT; BRG CASE (A) M10 FLANGE	0-91180-110-0	02	1	0603-			●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	9610-0106		●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	0107-0602			●
20	NUT; BRG CASE (B) M12 FLANGE	0-91180-212-0	01	1	0603-			●
29	KEY; COUPLING	9-08055-416-0	01	1	9601-9803	●
29	KEY; COUPLING	9-08055-516-0	01	1	9610-0106		●
29	KEY; COUPLING	9-08055-516-0	02	1	0107-0109			●
29	KEY; COUPLING	9-08055-516-0	01	1	0110-			●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	9610-0106		●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	0107-			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9601-9609	●			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9610-9803	●	●		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9804-0106		●		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0107-			●	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9610-0106		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0107-0512			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-			●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	9610-0106		●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	0107-			●
115	SENSOR; REVOLUTION,ENG SPD (C)	1-81510-561-0	01	1	9601-9803	●
115	SENSOR; REVOLUTION,ENG SPD (A)	1-81510-343-2	01	1	9601-9609				●
115	SENSOR; REVOLUTION,ENG SPD EXC. EURO2 SPECIFICATION<THN> (A)	1-81510-343-2	01	1	9610-9803				●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN> (B)	1-80240-003-1	01	1	9610-9803				●
115	SENSOR; REVOLUTION,ENG SPD (B)	1-80240-003-1	01	1	9804-0106				●
115	SENSOR; REVOLUTION,ENG SPD (B)	8-94390-279-0	01	1	0107-				●
115	SENSOR; REVOLUTION,ENG SPD (D)	1-81510-549-1	01	1	9610-0002		●
115	SENSOR; REVOLUTION,ENG SPD (D)	8-97601-117-0	01	1	0003-0106		●
115	SENSOR; REVOLUTION,ENG SPD (D)	8-97601-747-4	01	1	0107-			●
167	COVER; OIL	1-11219-163-0	01	1	9601-9609	●
167	COVER; OIL	1-11219-163-0	01	1	9610-9803	●	●
167	COVER; OIL	1-11219-163-0	01	1	9804-0106		●
167	COVER; OIL	1-11219-163-0	01	1	0107-			●
167	COVER; OIL	1-11749-103-0	01	1	9601-				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9601-9609	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9610-9803	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9804-0106		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0107-0112			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-541-2	01	1	9601-				●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9601-9609	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9610-9803	●	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9804-0106		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0107-			●
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28080-616-0	01	1	9601-9803	●
177	BOLT; SENSOR (B) M6X18 W/LK WASHER	0-50040-618-0	01	1	9601-0106				●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28680-820-0	01	1	9610-9803				●
177	BOLT; SENSOR (C) M8X20 FLANGE	0-28680-820-0	01	1	9804-0106				●
177	BOLT; SENSOR (C) M6X16 FLANGE	0-28680-616-0	01	1	0107-0512				●
177	BOLT; SENSOR (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-				●
177	BOLT; SENSOR (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-0106		●
177	BOLT; SENSOR (D) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512			●
177	BOLT; SENSOR (D) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9609	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9610-9803	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9804-0106		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9601-9609	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9610-9803	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9804-0106		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
207	STUD; ENG FOOT M12X24 L=104	8-94390-111-0	02	1	0107-			●
207	STUD; ENG FOOT M12X10 L=55	9-94321-255-0	06	1	0107-0604			●
207	STUD; ENG FOOT M12X10 L=55	0-43211-255-0	06	1	0605-			●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9601-9609	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9610-9803	●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9804-9908		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0001-0106		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0107-			●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9601-9607	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9601-9609	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9610-9803	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9804-0106		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0107-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
211	BOLT; HSG (A) M14X40 FLANGE	0-28791-440-0	01	1	9601-9803	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9601-9609	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9610-9803	●	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9804-0106		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0107-			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9601-9609	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9610-9803	●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9804-0106		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0107-0512			●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-			●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-0512				●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-				●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-0512				●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-				●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-0512				●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-				●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-				●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-				●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9610-9703		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9704-9803	●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9804-0106		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0107-0512			●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-			●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9601-9609	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9610-9803	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9804-0106		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0107-0604			●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-			●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9601-0604				●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-				●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9601-9609	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9610-9803	●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9804-0106		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0107-			●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9601-9803	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9804-0106		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0107-0604			●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-			●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9610-9701		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9702-9803	●	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9601-9803	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0107-0512			●
234	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9601-9609	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9610-9803	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9804-0106		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0107-			●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9601-				●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9601-9609	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9610-9803	●	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9804-0106		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0107-			●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9601-0512				●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9601-9609	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9610-9803	●	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9804-0106		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0107-			●
404	CASE ASM; BRG,INJ PUMP	8-94395-014-5	01	1	9610-9703		●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	9704-0106		●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	0107-			●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	9610-0106		●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	0107-			●
419	BRACKET; SENSOR	8-94394-773-1	01	1	9610-0106		●
419	BRACKET; SENSOR	8-97600-360-0	01	1	0107-			●
485	GASKET; SENSOR	9-09565-212-0	01	1	9601-9609	●			●
485	GASKET; SENSOR	9-09565-212-0	01	1	9610-9803	●
485	GASKET; SENSOR EXC. EURO2 SPECIFICATION<THN>	9-09565-212-0	01	1	9610-9803				●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	9610-0106		●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	02	1	0107-0512			●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28151-270-0	02	1	0601-			●
486	BOLT; AIR CMPR M12X15	0-28186-215-0	01	1	0107-0512			●
486	BOLT; AIR CMPR M12X15	0-28156-215-0	01	1	0601-			●
487	COVER; HOLE (A)	8-94394-381-1	01	1	9601-9803	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9601-9609	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9610-9803	●	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9804-0106		●
487	COVER; HOLE (B)	8-94394-513-1	01	1	0107-0805			●
487	COVER; HOLE (B)	8-98023-824-1	01	1	0806-			●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0003-0106		●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	03	1	0107-0801			●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-97367-985-1	03	1	0802-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
