Sayfa 0-15 - Isuzu EPC

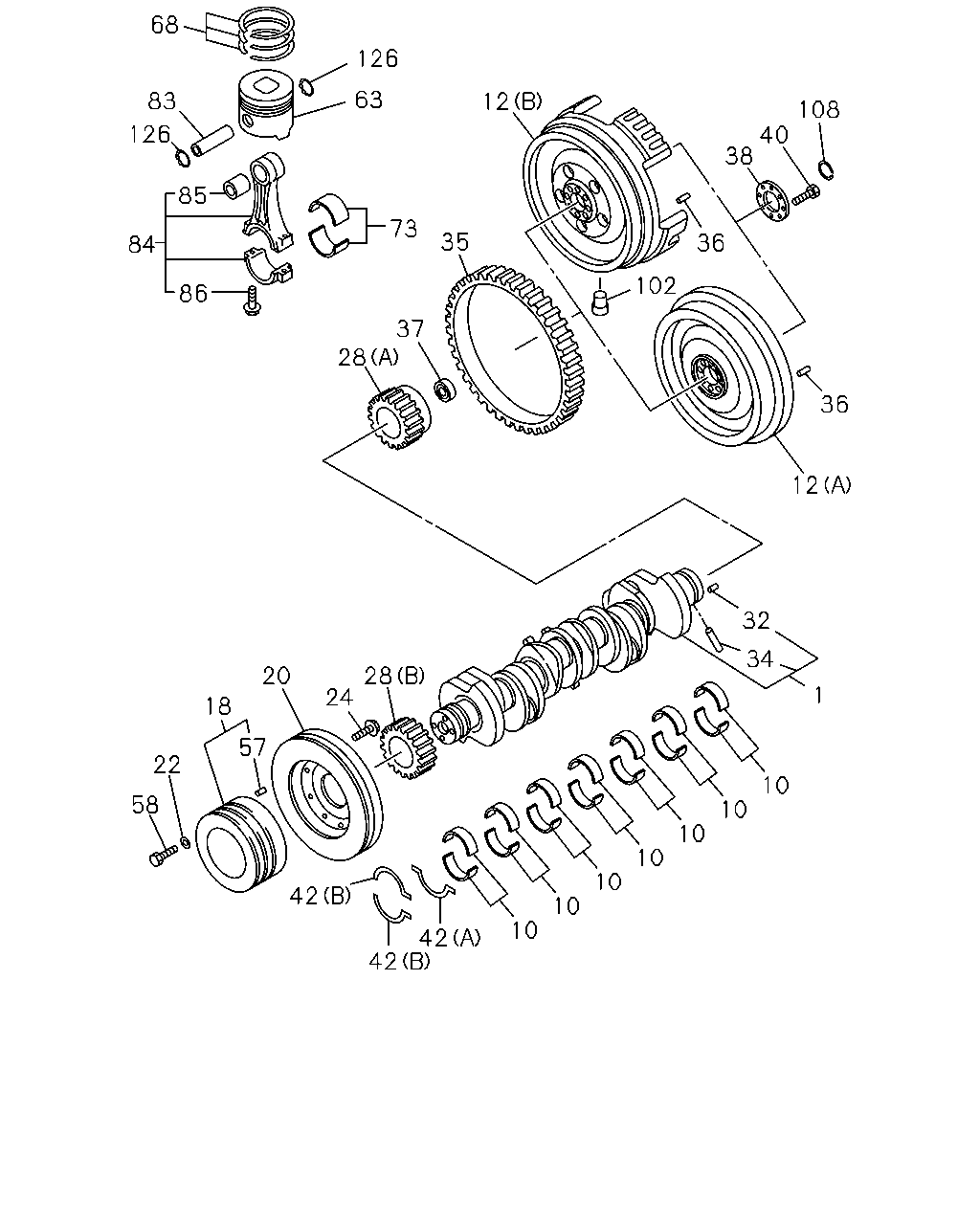

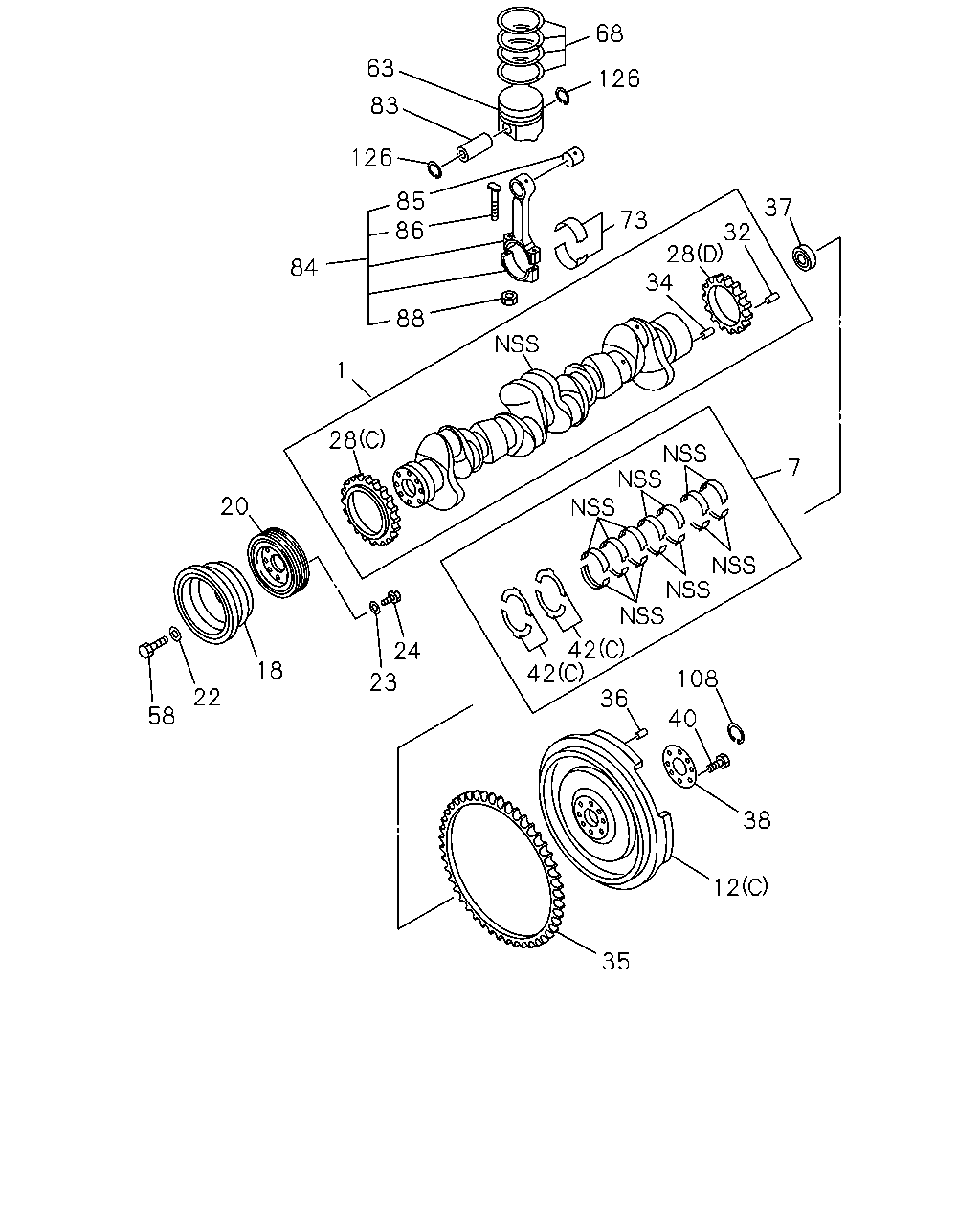

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#30962) — 337 parça

68 63 126 83 126 85 37 73 86 32 28 34 84 88 1 28 7 20 42 42 24 18 108 23 22 36 58 40 38 12 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT	8-94393-291-3	01	1	9601-9803	●
1	CRANKSHAFT	1-12310-668-0	01	1	9601-		●
1	CRANKSHAFT	8-94396-737-4	01	1	9610-0106			●
1	CRANKSHAFT	8-94396-737-4	01	1	0107-0305				●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-				●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-0	01	1	9601-0106		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-108-3	01	1	0107-		●
12	FLYWHEEL (A)	8-94393-849-1	01	1	9601-9803	●
12	FLYWHEEL (C)	1-12331-162-4	01	1	9601-0106		●
12	FLYWHEEL (C)	1-12331-388-0	01	1	0107-		●
12	FLYWHEEL (B)	8-94395-450-1	01	1	9610-0106			●
12	FLYWHEEL (B)	8-97601-269-1	01	1	0107-				●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	9601-9803	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-359-2	01	1	9601-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	9610-0106			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0107-				●
20	DAMPER; CR/SHF	8-94394-354-3	01	1	9601-9602	●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	9603-9803	●
20	DAMPER; CR/SHF	1-12375-180-2	01	1	9601-		●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	9610-0106			●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0107-1110				●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-				●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9601-9609	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9610-9803	●	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9804-0106		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0107-		●		●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9601-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9601-9609	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9610-9803	●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9804-0106			●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0107-0512				●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-				●
24	BOLT; DAMPER	9-02361-220-0	08	1	9601-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9601-9609	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9610-9803	●		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9804-0106			●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0107-				●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9601-9609	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9610-9803	●		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9804-0106			●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0107-				●
28	GEAR; CR/SHF (C) Z=53	1-12521-027-1	01	1	9601-		●
28	GEAR; CR/SHF (D) Z=46	1-12521-053-1	01	1	9601-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9601-9609	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9610-9803	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9804-0106			●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0107-				●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9601-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9601-9609	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9610-9803	●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9804-0106		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0107-		●		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9601-9609	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9610-9803	●		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9804-0106			●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0107-				●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9601-0501		●
35	GEAR; RING Z=140	1-12333-025-0	01	1	0502-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9601-9612	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9701-9803	●	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9804-0106		●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0107-		●		●
36	PIN; FLYWHEEL	9-08150-825-0	02	1	9610-9612			●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9601-9609	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9610-9803	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9804-9901		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9902-		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-0106			●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0107-				●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9601-9609	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9610-9803	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9804-0106			●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0107-				●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	9601-		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9601-9609	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9610-9803	●		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9804-0106			●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0107-				●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9601-0905		●
40	BOLT; FLYWHEEL M16X62	1-09070-146-1	08	1	0906-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9601-9609	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9610-9803	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9804-0106			●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0107-0703				●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-				●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9601-9609	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9610-9803	●		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9804-0106			●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0107-0703				●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-				●
42	WASHER; THRUST,CR/SHF (C)	1-11599-007-1	02	1	9601-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9601-9609	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9610-9803	●		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9804-0106			●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0107-0512				●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-				●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9601-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-598-0	06	1	9601-9608	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-0	06	1	9609-9803	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	9601-0106		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-985-0	06	1	0107-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12112-013-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	9601-0106		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-986-0	06	1	0107-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12112-014-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	9610-0106			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-109-0	06	1	0107-				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9601-9606	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-0	06	1	9607-9803	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-119-3	06	1	9601-9709		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	9710-0106		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0107-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9610-0106			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0107-				●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9710-9803	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	9601-0106		●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0107-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	9610-0106			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0107-0706				●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	9610-0106			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0107-0706				●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-				●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-				●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	06	1	9601-9803	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	9601-0106		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0107-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9610-0106			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0107-				●
84	ROD ASM; CONN	8-94396-394-2	06	1	9601-9803	●
84	ROD ASM; CONN	1-12230-097-0	06	1	9601-0106		●
84	ROD ASM; CONN	1-12230-180-1	06	1	0107-		●
84	ROD ASM; CONN	8-94399-661-1	06	1	9610-0106			●
84	ROD ASM; CONN	8-94399-661-1	06	1	0107-0108				●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305				●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706				●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9601-9803	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	9601-0106		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0107-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9610-0106			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0107-0108				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-				●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9601-9609	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9610-9803	●		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9804-0106			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0107-1004				●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-				●
86	BOLT; CONNROD	1-12235-025-1	12	1	9601-		●
88	NUT; CONNROD	1-09840-003-1	12	1	9601-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9601-9609	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9610-9803	●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9804-0106		●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0107-		●		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	9601-9803	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	9601-0106		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0107-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9610-0106			●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0107-				●

68 126 63 83 12 108 126 40 38 85 73 35 36 84 102 86 37 28 36 12 32 34 20 28 1 24 18 57 22 10 58 10 10 10 10 42 10 10 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT	8-94393-291-3	01	1	9601-9803	●
1	CRANKSHAFT	1-12310-668-0	01	1	9601-		●
1	CRANKSHAFT	8-94396-737-4	01	1	9610-0106			●
1	CRANKSHAFT	8-94396-737-4	01	1	0107-0305				●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-				●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0309-				●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0309-				●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0309-				●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9601-9609	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9601-9609	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9601-9609	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9610-9803	●		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9610-9803	●		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9610-9803	●		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9804-0106			●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9804-0106			●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9804-0106			●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0107-0305				●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0107-0305				●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0107-0305				●
12	FLYWHEEL (A)	8-94393-849-1	01	1	9601-9803	●
12	FLYWHEEL (C)	1-12331-162-4	01	1	9601-0106		●
12	FLYWHEEL (C)	1-12331-388-0	01	1	0107-		●
12	FLYWHEEL (B)	8-94395-450-1	01	1	9610-0106			●
12	FLYWHEEL (B)	8-97601-269-1	01	1	0107-				●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	9601-9803	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-359-2	01	1	9601-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	9610-0106			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0107-				●
20	DAMPER; CR/SHF	8-94394-354-3	01	1	9601-9602	●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	9603-9803	●
20	DAMPER; CR/SHF	1-12375-180-2	01	1	9601-		●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	9610-0106			●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0107-1110				●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-				●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9601-9609	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9610-9803	●	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9804-0106		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0107-		●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9601-9609	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9610-9803	●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9804-0106			●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0107-0512				●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-				●
24	BOLT; DAMPER	9-02361-220-0	08	1	9601-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9601-9609	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9610-9803	●		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9804-0106			●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0107-				●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9601-9609	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9610-9803	●		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9804-0106			●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0107-				●
28	GEAR; CR/SHF (C) Z=53	1-12521-027-1	01	1	9601-		●
28	GEAR; CR/SHF (D) Z=46	1-12521-053-1	01	1	9601-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9601-9609	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9610-9803	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9804-0106			●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0107-				●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9601-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9601-9609	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9610-9803	●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9804-0106		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0107-		●		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9601-9609	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9610-9803	●		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9804-0106			●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0107-				●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9601-0501		●
35	GEAR; RING Z=140	1-12333-025-0	01	1	0502-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9601-9612	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9701-9803	●	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9804-0106		●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0107-		●		●
36	PIN; FLYWHEEL	9-08150-825-0	02	1	9610-9612			●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9601-9609	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9610-9803	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9804-9901		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9902-		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-0106			●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0107-				●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9601-9609	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9610-9803	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9804-0106			●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0107-				●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	9601-		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9601-9609	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9610-9803	●		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9804-0106			●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0107-				●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9601-0905		●
40	BOLT; FLYWHEEL M16X62	1-09070-146-1	08	1	0906-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9601-9609	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9610-9803	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9804-0106			●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0107-0703				●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-				●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9601-9609	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9610-9803	●		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9804-0106			●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0107-0703				●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-				●
42	WASHER; THRUST,CR/SHF (C)	1-11599-007-1	02	1	9601-		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9601-9609	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9610-9612	●		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9701-9803	●		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9804-0106			●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0107-				●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9601-9609	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9610-9803	●		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9804-0106			●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0107-0512				●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-				●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9601-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-598-0	06	1	9601-9608	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-0	06	1	9609-9803	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	9601-0106		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-985-0	06	1	0107-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12112-013-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	9601-0106		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-986-0	06	1	0107-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12112-014-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	9610-0106			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-109-0	06	1	0107-				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9601-9606	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-0	06	1	9607-9803	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-119-3	06	1	9601-9709		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	9710-0106		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0107-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9610-0106			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0107-				●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9710-9803	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	9601-0106		●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0107-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	9610-0106			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0107-0706				●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	9610-0106			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0107-0706				●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-				●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-				●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	06	1	9601-9803	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	9601-0106		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0107-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9610-0106			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0107-				●
84	ROD ASM; CONN	8-94396-394-2	06	1	9601-9803	●
84	ROD ASM; CONN	1-12230-097-0	06	1	9601-0106		●
84	ROD ASM; CONN	1-12230-180-1	06	1	0107-		●
84	ROD ASM; CONN	8-94399-661-1	06	1	9610-0106			●
84	ROD ASM; CONN	8-94399-661-1	06	1	0107-0108				●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305				●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706				●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9601-9803	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	9601-0106		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0107-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9610-0106			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0107-0108				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-				●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9601-9609	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9610-9803	●		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9804-0106			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0107-1004				●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-				●
86	BOLT; CONNROD	1-12235-025-1	12	1	9601-		●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0107-				●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9601-9609	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9610-9803	●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9804-0106		●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0107-		●		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	9601-9803	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	9601-0106		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0107-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9610-0106			●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0107-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
