Sayfa 0-14 - Isuzu EPC

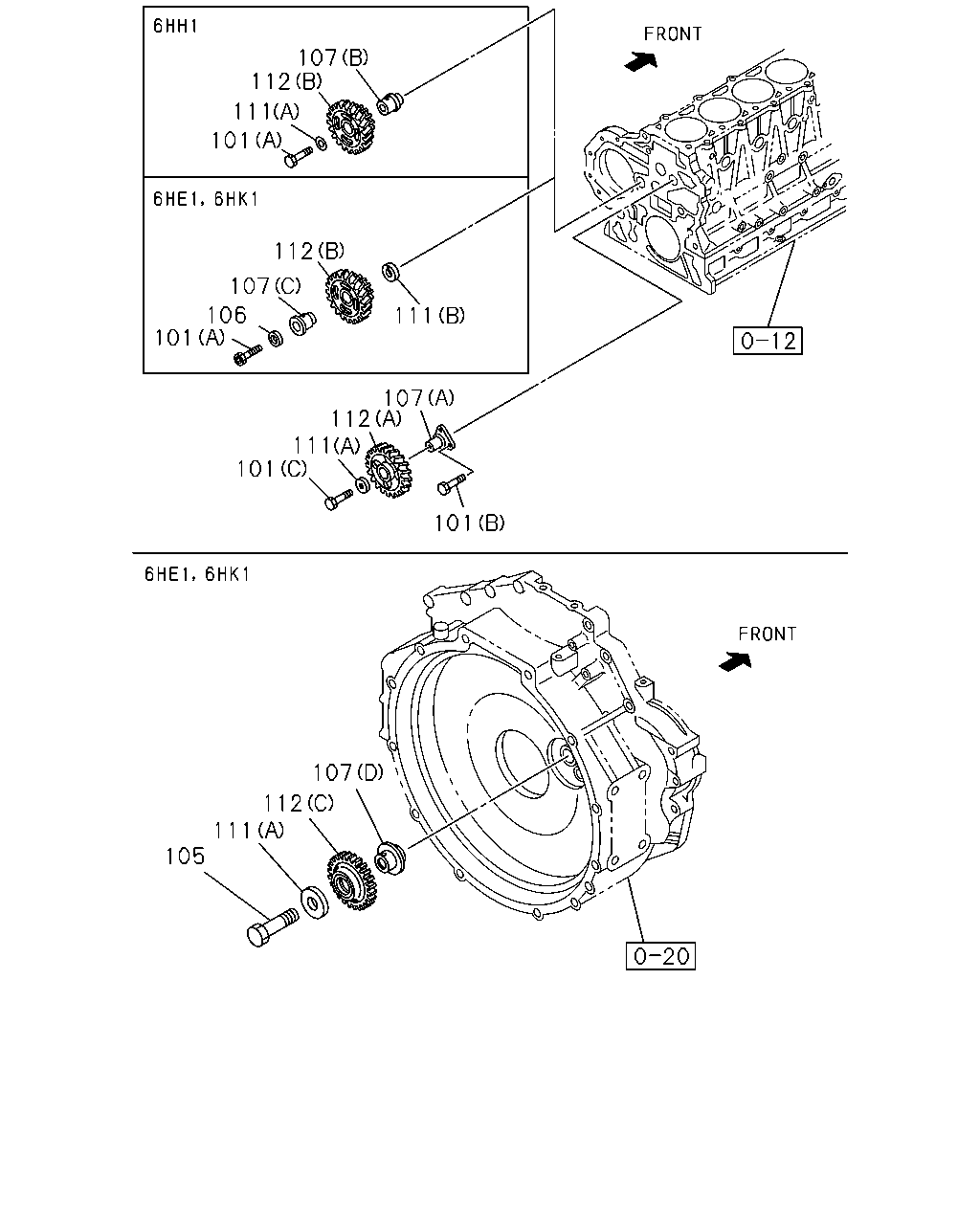

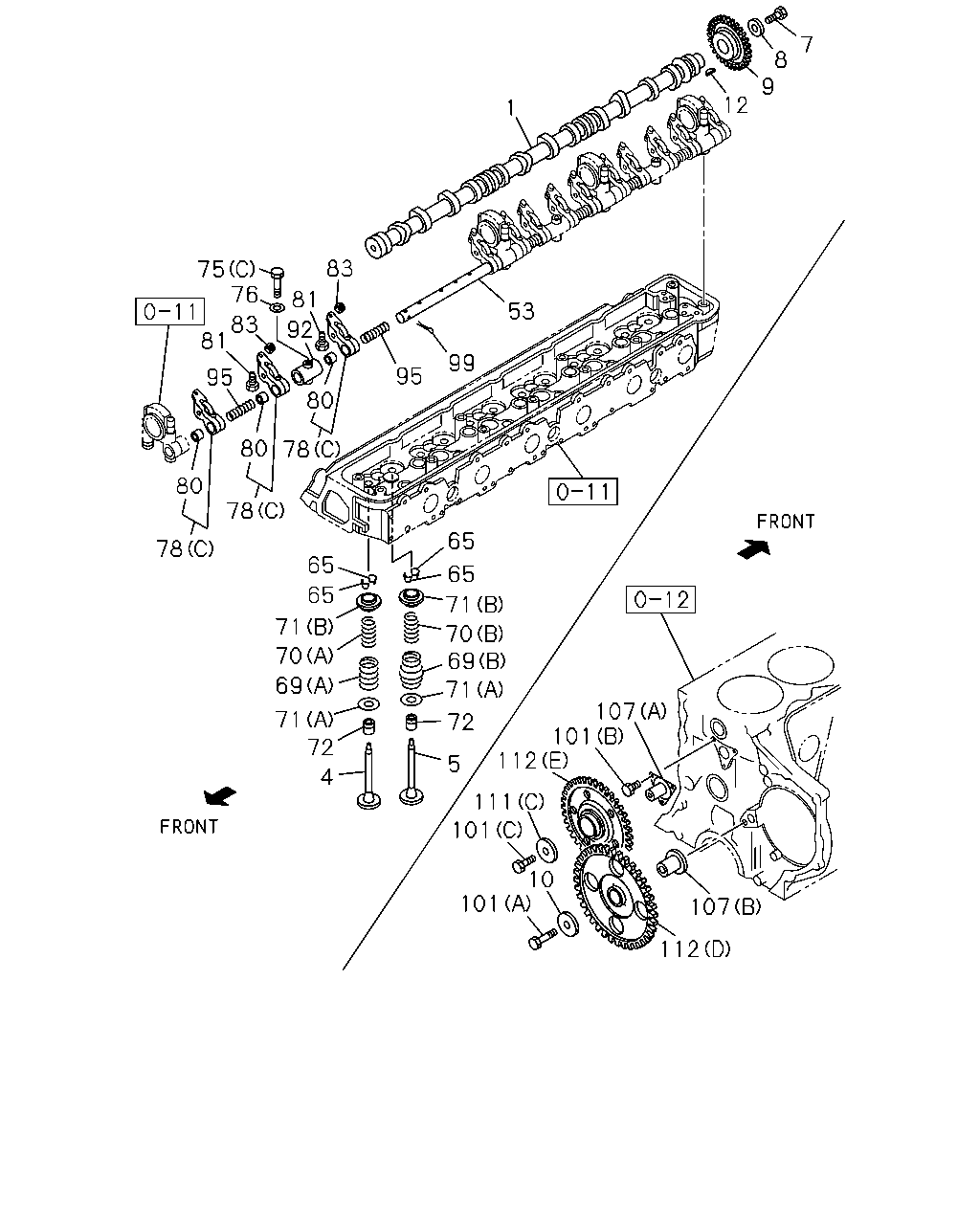

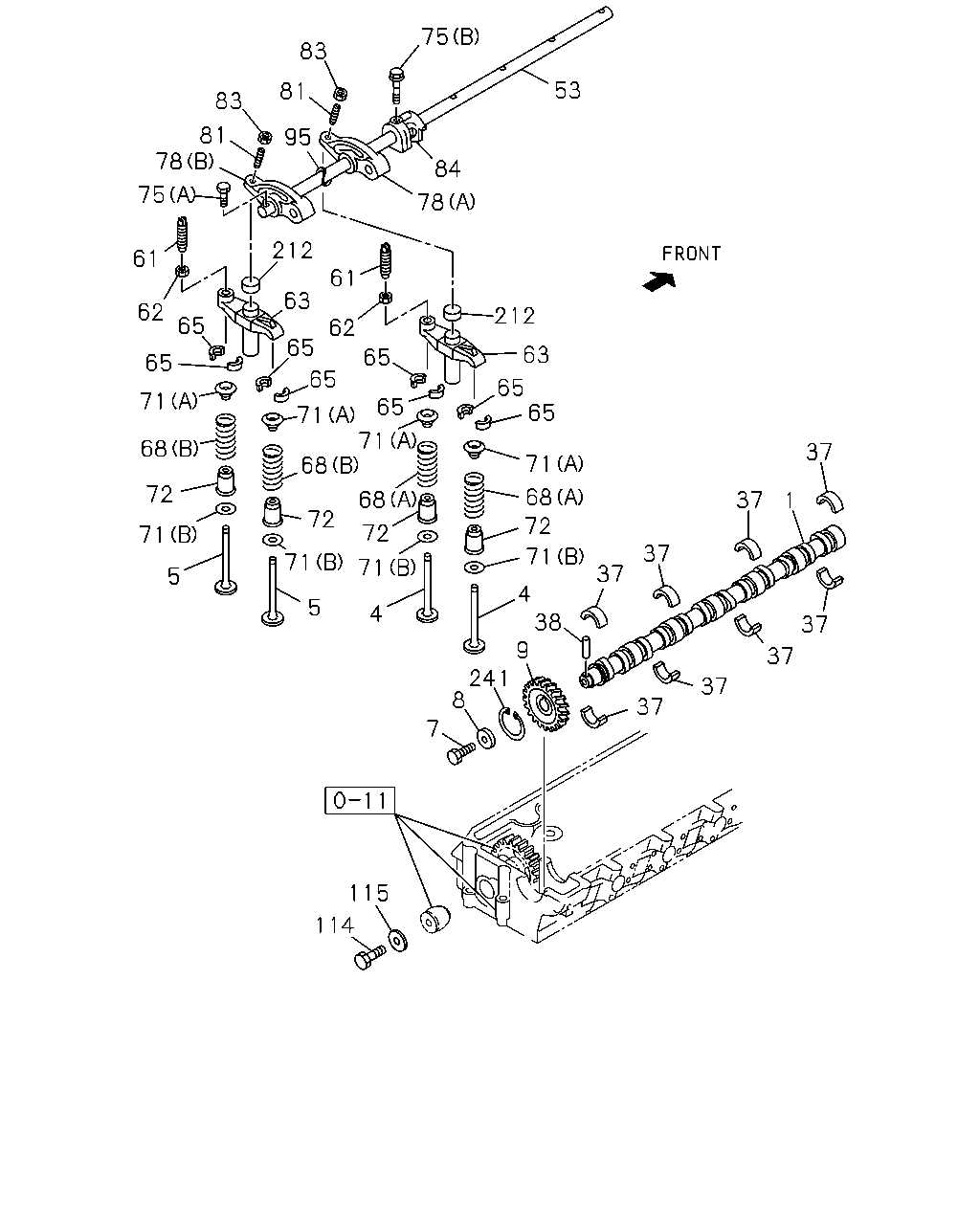

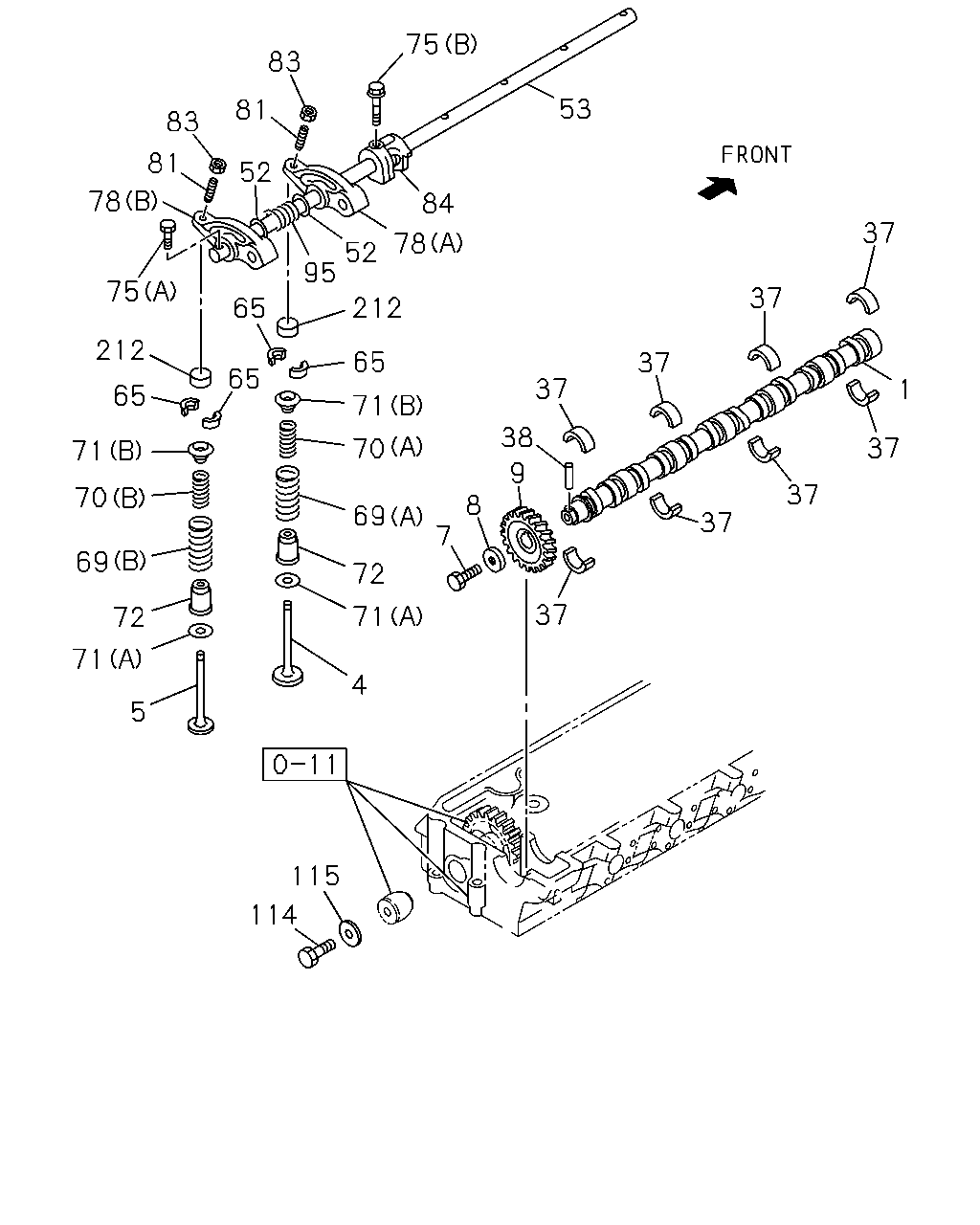

0-14 — CAMSHAFT AND VALVE (#30961) — 526 parça

107 112 101 112 107 106 101 111 107 112 101 101 107 112 111 105 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9601-9611	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9601-9803	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9601-9609	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9610-9803	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9804-0106		●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0107-0512			●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-			●
101	BOLT; THRUST COLLAR (B) M8X14 FLANGE	0-28080-814-0	03	1	9601-				●
101	BOLT; THRUST COLLAR (C) M14X16	1-09000-284-0	01	1	9601-				●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	9601-				●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9610-9611		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9612-9803	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9804-0106		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0107-0512			●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-			●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9610-0106		●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0107-			●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	9610-0106		●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0107-			●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	9610-0106		●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0107-			●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9601-9609	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9610-9803	●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9804-9805		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-0106		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0107-0204			●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-			●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9601-9803	●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	9601-0011				●
107	SHAFT; IDLE GEAR (A)	1-12531-097-2	01	1	0012-				●
107	SHAFT; IDLE GEAR (B)	1-12531-064-0	01	1	9601-0011				●
107	SHAFT; IDLE GEAR (B)	1-12531-099-0	01	1	0012-				●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9610-0106		●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0107-0205			●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-			●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9610-0106		●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0107-0304			●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9601-9609	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9610-9803	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9804-0106		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0107-0306			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-			●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	9601-0306				●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0307-				●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	9610-0106		●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0107-			●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9601-9803	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9601-9803	●
112	GEAR; IDLE (D) Z=69-27	1-12523-241-0	01	1	9601-0011				●
112	GEAR; IDLE (D) Z=69-27	1-12523-346-0	01	1	0012-				●
112	GEAR; IDLE (E) Z=62	1-12523-242-0	01	1	9601-0011				●
112	GEAR; IDLE (E) Z=62	1-12523-347-0	01	1	0012-				●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9610-0106		●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0107-			●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9610-0106		●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0107-			●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9610-0106		●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0107-			●

75 83 53 81 83 81 52 84 37 78 52 95 75 37 212 65 212 65 37 65 37 1 65 71 38 37 71 9 37 8 37 7 72 37 71 72 71 4 5 115 114 70 69 69 70 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94395-576-2	01	1	9601-9803	●
1	CAMSHAFT	1-12511-249-1	01	1	9601-0106				●
1	CAMSHAFT	1-12511-274-1	01	1	0107-				●
1	CAMSHAFT	8-94395-758-2	01	1	9610-0106		●
1	CAMSHAFT	8-94390-469-1	01	1	0107-1311			●
1	CAMSHAFT	8-98227-260-0	01	1	1312-			●
4	VALVE; INL	8-94394-160-1	06	1	9601-9803	●
4	VALVE; INL	1-12551-126-1	06	1	9601-0106				●
4	VALVE; INL	1-12551-161-4	06	1	0107-				●
4	VALVE; INL	8-94395-113-1	06	1	9610-0106		●
4	VALVE; INL	8-94395-882-2	12	1	0107-			●
5	VALVE; EXH	8-94395-462-0	06	1	9601-9609	●
5	VALVE; EXH	8-94395-462-0	06	1	9610-9803	●	●
5	VALVE; EXH	8-94395-462-0	06	1	9804-0106		●
5	VALVE; EXH	8-94395-883-2	12	1	0107-0402			●
5	VALVE; EXH	8-97209-876-3	12	1	0403-			●
5	VALVE; EXH	1-12552-085-0	06	1	9601-9902				●
5	VALVE; EXH	1-12552-108-0	06	1	9903-0106				●
5	VALVE; EXH	1-12552-099-2	06	1	0107-				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9601-9609	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9610-9803	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9804-0106		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0107-			●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9601-				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9601-9609	●			●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9610-9803	●	●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9804-0106		●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0107-			●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9601-9609	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9610-9803	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9804-0106		●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0107-			●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	9601-				●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0706			●
37	METAL; CM/SHF B=16	8-97386-189-0	04	1	0707-			●
37	METAL; CM/SHF	8-94393-380-0	14	1	9601-9608	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9609-9609	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9610-9803	●	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9804-0106		●
37	METAL; CM/SHF	8-94390-311-1	08	1	0107-0206			●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0207-0306			●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-			●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	9601-9609	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	9610-9803	●	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	9804-0106		●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	0107-			●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9601-9609	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9610-9803	●	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9804-0106		●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9601-9609	●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9610-9803	●	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9804-0106		●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0107-0610			●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-			●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	9601-				●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9601-9609	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9610-9803	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9804-0106		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0107-			●
65	COLLAR; SPLIT	1-12565-007-0	24	1	9601-				●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9601-9609	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9610-9803	●	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9804-0106		●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9601-9609	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9610-9803	●	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9804-0106		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	9601-				●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	9601-				●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9601-9609	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9610-9803	●	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9804-0106		●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9601-9609	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9610-9803	●	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9804-0106		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12561-073-0	06	1	9601-				●
70	SPRING; VLV,INNER (A) INLET	1-12562-032-0	06	1	9601-				●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9601-9609	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9610-9803	●	●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	9804-0106		●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	12	1	0107-			●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9601-9609	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9610-9803	●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9804-0106		●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	12	1	0107-			●
71	SEAT; SPR (B)	1-12563-033-1	12	1	9601-0009				●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●
71	SEAT; SPR (A)	9-12563-231-1	12	1	9601-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-1	12	1	9601-9609	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9610-9803	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9804-0106		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0107-0707			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	9601-				●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9601-9609	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9610-9803	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9804-0106		●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0107-0512			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-			●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9601-9609	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9610-9803	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9804-0106		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0107-			●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	9601-				●
78	ARM; ROCKER (B) EXHAUST	8-94397-362-1	06	1	9601-9601	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9601-9609	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9610-9803	●	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9804-0106		●
78	ARM; ROCKER (B) EXHAUST	8-94392-992-0	06	1	0107-0211			●
78	ARM; ROCKER (B) EXHAUST EXHAUST	8-97306-424-3	06	1	0212-			●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9601-9609	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9610-9803	●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9804-0106		●
78	ARM; ROCKER (A) INLET	8-94392-993-0	06	1	0107-0211			●
78	ARM; ROCKER (A) INLET INLET	8-97306-421-3	06	1	0212-			●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	9601-				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9601-9609	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9610-9803	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9804-0106		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0107-			●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	9601-				●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9601-9609	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9610-9705	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9803	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9804-0106		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0107-0512			●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	9601-				●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9601-9609	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9610-9803	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9804-0106		●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0107-			●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9601-9609	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9610-9803	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9804-0106		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0107-			●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	9601-				●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9601-9609	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9610-9803	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9804-0106		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0107-			●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9601-9609	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9610-9803	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9804-0106		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0107-0306			●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-			●
212	CAP; ADJ SCREW	8-94396-015-1	12	1	9601-9609	●
212	CAP; ADJ SCREW	8-94396-015-1	12	1	9610-9803	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9804-0106		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0107-			●

75 83 53 81 83 81 78 95 84 75 78 212 61 61 63 62 212 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 37 71 72 68 68 37 1 72 72 72 71 71 37 71 71 37 5 4 38 9 5 4 37 37 241 8 37 37 7 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94395-576-2	01	1	9601-9803	●
1	CAMSHAFT	1-12511-249-1	01	1	9601-0106				●
1	CAMSHAFT	1-12511-274-1	01	1	0107-				●
1	CAMSHAFT	8-94395-758-2	01	1	9610-0106		●
1	CAMSHAFT	8-94390-469-1	01	1	0107-1311			●
1	CAMSHAFT	8-98227-260-0	01	1	1312-			●
4	VALVE; INL	8-94394-160-1	06	1	9601-9803	●
4	VALVE; INL	1-12551-126-1	06	1	9601-0106				●
4	VALVE; INL	1-12551-161-4	06	1	0107-				●
4	VALVE; INL	8-94395-113-1	06	1	9610-0106		●
4	VALVE; INL	8-94395-882-2	12	1	0107-			●
5	VALVE; EXH	8-94395-462-0	06	1	9601-9609	●
5	VALVE; EXH	8-94395-462-0	06	1	9610-9803	●	●
5	VALVE; EXH	8-94395-462-0	06	1	9804-0106		●
5	VALVE; EXH	8-94395-883-2	12	1	0107-0402			●
5	VALVE; EXH	8-97209-876-3	12	1	0403-			●
5	VALVE; EXH	1-12552-085-0	06	1	9601-9902				●
5	VALVE; EXH	1-12552-108-0	06	1	9903-0106				●
5	VALVE; EXH	1-12552-099-2	06	1	0107-				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9601-9609	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9610-9803	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9804-0106		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0107-			●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9601-				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9601-9609	●			●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9610-9803	●	●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9804-0106		●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0107-			●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9601-9609	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9610-9803	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9804-0106		●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0107-			●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	9601-				●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0706			●
37	METAL; CM/SHF B=16	8-97386-189-0	04	1	0707-			●
37	METAL; CM/SHF	8-94393-380-0	14	1	9601-9608	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9609-9609	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9610-9803	●	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9804-0106		●
37	METAL; CM/SHF	8-94390-311-1	08	1	0107-0206			●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0207-0306			●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-			●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	9601-9609	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	9610-9803	●	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	9804-0106		●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	0107-			●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9601-9609	●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9610-9803	●	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9804-0106		●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0107-0610			●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-			●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	9601-				●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0107-			●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0107-			●
63	BRIDGE	8-94392-002-3	12	1	0107-			●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9601-9609	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9610-9803	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9804-0106		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0107-			●
65	COLLAR; SPLIT	1-12565-007-0	24	1	9601-				●
68	SPRING; VLV (A) INLET MARK BLUE	8-94395-884-0	12	1	0107-			●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0107-			●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9601-9609	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9610-9803	●	●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	9804-0106		●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	12	1	0107-			●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9601-9609	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9610-9803	●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9804-0106		●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	12	1	0107-			●
71	SEAT; SPR (B)	1-12563-033-1	12	1	9601-0009				●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●
71	SEAT; SPR (A)	9-12563-231-1	12	1	9601-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-1	12	1	9601-9609	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9610-9803	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9804-0106		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0107-0707			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	9601-				●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9601-9609	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9610-9803	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9804-0106		●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0107-0512			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-			●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9601-9609	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9610-9803	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9804-0106		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0107-			●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	9601-				●
78	ARM; ROCKER (B) EXHAUST	8-94397-362-1	06	1	9601-9601	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9601-9609	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9610-9803	●	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9804-0106		●
78	ARM; ROCKER (B) EXHAUST	8-94392-992-0	06	1	0107-0211			●
78	ARM; ROCKER (B) EXHAUST EXHAUST	8-97306-424-3	06	1	0212-			●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9601-9609	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9610-9803	●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9804-0106		●
78	ARM; ROCKER (A) INLET	8-94392-993-0	06	1	0107-0211			●
78	ARM; ROCKER (A) INLET INLET	8-97306-421-3	06	1	0212-			●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	9601-				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9601-9609	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9610-9803	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9804-0106		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0107-			●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	9601-				●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9601-9609	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9610-9705	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9803	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9804-0106		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0107-0512			●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	9601-				●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9601-9609	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9610-9803	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9804-0106		●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0107-			●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9601-9609	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9610-9803	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9804-0106		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0107-			●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	9601-				●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9601-9609	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9610-9803	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9804-0106		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0107-			●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9601-9609	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9610-9803	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9804-0106		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0107-0306			●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-			●
212	CAP; ADJ SCREW	8-94396-015-1	12	1	9601-9609	●
212	CAP; ADJ SCREW	8-94396-015-1	12	1	9610-9803	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9804-0106		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0107-			●
241	RING; FRICTION	8-94390-562-0	01	1	0107-0311			●
241	RING; FRICTION	8-97603-297-0	01	1	0312-			●

7 8 9 12 1 83 75 76 81 92 53 83 81 99 80 95 95 80 78 80 78 65 78 65 65 65 71 71 70 69 70 69 71 107 101 112 71 72 72 5 4 111 101 10 101 107 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94395-576-2	01	1	9601-9803	●
1	CAMSHAFT	1-12511-249-1	01	1	9601-0106				●
1	CAMSHAFT	1-12511-274-1	01	1	0107-				●
1	CAMSHAFT	8-94395-758-2	01	1	9610-0106		●
1	CAMSHAFT	8-94390-469-1	01	1	0107-1311			●
1	CAMSHAFT	8-98227-260-0	01	1	1312-			●
4	VALVE; INL	8-94394-160-1	06	1	9601-9803	●
4	VALVE; INL	1-12551-126-1	06	1	9601-0106				●
4	VALVE; INL	1-12551-161-4	06	1	0107-				●
4	VALVE; INL	8-94395-113-1	06	1	9610-0106		●
4	VALVE; INL	8-94395-882-2	12	1	0107-			●
5	VALVE; EXH	8-94395-462-0	06	1	9601-9609	●
5	VALVE; EXH	8-94395-462-0	06	1	9610-9803	●	●
5	VALVE; EXH	8-94395-462-0	06	1	9804-0106		●
5	VALVE; EXH	8-94395-883-2	12	1	0107-0402			●
5	VALVE; EXH	8-97209-876-3	12	1	0403-			●
5	VALVE; EXH	1-12552-085-0	06	1	9601-9902				●
5	VALVE; EXH	1-12552-108-0	06	1	9903-0106				●
5	VALVE; EXH	1-12552-099-2	06	1	0107-				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9601-9609	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9610-9803	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9804-0106		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0107-			●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9601-				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9601-9609	●			●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9610-9803	●	●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9804-0106		●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0107-			●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9601-9609	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9610-9803	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9804-0106		●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0107-			●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	9601-				●
10	PLATE; THRUST	1-12535-021-1	01	1	9601-				●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9601-				●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9601-9609	●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9610-9803	●	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9804-0106		●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0107-0610			●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-			●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	9601-				●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9601-9609	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9610-9803	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9804-0106		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0107-			●
65	COLLAR; SPLIT	1-12565-007-0	24	1	9601-				●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9601-9609	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9610-9803	●	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9804-0106		●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9601-9609	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9610-9803	●	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9804-0106		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	9601-				●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	9601-				●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9601-9609	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9610-9803	●	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9804-0106		●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9601-9609	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9610-9803	●	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9804-0106		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12561-073-0	06	1	9601-				●
70	SPRING; VLV,INNER (A) INLET	1-12562-032-0	06	1	9601-				●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9601-9609	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9610-9803	●	●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	9804-0106		●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	12	1	0107-			●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9601-9609	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9610-9803	●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9804-0106		●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	12	1	0107-			●
71	SEAT; SPR (B)	1-12563-033-1	12	1	9601-0009				●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●
71	SEAT; SPR (A)	9-12563-231-1	12	1	9601-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-1	12	1	9601-9609	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9610-9803	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9804-0106		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0107-0707			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	9601-				●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9601-9609	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9610-9803	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9804-0106		●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0107-0512			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-			●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9601-9609	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9610-9803	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9804-0106		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0107-			●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	9601-				●
76	WASHER; PL,BRKT	9-09851-430-0	03	1	9601-				●
78	ARM; ROCKER (B) EXHAUST	8-94397-362-1	06	1	9601-9601	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9601-9609	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9610-9803	●	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9804-0106		●
78	ARM; ROCKER (B) EXHAUST	8-94392-992-0	06	1	0107-0211			●
78	ARM; ROCKER (B) EXHAUST EXHAUST	8-97306-424-3	06	1	0212-			●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9601-9609	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9610-9803	●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9804-0106		●
78	ARM; ROCKER (A) INLET	8-94392-993-0	06	1	0107-0211			●
78	ARM; ROCKER (A) INLET INLET	8-97306-421-3	06	1	0212-			●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	9601-				●
80	BUSHING; ROCKER ARM	1-12615-013-1	12	1	9601-				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9601-9609	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9610-9803	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9804-0106		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0107-			●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	9601-				●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9601-9609	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9610-9705	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9803	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9804-0106		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0107-0512			●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	9601-				●
92	BRACKET; ROCKER ARM	1-12628-045-0	03	1	9601-				●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9601-9609	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9610-9803	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9804-0106		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0107-			●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	9601-				●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	9-08112-025-0	02	1	9601-0606				●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	0-81122-025-0	02	1	0607-				●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9601-9611	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9601-9803	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9601-9609	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9610-9803	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9804-0106		●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0107-0512			●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-			●
101	BOLT; THRUST COLLAR (B) M8X14 FLANGE	0-28080-814-0	03	1	9601-				●
101	BOLT; THRUST COLLAR (C) M14X16	1-09000-284-0	01	1	9601-				●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	9601-				●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9610-9611		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9612-9803	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9804-0106		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0107-0512			●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-			●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9610-0106		●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0107-			●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9601-9609	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9610-9803	●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9804-9805		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-0106		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0107-0204			●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-			●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9601-9803	●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	9601-0011				●
107	SHAFT; IDLE GEAR (A)	1-12531-097-2	01	1	0012-				●
107	SHAFT; IDLE GEAR (B)	1-12531-064-0	01	1	9601-0011				●
107	SHAFT; IDLE GEAR (B)	1-12531-099-0	01	1	0012-				●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9610-0106		●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0107-0205			●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-			●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9610-0106		●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0107-0304			●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9601-9609	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9610-9803	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9804-0106		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0107-0306			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-			●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	9601-0306				●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0307-				●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	9610-0106		●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0107-			●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9601-9803	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9601-9803	●
112	GEAR; IDLE (D) Z=69-27	1-12523-241-0	01	1	9601-0011				●
112	GEAR; IDLE (D) Z=69-27	1-12523-346-0	01	1	0012-				●
112	GEAR; IDLE (E) Z=62	1-12523-242-0	01	1	9601-0011				●
112	GEAR; IDLE (E) Z=62	1-12523-347-0	01	1	0012-				●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9610-0106		●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0107-			●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9610-0106		●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0107-			●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9610-0106		●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0107-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
