◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#3096) — 110 parça
çizim 3951
48 164 165 155 32 1 5 74 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; FLEX,SPD TO CONN
FULLER M/T<X9B> RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=4300 		1-83123-580-0 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
FULLER M/T<X9B> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=4350 		1-83123-581-0 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
FULLER M/T<X9B> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> (A) L=4250 		1-83123-483-1 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
FULLER M/T<X9B> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> (A) L=4300 		1-83123-582-0 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
MAF5 M/T<X9P> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> EXC. MIXER TRUCK<RA2> (A) L=4200 		1-83123-482-1 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
MJA6 M/T<X9S>,MAF6 M/T<X9V> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=4300 		1-83123-543-1 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
MIXER TRUCK<RA2> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=4300 		1-83123-543-1 01 1 9002-9306 ●
1 SHAFT; FLEX,SPD TO CONN
MJA6 M/T<X9S>,MAF6 M/T<X9V> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=4350 		1-83123-649-0 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
MIXER TRUCK<RA2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=4350 		1-83123-649-0 01 1 9002-9306 ●
1 SHAFT; FLEX,SPD TO CONN
MJA7 M/T<X9Q> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=4350 		1-83123-586-0 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=4500 		1-83123-544-1 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
MAF5 M/T<X9P> EXC. MIXER TRUCK<RA2>,TACHOGRAPH 120KM/H<SM8>, TACHOGRAPH MILES/HOUR<UC5> (A) L=4250 		1-83123-747-1 01 1 9307- ●
1 SHAFT; FLEX,SPD TO CONN
MAF6 M/T<X9V> TACHOGRAPH 120KM/H<SM8> (A) L=4300 		1-83123-543-1 01 1 9307- ●
1 SHAFT; FLEX,SPD TO CONN
MAF6 M/T<X9V> EXC. TACHOGRAPH 120KM/H<SM8> (A) L=4350 		1-83123-649-0 01 1 9307- ●
1 SHAFT; FLEX,SPD TO CONN
(B) L=1300 		1-83123-665-1 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=1960 		1-83123-654-0 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) L=2020 		1-83123-653-0 01 1 9002-9306 ● ●
1 SHAFT; FLEX,SPD TO CONN
CONCRETE PUMP<RA5> (A) L=2020 		1-83123-653-0 01 1 9307- ●
1 SHAFT; FLEX,SPD TO CONN
MAF5 M/T<X9P> EXC. CONCRETE PUMP<RA5>,TACHOGRAPH 120KM/H<SM8> (A) L=4900 		1-83123-625-1 01 1 9307- ●
1 SHAFT; FLEX,SPD TO CONN
MAF6 M/T<X9V> EXC. TACHOGRAPH 120KM/H<SM8> (A) L=5000 		1-83123-623-1 01 1 9307- ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H<SM8> MAF5 M/T<X9P> (A) L=4800 		1-83123-609-1 01 1 9307- ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H<SM8> MAF6 M/T<X9V> (A) L=4950 		1-83123-624-1 01 1 9307- ●
5 SHAFT; FLEX,TACHOMETER TO ENG
L=1800 		1-83123-627-0 01 1 9002- ● ●
5 SHAFT; FLEX,TACHOMETER TO ENG
L=3400 		1-83123-641-1 01 1 9307- ●
32 BOX; GEAR,FLEX SHAFT
FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 11.00-20<97X> 		1-83126-110-0 01 1 9002-9306 ● ● ● ●
32 BOX; GEAR,FLEX SHAFT
FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X> 		1-83126-285-0 01 1 9005-9306 ● ● ● ●
32 BOX; GEAR,FLEX SHAFT
FINAL GEAR 38/7 18.5"(W3E) FULLER M/T<X9B> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> 		1-83126-109-0 01 1 9002-9004 ● ● ● ●
32 BOX; GEAR,FLEX SHAFT
FINAL GEAR 39/8 18.5"(W3D) FULLER M/T<X9B> RR TIRE 11.00-20<97X> 		1-83126-107-0 01 1 9002-9306 ● ● ● ●
48 GROMMET; FLEX SHAFT 1-09333-093-1 01 1 9002- ● ● ● ●
74 SHAFT; FLEX,METER TO CONN
L=2110 		1-83123-657-0 01 1 9002-9306 ● ●
155 SHAFT; FLEX,CONN TO TRANS
MJA6 M/T<X9S>,MAF6 M/T<X9V> EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> L=3060 		1-83123-659-0 01 1 9002-9306 ● ●
155 SHAFT; FLEX,CONN TO TRANS
MIXER TRUCK<RA2> MAF5 M/T<X9P> L=3060 		1-83123-659-0 01 1 9002-9306 ●
155 SHAFT; FLEX,CONN TO TRANS
RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> L=3060 		1-83123-668-0 01 1 9002-9306 ● ●
155 SHAFT; FLEX,CONN TO TRANS
6RB1 STD ENG(07L) MJA7 M/T<X9Q> L=3180 		1-83123-854-0 01 1 9002-9306 ● ●
155 SHAFT; FLEX,CONN TO TRANS
6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> L=3010 		1-83123-660-0 01 1 9002-9306 ● ●
155 SHAFT; FLEX,CONN TO TRANS
6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4) FINAL GEAR 38/7 18.5"(W3E) L=3010 		1-83123-660-0 01 1 9002-9306 ● ●
155 SHAFT; FLEX,CONN TO TRANS
MAF5 M/T<X9P> EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> L=3010 		1-83123-660-0 01 1 9002-9306 ● ●
155 SHAFT; FLEX,CONN TO TRANS
CONCRETE PUMP<RA5> L=4800 		1-83123-780-0 01 1 9002- ●
164 COVER; GROMMET 1-73997-758-0 01 1 9002- ● ● ● ●
165 SCREW; GROMMET
M6X16 W/LK&PL WASHER 		1-09980-497-0 01 1 9002- ● ●

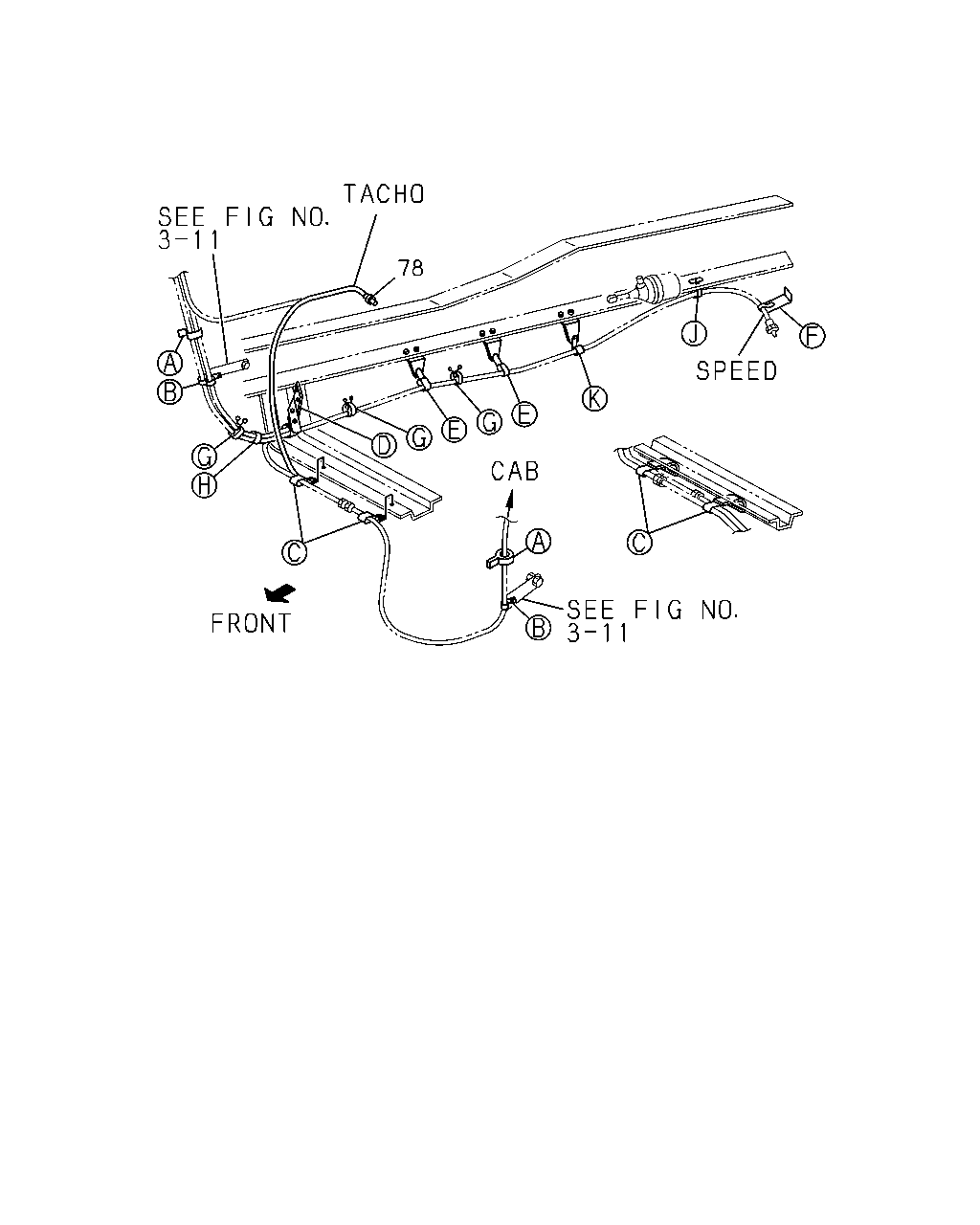

çizim 4456
78
BalonParca AdiParca NoAdetTipApplied Date A B C D
78 SHAFT; FLEX,ENG TO PICKUP
FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4400 		1-83123-583-0 01 1 9002-9306 ●
78 SHAFT; FLEX,ENG TO PICKUP
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> FIRE ENGINE PACKAGE<WS2> L=4350 		1-83123-584-0 01 1 9002-9306 ●
78 SHAFT; FLEX,ENG TO PICKUP
FIRE ENGINE PACKAGE<WS2> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=5100 		1-83123-595-1 01 1 9002-9306 ●
78 SHAFT; FLEX,ENG TO PICKUP
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> FIRE ENGINE PACKAGE<WS2> L=5050 		1-83123-596-1 01 1 9002-9306 ●
çizim 4575
104 106 144 3 104 100 105 99 97 98 101 106 91 106 104 105 100 29 99 99 98 105 95 119 42 97 98 2 3 29 2 3 2 2 4 2 95 42 119 98 97
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CLIP; FLEX SHAFT
FULLER M/T<X9B> (E) 		9-09917-356-0 01 1 9002-9306 ● ●
2 CLIP; FLEX SHAFT
(D) ID=8 L=31 		1-09700-112-1 01 1 9002- ● ● ● ●
2 CLIP; FLEX SHAFT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B) 		1-09700-772-2 01 1 9002- ● ● ● ●
2 CLIP; FLEX SHAFT
REINFORCEMENT BUMPER<VG7> (A) 		1-09700-780-1 01 1 9002- ● ● ● ●
2 CLIP; FLEX SHAFT
(C) 		1-09701-085-0 01 1 9002- ● ●
3 BOLT; FLEX SHAFT,CLIP
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M8X25 FLANGE 		0-28080-825-0 01 1 9002- ● ● ● ●
3 BOLT; FLEX SHAFT,CLIP
REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9002- ● ● ● ●
4 NUT; FLEX SHAFT CLIP
M8 		9-09110-408-0 01 1 9002- ● ● ● ●
29 NUT; CLIP,METER FLEX SHAFT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M8 		9-09110-408-0 01 1 9002- ● ● ● ●
29 NUT; CLIP,METER FLEX SHAFT
REINFORCEMENT BUMPER<VG7> M8 		9-09110-408-0 02 1 9002- ● ● ● ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9002- ● ● ● ●
91 CLIP; BAND
CAB SUSPENSION RIGID<W71> L=140 		5-09707-031-1 02 1 9002- ● ●
95 BRACKET; CLIP,UNDER MEMBER
(A) 		1-47465-665-2 01 1 9002- ● ● ● ●
95 BRACKET; CLIP,UNDER MEMBER
(B) 		1-83129-063-0 02 1 9002- ● ●
97 CLIP; SHAFT UNDER MEMBER
ISUZU M/T<X9A> (C) ID=11 L=16 		9-09525-026-0 01 1 9002-9306 ● ●
97 CLIP; SHAFT UNDER MEMBER
ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), PARKING BRAKE TRANSFER REAR(WB5) (C) ID=11 L=16 		9-09525-026-0 01 1 9002-9306 ● ●
97 CLIP; SHAFT UNDER MEMBER
FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20 		1-09701-085-0 01 1 9002-9306 ● ● ● ●
97 CLIP; SHAFT UNDER MEMBER
PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (A) ID=10.5 & 14.5 L=20 		1-09701-085-0 01 1 9002-9306 ● ●
97 CLIP; SHAFT UNDER MEMBER
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), PARKING BRAKE TRANSFER REAR(WB5) (C) ID=11 L=16 		9-09525-025-0 01 1 9307- ● ●
97 CLIP; SHAFT UNDER MEMBER
(B) ID=11X2 L=32 		9-09535-066-0 02 1 9307- ●
97 CLIP; SHAFT UNDER MEMBER
PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (A) ID=10.5 & 14.5 L=20 		1-09701-085-0 01 1 9307- ●
98 BOLT; CLIP
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9002-9302 ● ● ● ●
98 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9303- ● ● ● ●
98 BOLT; CLIP
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9002- ● ● ● ●
98 BOLT; CLIP
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
98 BOLT; CLIP
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
98 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 9303- ● ●
99 BRACKET; FRAME
(B) 		1-46147-049-1 03 1 9002-9110 ● ● ● ●
99 BRACKET; FRAME
(C) 		1-46147-183-0 03 1 9111- ● ● ● ●
99 BRACKET; FRAME
FULLER M/T<X9B> (A) L=105 B=25 		1-47476-161-0 01 1 9010-9306 ● ● ● ●
100 BOLT; BRKT FRAME
M8X20 W/LK WASHER 		9-01900-820-0 06 1 9002-9204 ● ● ● ●
100 BOLT; BRKT FRAME
M8X20 W/LK WASHER 		0-50040-820-0 06 1 9205-9302 ● ● ● ●
100 BOLT; BRKT FRAME
M8X20 FLANGE 		0-28080-820-0 06 1 9303-9312 ● ● ● ●
100 BOLT; BRKT FRAME
M8X25 FLANGE 		0-28080-825-0 06 1 9401- ● ●
100 BOLT; BRKT FRAME
FULLER M/T<X9B> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9010-9204 ● ● ● ●
100 BOLT; BRKT FRAME
FULLER M/T<X9B> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ● ● ●
100 BOLT; BRKT FRAME
FULLER M/T<X9B> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ● ● ●
101 NUT; BRKT FRAME
FULLER M/T<X9B> M8 		9-09110-408-0 01 1 9010-9306 ● ● ● ●
104 CLIP; SHAFT,FRAME
ISUZU M/T<X9A> (C) ID=11 L=16 		9-09525-026-0 03 1 9002-9012 ● ●
104 CLIP; SHAFT,FRAME
ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (C) ID=11 L=16 		9-09525-026-0 03 1 9002-9012 ● ●
104 CLIP; SHAFT,FRAME
ISUZU M/T<X9A> (C) ID=11 L=16 		9-09525-026-0 03 1 9101-9306 ● ●
104 CLIP; SHAFT,FRAME
ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), PARKING BRAKE TRANSFER REAR(WB5) (C) ID=11 L=16 		9-09525-026-0 03 1 9101-9306 ● ●
104 CLIP; SHAFT,FRAME
ISUZU M/T<X9A> (B) ID=11 L=41 		1-09700-403-0 01 1 9101-9306 ● ● ●
104 CLIP; SHAFT,FRAME
ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSFER REAR(WB5) (B) ID=11 L=41 		1-09700-403-0 01 1 9101-9306 ●
104 CLIP; SHAFT,FRAME
EXC. PARKING BRAKE TRANSFER REAR(WB5) (B) ID=11 L=41 		1-09700-403-0 01 1 9307- ● ●
104 CLIP; SHAFT,FRAME
FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20 		1-09701-085-0 03 1 9002-9306 ● ● ● ●
104 CLIP; SHAFT,FRAME
PARKING BRAKE TRANSFER REAR(WB5) (A) ID=10.5 & 14.5 L=20 		1-09701-085-0 03 1 9002-9306 ●
104 CLIP; SHAFT,FRAME
EXC. PARKING BRAKE TRANSFER REAR(WB5) (C) ID=11 L=16 		9-09525-025-0 01 1 9307- ● ●
104 CLIP; SHAFT,FRAME
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), PARKING BRAKE TRANSFER REAR(WB5) (C) ID=11 L=16 		9-09525-025-0 02 1 9307- ● ●
104 CLIP; SHAFT,FRAME
PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=10.5 & 14.5 L=20 		1-09701-085-0 02 1 9002-9306 ● ●
104 CLIP; SHAFT,FRAME
PARKING BRAKE TRANSMISSION REAR(PJ8) (C) ID=11 L=16 		9-09525-026-0 01 1 9002-9009 ● ●
104 CLIP; SHAFT,FRAME
FULLER M/T<X9B> (C) ID=11 L=16 		9-09525-026-0 01 1 9010-9306 ● ● ● ●
104 CLIP; SHAFT,FRAME
PARKING BRAKE TRANSMISSION REAR(PJ8) (C) ID=11 L=16 		9-09525-026-0 01 1 9010-9306 ● ●
104 CLIP; SHAFT,FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=10.5 & 14.5 L=20 		1-09701-085-0 02 1 9307- ●
104 CLIP; SHAFT,FRAME
PARKING BRAKE TRANSFER REAR(WB5) (A) ID=10.5 & 14.5 L=20 		1-09701-085-0 01 1 9307- ●
105 NUT; CLIP
M8 		9-09110-408-0 01 1 9002- ● ● ● ●
105 NUT; CLIP
M8 		9-09110-408-0 03 1 9002- ● ● ● ●
106 CLIP; SPEEDOMETER CABLE
FULLER M/T<X9B> (A) ID=13.5 & 11 		1-09709-123-0 04 1 9002-9306 ● ●
106 CLIP; SPEEDOMETER CABLE
(C) ID=11X2 L=16 		1-09700-734-0 01 1 9002- ● ● ● ●
106 CLIP; SPEEDOMETER CABLE
FULLER M/T<X9B> (B) L=140 		5-09707-031-0 01 1 9008-9306 ● ● ● ●
106 CLIP; SPEEDOMETER CABLE
FULLER M/T<X9B> (A) ID=13.5 & 11 		1-09709-123-0 03 1 9002-9306 ● ●
106 CLIP; SPEEDOMETER CABLE
PARKING BRAKE TRANSMISSION REAR(PJ8) (A) ID=13.5 & 11 		1-09709-123-0 01 1 9002-9306 ● ●
119 NUT; BRKT
M8 		9-09110-408-0 02 1 9002- ● ● ● ●
144 BOLT; CLIP SHAFT
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204 ● ● ● ●
144 BOLT; CLIP SHAFT
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ● ● ●
144 BOLT; CLIP SHAFT
M8X20 FLANGE 		0-28080-820-0 02 1 9303- ● ● ● ●
