Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#30959) — 542 parça

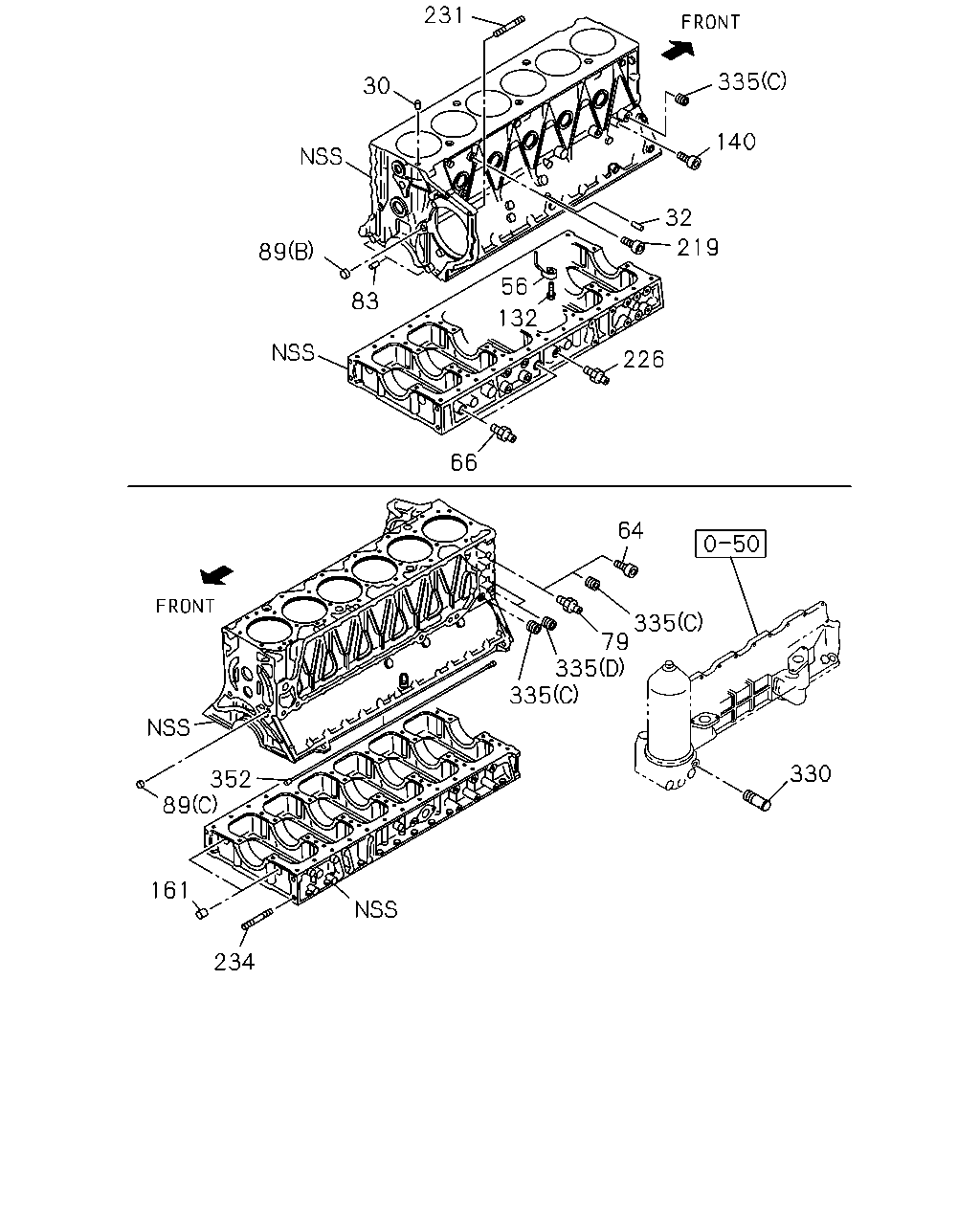

231 335 30 140 32 219 89 56 83 132 226 66 64 335 79 335 335 330 352 89 161 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9601-9609	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9610-9803	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9804-0106		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0107-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9601-9609	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9610-9803	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9804-0106		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0107-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-				●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9601-9608	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9609-9803	●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	9601-0106				●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0107-				●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9610-0106		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0107-0703			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●
64	CONNECTOR; TURBOCHARGER OIL FEED	1-09660-526-0	01	1	0107-				●
66	CONNECTOR; PARTIAL FILTER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9601-0106				●
66	CONNECTOR; PARTIAL FILTER	1-09660-526-0	01	1	0107-				●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9601-0106				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9601-9609	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9610-9803	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9804-0106		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0107-0306			●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-			●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9601-0106				●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0107-				●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9601-9609	●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9610-9803	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9804-0106		●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	0107-0908			●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11129-128-0	03	1	0909-			●
89	CUP; SEALING,OIL GALLERY (B) OD=16	9-11129-081-0	01	1	9601-0301				●
89	CUP; SEALING,OIL GALLERY (B) OD=16	5-11129-006-0	01	1	0302-				●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	02	1	9601-0909				●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	02	1	0910-				●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9601-9803	●
132	VALVE; CHECK,OIL	1-09675-105-1	06	1	9601-0106				●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0107-				●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9610-0106		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0107-			●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	9601-				●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9601-				●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	9601-				●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9601-0106				●
226	CONNECTOR; INJ PUMP,RETURN	1-09660-408-0	01	1	0107-				●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9601-9803	●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	02	1	9601-				●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	9601-				●
330	JOINT; HTR	1-09660-504-1	01	1	9601-9611				●
330	JOINT; HTR PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9612-				●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9601-9609	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9601-9803	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9610-9803	●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9804-0106		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0107-0501			●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-			●
335	PLUG; C/BL,SIDE (C) PT1/4	1-09605-019-0	06	1	9601-				●
335	PLUG; C/BL,SIDE (D) PT1/8	1-09605-050-0	02	1	9601-				●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	01	1	9610-0106		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	01	1	0107-0703			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0704-			●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	9601-				●

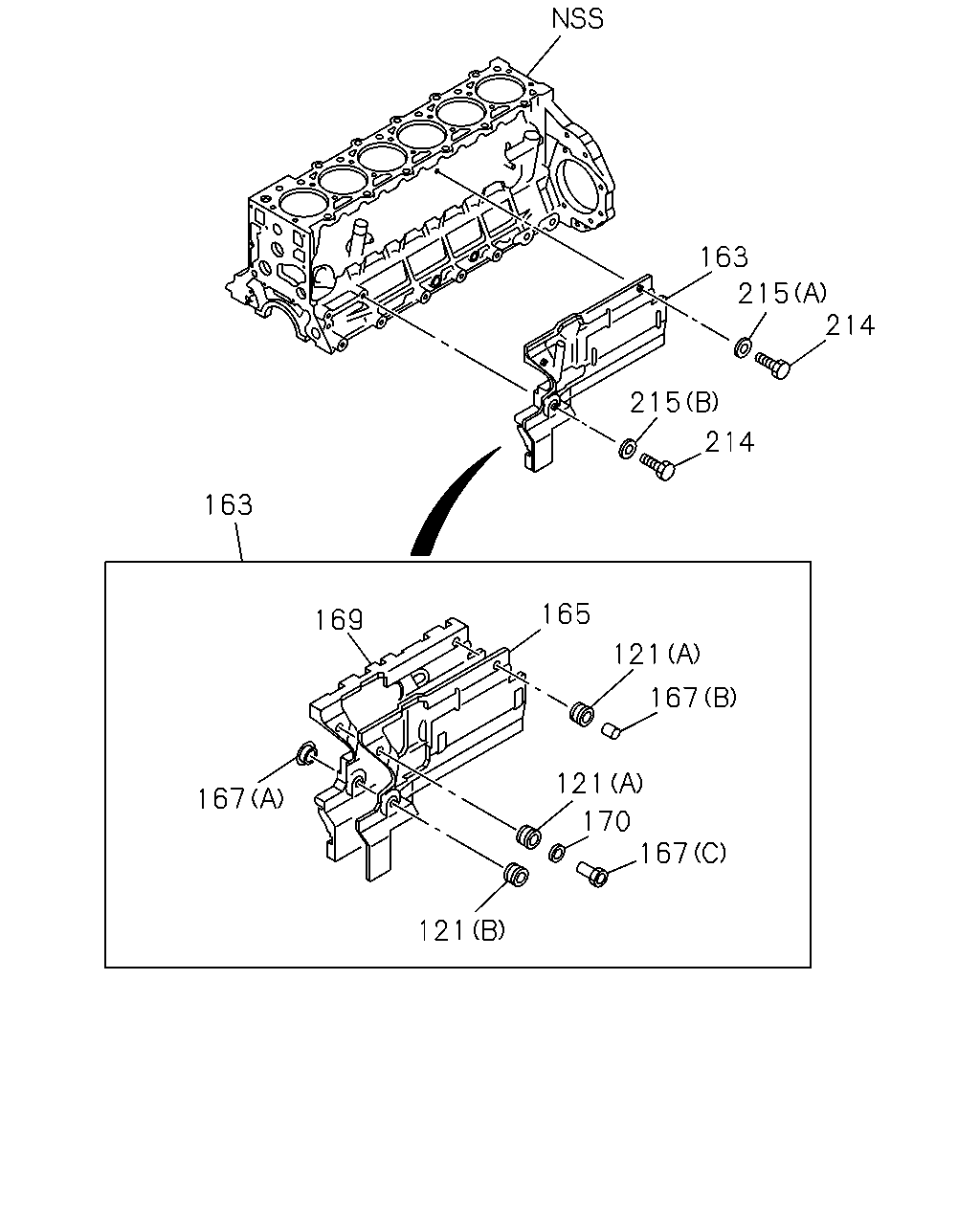

163 215 214 215 214 163 165 169 121 167 121 167 170 167 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	02	1	9601-9803	●
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	9601-9803	●
163	COVER ASM; C/BL SKIRT	8-94390-172-0	01	1	9601-9803	●
165	COVER; C/BL SKIRT	8-94395-694-1	01	1	9601-9803	●
167	TUBE; DIST,SIDE COVER (B) OD=13 T=9.5	8-94140-427-1	01	1	9601-9803	●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	01	1	9601-9803	●
167	TUBE; DIST,SIDE COVER (A) OD=32 W/FLANGE	8-94397-356-1	01	1	9601-9803	●
169	INSULATOR; SIDE COVER	8-94390-173-0	01	1	9601-9803	●
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	01	1	9601-9803	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	02	1	9601-9803	●
215	WASHER; PL,NOISE COVER (A) ID=10.5 OD=22	9-09164-610-0	01	1	9601-9803	●
215	WASHER; PL,NOISE COVER (B) ID=10.5 OD=32	9-09164-810-0	01	1	9601-9803	●

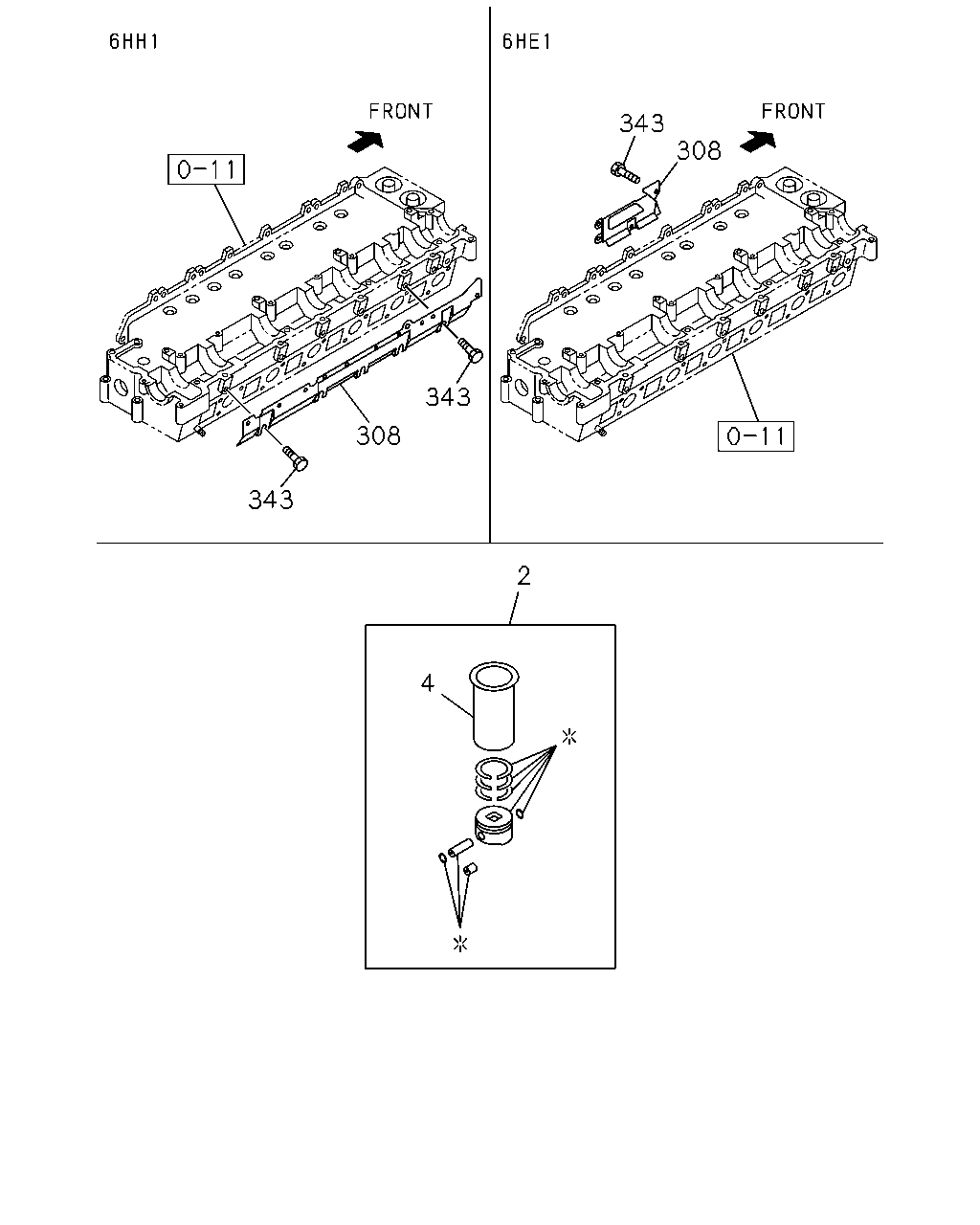

343 308 343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LINER SET; ENG CYL GRADE=1X	1-87811-434-0	06	1	9601-9608	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-0	06	1	9609-9803	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-435-0	06	1	9601-9608	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-0	06	1	9609-9803	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	9601-0106				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0107-0309				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-				●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	9601-0106				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0107-0309				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-				●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	9610-0106		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-2	06	1	0107-0201			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0202-0305			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	9610-0106		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-2	06	1	0107-0201			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0202-0305			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9601-9803	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9601-9803	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9610-0106		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0107-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9610-0106		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0107-			●
308	PROTECTOR; HEAT,HD COVER	8-94395-205-0	01	1	9601-9603	●
308	PROTECTOR; HEAT,HD COVER	8-94390-548-0	01	1	9604-9803	●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	9610-0106		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9601-9803	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9610-0106		●

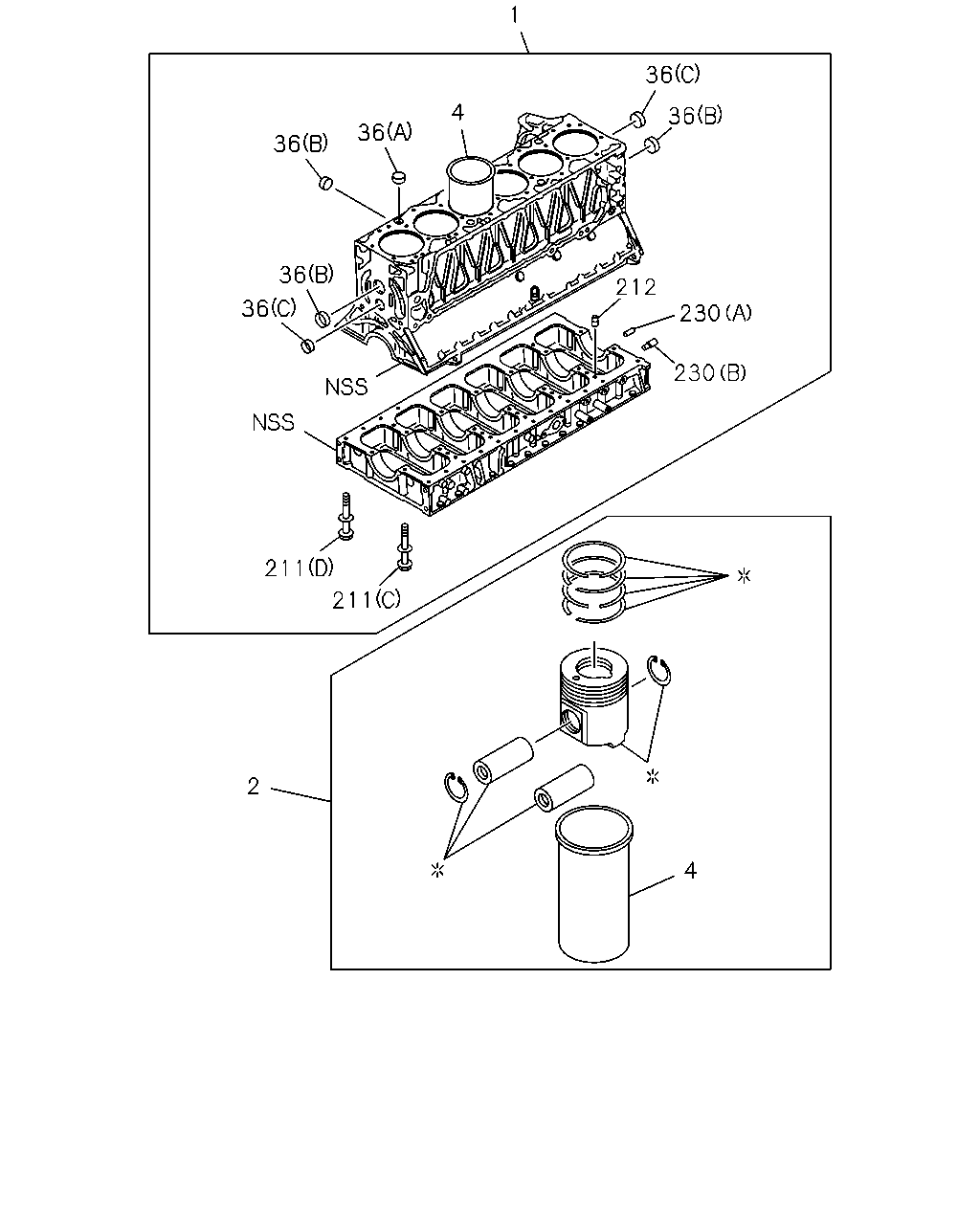

1 36 4 36 36 36 36 212 36 230 230 211 211 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9601-9803	●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	9601-0106				●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0107-				●
1	BLOCK ASM; CYL	8-94395-860-8	01	1	9610-9807		●
1	BLOCK ASM; CYL	8-94392-486-1	01	1	9808-0106		●
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0002-0106		●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0107-0504			●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012			●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209			●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-434-0	06	1	9601-9608	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-0	06	1	9609-9803	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-435-0	06	1	9601-9608	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-0	06	1	9609-9803	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	9601-0106				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0107-0309				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-				●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	9601-0106				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0107-0309				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-				●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	9610-0106		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-2	06	1	0107-0201			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0202-0305			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	9610-0106		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-2	06	1	0107-0201			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0202-0305			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9601-9803	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9601-9803	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9610-0106		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0107-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9610-0106		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0107-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9601-9803	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0107-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0107-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0107-0502			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-				●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	9601-				●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	9601-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9610-0106		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0107-			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9601-9609	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9610-9803	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9804-0106		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0107-0905			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9601-9609	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9610-9803	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9804-0106		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0107-			●
211	BOLT; CRANKCASE (C) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-				●
211	BOLT; CRANKCASE (D) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9601-1107				●
211	BOLT; CRANKCASE (D)	8-98141-538-0	24	1	1108-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9601-9609	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9610-9803	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9804-0106		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0107-0306			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	9601-				●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	9601-				●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	9601-				●

36 1 4 36 36 36 122 36 231 55 261 335 212 28 211 231 81 242 89 211 137 335 162 83 35 34 30 30 56 232 132 89 38 335 338 32 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9601-9803	●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	9601-0106				●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0107-				●
1	BLOCK ASM; CYL	8-94395-860-8	01	1	9610-9807		●
1	BLOCK ASM; CYL	8-94392-486-1	01	1	9808-0106		●
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0002-0106		●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0107-0504			●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012			●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209			●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9601-9803	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9601-9803	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9610-0106		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0107-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9610-0106		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0107-			●
28	COVER; OIL PORT	1-11219-163-0	01	1	9601-9803	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9601-9609	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9610-9803	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9804-0106		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0107-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9601-9609	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9610-9803	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9804-0106		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0107-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-				●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9601-9609	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9610-9803	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9804-0106		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0107-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9601-9609	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9610-9803	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9804-0106		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0107-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9601-9803	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0107-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0107-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0107-0502			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-				●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	9601-				●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	9601-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9610-0106		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0107-			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9601-9609	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9610-9803	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9804-0106		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0107-			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9601-9609	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9610-9803	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9804-0106		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0107-			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9601-9608	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9609-9803	●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	9601-0106				●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0107-				●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9610-0106		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0107-0703			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●
81	PLUG; WATER JACKET (A) M14	8-94399-225-0	01	1	9601-9803	●
81	PLUG; WATER JACKET (B) NPTF1-11 1/2	1-09605-065-1	01	1	9610-0106		●
81	PLUG; WATER JACKET (B) NPTF1-11 1/2	1-09605-065-1	01	1	0107-0507			●
81	PLUG; WATER JACKET (D) M14X14	9-09862-156-0	01	1	0508-			●
81	PLUG; WATER JACKET (C) PT3/8	8-94397-338-0	01	1	9610-0106		●
81	PLUG; WATER JACKET (C) PT3/8	8-94397-338-0	01	1	0107-			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9601-9609	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9610-9803	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9804-0106		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0107-0306			●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-			●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9601-0106				●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0107-				●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9601-9609	●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9610-9803	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9804-0106		●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	0107-0908			●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11129-128-0	03	1	0909-			●
89	CUP; SEALING,OIL GALLERY (B) OD=16	9-11129-081-0	01	1	9601-0301				●
89	CUP; SEALING,OIL GALLERY (B) OD=16	5-11129-006-0	01	1	0302-				●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	02	1	9601-0909				●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	02	1	0910-				●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9601-9609	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9610-9803	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9804-0106		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0107-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9601-9803	●
132	VALVE; CHECK,OIL	1-09675-105-1	06	1	9601-0106				●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0107-				●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9610-0106		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0107-			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9601-9803	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9610-0106		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0107-1012			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9601-9803	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9601-9609	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9610-9803	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9804-0106		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0107-0905			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9601-9609	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9610-9803	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9804-0106		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0107-			●
211	BOLT; CRANKCASE (C) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-				●
211	BOLT; CRANKCASE (D) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9601-1107				●
211	BOLT; CRANKCASE (D)	8-98141-538-0	24	1	1108-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9601-9609	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9610-9803	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9804-0106		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0107-0306			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	9601-				●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9601-9803	●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	02	1	9601-				●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9601-9609	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9610-9803	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9804-0106		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0107-0604			●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-			●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9601-9609	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9610-9803	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9804-0106		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0107-0307			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9601-9609	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9601-9803	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9610-9803	●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9804-0106		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0107-0501			●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-			●
335	PLUG; C/BL,SIDE (C) PT1/4	1-09605-019-0	06	1	9601-				●
335	PLUG; C/BL,SIDE (D) PT1/8	1-09605-050-0	02	1	9601-				●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	01	1	9610-0106		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	01	1	0107-0703			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0704-			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9601-9609	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9610-9803	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9804-0106		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0107-			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9601-9803	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0107-			●

36 4 411 36 1 36 411 36 55 122 36 89 212 261 259 83 335 136 413 414 10 211 211 262 7 137 258 505 81 81 35 256 34 81 30 30 232 56 89 132 335 32 38 403 55 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9601-9803	●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	9601-0106				●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0107-				●
1	BLOCK ASM; CYL	8-94395-860-8	01	1	9610-9807		●
1	BLOCK ASM; CYL	8-94392-486-1	01	1	9808-0106		●
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0002-0106		●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0107-0504			●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012			●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209			●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9601-9803	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9601-9803	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0106				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0107-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9610-0106		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0107-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9610-0106		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0107-			●
7	PLUG; WATER DRAIN M14X16.5	8-97329-617-0	01	1	1101-			●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	9610-0106		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0107-1012			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9601-9609	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9610-9803	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9804-0106		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0107-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9601-9609	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9610-9803	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9804-0106		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0107-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-				●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9601-9609	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9610-9803	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9804-0106		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0107-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9601-9609	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9610-9803	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9804-0106		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0107-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9601-9803	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0107-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0107-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9601-9609	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9610-9803	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9804-0106		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0107-0502			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-				●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	9601-				●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	9601-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9610-0106		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0107-			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9601-9609	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9610-9803	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9804-0106		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0107-			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9601-9609	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9610-9803	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9804-0106		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0107-			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9601-9608	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9609-9803	●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	9601-0106				●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0107-				●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9610-0106		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0107-0703			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●
81	PLUG; WATER JACKET (A) M14	8-94399-225-0	01	1	9601-9803	●
81	PLUG; WATER JACKET (B) NPTF1-11 1/2	1-09605-065-1	01	1	9610-0106		●
81	PLUG; WATER JACKET (B) NPTF1-11 1/2	1-09605-065-1	01	1	0107-0507			●
81	PLUG; WATER JACKET (D) M14X14	9-09862-156-0	01	1	0508-			●
81	PLUG; WATER JACKET (C) PT3/8	8-94397-338-0	01	1	9610-0106		●
81	PLUG; WATER JACKET (C) PT3/8	8-94397-338-0	01	1	0107-			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9601-9609	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9610-9803	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9804-0106		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0107-0306			●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-			●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9601-0106				●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0107-				●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9601-9609	●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9610-9803	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	9804-0106		●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11219-192-0	03	1	0107-0908			●
89	CUP; SEALING,OIL GALLERY (A) OD=20	9-11129-128-0	03	1	0909-			●
89	CUP; SEALING,OIL GALLERY (B) OD=16	9-11129-081-0	01	1	9601-0301				●
89	CUP; SEALING,OIL GALLERY (B) OD=16	5-11129-006-0	01	1	0302-				●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	02	1	9601-0909				●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	02	1	0910-				●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9601-9609	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9610-9803	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9804-0106		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0107-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9601-9803	●
132	VALVE; CHECK,OIL	1-09675-105-1	06	1	9601-0106				●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0107-				●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9610-0106		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0107-			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0107-0812			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9601-9803	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9610-0106		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0107-1012			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9601-9609	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9610-9803	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9804-0106		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0107-0905			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9601-9609	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9610-9803	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9804-0106		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0107-			●
211	BOLT; CRANKCASE (C) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-				●
211	BOLT; CRANKCASE (D) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9601-1107				●
211	BOLT; CRANKCASE (D)	8-98141-538-0	24	1	1108-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9601-9609	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9610-9803	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9804-0106		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0107-0306			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	9601-				●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9601-9609	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9610-9803	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9804-0106		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0107-0604			●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-			●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0508-			●
258	ADAPTER; BLOCK HTR	8-97611-854-0	01	1	0901-1012			●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	9610-0106		●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0107-0507			●
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-0812			●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	9610-0106		●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0107-			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9601-9609	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9610-9803	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9804-0106		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0107-0307			●
262	PLUG; ADAPTER	1-13163-002-0	01	1	9610-0106		●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0107-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9601-9609	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9601-9803	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9610-9803	●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9804-0106		●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0107-0501			●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-			●
335	PLUG; C/BL,SIDE (C) PT1/4	1-09605-019-0	06	1	9601-				●
335	PLUG; C/BL,SIDE (D) PT1/8	1-09605-050-0	02	1	9601-				●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	01	1	9610-0106		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	01	1	0107-0703			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0704-			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9601-9609	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9610-9803	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9804-0106		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0107-			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9601-9803	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0107-			●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	9610-0106		●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	0107-0301			●
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
411	STUD; BRG CASE M10X25 L=48.5	0-49241-025-0	02	1	0601-			●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	9610-0106		●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0107-0604			●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0605-			●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	9610-0106		●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0107-0602			●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0603-			●
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	1101-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
