◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#30958) — 609 parça

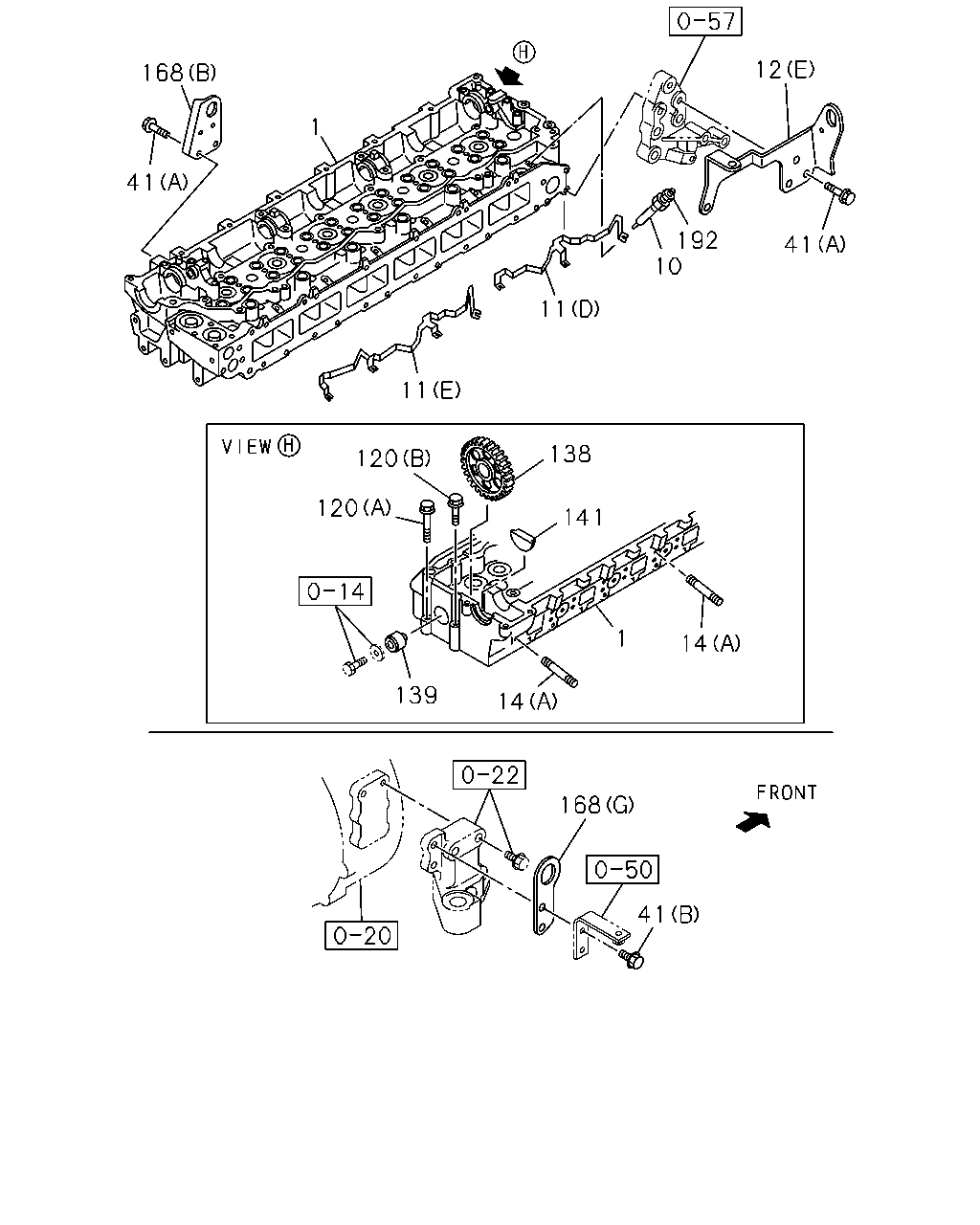

çizim 85436
12 168 1 41 192 10 41 11 11 138 120 120 141 1 14 139 14 168 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9803 ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609-0106 ●
1 HEAD ASM; CYL 1-11110-924-4 01 1 0107- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9610-0106 ●
1 HEAD ASM; CYL 8-94392-451-9 01 1 0107-0301 ●
1 HEAD ASM; CYL 8-97602-687-1 01 1 0302-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
10 PLUG; GLOW 9-82513-928-8 06 1 9601-9609 ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9610-9803 ● ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9804-9809 ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0004 ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 0005-0106 ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0107- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0107- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9601-9609 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9610-9803 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9804-0106 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94391-925-3 01 1 0107-0804 ●
11 CONNECTOR; GLOW PLUG
(E) 		8-98040-648-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9601-9609 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9610-9803 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9804-0106 ●
11 CONNECTOR; GLOW PLUG
(E) 		8-94392-843-1 01 1 0107-0804 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-98040-649-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(C) 		1-19732-011-1 01 1 9601- ●
12 HANGER; ENG,RR
(A) 		8-94399-405-0 01 1 9601-9803 ●
12 HANGER; ENG,RR
(C) 		1-11777-099-0 01 1 9601-0106 ●
12 HANGER; ENG,RR
(D) 		1-11777-222-0 01 1 0107- ●
12 HANGER; ENG,RR
(B) 		8-94394-337-1 01 1 9610-0106 ●
12 HANGER; ENG,RR
(E) 		8-97601-477-0 01 1 0107- ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9601-9609 ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9610-9803 ● ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9804-0106 ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 0107- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 9601-0106 ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 03 1 0107- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9601-0106 ●
14 STUD; EXH MANIF
(C) M10X45 L=65 		9-04321-045-0 01 1 0107-0604 ●
14 STUD; EXH MANIF
(C) M10X45 L=65 		0-43211-045-0 01 1 0605- ●
14 STUD; EXH MANIF
(B) M10X135 L=150 		1-09302-159-0 08 1 0107- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9601-9803 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 01 1 9601-9803 ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9601-9803 ●
41 BOLT; ENG HANGER
(A),(B) M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-0106 ●
41 BOLT; ENG HANGER
(A) M10X40 FLANGE 		0-28791-040-0 03 1 0107-0512 ●
41 BOLT; ENG HANGER
(A) M10X40 FLANGE 		0-28761-040-0 03 1 0601- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9610-0106 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 06 1 0107-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 06 1 0601- ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9610-0106 ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28181-030-0 02 1 0107-0512 ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9610-0106 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 0107-0512 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9601-9609 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9610-9803 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9804-0106 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0107- ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9601-9609 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9610-9803 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9804-0106 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0107- ●
120 BOLT; CYL HD TO HSG
(C) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601- ●
120 BOLT; CYL HD TO HSG
(D) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601- ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9601-9609 ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9610-9803 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9804-0106 ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0107- ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9601- ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9601-9609 ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9610-9711 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9803 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9804-0106 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0107- ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-0011 ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012- ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9601-9609 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9610-9803 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9804-0106 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0107-1005 ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 9601-9803 ●
168 HANGER; ENG,FRT
(E) 		1-11777-207-0 01 1 9601-0106 ●
168 HANGER; ENG,FRT
(F) 		1-11777-247-0 01 1 0107- ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9610-9701 ●
168 HANGER; ENG,FRT
(C) 		8-94391-505-0 01 1 9702-0106 ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-2 01 1 0107- ●
168 HANGER; ENG,FRT
(D) 		8-94394-398-0 01 1 9610-0106 ●
168 HANGER; ENG,FRT
(G) 		8-94393-810-0 01 1 0107- ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 0107- ●

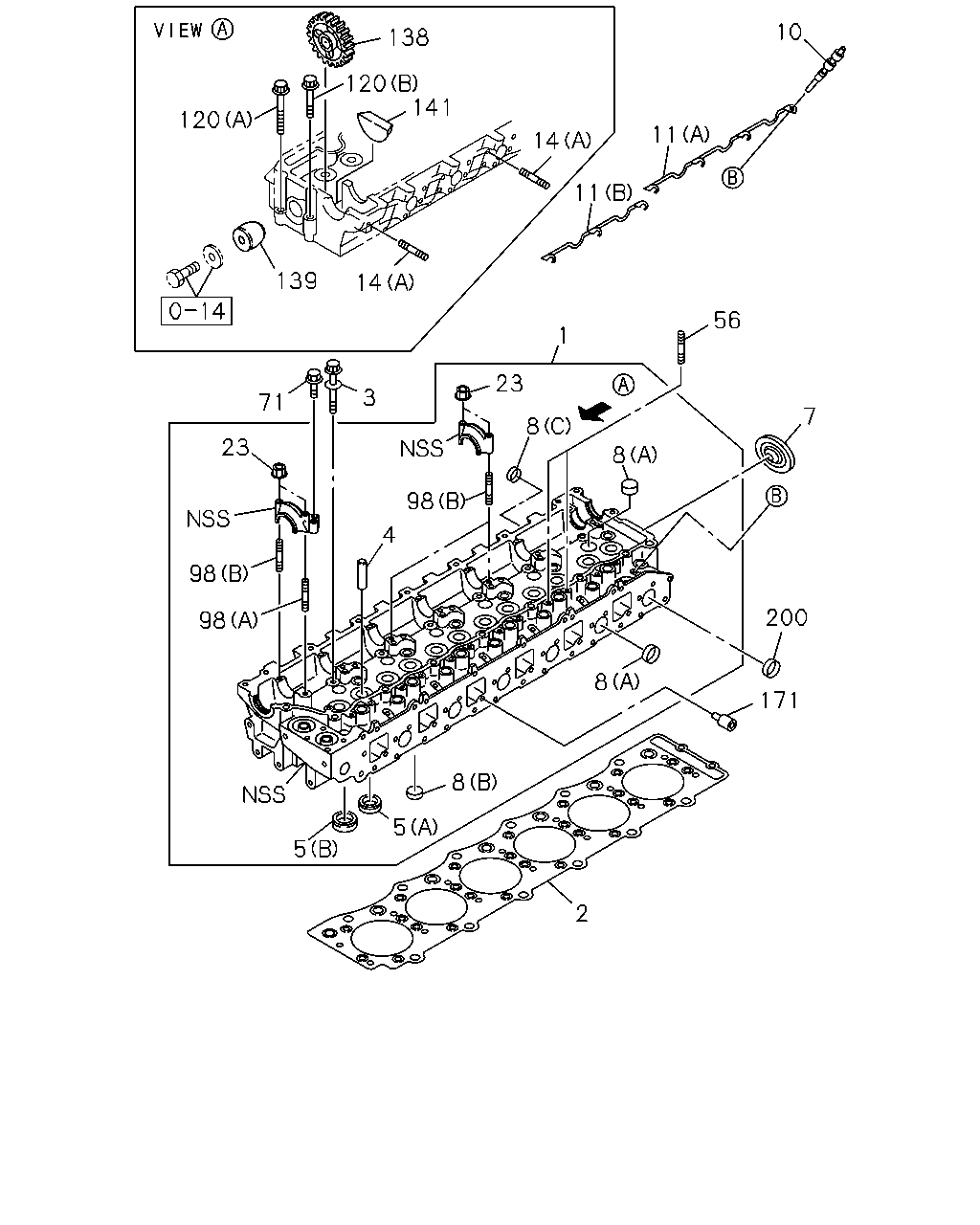

çizim 85437
10 138 120 141 120 11 14 11 139 14 56 1 23 3 71 7 8 23 8 98 4 98 200 98 8 171 8 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9803 ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609-0106 ●
1 HEAD ASM; CYL 1-11110-924-4 01 1 0107- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9610-0106 ●
1 HEAD ASM; CYL 8-94392-451-9 01 1 0107-0301 ●
1 HEAD ASM; CYL 8-97602-687-1 01 1 0302-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9601-9803 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-2 01 1 9601-0106 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-278-2 01 1 0107- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9610-0106 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94392-721-3 01 1 0107- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9601-9609 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9610-9803 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9804-0106 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0107-0901 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601-0106 ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-143-0 20 1 0107- ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601-0106 ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-144-0 06 1 0107- ●
4 GUIDE; VLV 8-94396-598-0 12 1 9601-9609 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9610-9803 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9804-0106 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0107-0707 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601- ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9601-9803 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9804-0106 ●
5 SEAT; VLV INSERT
(F) INLET OD=38 		8-94395-888-2 12 1 0107- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9601-9609 ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9610-0106 ●
5 SEAT; VLV INSERT
(E) EXHAUST OD=38 		8-94395-625-0 12 1 0107-0107 ●
5 SEAT; VLV INSERT
(E) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0703 ●
5 SEAT; VLV INSERT
(E) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9610-9803 ● ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-060-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-051-0 06 1 0005-0106 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-078-0 06 1 0107-0108 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-085-0 06 1 0109- ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-095-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-122-0 06 1 0005-0106 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-115-0 06 1 0107-0108 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-118-0 06 1 0109- ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9601-9609 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9610-9803 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9804-0106 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0107-0303 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9601-9704 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9601-9609 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9610-9803 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(I) OD=25 		1-09600-016-0 06 1 0107- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9601-9609 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9610-9803 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(J) OD=16 		5-11129-006-0 07 1 0107- ●
8 CUP; SEALING,WATER JACKET
(D) OD=12 		1-09600-010-2 06 1 9601- ●
8 CUP; SEALING,WATER JACKET
(E) OD=22 		1-09600-011-2 11 1 9601- ●
8 CUP; SEALING,WATER JACKET
(F) OD=32 		1-09600-012-1 14 1 9601-0105 ●
8 CUP; SEALING,WATER JACKET
(F) OD=32 		1-09600-012-2 09 1 0106- ●
8 CUP; SEALING,WATER JACKET
(G) OD=30 		8-94241-638-0 05 1 0106- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9610-9704 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9705-9803 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(H) OD=32 		1-09600-012-2 07 1 0107- ●
8 CUP; SEALING,WATER JACKET
(K) OD=20 		9-11129-128-0 11 1 0107- ●
10 PLUG; GLOW 9-82513-928-8 06 1 9601-9609 ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9610-9803 ● ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9804-9809 ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0004 ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 0005-0106 ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0107- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0107- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9601-9609 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9610-9803 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9804-0106 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94391-925-3 01 1 0107-0804 ●
11 CONNECTOR; GLOW PLUG
(E) 		8-98040-648-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9601-9609 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9610-9803 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9804-0106 ●
11 CONNECTOR; GLOW PLUG
(E) 		8-94392-843-1 01 1 0107-0804 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-98040-649-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(C) 		1-19732-011-1 01 1 9601- ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9601-9609 ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9610-9803 ● ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9804-0106 ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 0107- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 9601-0106 ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 03 1 0107- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9601-0106 ●
14 STUD; EXH MANIF
(C) M10X45 L=65 		9-04321-045-0 01 1 0107-0604 ●
14 STUD; EXH MANIF
(C) M10X45 L=65 		0-43211-045-0 01 1 0605- ●
14 STUD; EXH MANIF
(B) M10X135 L=150 		1-09302-159-0 08 1 0107- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9601-9608 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9609 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9610-9803 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9804-0106 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0107-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-0809 ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9601- ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9610-0106 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9610-9803 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9804-0106 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0107-0512 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9601-9609 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9610-9803 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9804-0106 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0107- ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9601-9608 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9609 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9610-9803 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9804-0106 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0107- ●
98 STUD; CAM BRKT
(C) M8X114 L=132 		1-09300-028-1 06 1 9601- ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9601-9609 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9610-9803 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9804-0106 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0107- ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9601-9609 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9610-9803 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9804-0106 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0107- ●
120 BOLT; CYL HD TO HSG
(C) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601- ●
120 BOLT; CYL HD TO HSG
(D) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601- ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9601-9609 ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9610-9803 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9804-0106 ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0107- ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9601- ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9601-9609 ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9610-9711 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9803 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9804-0106 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0107- ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-0011 ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012- ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9601-9609 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9610-9803 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9804-0106 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0107-1005 ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ●
171 SEAT; VLV 8-94395-571-1 06 1 9601-9803 ●
171 SEAT; VLV 8-94394-678-1 06 1 9610-0106 ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-1 01 1 9705-0106 ●

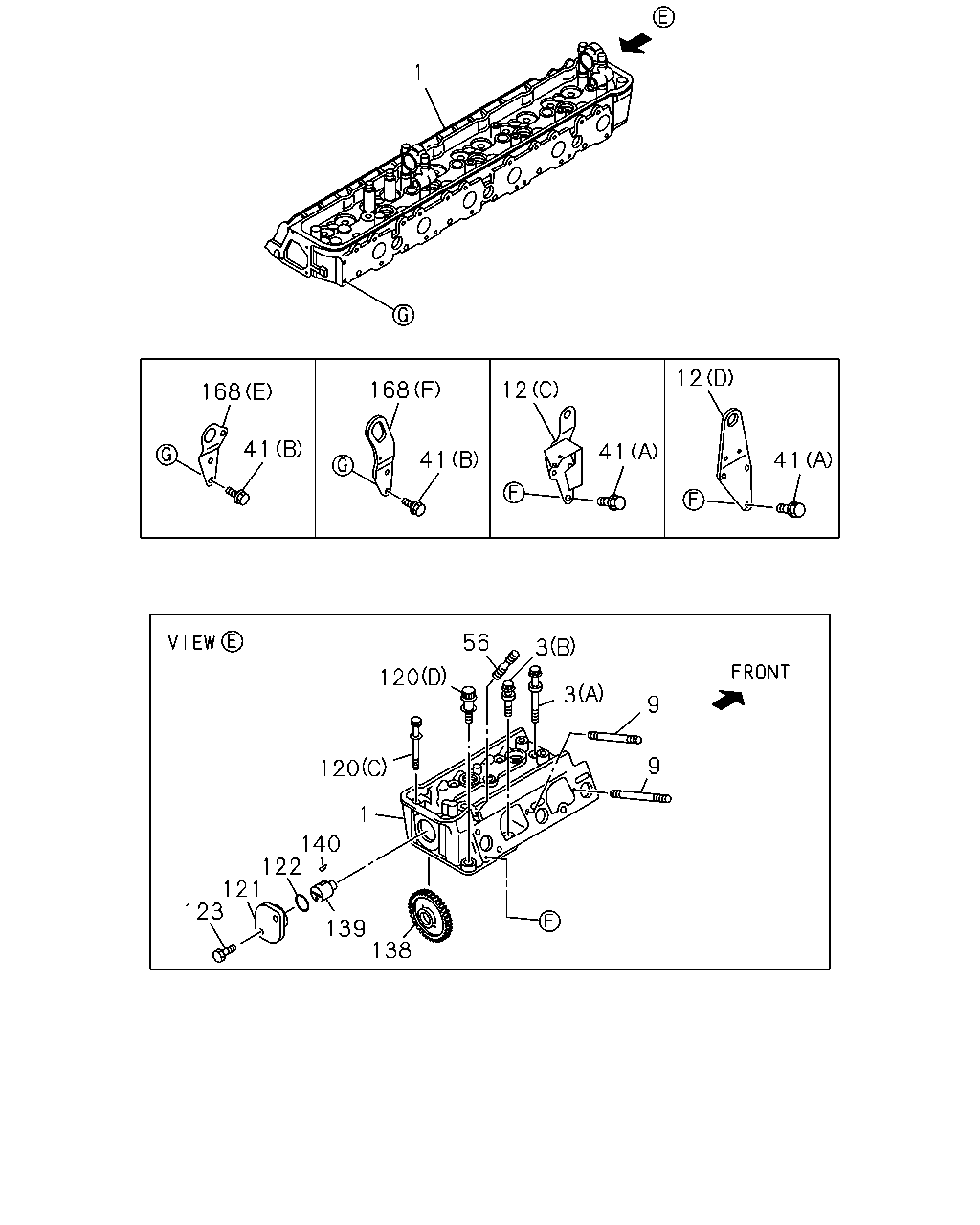

çizim 85438
1 12 12 168 168 41 41 41 41 56 3 120 3 9 9 120 1 140 122 121 123 139 138
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9803 ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609-0106 ●
1 HEAD ASM; CYL 1-11110-924-4 01 1 0107- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9610-0106 ●
1 HEAD ASM; CYL 8-94392-451-9 01 1 0107-0301 ●
1 HEAD ASM; CYL 8-97602-687-1 01 1 0302-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9601-9609 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9610-9803 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9804-0106 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0107-0901 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601-0106 ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-143-0 20 1 0107- ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601-0106 ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-144-0 06 1 0107- ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 9601-0106 ●
9 STUD; INL MANIF
M8X12,M8X17 L=96 		1-09309-020-1 12 1 0107- ●
12 HANGER; ENG,RR
(A) 		8-94399-405-0 01 1 9601-9803 ●
12 HANGER; ENG,RR
(C) 		1-11777-099-0 01 1 9601-0106 ●
12 HANGER; ENG,RR
(D) 		1-11777-222-0 01 1 0107- ●
12 HANGER; ENG,RR
(B) 		8-94394-337-1 01 1 9610-0106 ●
12 HANGER; ENG,RR
(E) 		8-97601-477-0 01 1 0107- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9601-9803 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 01 1 9601-9803 ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9601-9803 ●
41 BOLT; ENG HANGER
(A),(B) M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-0106 ●
41 BOLT; ENG HANGER
(A) M10X40 FLANGE 		0-28791-040-0 03 1 0107-0512 ●
41 BOLT; ENG HANGER
(A) M10X40 FLANGE 		0-28761-040-0 03 1 0601- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9610-0106 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 06 1 0107-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 06 1 0601- ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9610-0106 ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28181-030-0 02 1 0107-0512 ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9610-0106 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 0107-0512 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9601- ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9610-0106 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9601-9609 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9610-9803 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9804-0106 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0107- ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9601-9609 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9610-9803 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9804-0106 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0107- ●
120 BOLT; CYL HD TO HSG
(C) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601- ●
120 BOLT; CYL HD TO HSG
(D) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601- ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 9601- ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 9601- ●
123 BOLT; COVER
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0512 ●
123 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9601-9609 ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9610-9803 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9804-0106 ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0107- ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9601- ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9601-9609 ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9610-9711 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9803 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9804-0106 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0107- ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-0011 ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012- ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 9601- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 9601-9803 ●
168 HANGER; ENG,FRT
(E) 		1-11777-207-0 01 1 9601-0106 ●
168 HANGER; ENG,FRT
(F) 		1-11777-247-0 01 1 0107- ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9610-9701 ●
168 HANGER; ENG,FRT
(C) 		8-94391-505-0 01 1 9702-0106 ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-2 01 1 0107- ●
168 HANGER; ENG,FRT
(D) 		8-94394-398-0 01 1 9610-0106 ●
168 HANGER; ENG,FRT
(G) 		8-94393-810-0 01 1 0107- ●

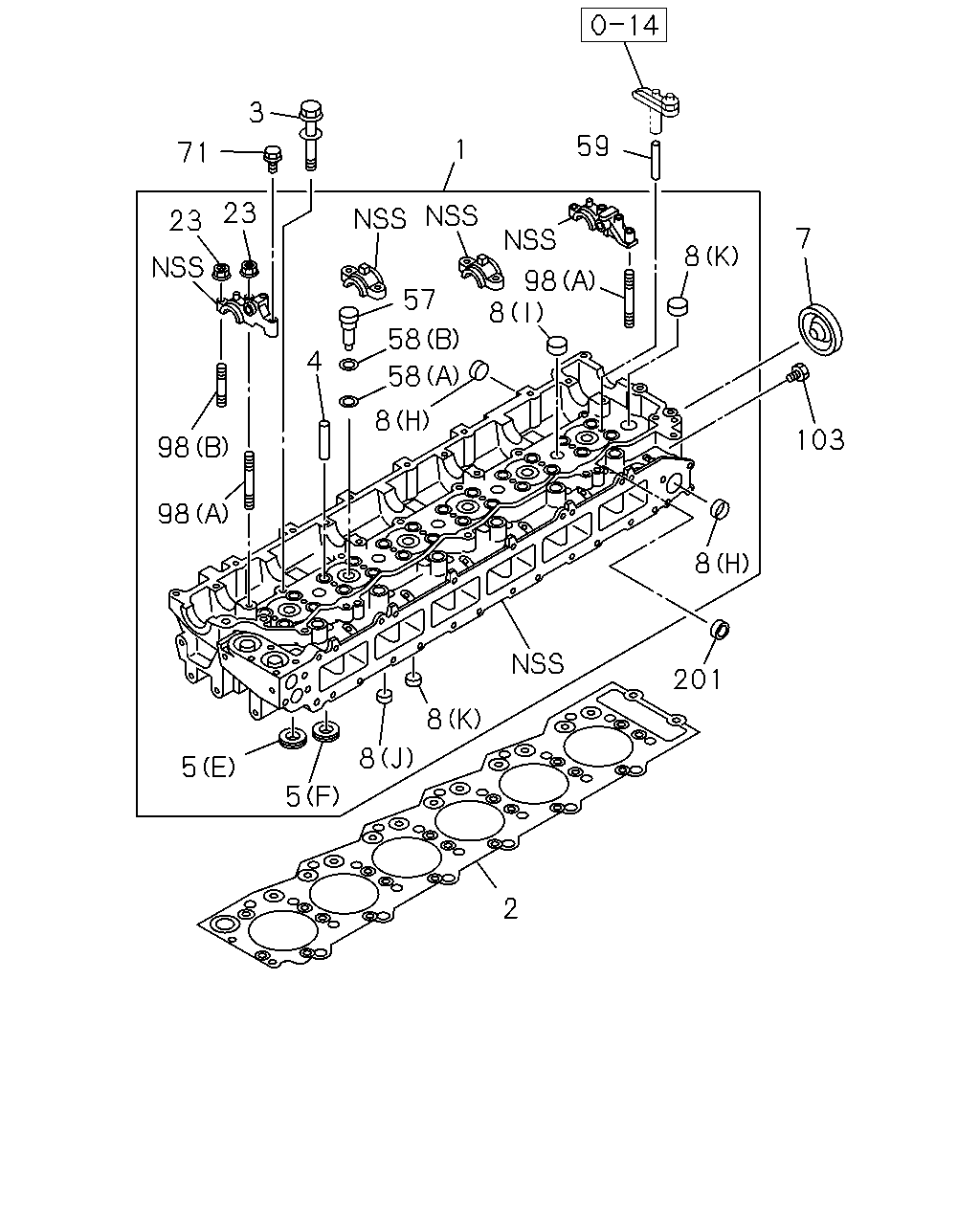

çizim 85895
3 59 1 71 23 23 7 8 98 8 57 58 4 58 8 103 98 98 8 201 8 8 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9803 ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609-0106 ●
1 HEAD ASM; CYL 1-11110-924-4 01 1 0107- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9610-0106 ●
1 HEAD ASM; CYL 8-94392-451-9 01 1 0107-0301 ●
1 HEAD ASM; CYL 8-97602-687-1 01 1 0302-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9601-9803 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-2 01 1 9601-0106 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-278-2 01 1 0107- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9610-0106 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94392-721-3 01 1 0107- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9601-9609 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9610-9803 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9804-0106 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0107-0901 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601-0106 ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-143-0 20 1 0107- ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601-0106 ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-144-0 06 1 0107- ●
4 GUIDE; VLV 8-94396-598-0 12 1 9601-9609 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9610-9803 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9804-0106 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0107-0707 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601- ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9601-9803 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9804-0106 ●
5 SEAT; VLV INSERT
(F) INLET OD=38 		8-94395-888-2 12 1 0107- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9601-9609 ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9610-0106 ●
5 SEAT; VLV INSERT
(E) EXHAUST OD=38 		8-94395-625-0 12 1 0107-0107 ●
5 SEAT; VLV INSERT
(E) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0703 ●
5 SEAT; VLV INSERT
(E) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9610-9803 ● ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-060-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-051-0 06 1 0005-0106 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-078-0 06 1 0107-0108 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-085-0 06 1 0109- ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-095-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-122-0 06 1 0005-0106 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-115-0 06 1 0107-0108 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-118-0 06 1 0109- ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9601-9609 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9610-9803 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9804-0106 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0107-0303 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9601-9704 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9601-9609 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9610-9803 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(I) OD=25 		1-09600-016-0 06 1 0107- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9601-9609 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9610-9803 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(J) OD=16 		5-11129-006-0 07 1 0107- ●
8 CUP; SEALING,WATER JACKET
(D) OD=12 		1-09600-010-2 06 1 9601- ●
8 CUP; SEALING,WATER JACKET
(E) OD=22 		1-09600-011-2 11 1 9601- ●
8 CUP; SEALING,WATER JACKET
(F) OD=32 		1-09600-012-1 14 1 9601-0105 ●
8 CUP; SEALING,WATER JACKET
(F) OD=32 		1-09600-012-2 09 1 0106- ●
8 CUP; SEALING,WATER JACKET
(G) OD=30 		8-94241-638-0 05 1 0106- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9610-9704 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9705-9803 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(H) OD=32 		1-09600-012-2 07 1 0107- ●
8 CUP; SEALING,WATER JACKET
(K) OD=20 		9-11129-128-0 11 1 0107- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9601-9608 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9609 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9610-9803 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9804-0106 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0107-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-0809 ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ●
57 SLEEVE; NOZZLE HOLDER 8-97600-972-0 06 1 0107-0109 ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0110-0507 ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 06 1 0508- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 06 1 0508- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=27 		1-09623-355-0 06 1 0107-0406 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 06 1 0407- ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 0107-0409 ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0410- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9601-9609 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9610-9803 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9804-0106 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0107-0512 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9601-9609 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9610-9803 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9804-0106 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0107- ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9601-9608 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9609 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9610-9803 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9804-0106 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0107- ●
98 STUD; CAM BRKT
(C) M8X114 L=132 		1-09300-028-1 06 1 9601- ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 0107-0501 ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0502- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 06 1 0107- ●

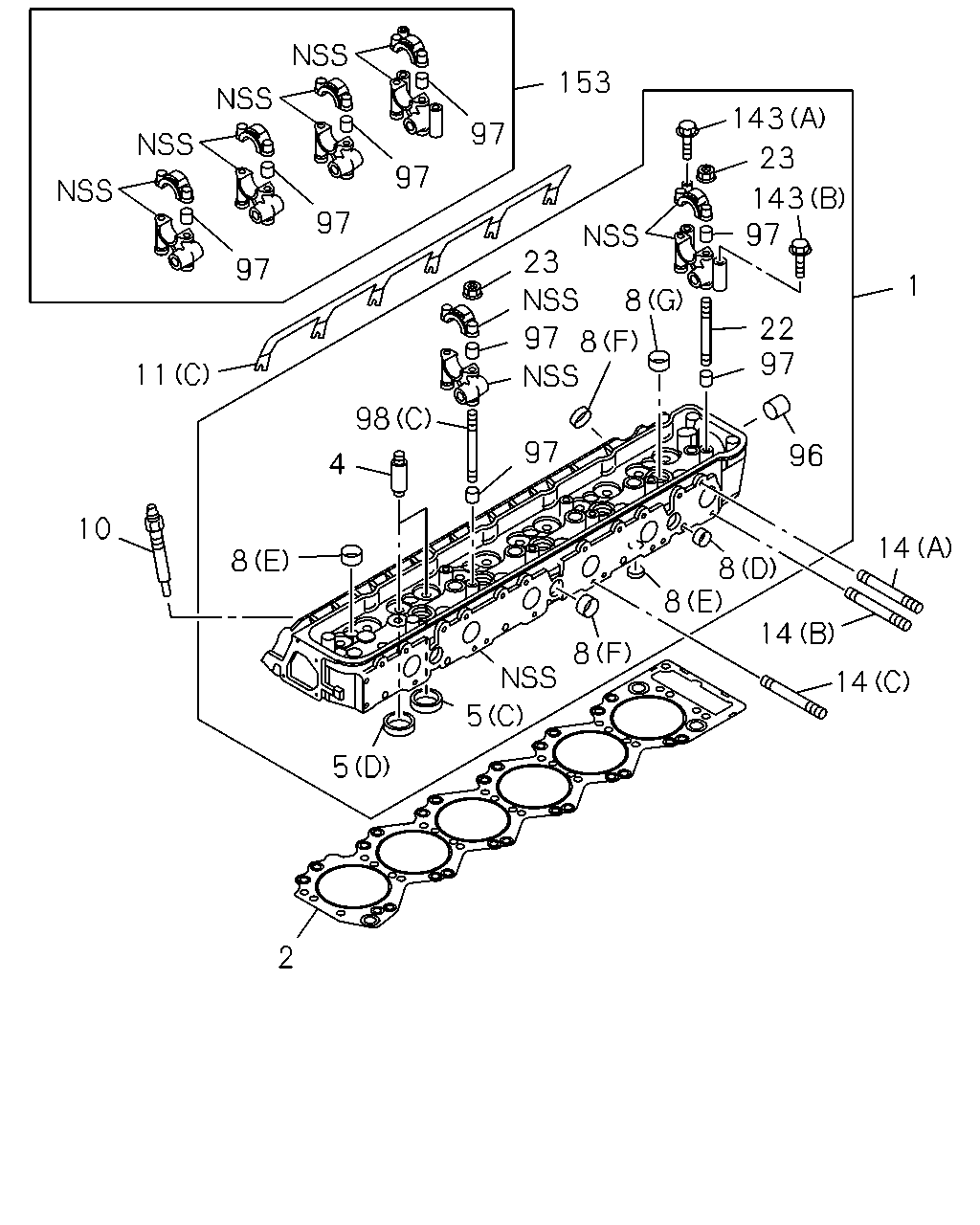

çizim 86575
153 143 97 23 97 143 97 97 23 97 1 8 22 97 97 8 11 98 97 96 4 10 8 8 14 8 14 8 14 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9803 ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609-0106 ●
1 HEAD ASM; CYL 1-11110-924-4 01 1 0107- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9610-0106 ●
1 HEAD ASM; CYL 8-94392-451-9 01 1 0107-0301 ●
1 HEAD ASM; CYL 8-97602-687-1 01 1 0302-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9601-9803 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-2 01 1 9601-0106 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-278-2 01 1 0107- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9610-0106 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94392-721-3 01 1 0107- ●
4 GUIDE; VLV 8-94396-598-0 12 1 9601-9609 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9610-9803 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9804-0106 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0107-0707 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601- ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9601-9803 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9804-0106 ●
5 SEAT; VLV INSERT
(F) INLET OD=38 		8-94395-888-2 12 1 0107- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9601-9609 ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9610-0106 ●
5 SEAT; VLV INSERT
(E) EXHAUST OD=38 		8-94395-625-0 12 1 0107-0107 ●
5 SEAT; VLV INSERT
(E) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0703 ●
5 SEAT; VLV INSERT
(E) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9610-9803 ● ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-060-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-051-0 06 1 0005-0106 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-078-0 06 1 0107-0108 ●
5 SEAT; VLV INSERT
(C) EXHAUST 		1-11711-085-0 06 1 0109- ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-095-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-122-0 06 1 0005-0106 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-115-0 06 1 0107-0108 ●
5 SEAT; VLV INSERT
(D) INLET 		1-11715-118-0 06 1 0109- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9601-9704 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9601-9609 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9610-9803 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(I) OD=25 		1-09600-016-0 06 1 0107- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9601-9609 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9610-9803 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(J) OD=16 		5-11129-006-0 07 1 0107- ●
8 CUP; SEALING,WATER JACKET
(D) OD=12 		1-09600-010-2 06 1 9601- ●
8 CUP; SEALING,WATER JACKET
(E) OD=22 		1-09600-011-2 11 1 9601- ●
8 CUP; SEALING,WATER JACKET
(F) OD=32 		1-09600-012-1 14 1 9601-0105 ●
8 CUP; SEALING,WATER JACKET
(F) OD=32 		1-09600-012-2 09 1 0106- ●
8 CUP; SEALING,WATER JACKET
(G) OD=30 		8-94241-638-0 05 1 0106- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9610-9704 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9705-9803 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9804-0106 ●
8 CUP; SEALING,WATER JACKET
(H) OD=32 		1-09600-012-2 07 1 0107- ●
8 CUP; SEALING,WATER JACKET
(K) OD=20 		9-11129-128-0 11 1 0107- ●
10 PLUG; GLOW 9-82513-928-8 06 1 9601-9609 ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9610-9803 ● ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9804-9809 ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0004 ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 0005-0106 ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0107- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0107- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9601-9609 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9610-9803 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9804-0106 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94391-925-3 01 1 0107-0804 ●
11 CONNECTOR; GLOW PLUG
(E) 		8-98040-648-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9601-9609 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9610-9803 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9804-0106 ●
11 CONNECTOR; GLOW PLUG
(E) 		8-94392-843-1 01 1 0107-0804 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-98040-649-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(C) 		1-19732-011-1 01 1 9601- ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9601-9609 ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9610-9803 ● ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 9804-0106 ●
14 STUD; EXH MANIF
(A) M10X60 L=75 		8-94397-286-0 12 1 0107- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 9601-0106 ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 03 1 0107- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9601-0106 ●
14 STUD; EXH MANIF
(C) M10X45 L=65 		9-04321-045-0 01 1 0107-0604 ●
14 STUD; EXH MANIF
(C) M10X45 L=65 		0-43211-045-0 01 1 0605- ●
14 STUD; EXH MANIF
(B) M10X135 L=150 		1-09302-159-0 08 1 0107- ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 9601- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9601-9608 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9609 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9610-9803 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9804-0106 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0107-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-0809 ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 9601- ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 9601- ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9601-9609 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9610-9803 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9804-0106 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0107- ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9601-9608 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9609 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9610-9803 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9804-0106 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0107- ●
98 STUD; CAM BRKT
(C) M8X114 L=132 		1-09300-028-1 06 1 9601- ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28080-800-0 01 1 9601-0512 ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28050-800-0 01 1 0601- ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28090-860-0 01 1 9601-0512 ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28060-860-0 01 1 0601- ●
153 BRACKET KIT; CAM,CYL HD 1-12516-178-0 AR 1 9609-9709 ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 AR 1 9710- ●

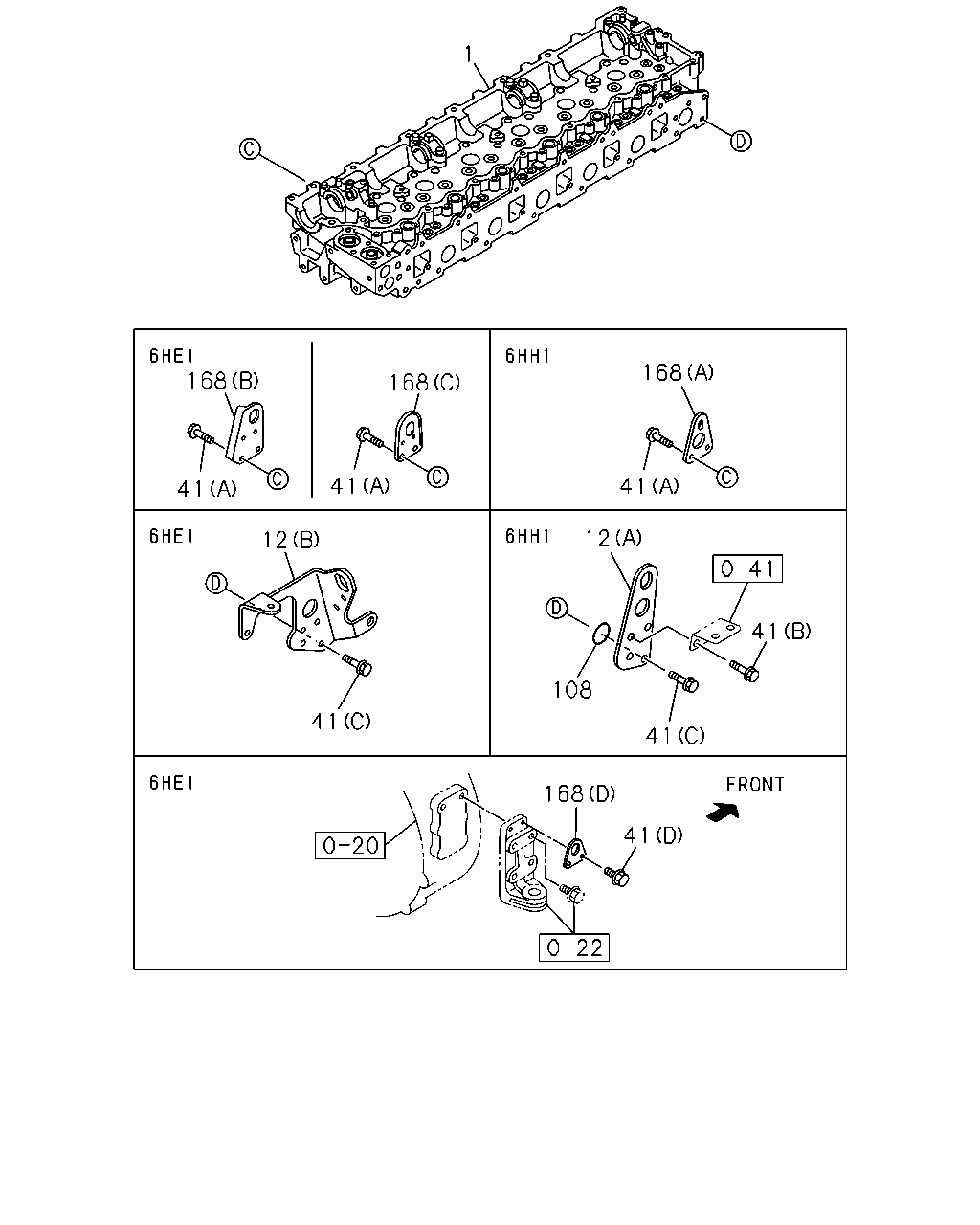

çizim 104515
1 168 168 168 41 41 41 12 12 41 108 41 41 168 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9803 ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609-0106 ●
1 HEAD ASM; CYL 1-11110-924-4 01 1 0107- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9610-0106 ●
1 HEAD ASM; CYL 8-94392-451-9 01 1 0107-0301 ●
1 HEAD ASM; CYL 8-97602-687-1 01 1 0302-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
12 HANGER; ENG,RR
(A) 		8-94399-405-0 01 1 9601-9803 ●
12 HANGER; ENG,RR
(C) 		1-11777-099-0 01 1 9601-0106 ●
12 HANGER; ENG,RR
(D) 		1-11777-222-0 01 1 0107- ●
12 HANGER; ENG,RR
(B) 		8-94394-337-1 01 1 9610-0106 ●
12 HANGER; ENG,RR
(E) 		8-97601-477-0 01 1 0107- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9601-9803 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 01 1 9601-9803 ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9601-9803 ●
41 BOLT; ENG HANGER
(A),(B) M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-0106 ●
41 BOLT; ENG HANGER
(A) M10X40 FLANGE 		0-28791-040-0 03 1 0107-0512 ●
41 BOLT; ENG HANGER
(A) M10X40 FLANGE 		0-28761-040-0 03 1 0601- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9610-0106 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 06 1 0107-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 06 1 0601- ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9610-0106 ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28181-030-0 02 1 0107-0512 ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9610-0106 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 0107-0512 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9601-9803 ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 9601-9803 ●
168 HANGER; ENG,FRT
(E) 		1-11777-207-0 01 1 9601-0106 ●
168 HANGER; ENG,FRT
(F) 		1-11777-247-0 01 1 0107- ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9610-9701 ●
168 HANGER; ENG,FRT
(C) 		8-94391-505-0 01 1 9702-0106 ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-2 01 1 0107- ●
168 HANGER; ENG,FRT
(D) 		8-94394-398-0 01 1 9610-0106 ●
168 HANGER; ENG,FRT
(G) 		8-94393-810-0 01 1 0107- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
