◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#30954) — 45 parça

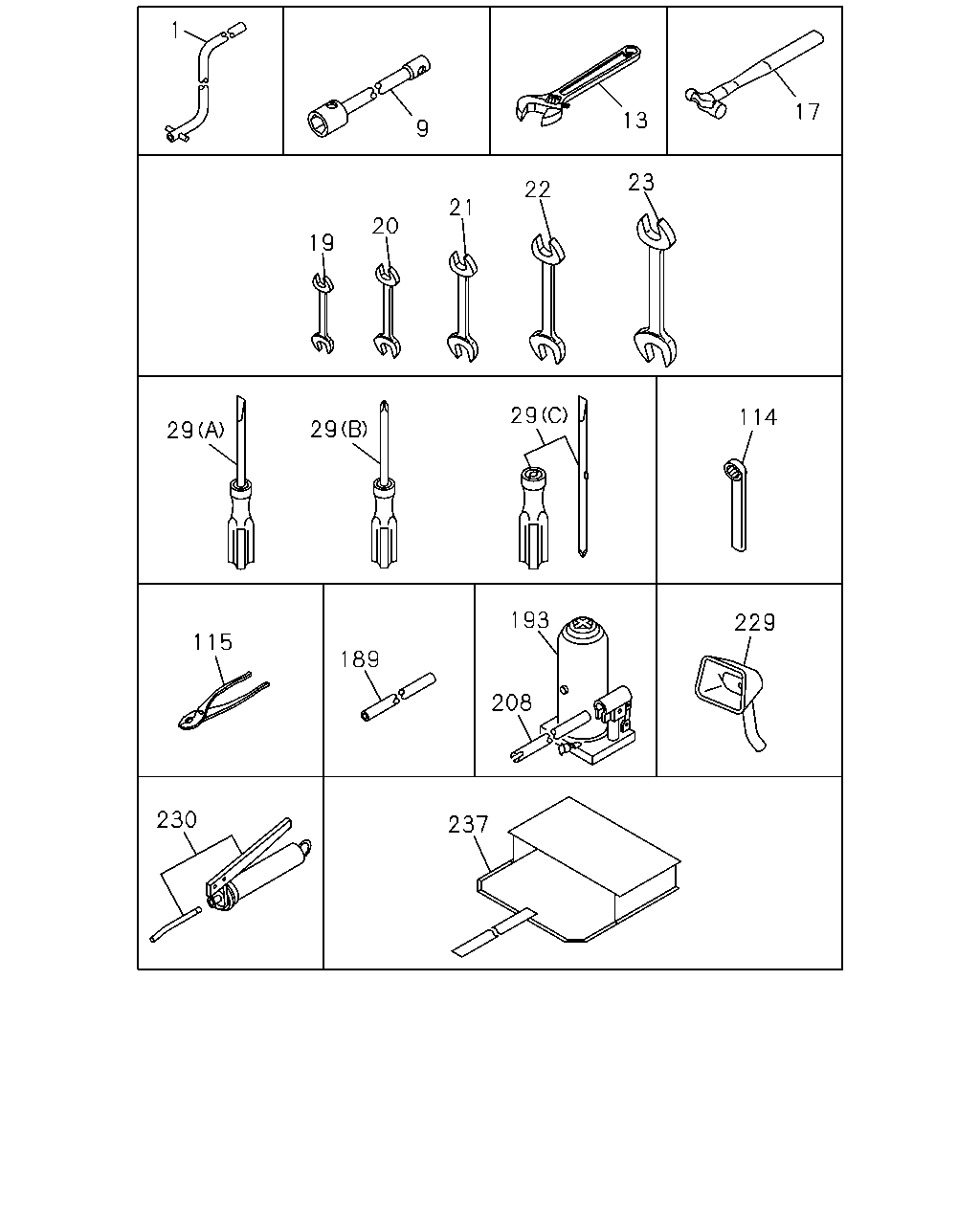

çizim 82739
1 17 13 9 23 22 21 20 19 29 114 29 29 193 229 115 189 208 230 237
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER(SFB) 		9-23110-018-0 01 1 0107-
9 WRENCH; WHEEL PIN
INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL A KIT(SK9),TOOL B KIT(SL1) B=33X30 L=450 		1-85111-033-1 01 1 0107-
9 WRENCH; WHEEL PIN
TOOL A KIT(SK9),TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440 		1-85113-015-1 01 1 0107-
13 WRENCH; MONKEY
TOOL B KIT(SL1) L=255 		1-85117-002-1 01 1 0107-0907
13 WRENCH; MONKEY
TOOL B KIT(SL1) L=247 		1-85117-006-0 01 1 0908-
17 HAMMER
TOOL B KIT(SL1) 		9-85121-406-0 01 1 0107-
19 WRENCH; 7X8
TOOL B KIT(SL1) 7X8 		9-09592-107-0 01 1 0107-
20 WRENCH; 10X12
TOOL B KIT(SL1) 10X12 		9-09592-110-0 01 1 0107-0607
20 WRENCH; 10X12
TOOL B KIT(SL1) 10X12 		0-95902-510-0 01 1 0608-
21 WRENCH; 14X17
TOOL B KIT(SL1) 14X17 		9-09592-114-0 01 1 0107-0607
21 WRENCH; 14X17
TOOL B KIT(SL1) 14X17 		0-95902-514-0 01 1 0608-
22 WRENCH; 19X22
TOOL B KIT(SL1) 19X22 		9-99592-119-0 01 1 0107-0607
22 WRENCH; 19X22
TOOL B KIT(SL1) 19X22 		0-95902-519-0 01 1 0608-
23 WRENCH; 24X27
TOOL B KIT(SL1) 24X27 		9-09592-124-0 01 1 0107-0607
23 WRENCH; 24X27
TOOL B KIT(SL1) 24X27 		0-95902-524-0 01 1 0608-
29 DRIVER; SCREW
TOOL B KIT(SL1) (C) <+>,<-> L=160 		8-94242-798-1 01 1 0107-
29 DRIVER; SCREW
TOOL B KIT(SL1) (B) <+> L=270 		9-09595-523-0 01 1 0107-
29 DRIVER; SCREW
TOOL B KIT(SL1) (A) <-> L=320 		9-09595-729-0 01 1 0107-
114 WRENCH; INJ PUMP 1-85112-002-0 01 1 0107-0503
115 PLIER
TOOL B KIT(SL1) 		5-85171-001-0 01 1 0107-0212
115 PLIER
TOOL B KIT(SL1) 		5-85171-002-0 01 1 0301-
189 TUBE; AIR BREATHER
TOOL B KIT(SL1) L=460 		9-85291-414-0 01 1 0107-
193 JACK ASM
TOOL A KIT(SK9),TOOL B KIT(SL1) 10TON 		1-85510-013-1 01 1 0107-0504
193 JACK ASM
TOOL A KIT(SK9),TOOL B KIT(SL1) 10TON 		8-97607-599-0 01 1 0505-
208 HANDLE; JACK
TOOL A KIT(SK9),TOOL B KIT(SL1) L=600 		1-85515-009-0 01 1 0107-
229 FUNNEL; RAD
INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT(SL1) 		9-85531-110-0 01 1 0107-
230 PUMP; GREASE
TOOL B KIT(SL1) 		1-85556-007-4 01 1 0107-
237 BAG; TOOL
TOOL B KIT(SL1) 		8-97130-902-0 01 1 0107-
çizim 82740
85 10 12 141 128 160 127 129 174 171 178 176 180 358 357 182 359
BalonParca AdiParca NoAdetTipApplied Date
10 WRENCH KIT; BRK ADJ 9-85110-013-0 01 1 0107-
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT(SK9),TOOL B KIT(SL1) OD=25 L=480 		1-85116-011-0 01 1 0107-
85 REPLACER ASM; VALVE SPR 8-94391-528-0 01 1 0107-
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-0 01 1 0107-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0107-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 02 1 0107-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0107-
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 0107-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0107-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0107-
176 PULLER ASM; COUNTER SHAFT MAIN 9-85210-169-0 01 1 0107-
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0107-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0107-
182 REMOVER ASM 1-85239-008-0 01 1 0107-
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 0107-
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 0107-
359 PIVOT 8-94396-862-0 01 1 0107-
