◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶

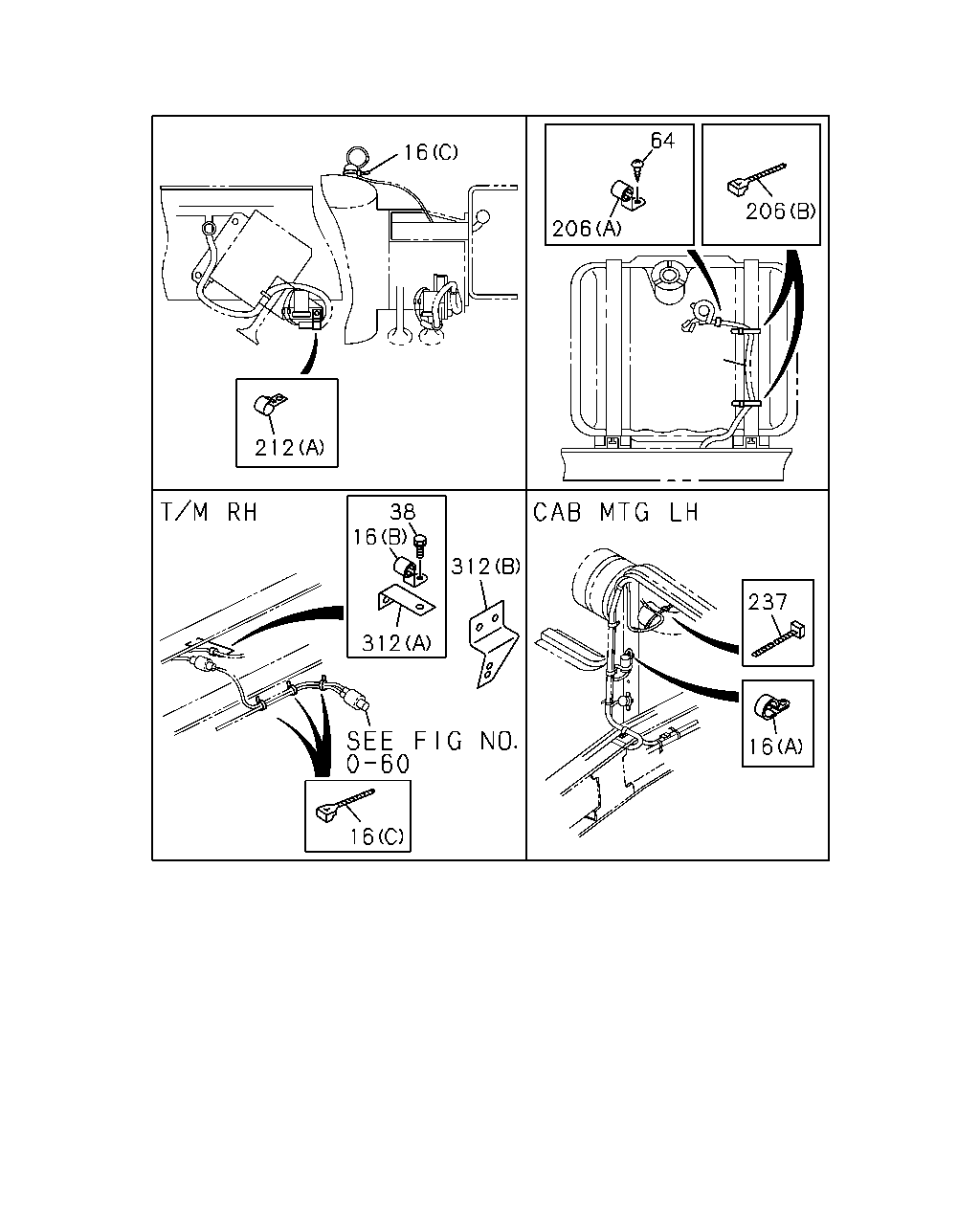

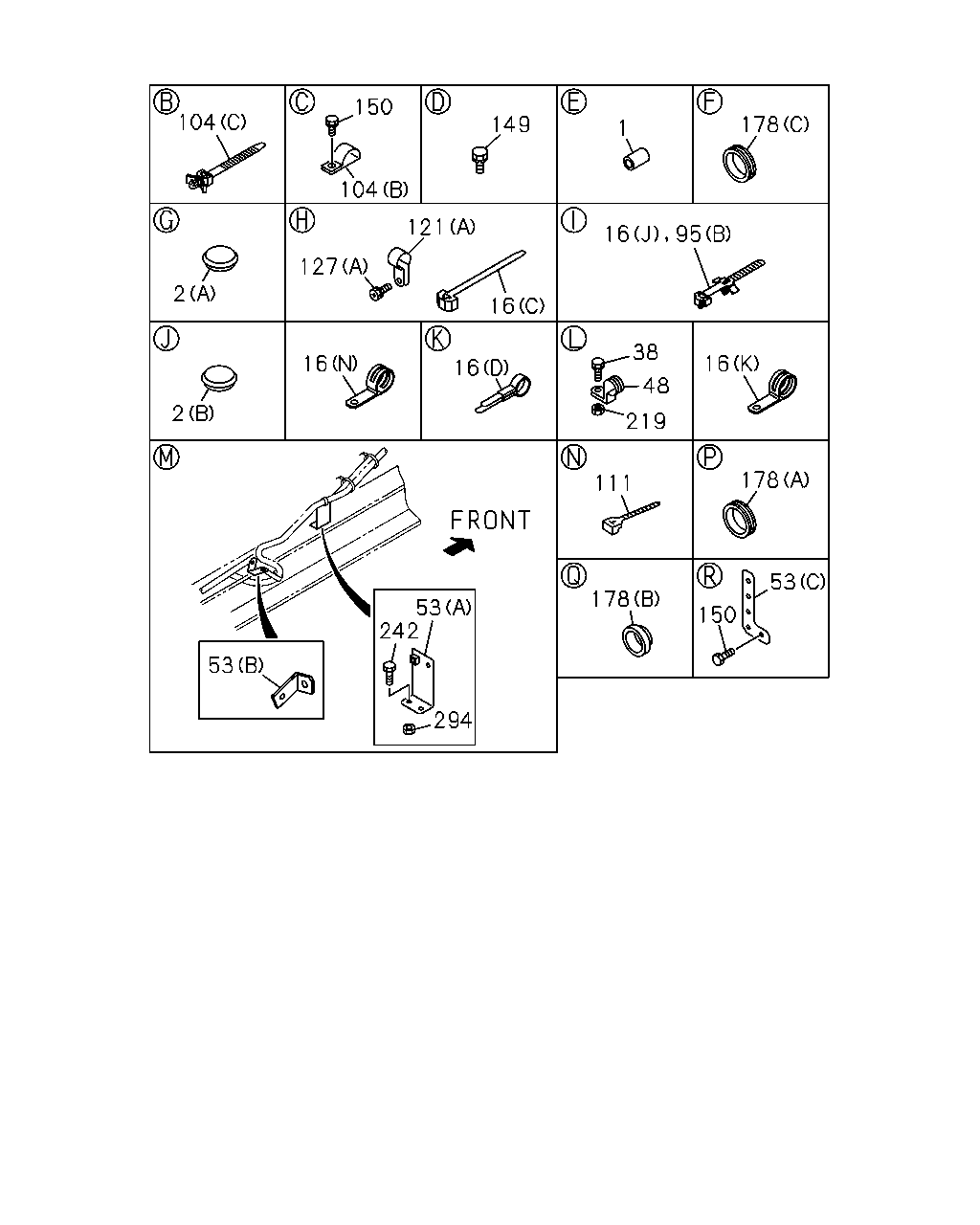

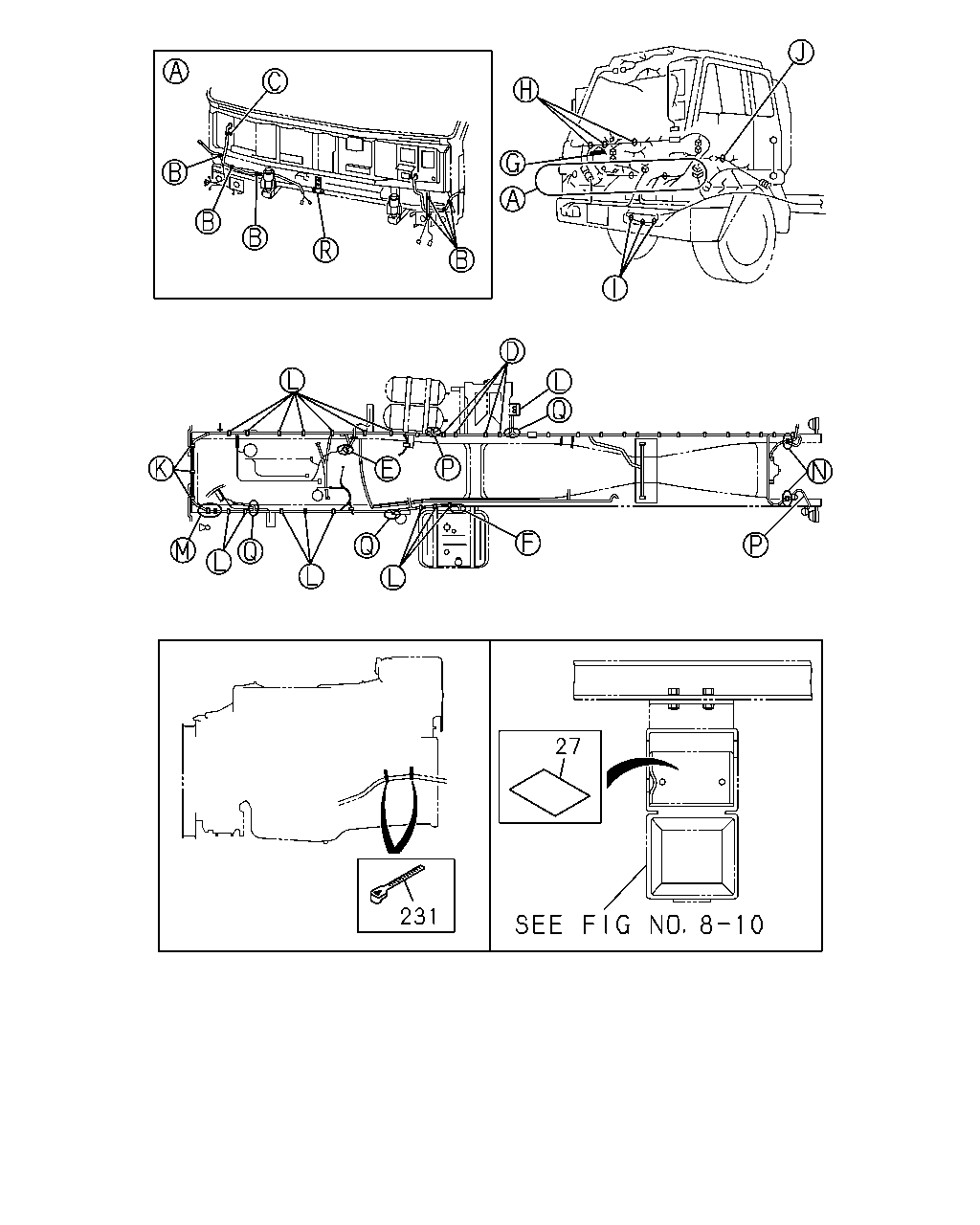

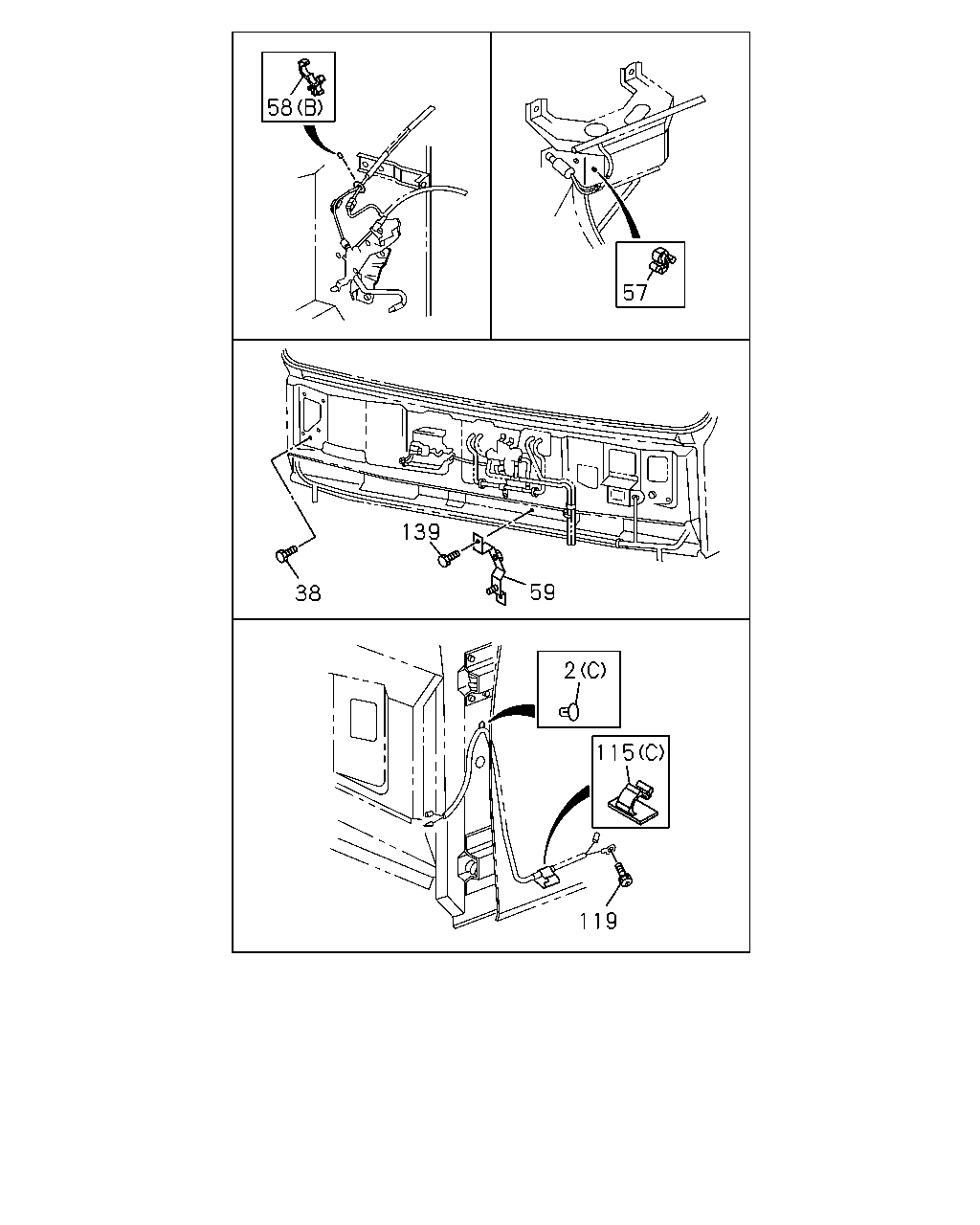

8-15 — FIXING PARTS; WIRING HARNESS (#3095) — 1061 parça

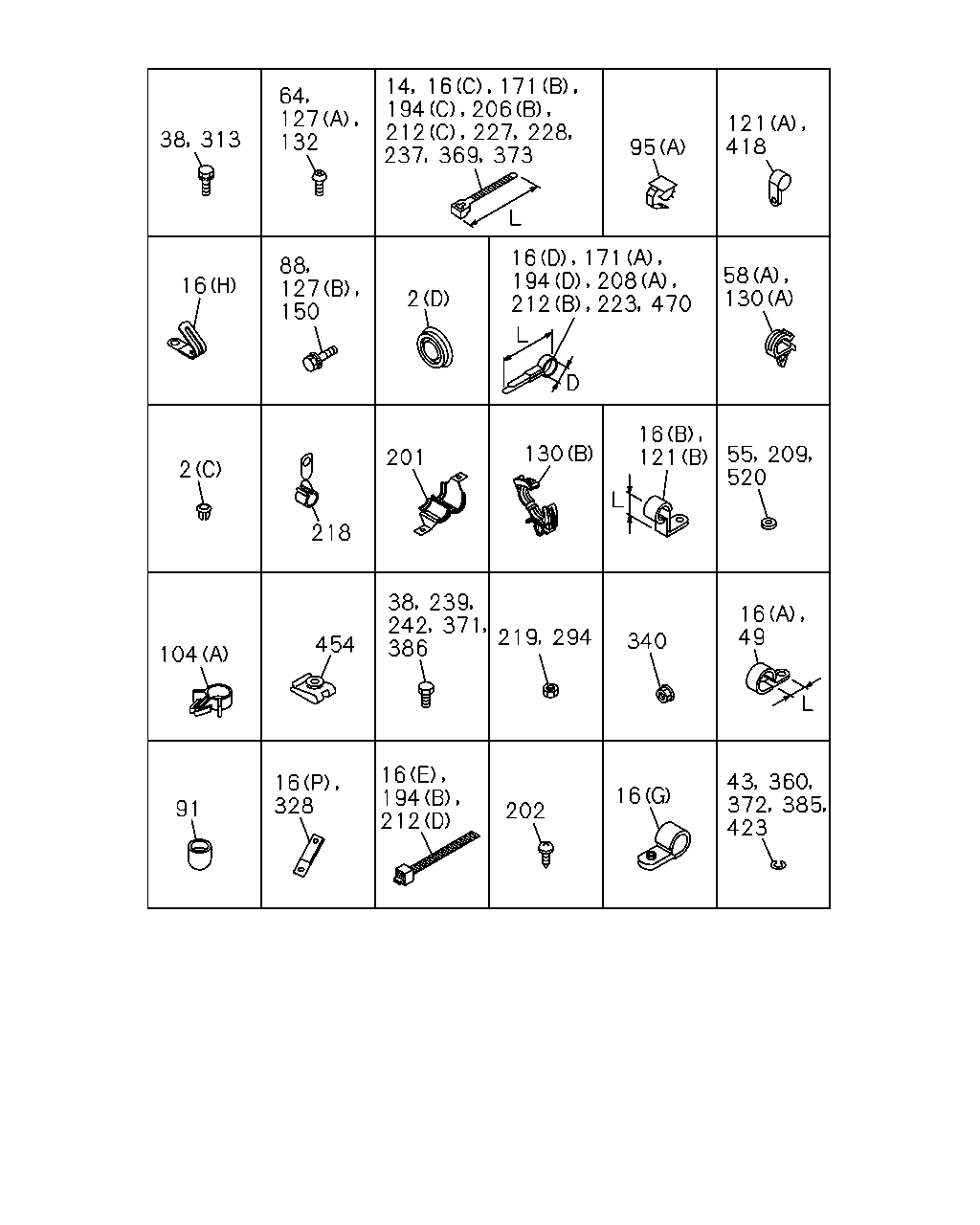

çizim 4946
423 372 385 43 360 16 202 212 194 16 16 328 91 104 454 386 242 371 239 38 201 218 2 130 16 121 55 209 520 130 58 470 223 212 194 208 171 16 2 150 127 88 16 38 313 132 127 64 14 16 171 194 206 212 227 228 237 369 373 95 418 121 16 49 340 294 219
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9002-9306 ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. MARKER LAMP THREE AMBER<WD9> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-9306 ● ●
2 GROMMET; CLIP HOLE,HARNESS
(D) 		1-73907-231-0 01 1 9202- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
(C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 01 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 02 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9307- ● ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=140 		5-09707-031-1 01 1 9307- ● ● ● ●
14 CLIP; BAND,HARNESS
FULLER M/T<X9B> L=140 		5-09707-031-0 02 1 9002-9306 ● ● ● ●
14 CLIP; BAND,HARNESS
INTAKE HEATER<SL2> L=100 		5-09707-036-1 01 1 9002- ● ●
14 CLIP; BAND,HARNESS
OIL FILTER CENTRIFUGAL<E6S> L=150 		1-09707-145-0 06 1 9010-9011 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 		1-09700-684-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 02 1 9104-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) 		1-09701-107-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
(K) 		1-09701-107-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=25 L=55 		9-09917-573-0 02 1 9011- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 9002-9007 ● ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9007 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ● ●
16 CLIP; HARNESS
6QA1 STD ENG(L24) CONCRETE PUMP<RA5> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9101-9306 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 9009-9306 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-9303 ● ● ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 02 1 9304- ● ● ● ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ● ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205 ● ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206- ● ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ● ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ● ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9004-9010 ● ● ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9011- ● ● ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ● ● ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (L) ID=20 L=50 		1-09700-679-1 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9103 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9103 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID<W71> EXC. FIRE TRUCK<RA9> (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=25 L=55 		9-09917-573-0 02 1 9002-9010 ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 01 1 9011-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9101- ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=11 L=41 		1-09700-403-0 01 1 9101- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9002-9212 ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9212 ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID<W71> (C) L=250 		5-09707-030-1 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9310- ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 05 1 9307- ● ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 16 1 9002- ● ●
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (D) ID=20 L=50 		9-09917-430-0 20 1 9002- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) OD=9 H=9.5 		1-09709-179-0 02 1 9002- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=6 L=36 		9-09917-423-0 04 1 9002- ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 10 1 9002- ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 06 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9009 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 13 1 9010-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 03 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9002-9106 ● ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 		8-97086-824-0 01 1 9302- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 		1-09044-079-0 01 1 9102- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 03 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 03 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 04 1 9010-9010 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9011-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ● ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 07 1 9205- ●
43 WASHER; LK,HARNESS
ID=5.1 		9-09150-505-0 01 1 9002- ● ● ● ●
49 CLIP; GEN HARNESS
ID=16 L=20 		9-09525-532-0 01 1 9002- ● ● ● ●
55 WASHER; PL,CLIP
ID=5.3 		9-09160-505-0 01 1 9002- ● ● ● ●
58 CLIP; INST HARNESS,SW ACCEL
(A) ID=6.5 		8-94206-730-0 01 1 9002-9108 ● ●
58 CLIP; INST HARNESS,SW ACCEL
(B) ID=7-10 		8-94472-578-0 01 1 9109- ● ●
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ● ●
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9002-9112 ● ● ● ●
64 SCREW; CLIP
INTAKE HEATER<SL2> M5X16 W/LK WASHER 		9-03910-516-0 01 1 9002- ● ●
88 BOLT; DOOR HARNESS EARTH
DELUXE CAB(W14) M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303 ● ● ● ●
88 BOLT; DOOR HARNESS EARTH
DELUXE CAB(W14) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ● ●
91 CAP; BOLT,HARNESS 1-82699-340-0 02 1 9004- ● ●
95 CLIP; CABLE
(B) 		1-09987-143-1 02 1 9002-9201 ● ● ● ●
95 CLIP; CABLE
(B) 		8-94155-593-1 02 1 9202-9205 ● ● ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) 		8-94155-593-1 01 1 9206- ● ● ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 03 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302 ● ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002-9306 ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307- ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 09 1 9002-9003 ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 09 1 9004- ● ●
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=23 L=24 		1-09700-738-0 03 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=9 L=16 		9-09524-822-0 02 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 9002- ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 9002- ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003 ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303 ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304 ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305- ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
130 CLIP; WASHER HARNESS
(A) ID=6.5 		8-94206-730-0 02 1 9002-9202 ● ● ● ●
130 CLIP; WASHER HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 9203-9301 ● ● ● ●
132 SCREW; HARNESS
TAIWAN EQUIPMENT(WW5) M5X12 W/LK&PL WASHER 		1-09981-464-0 02 1 9211-9306 ● ●
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002- ● ● ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-0 02 1 9002-9306 ● ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206-9306 ● ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206-9306 ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 02 1 9002- ● ● ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 04 1 9002-9103 ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9104-9205 ● ● ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 03 1 9104-9205 ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9206-9306 ● ● ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=300 		1-09707-001-0 01 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 05 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 03 1 9206-9206 ● ●
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 9002- ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9002-9103 ● ● ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9002-9103 ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9104-9206 ● ● ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9104-9206 ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9207-9306 ● ● ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9207-9306 ● ● ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-0 01 1 9002-9007 ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9002-9007 ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9008-9306 ● ● ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (C) L=250 		5-09707-030-1 03 1 9002- ● ● ● ●
194 CLIP; BAND
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
MAF5D M/T(X4G) (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=8 L=38 		9-09917-424-0 01 1 9002- ● ●
201 CLIP; RR COMB CONN
WO/SPONGE RUBBER 		1-09709-103-1 02 1 9002- ● ● ● ●
202 SCREW; RR COMB LAMP CONN
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9002- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9002- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
EXC. CONCRETE PUMP<RA5> (A) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 9002-9306 ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(B) ID=11 L=30 		1-09700-511-0 01 1 9002-9306 ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) ID=12 L=42 		9-09917-426-0 01 1 9002-9112 ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9002- ● ● ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9002- ● ● ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002- ● ● ● ●
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9002- ● ● ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 01 1 9002- ● ● ● ●
218 CLIP; BAND,RR COMB
ID=15 L=42 		1-09700-479-0 02 1 9002- ● ● ● ●
219 NUT
M8 		9-09110-408-0 06 1 9002- ● ● ●
219 NUT
EXC. CONCRETE PUMP<RA5> M8 		9-09110-408-0 06 1 9002- ●
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 9002- ● ● ● ●
219 NUT
M8 		9-09110-408-0 01 1 9002-9306 ● ● ● ●
219 NUT
M8 		9-09110-408-0 02 1 9002-9306 ● ● ● ●
219 NUT
M8 		9-09110-408-0 13 1 9002-9306 ● ● ● ●
219 NUT
M8 		9-09110-408-0 04 1 9002-9003 ● ● ● ●
219 NUT
M8 		9-09110-408-0 04 1 9002-9003 ●
219 NUT
EXC. CONCRETE PUMP<RA5> M8 		9-09110-408-0 04 1 9002-9003 ●
219 NUT
M8 		9-09110-408-0 04 1 9002-9003 ● ● ● ●
219 NUT
M10 		9-09110-510-0 02 1 9002- ● ● ● ●
219 NUT
M5 		9-99110-405-0 01 1 9002-9306 ● ● ● ●
219 NUT
M8 		9-09110-408-0 04 1 9004- ● ● ● ●
219 NUT
M8 		9-09110-408-0 03 1 9004-9010 ● ●
219 NUT
M8 		9-09110-408-0 18 1 9307- ● ●
219 NUT
M8 		9-09110-408-0 01 1 9307- ● ●
219 NUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 01 1 9307- ●
219 NUT
M8 		9-09110-408-0 04 1 9307- ● ●
219 NUT
EXC. CONCRETE PUMP<RA5> M8 		9-09110-408-0 04 1 9307- ●
219 NUT
M5 		9-99110-405-0 01 1 9307- ● ●
219 NUT
CONCRETE PUMP<RA5> M8 		9-09110-408-0 07 1 9002- ●
223 CLIP; AIR TANK HARNESS
ID=15 L=45 		1-09700-402-0 05 1 9002- ● ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=11 L=41 		1-09700-403-0 02 1 9002- ● ● ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=11 L=41 		1-09700-403-0 01 1 9002- ● ●
227 CLIP; FOG LAMP HARNESS
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=140 		5-09707-031-1 02 1 9002- ● ● ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 05 1 9002- ● ● ● ●
237 CLIP; BAND,ACL
L=600 		1-09707-107-0 01 1 9002- ● ● ● ●
237 CLIP; BAND,ACL
L=140 		5-09707-031-1 01 1 9002- ● ● ● ●
239 BOLT; GRAND
M5X8 		9-92040-508-0 01 1 9002-9204 ● ● ● ●
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9205- ● ● ● ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9206-9302 ● ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 9002-9204 ● ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302 ● ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303- ● ● ● ●
242 BOLT; BRKT,HARNESS
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307- ●
242 BOLT; BRKT,HARNESS
AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9307- ●
294 NUT
M6 		9-09110-406-0 01 1 9002- ● ● ● ●
294 NUT
M8 		9-09110-408-0 06 1 9002- ● ● ● ●
313 BOLT; BRKT
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ● ● ●
313 BOLT; BRKT
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ● ●
313 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ● ● ●
313 BOLT; BRKT
M8X16 W/LK WASHER 		9-01900-816-0 02 1 9002-9204 ● ● ● ●
313 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9302 ● ● ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9303-9306 ● ● ● ●
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 03 1 9307- ● ●
313 BOLT; BRKT
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ● ● ●
313 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9303-9306 ● ● ● ●
328 CLIP; HARNESS,RESISTOR
INTAKE HEATER<SL2> 		1-09700-894-0 01 1 9002- ● ●
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 01 1 9002-9011 ● ●
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 02 1 9012- ● ●
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 01 1 9307-9309 ●
360 WASHER; LK,CLIP
ID=5.1 		9-09150-505-0 01 1 9002- ● ● ● ●
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 02 1 9002- ● ● ● ●
371 BOLT; GEN HARNESS
M5X8 		9-92040-508-0 01 1 9002-9204 ● ● ● ●
371 BOLT; GEN HARNESS
M5X8 		0-20800-508-0 01 1 9205- ● ● ● ●
372 WASHER; LK GEN HARNESS
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9002-9204 ● ● ● ●
372 WASHER; LK GEN HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9002-9204 ● ●
372 WASHER; LK GEN HARNESS
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9205-9306 ● ● ● ●
372 WASHER; LK GEN HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9205-9306 ● ● ● ●
372 WASHER; LK GEN HARNESS
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9307- ● ●
372 WASHER; LK GEN HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9307- ●
373 CLIP; BAND,GEN HARNESS
L=250 		5-09707-030-0 01 1 9002-9003 ● ● ● ●
385 WASHER; LK,CAB EARTH
ID=8.2 		9-09150-508-0 02 1 9002-9212 ● ● ● ●
386 BOLT; GRAND HARNESS
M8X20 		9-02040-820-0 02 1 9002-9204 ● ● ● ●
386 BOLT; GRAND HARNESS
M8X20 		0-20800-820-0 02 1 9205-9212 ● ● ● ●
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9301- ● ● ● ●
418 CLIP; LAMP HARNESS
TAIWAN EQUIPMENT(WW5) ID=6 		9-09524-532-0 02 1 9211-9306 ● ●
423 WASHER; HARNESS,EARTH
ID=6.4 		1-09503-263-0 01 1 9301- ● ● ● ●
454 NUT
M6 FLANGE 		1-09466-001-0 02 1 9002- ● ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9002-9306 ● ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 02 1 9002-9306 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301-9404 ● ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9405- ● ●
çizim 7281
27 231
BalonParca AdiParca NoAdetTipApplied Date A B C D
27 PROTECTOR; EDGE
120X150 		1-72370-001-0 01 1 9002- ● ● ● ●
27 PROTECTOR; EDGE
150X315 		1-72370-002-0 01 1 9002- ● ● ● ●
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-1 01 1 9002- ● ● ● ●
çizim 35395
16 16 237 312 312 16 38 212 16 64 206 206
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 		1-09700-684-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 02 1 9104-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) 		1-09701-107-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
(K) 		1-09701-107-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=25 L=55 		9-09917-573-0 02 1 9011- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 9002-9007 ● ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9007 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ● ●
16 CLIP; HARNESS
6QA1 STD ENG(L24) CONCRETE PUMP<RA5> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9101-9306 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 9009-9306 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-9303 ● ● ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 02 1 9304- ● ● ● ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ● ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205 ● ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206- ● ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ● ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ● ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9004-9010 ● ● ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9011- ● ● ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ● ● ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (L) ID=20 L=50 		1-09700-679-1 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9103 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9103 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID<W71> EXC. FIRE TRUCK<RA9> (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=25 L=55 		9-09917-573-0 02 1 9002-9010 ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 01 1 9011-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9101- ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=11 L=41 		1-09700-403-0 01 1 9101- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9002-9212 ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9212 ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID<W71> (C) L=250 		5-09707-030-1 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9310- ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 05 1 9307- ● ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 16 1 9002- ● ●
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (D) ID=20 L=50 		9-09917-430-0 20 1 9002- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) OD=9 H=9.5 		1-09709-179-0 02 1 9002- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=6 L=36 		9-09917-423-0 04 1 9002- ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 10 1 9002- ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 06 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9009 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 13 1 9010-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 03 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9002-9106 ● ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 		8-97086-824-0 01 1 9302- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 		1-09044-079-0 01 1 9102- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 03 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 03 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 04 1 9010-9010 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9011-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ● ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 07 1 9205- ●
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ● ●
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9002-9112 ● ● ● ●
64 SCREW; CLIP
INTAKE HEATER<SL2> M5X16 W/LK WASHER 		9-03910-516-0 01 1 9002- ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9002- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
EXC. CONCRETE PUMP<RA5> (A) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 9002-9306 ● ● ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9002- ● ● ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002- ● ● ● ●
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9002- ● ● ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 01 1 9002- ● ● ● ●
237 CLIP; BAND,ACL
L=600 		1-09707-107-0 01 1 9002- ● ● ● ●
237 CLIP; BAND,ACL
L=140 		5-09707-031-1 01 1 9002- ● ● ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-82699-085-0 01 1 9002- ● ● ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-82699-141-1 01 1 9002- ● ● ● ●
çizim 36632
58 57 59 139 38 2 115 119
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9002-9306 ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. MARKER LAMP THREE AMBER<WD9> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-9306 ● ●
2 GROMMET; CLIP HOLE,HARNESS
(D) 		1-73907-231-0 01 1 9202- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
(C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 01 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 02 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 06 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9009 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 13 1 9010-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 03 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9002-9106 ● ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 		8-97086-824-0 01 1 9302- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 		1-09044-079-0 01 1 9102- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 03 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 03 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 04 1 9010-9010 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9011-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ● ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 07 1 9205- ●
57 CLIP; INST HARNESS,SW CLU 1-09987-161-0 01 1 9002- ● ● ● ●
58 CLIP; INST HARNESS,SW ACCEL
(A) ID=6.5 		8-94206-730-0 01 1 9002-9108 ● ●
58 CLIP; INST HARNESS,SW ACCEL
(B) ID=7-10 		8-94472-578-0 01 1 9109- ● ●
59 BRACKET; FRAME HARNESS 1-82699-264-0 01 1 9002- ● ●
59 BRACKET; FRAME HARNESS 1-82699-076-3 01 1 9002- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 09 1 9205-9306 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) ID=9 		5-09707-027-0 02 1 9205-9305 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (D) L=142 		8-94232-619-0 02 1 9306- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=15 		1-09987-115-0 01 1 9205-9208 ● ●
115 CLIP; DOOR HARNESS
DELUXE CAB(W14) (A) ID=9 		5-09707-027-0 01 1 9002- ● ● ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 05 1 9307- ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=15 		1-09987-115-0 01 1 9307- ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 01 1 9009-9306 ● ●
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB(W14) M4X13 		1-09981-148-0 01 1 9002-9008 ● ● ● ●
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB(W14) M4X13 		1-09981-148-0 01 1 9009-9202 ● ●
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB(W14) EXC. POWER WINDOW<A30> M4X13 		1-09981-148-0 01 1 9009-9202 ● ●
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB(W14) EXC. POWER WINDOW<A30> M4X13 		1-09981-148-0 01 1 9203-9306 ● ● ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M4X13 		1-09981-148-0 02 1 9009-9204 ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M4X13 		1-09981-148-0 02 1 9205-9306 ● ● ● ●
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB(W14) EXC. POWER WINDOW<A30> M4X13 		1-09981-148-0 01 1 9307- ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M4X13 		1-09981-148-0 02 1 9307- ●
139 BOLT; BRKT
M6X20 		1-09980-279-0 02 1 9002- ● ● ● ●
çizim 36757
294 242 53 53 178 150 53 178 111 219 48 38 16 16 16 16 2 2 127 121 149 104 150 104 1 178 16 95
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SLEEVE; RUBBER
ID=15 OD=19 L=20 		1-09337-007-0 02 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9002-9306 ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. MARKER LAMP THREE AMBER<WD9> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-9306 ● ●
2 GROMMET; CLIP HOLE,HARNESS
(D) 		1-73907-231-0 01 1 9202- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
(C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 01 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 02 1 9002- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9307- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 		1-09700-684-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 02 1 9104-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) 		1-09701-107-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
(K) 		1-09701-107-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=25 L=55 		9-09917-573-0 02 1 9011- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 9002-9007 ● ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9007 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ● ●
16 CLIP; HARNESS
6QA1 STD ENG(L24) CONCRETE PUMP<RA5> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9101-9306 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 9009-9306 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-9303 ● ● ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 02 1 9304- ● ● ● ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ● ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205 ● ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206- ● ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ● ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ● ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9004-9010 ● ● ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9011- ● ● ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ● ● ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (L) ID=20 L=50 		1-09700-679-1 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9103 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9103 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID<W71> EXC. FIRE TRUCK<RA9> (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=25 L=55 		9-09917-573-0 02 1 9002-9010 ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 01 1 9011-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9101- ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=11 L=41 		1-09700-403-0 01 1 9101- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9002-9212 ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9212 ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID<W71> (C) L=250 		5-09707-030-1 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9310- ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 05 1 9307- ● ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 16 1 9002- ● ●
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (D) ID=20 L=50 		9-09917-430-0 20 1 9002- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) OD=9 H=9.5 		1-09709-179-0 02 1 9002- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=6 L=36 		9-09917-423-0 04 1 9002- ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 10 1 9002- ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 06 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9009 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 13 1 9010-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 03 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9002-9106 ● ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 		8-97086-824-0 01 1 9302- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 		1-09044-079-0 01 1 9102- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 03 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 03 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 04 1 9010-9010 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9011-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ● ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 07 1 9205- ●
48 CLIP; FRAME HARNESS
ID=20 H=23 L=27 		1-09700-861-0 04 1 9002- ● ● ●
48 CLIP; FRAME HARNESS
EXC. CONCRETE PUMP<RA5> ID=20 H=23 L=27 		1-09700-861-0 04 1 9002- ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9002- ● ● ●
48 CLIP; FRAME HARNESS
EXC. CONCRETE PUMP<RA5> ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9002- ●
48 CLIP; FRAME HARNESS
ID=20 H=23 L=27 		1-09700-861-0 01 1 9002- ● ● ● ●
48 CLIP; FRAME HARNESS
6QA1 STD ENG(L24) CONCRETE PUMP<RA5> ID=20 H=23 L=27 		1-09700-861-0 01 1 9002- ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9002- ● ● ● ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9002- ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9002- ● ●
48 CLIP; FRAME HARNESS
CONCRETE PUMP<RA5> ID=24.5 H=23 L=25 		1-09700-862-0 06 1 9002- ●
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 9002- ● ● ● ●
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9002- ● ● ● ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (C) 		1-71997-996-1 01 1 9307- ●
95 CLIP; CABLE
(B) 		1-09987-143-1 02 1 9002-9201 ● ● ● ●
95 CLIP; CABLE
(B) 		8-94155-593-1 02 1 9202-9205 ● ● ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) 		8-94155-593-1 01 1 9206- ● ● ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 03 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302 ● ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002-9306 ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307- ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 09 1 9002-9003 ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 09 1 9004- ● ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=23 L=24 		1-09700-738-0 03 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=9 L=16 		9-09524-822-0 02 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 9002- ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 9002- ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003 ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303 ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304 ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305- ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303 ● ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ● ●
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002- ● ● ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9002-9205 ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9206-9306 ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 		1-09332-127-0 01 1 9206-9306 ● ●
178 GROMMET; HARNESS
6QA1 STD ENG(L24) EXC. MIXER TRUCK<RA2> (A) ID=19 OD=23 T=18 		9-09956-130-1 01 1 9002-9306 ● ● ●
178 GROMMET; HARNESS
6QA1 STD ENG(L24) EXC. CONCRETE PUMP<RA5> (A) ID=19 OD=23 T=18 		9-09956-130-1 01 1 9002-9306 ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9306 ● ● ● ●
178 GROMMET; HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9306 ● ● ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9002-9002 ● ● ● ●
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9003-9306 ● ● ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9002-9002 ● ● ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9002- ● ● ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303- ● ● ● ●
178 GROMMET; HARNESS
6QA1 STD ENG(L24) (A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9302 ● ● ● ●
178 GROMMET; HARNESS
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9002-9302 ● ● ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307- ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307- ● ●
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9307- ● ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=18 		9-09956-130-1 01 1 9307- ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) ID=19 OD=23 T=18 		9-09956-130-1 01 1 9307- ●
178 GROMMET; HARNESS
CONCRETE PUMP<RA5> (A) ID=15 OD=20 T=22 		9-09956-181-0 03 1 9002- ●
219 NUT
M8 		9-09110-408-0 06 1 9002- ● ● ●
219 NUT
EXC. CONCRETE PUMP<RA5> M8 		9-09110-408-0 06 1 9002- ●
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 9002- ● ● ● ●
219 NUT
M8 		9-09110-408-0 01 1 9002-9306 ● ● ● ●
219 NUT
M8 		9-09110-408-0 02 1 9002-9306 ● ● ● ●
219 NUT
M8 		9-09110-408-0 13 1 9002-9306 ● ● ● ●
219 NUT
M8 		9-09110-408-0 04 1 9002-9003 ● ● ● ●
219 NUT
M8 		9-09110-408-0 04 1 9002-9003 ●
219 NUT
EXC. CONCRETE PUMP<RA5> M8 		9-09110-408-0 04 1 9002-9003 ●
219 NUT
M8 		9-09110-408-0 04 1 9002-9003 ● ● ● ●
219 NUT
M10 		9-09110-510-0 02 1 9002- ● ● ● ●
219 NUT
M5 		9-99110-405-0 01 1 9002-9306 ● ● ● ●
219 NUT
M8 		9-09110-408-0 04 1 9004- ● ● ● ●
219 NUT
M8 		9-09110-408-0 03 1 9004-9010 ● ●
219 NUT
M8 		9-09110-408-0 18 1 9307- ● ●
219 NUT
M8 		9-09110-408-0 01 1 9307- ● ●
219 NUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 01 1 9307- ●
219 NUT
M8 		9-09110-408-0 04 1 9307- ● ●
219 NUT
EXC. CONCRETE PUMP<RA5> M8 		9-09110-408-0 04 1 9307- ●
219 NUT
M5 		9-99110-405-0 01 1 9307- ● ●
219 NUT
CONCRETE PUMP<RA5> M8 		9-09110-408-0 07 1 9002- ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9206-9302 ● ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 9002-9204 ● ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302 ● ● ● ●
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303- ● ● ● ●
242 BOLT; BRKT,HARNESS
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307- ●
242 BOLT; BRKT,HARNESS
AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9307- ●
294 NUT
M6 		9-09110-406-0 01 1 9002- ● ● ● ●
294 NUT
M8 		9-09110-408-0 06 1 9002- ● ● ● ●
çizim 37045
103 115 16 104 16 205 334 428 115 208 16 37 16 115 421 48 16 38 194 455
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 		1-09700-684-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 02 1 9104-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) 		1-09701-107-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
(K) 		1-09701-107-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=25 L=55 		9-09917-573-0 02 1 9011- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 9002-9007 ● ● ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9007 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ● ●
16 CLIP; HARNESS
6QA1 STD ENG(L24) CONCRETE PUMP<RA5> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9012 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9101-9306 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 9009-9306 ● ● ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-9303 ● ● ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 02 1 9304- ● ● ● ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ● ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205 ● ● ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206- ● ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ● ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ● ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9004-9010 ● ● ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9011- ● ● ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ● ● ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ● ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (L) ID=20 L=50 		1-09700-679-1 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ● ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9103 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9103 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ● ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ● ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ● ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID<W71> EXC. FIRE TRUCK<RA9> (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 02 1 9002-9010 ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=25 L=55 		9-09917-573-0 02 1 9002-9010 ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 01 1 9011-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9101- ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=11 L=41 		1-09700-403-0 01 1 9101- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9002-9212 ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9212 ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. CONCRETE PUMP<RA5> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
CAB SUSPENSION RIGID<W71> (C) L=250 		5-09707-030-1 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9310- ● ●
16 CLIP; HARNESS
INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 05 1 9307- ● ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 16 1 9002- ● ●
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (D) ID=20 L=50 		9-09917-430-0 20 1 9002- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) OD=9 H=9.5 		1-09709-179-0 02 1 9002- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=6 L=36 		9-09917-423-0 04 1 9002- ● ●
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 10 1 9002- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> ID=11 L=30 		1-09700-511-0 01 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 W/LK WASHER 		9-01900-830-0 06 1 9010-9010 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 06 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9009 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 13 1 9010-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9002-9010 ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 03 1 9011-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 03 1 9205- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9002-9106 ● ● ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 		8-97086-824-0 01 1 9302- ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ● ● ●
38 BOLT; CLIP,HARNESS
M12X16 		1-09044-079-0 01 1 9102- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9011 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9012-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 03 1 9002-9204 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 03 1 9303-9306 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ● ● ●
38 BOLT; CLIP,HARNESS
INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 06 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28080-830-0 01 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 04 1 9010-9010 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9011-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ● ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28080-830-0 07 1 9205- ●
48 CLIP; FRAME HARNESS
ID=20 H=23 L=27 		1-09700-861-0 04 1 9002- ● ● ●
48 CLIP; FRAME HARNESS
EXC. CONCRETE PUMP<RA5> ID=20 H=23 L=27 		1-09700-861-0 04 1 9002- ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9002- ● ● ●
48 CLIP; FRAME HARNESS
EXC. CONCRETE PUMP<RA5> ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9002- ●
48 CLIP; FRAME HARNESS
ID=20 H=23 L=27 		1-09700-861-0 01 1 9002- ● ● ● ●
48 CLIP; FRAME HARNESS
6QA1 STD ENG(L24) CONCRETE PUMP<RA5> ID=20 H=23 L=27 		1-09700-861-0 01 1 9002- ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9002- ● ● ● ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9002- ● ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9002- ● ●
48 CLIP; FRAME HARNESS
CONCRETE PUMP<RA5> ID=24.5 H=23 L=25 		1-09700-862-0 06 1 9002- ●
103 BRACKET; HD LAMP HARNESS
POWER WINDOW<A30> 		1-61470-692-0 01 1 9307- ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302 ● ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002-9306 ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307- ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 09 1 9002-9003 ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 09 1 9004- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 09 1 9205-9306 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) ID=9 		5-09707-027-0 02 1 9205-9305 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (D) L=142 		8-94232-619-0 02 1 9306- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=15 		1-09987-115-0 01 1 9205-9208 ● ●
115 CLIP; DOOR HARNESS
DELUXE CAB(W14) (A) ID=9 		5-09707-027-0 01 1 9002- ● ● ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 05 1 9307- ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=15 		1-09987-115-0 01 1 9307- ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 01 1 9009-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 04 1 9002-9103 ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9104-9205 ● ● ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 03 1 9104-9205 ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9206-9306 ● ● ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=300 		1-09707-001-0 01 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 05 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 03 1 9206-9206 ● ●
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 9002- ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9002-9103 ● ● ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9002-9103 ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9104-9206 ● ● ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9104-9206 ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9207-9306 ● ● ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9207-9306 ● ● ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-0 01 1 9002-9007 ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9002-9007 ● ● ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9008-9306 ● ● ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (C) L=250 		5-09707-030-1 03 1 9002- ● ● ● ●
194 CLIP; BAND
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
MAF5D M/T(X4G) (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=8 L=38 		9-09917-424-0 01 1 9002- ● ●
205 CLIP; BACK LAMP HARNESS
ID=11 L=41 		1-09700-403-0 01 1 9002- ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(B) ID=11 L=30 		1-09700-511-0 01 1 9002-9306 ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) ID=12 L=42 		9-09917-426-0 01 1 9002-9112 ● ● ● ●
334 BRACKET
AUTO CAB TILT<WV2> L=55 		1-47475-304-0 01 1 9206-9306 ● ●
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> ID=7 		1-09987-055-0 01 1 9002-9003 ● ● ● ●
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004- ● ● ● ●
428 BRACKET 1-82699-109-0 01 1 9002- ● ● ● ●
455 BRACKET; POWER TILT HARNESS
AUTO CAB TILT<WV2> 		1-82699-125-0 01 1 9002-9302 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
