Isuzu WW
▶
BUSES
▶
LT
▶
10892 - LT134-RHD EXC.EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#30949) — 24 parça
◀

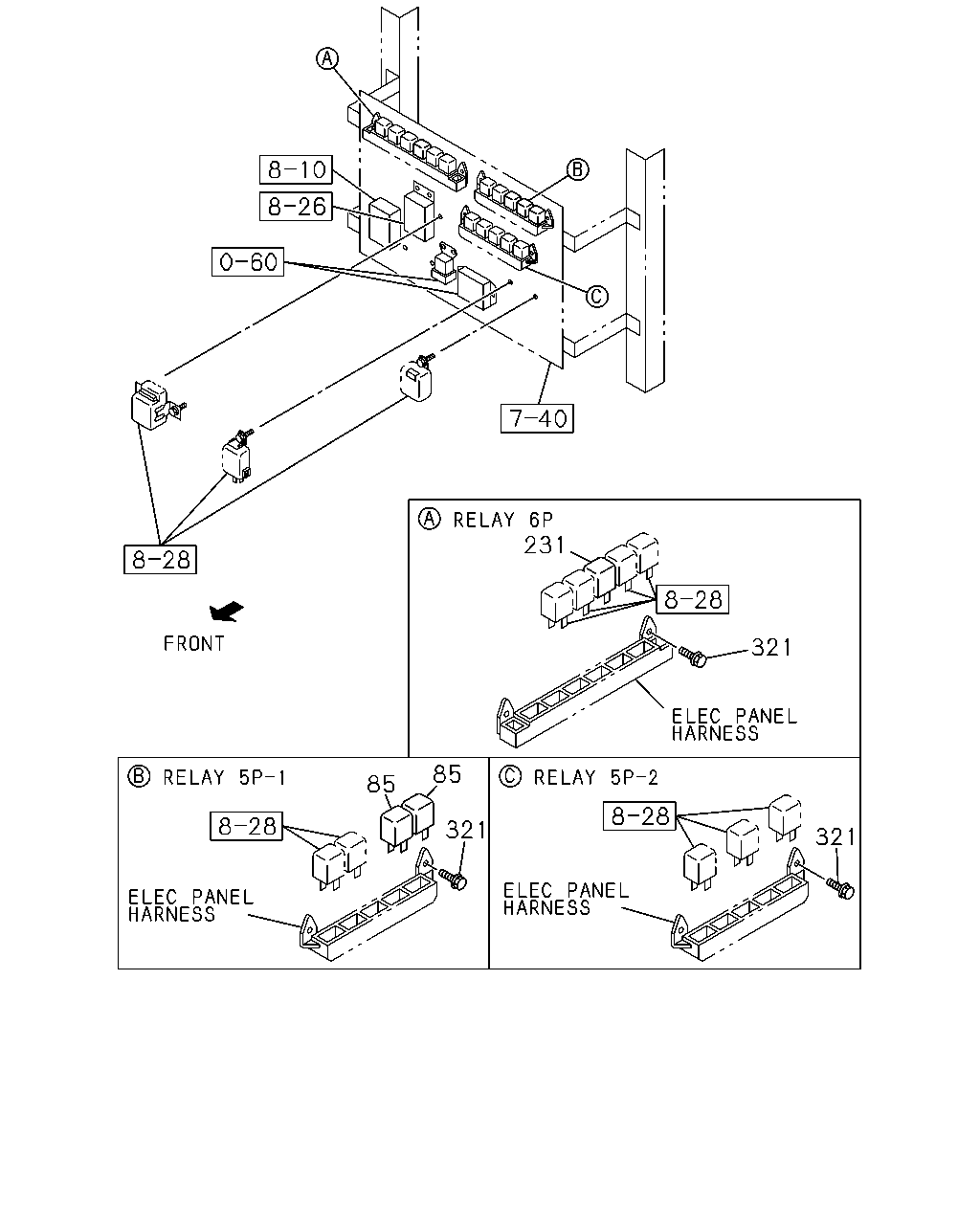

[825A] NO.1 (6 parça)
[825A] NO.2 (18 parça)
▶
231
321
85
85
321
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
RELAY; HEADLAMP
24V 12.5A JIDECO
8-97062-815-1
02
1
0107-0111
85
RELAY; HEADLAMP
24V 12.5A MATSUSHITA
8-97262-933-0
02
1
0112-
231
RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A JIDECO
8-97062-815-1
01
1
0107-0111
231
RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
321
BOLT; RELAY
M6X16 FLANGE
0-28680-616-0
06
1
0107-0512
321
BOLT; RELAY
M6X16 FLANGE
0-28650-616-0
06
1
0601-
3
1
5
4
4
62
21
337
540
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2>
1-82360-606-0
01
1
0107-0312
1
SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2>
1-82360-712-0
01
1
0401-
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2>
1-82360-604-0
01
1
0107-0312
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2>
1-82360-711-0
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0107-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
4
CLIP; COMB SW
(A) ID=16 L=20
9-09525-535-0
01
1
0107-0606
4
CLIP; COMB SW
(A) ID=16 L=20
0-95235-535-0
01
1
0607-
4
CLIP; COMB SW
(B) ID=14.5 L=30
9-09916-893-1
01
1
0107-
5
SCREW; COMB SW CABLE
M6X16 W/LK&PL WASHER
8-94279-402-0
01
1
0107-0110
5
SCREW; COMB SW CABLE
M6X12 W/PL WASHER
8-97806-950-0
01
1
0111-
21
SWITCH; CLU
1-82380-114-3
01
1
0107-
62
BOLT; STARTER SW
M8X30 W/PL WASHER
1-09981-482-2
02
1
0107-0111
62
BOLT; STARTER SW
M8X30 W/PL WASHER
1-09980-621-1
02
1
0112-
337
SWITCH; EXH
FOOT BRAKE W/EXHAUST BRAKE<SJB>
1-82350-220-2
01
1
0107-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0107-
540
BEZEL; SW
1-82490-017-0
01
1
0107-
540
BEZEL; SW
FOOT BRAKE W/EXHAUST BRAKE<SJB>
1-82490-017-0
01
1
0107-
