10892 - LT134-RHD EXC.EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#30948) — 42 parça
◀

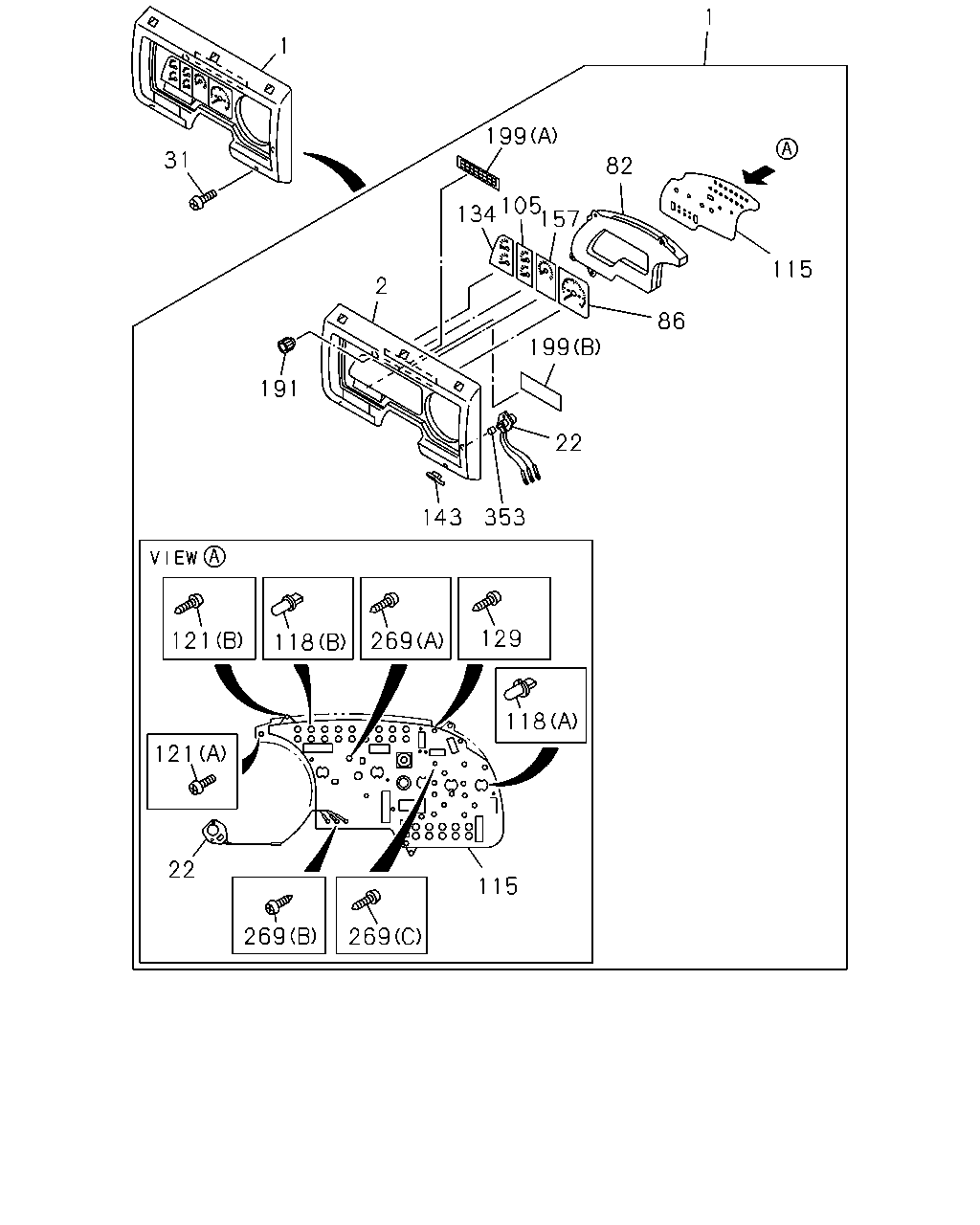

[821A] NO.1 (24 parça)
[821A] NO.2 (18 parça)
▶
1
1
199
31
82
105
134
157
115
2
86
199
191
22
143
353
129
121
269
118
118
121
22
115
269
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
1-83115-840-2
01
1
0107-
2
PANEL; CLUSTER
1-83119-508-0
01
1
0107-
22
RHEOSTAT; CLUSTER METER
1-83119-470-0
01
1
0107-
31
SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER
9-03920-620-0
08
1
0109-0604
31
SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER
0-36230-620-0
08
1
0605-
82
CASE ASM; CLUSTER METER
1-83119-509-0
01
1
0107-
86
TACHOMETER; CLUSTER METER
1-83120-925-0
01
1
0107-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-275-0
01
1
0107-
115
CIRCUIT; PRINTED,CLUSTER METER
1-83189-291-0
01
1
0107-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
16
1
0107-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
05
1
0107-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING
1-83119-442-0
04
1
0107-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING
1-83119-515-0
04
1
0107-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING
1-83119-052-0
10
1
0107-
134
GAUGE; OIL PRESSURE & VOLTAGE
1-83180-276-0
01
1
0107-
143
COVER; CLUSTER METER
1-83119-516-0
05
1
0107-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-245-0
01
1
0107-
191
KNOB; BULB CHECK
1-83119-431-0
01
1
0107-
199
LENS; WARNING LAMP
(B)
1-83119-435-0
01
1
0107-
199
LENS; WARNING LAMP
(A)
1-83119-815-0
01
1
0107-
269
SCREW; METER CLUSTER
(A) M3 TAPPING
1-83119-439-0
04
1
0107-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-440-0
03
1
0107-
269
SCREW; METER CLUSTER
(C) M3 TAPPING
1-83119-441-0
11
1
0107-
353
KNOB; RHEOSTAT
1-83119-471-0
01
1
0107-
1
8
238
239
87
209
52
48
58
58
307
56
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
1-83115-840-2
01
1
0107-
8
TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 15-6<PN3>
1-83120-745-0
01
1
0107-0204
8
TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 15-6<PN3>
1-83120-934-0
01
1
0205-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<WC8>
1-83120-743-0
01
1
0107-0204
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<WC8>
1-83120-932-0
01
1
0205-
48
SENSOR; BOOST
1-81531-011-0
01
1
0107-
52
BOLT; SENSOR
M6X16 FLANGE
0-28680-616-0
02
1
0107-0512
52
BOLT; SENSOR
M6X16 FLANGE
0-28650-616-0
02
1
0601-
56
HOSE; NIPPLE TO SENSOR
L=580 SERVICED BY L=3000
0-04740-300-0
01
1
0107-
58
CLIP; HOSE
(A) L=500
1-09707-082-1
01
1
0107-
58
CLIP; HOSE
(B) ID=7.8
8-94246-958-0
02
1
0107-
87
SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>
1-83120-490-1
01
1
0107-
209
BULB; SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 24V 3W GREEN SOCKET
1-82194-061-0
02
1
0107-
238
PANEL; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8>
1-83129-311-0
01
1
0107-
239
BULB; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 24V 1.8W
1-82194-076-0
03
1
0107-0204
239
BULB; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> 24V 1.4W
1-82194-101-0
03
1
0205-
307
NUT
M6 FLANGE
0-91150-106-0
02
1
0107-0602
307
NUT
M6 FLANGE
0-91180-106-0
02
1
0603-
