◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#30946) — 254 parça
çizim 23759
95 16 166 81 163 167 162 170 16 48 48 166 16 235 48 251 182 16 48 16 49 16 49 167 206 230 212 251 235 429 448 470 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 08 1 0107-
16 CLIP; HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-
16 CLIP; HARNESS
(D) ID=28 L=40 		1-09700-995-1 01 1 0107-
16 CLIP; HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 06 1 0107-
16 CLIP; HARNESS
(G) ID=14.5 L=40 		1-09701-014-0 01 1 0107-0108
16 CLIP; HARNESS
(H) ID=33 L=83 		1-09701-291-0 04 1 0107-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0107-0206
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0207-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0207-
16 CLIP; HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0107-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0107-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 06 1 0107-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0107-
16 CLIP; HARNESS
(M) ID=18 L=48 		9-09917-429-0 04 1 0107-
16 CLIP; HARNESS
(L) ID=20 L=50 		9-09917-430-0 03 1 0107-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0107-
48 CLIP; FRAME HARNESS
(E) ID=35 L=35 		1-09700-895-0 01 1 0107-
48 CLIP; FRAME HARNESS
(C) ID=32 L=50 		1-09701-055-1 05 1 0107-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 06 1 0107-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 0107-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (F) ID=28 L=78 		1-09700-858-0 23 1 0107-
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (F) ID=28 L=78 		1-09700-858-0 25 1 0107-
49 CLIP; GEN HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-
49 CLIP; GEN HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0107-
49 CLIP; GEN HARNESS
(D) ID=28 L=40 		1-09701-261-0 01 1 0107-
49 CLIP; GEN HARNESS
(C) ID=26 L=28 		9-09917-538-1 01 1 0107-
81 CLIP; HARNESS
ID=14 L=44 		9-09917-427-0 01 1 0107-
95 CLIP; CABLE
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-
95 CLIP; CABLE
(B) 		1-09701-238-0 03 1 0107-
95 CLIP; CABLE
(C) L=300 		1-09707-001-1 04 1 0107-0401
95 CLIP; CABLE
(D) L=350 		1-09707-183-0 04 1 0402-
162 CLIP; SW HARNESS
(B) ID=15 L=65 		1-09700-466-0 04 1 0107-
162 CLIP; SW HARNESS
(C) ID=32 L=35 		1-09701-244-0 01 1 0107-
162 CLIP; SW HARNESS
(A) L=300 		1-09707-001-1 01 1 0107-0401
162 CLIP; SW HARNESS
(D) L=350 		1-09707-183-0 01 1 0402-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0107-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0107-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0107-0208
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0107-
166 CLIP; HARNESS CLU SW
(C) ID=8 L=38 		9-09917-424-0 04 1 0107-
167 CLIP; HARNESS ACCEL & STOP
(A) ID=11 L=41 		1-09700-403-0 01 1 0107-
167 CLIP; HARNESS ACCEL & STOP
(B) ID=14 L=44 		9-09917-427-0 01 1 0107-
170 CLIP; ELEC HARNESS
(A) ID=28 L=40 		1-09700-995-1 01 1 0107-
170 CLIP; ELEC HARNESS
(B) ID=18 L=48 		9-09917-429-0 03 1 0107-
182 CLIP; HARNESS,OIL FILTER
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0107-
182 CLIP; HARNESS,OIL FILTER
(B) L=180 		1-09707-162-1 01 1 0107-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0107-
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 0107-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0107-
212 CLIP; HORN HARNESS
ELECTRICAL HORN(WB7),AIR HORN(WB8) (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
230 CLIP; C/MBR HARNESS
ID=11 L=41 		1-09700-403-0 03 1 0107-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6Q M/T(X5J) (A) ID=11 L=41 		1-09700-403-0 01 1 0107-0108
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD7Q M/T(X5K) (B) ID=13 H=29 L=30 		1-09700-001-0 01 1 0107-0108
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=13 H=29 L=30 		1-09700-001-0 01 1 0109-
251 CLIP; WATER LEVEL HARNESS
(A) L=140 		5-09707-031-1 01 1 0107-
251 CLIP; WATER LEVEL HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0107-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		9-09525-085-0 03 1 0107-0606
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		0-95235-085-0 03 1 0607-
429 CLIP; BOOST SENSOR CONNECTOR
ID=11 L=41 		1-09700-403-0 02 1 0107-
448 CLIP; AIR SUSP HARNESS
ID=11 L=41 		1-09700-403-0 02 1 0107-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0107-

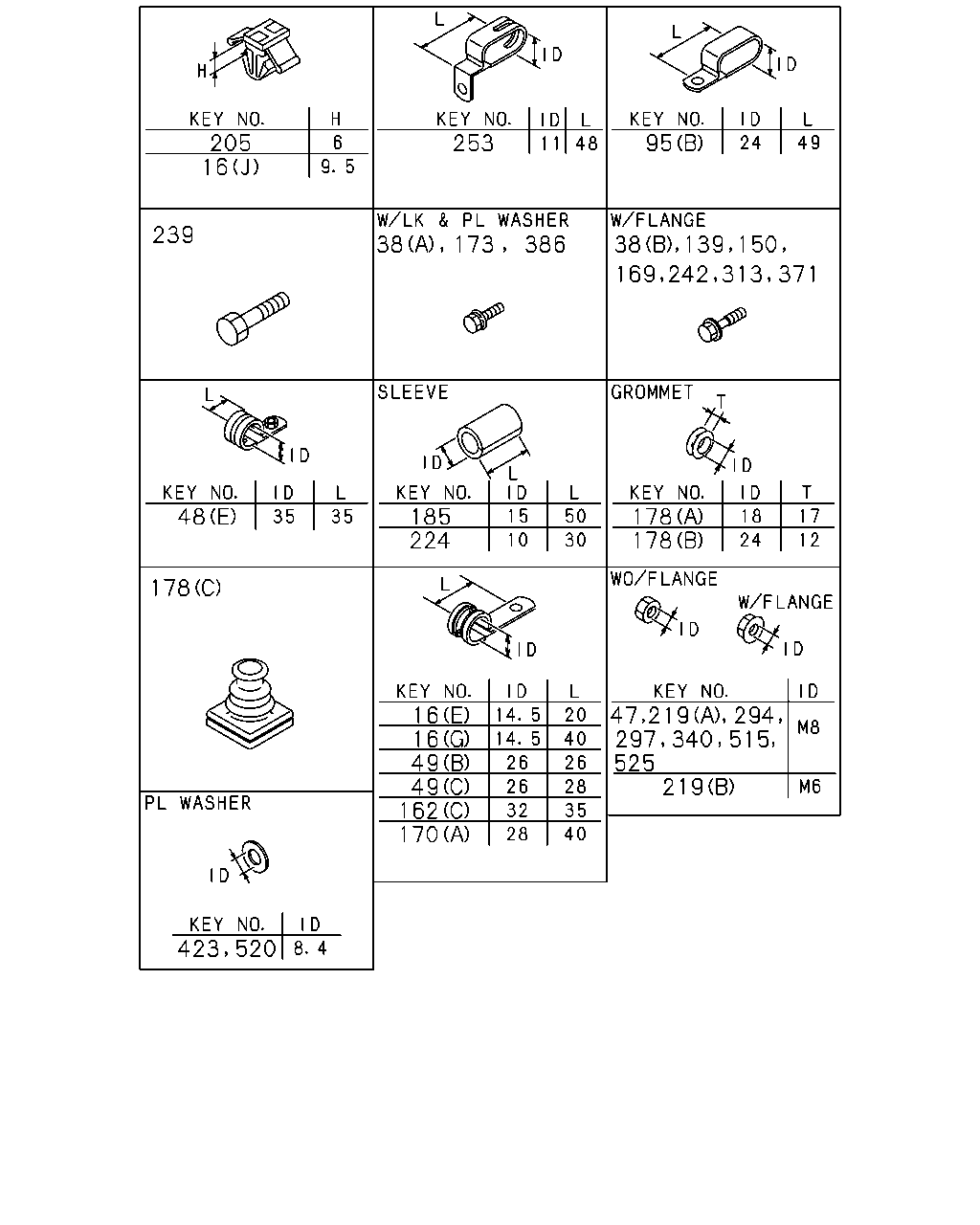

çizim 24204
253 205 16 95 38 38 239 48 185 224 178 178 178 16 16 49 49 162 170 525 219 423 520 297 340 515 294 219 47 173 386 169 242 313 371 139 150
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 08 1 0107-
16 CLIP; HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-
16 CLIP; HARNESS
(D) ID=28 L=40 		1-09700-995-1 01 1 0107-
16 CLIP; HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 06 1 0107-
16 CLIP; HARNESS
(G) ID=14.5 L=40 		1-09701-014-0 01 1 0107-0108
16 CLIP; HARNESS
(H) ID=33 L=83 		1-09701-291-0 04 1 0107-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0107-0206
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0207-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0207-
16 CLIP; HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0107-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0107-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 06 1 0107-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0107-
16 CLIP; HARNESS
(M) ID=18 L=48 		9-09917-429-0 04 1 0107-
16 CLIP; HARNESS
(L) ID=20 L=50 		9-09917-430-0 03 1 0107-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 07 1 0107-0108
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0109-0206
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0207-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(B) M6X20 FLANGE 		0-28680-620-0 02 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M6X20 FLANGE 		0-28650-620-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 07 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 07 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0107-
38 BOLT; CLIP,HARNESS
MLD7Q M/T(X5K) (B) M10X16 FLANGE 		0-28181-016-0 01 1 0107-0108
38 BOLT; CLIP,HARNESS
(B) M10X16 FLANGE 		0-28181-016-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
47 NUT; GEN TERMINAL
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
47 NUT; GEN TERMINAL
M8 FLANGE 		0-91180-108-0 02 1 0603-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0107-
48 CLIP; FRAME HARNESS
(E) ID=35 L=35 		1-09700-895-0 01 1 0107-
48 CLIP; FRAME HARNESS
(C) ID=32 L=50 		1-09701-055-1 05 1 0107-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 06 1 0107-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 0107-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (F) ID=28 L=78 		1-09700-858-0 23 1 0107-
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (F) ID=28 L=78 		1-09700-858-0 25 1 0107-
49 CLIP; GEN HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-
49 CLIP; GEN HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0107-
49 CLIP; GEN HARNESS
(D) ID=28 L=40 		1-09701-261-0 01 1 0107-
49 CLIP; GEN HARNESS
(C) ID=26 L=28 		9-09917-538-1 01 1 0107-
95 CLIP; CABLE
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-
95 CLIP; CABLE
(B) 		1-09701-238-0 03 1 0107-
95 CLIP; CABLE
(C) L=300 		1-09707-001-1 04 1 0107-0401
95 CLIP; CABLE
(D) L=350 		1-09707-183-0 04 1 0402-
139 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
139 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
150 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 05 1 0107-0512
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0601-
162 CLIP; SW HARNESS
(B) ID=15 L=65 		1-09700-466-0 04 1 0107-
162 CLIP; SW HARNESS
(C) ID=32 L=35 		1-09701-244-0 01 1 0107-
162 CLIP; SW HARNESS
(A) L=300 		1-09707-001-1 01 1 0107-0401
162 CLIP; SW HARNESS
(D) L=350 		1-09707-183-0 01 1 0402-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
170 CLIP; ELEC HARNESS
(A) ID=28 L=40 		1-09700-995-1 01 1 0107-
170 CLIP; ELEC HARNESS
(B) ID=18 L=48 		9-09917-429-0 03 1 0107-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0107-
178 GROMMET; HARNESS
(C) 		1-82699-219-0 01 1 0107-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0107-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0107-
178 GROMMET; HARNESS
AIR HORN(WB8) (A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0107-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=12 		9-09956-093-1 01 1 0107-
185 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 01 1 0107-
205 CLIP; BACK LAMP HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0107-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0305-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 08 1 0603-
219 NUT
(B) M6 FLANGE 		0-91150-106-0 02 1 0107-0602
219 NUT
(B) M6 FLANGE 		0-91180-106-0 02 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 08 1 0107-0108
219 NUT
(A) M8 FLANGE 		0-91150-108-0 08 1 0109-0304
219 NUT
(A) M8 FLANGE 		0-91150-108-0 08 1 0109-0304
219 NUT
(A) M8 FLANGE 		0-91150-108-0 08 1 0305-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0107-0108
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 05 1 0107-
239 BOLT; GRAND
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) M5X8 		0-20800-508-0 01 1 0107-
242 BOLT; BRKT,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
242 BOLT; BRKT,HARNESS
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
242 BOLT; BRKT,HARNESS
M12X16 FLANGE 		0-28081-216-0 01 1 0107-0109
242 BOLT; BRKT,HARNESS
M12X20 FLANGE 		0-28181-220-0 01 1 0110-0512
242 BOLT; BRKT,HARNESS
M12X20 FLANGE 		0-28151-220-0 01 1 0601-
242 BOLT; BRKT,HARNESS
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
242 BOLT; BRKT,HARNESS
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
253 CLIP; CABLE FIX
ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0107-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0603-
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
371 BOLT; GEN HARNESS
M6X16 FLANGE 		0-28080-616-0 01 1 0107-0512
371 BOLT; GEN HARNESS
M6X16 FLANGE 		0-28050-616-0 01 1 0601-
371 BOLT; GEN HARNESS
M8X20 FLANGE 		0-28680-820-0 03 1 0107-0512
371 BOLT; GEN HARNESS
M8X20 FLANGE 		0-28650-820-0 03 1 0601-
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0107-0205
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0107-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0107-0205
525 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0107-0602
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603-
çizim 80752
16 102 166 171 206 251 373 95 162 162 95 194 163 14 305 194 175 164 16 208 218 264 16 48 182 489 264 194 212 223
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=500 		1-09707-082-1 02 1 0107-0205
14 CLIP; BAND,HARNESS
L=700 		1-09707-190-0 02 1 0206-
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 08 1 0107-
16 CLIP; HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-
16 CLIP; HARNESS
(D) ID=28 L=40 		1-09700-995-1 01 1 0107-
16 CLIP; HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 06 1 0107-
16 CLIP; HARNESS
(G) ID=14.5 L=40 		1-09701-014-0 01 1 0107-0108
16 CLIP; HARNESS
(H) ID=33 L=83 		1-09701-291-0 04 1 0107-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0107-0206
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0207-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0207-
16 CLIP; HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0107-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0107-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 06 1 0107-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0107-
16 CLIP; HARNESS
(M) ID=18 L=48 		9-09917-429-0 04 1 0107-
16 CLIP; HARNESS
(L) ID=20 L=50 		9-09917-430-0 03 1 0107-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0107-
48 CLIP; FRAME HARNESS
(E) ID=35 L=35 		1-09700-895-0 01 1 0107-
48 CLIP; FRAME HARNESS
(C) ID=32 L=50 		1-09701-055-1 05 1 0107-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 06 1 0107-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 0107-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (F) ID=28 L=78 		1-09700-858-0 23 1 0107-
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (F) ID=28 L=78 		1-09700-858-0 25 1 0107-
95 CLIP; CABLE
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-
95 CLIP; CABLE
(B) 		1-09701-238-0 03 1 0107-
95 CLIP; CABLE
(C) L=300 		1-09707-001-1 04 1 0107-0401
95 CLIP; CABLE
(D) L=350 		1-09707-183-0 04 1 0402-
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 0107-
162 CLIP; SW HARNESS
(B) ID=15 L=65 		1-09700-466-0 04 1 0107-
162 CLIP; SW HARNESS
(C) ID=32 L=35 		1-09701-244-0 01 1 0107-
162 CLIP; SW HARNESS
(A) L=300 		1-09707-001-1 01 1 0107-0401
162 CLIP; SW HARNESS
(D) L=350 		1-09707-183-0 01 1 0402-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0107-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0107-
164 CLIP; BAND METER HARNESS
ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H<WC8> L=250 		5-09707-030-1 01 1 0209-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0107-0208
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0107-
166 CLIP; HARNESS CLU SW
(C) ID=8 L=38 		9-09917-424-0 04 1 0107-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 02 1 0107-
175 CLIP; AIR TANK
L=250 		5-09707-030-1 04 1 0107-
182 CLIP; HARNESS,OIL FILTER
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0107-
182 CLIP; HARNESS,OIL FILTER
(B) L=180 		1-09707-162-1 01 1 0107-
194 CLIP; BAND
(B) L=500 		1-09707-082-1 01 1 0107-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 05 1 0107-
194 CLIP; BAND
(C) L=250 		5-09707-030-1 02 1 0107-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0107-
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 0107-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> L=250 		5-09707-030-1 01 1 0107-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0107-
212 CLIP; HORN HARNESS
ELECTRICAL HORN(WB7),AIR HORN(WB8) (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0107-
223 CLIP; AIR TANK HARNESS
ID=6-10 & 10-14 		1-09709-201-1 01 1 0107-
251 CLIP; WATER LEVEL HARNESS
(A) L=140 		5-09707-031-1 01 1 0107-
251 CLIP; WATER LEVEL HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0107-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		9-09525-085-0 03 1 0107-0606
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		0-95235-085-0 03 1 0607-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 0107-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 0107-
305 CLIP; ENG HARNESS
L=250 		5-09707-030-1 06 1 0107-0110
305 CLIP; ENG HARNESS
L=250 		5-09707-030-1 07 1 0111-
373 CLIP; BAND,GEN HARNESS
L=140 		5-09707-031-1 01 1 0107-
489 CLIP; HARNESS,OIL PRESS SW
L=180 		1-09707-162-1 01 1 0107-
çizim 83172
279 375 375 312 375 335 312
BalonParca AdiParca NoAdetTipApplied Date
279 STAY; HARNESS 1-82699-873-0 02 1 0107-
312 BRACKET; CLIP HARNESS
(B) L=75 		1-47478-323-0 02 1 0107-0108
312 BRACKET; CLIP HARNESS
(B) L=75 		1-47478-323-0 01 1 0109-
312 BRACKET; CLIP HARNESS
(A) L=60 		1-47476-217-0 01 1 0109-0304
312 BRACKET; CLIP HARNESS
(A) L=60 		1-47475-455-0 01 1 0305-
335 BRACKET; CONNECTOR 1-82699-356-1 01 1 0107-0206
375 BRACKET; AC GEN HARNESS CLIP
(A) L=145 		1-47475-655-0 01 1 0107-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-47475-702-0 01 1 0107-
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82699-062-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
