Isuzu WW
▶
BUSES
▶
LT
▶
10892 - LT134-RHD EXC.EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

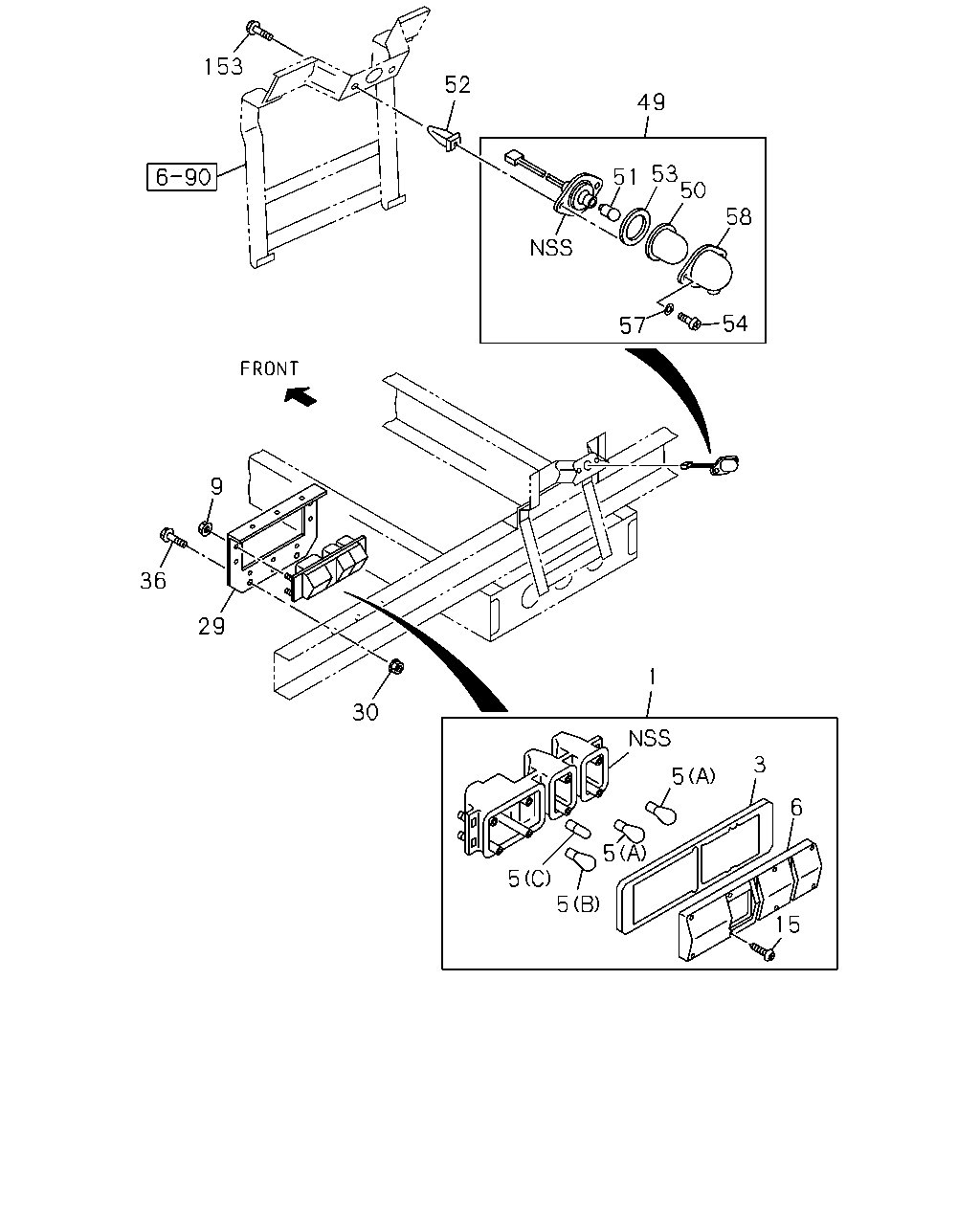

8-03 — LAMP; REAR AND REAR SIDE
(#30944) — 25 parça
153
52
49
53
50
51
58
54
57
9
36
29
1
30
3
5
6
5
5
5
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
5-82230-021-3
01
1
0107-
1
LAMP ASM; RR COMB
5-82230-020-3
01
1
0107-
3
GASKET; RR COMB LAMP
5-82236-001-0
01
1
0107-
3
GASKET; RR COMB LAMP
5-82236-002-0
01
1
0107-
5
BULB; RR COMB LAMP
(B) 24V 25/10W
9-82691-335-0
02
1
0107-
5
BULB; RR COMB LAMP
(A) 24V 25W
9-82691-347-0
04
1
0107-
5
BULB; RR COMB LAMP
(C) 24V 3W
9-82691-603-0
02
1
0107-
6
LENS; RR COMB LAMP
5-82235-002-0
01
1
0107-
6
LENS; RR COMB LAMP
5-82235-001-0
01
1
0107-
9
NUT; LAMP,RR COMB
M5 FLANGE
1-09984-170-0
08
1
0107-
15
SCREW; RR COMB LAMP
5-82239-005-0
16
1
0107-
29
BRACKET; LAMP,RR COMB
1-82237-023-1
02
1
0107-
30
NUT; BRKT,RR COMB
M10 FLANGE
0-91150-210-0
04
1
0107-0602
30
NUT; BRKT,RR COMB
M10 FLANGE
0-91180-210-0
04
1
0603-
36
BOLT; BRKT,RR COMB
M10X25 FLANGE
0-28081-025-0
04
1
0107-0512
36
BOLT; BRKT,RR COMB
M10X25 FLANGE
0-28051-025-0
04
1
0601-
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
0107-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
0107-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
0107-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
0107-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
0107-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
0107-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
0107-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
0107-
153
BOLT; LICENSE PLATE LAMP
M5X20
9-93490-520-0
02
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
