8-01 — LAMP; FRONT AND FRONT SIDE (#30943) — 82 parça

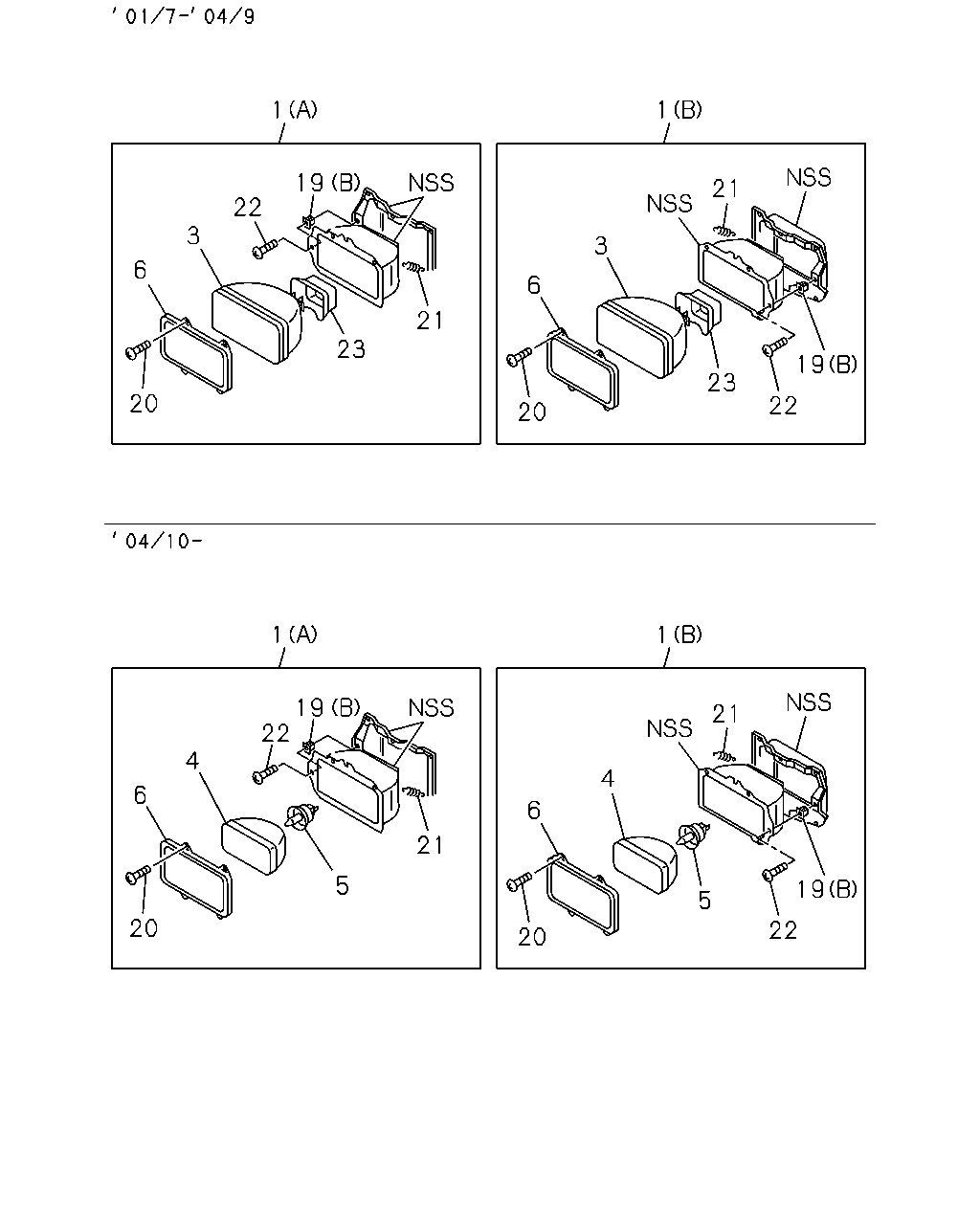

çizim 82335
1 1 19 21 22 3 3 6 6 21 23 19 23 20 22 20 1 1 19 22 21 4 4 6 6 21 5 19 5 20 22 20
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 55W 		1-82110-251-3 01 1 0107-0409
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0410-0712
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801-
1 LAMP ASM; HEAD
(B) OUTER 24V 50/65W 		1-82110-254-4 01 1 0107-0409
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-260-2 01 1 0410-
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 55W 		1-82110-250-3 01 1 0107-0409
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0410-0712
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801-
1 LAMP ASM; HEAD
(B) OUTER 24V 50/65W 		1-82110-252-4 01 1 0107-0409
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-258-2 01 1 0410-
3 SEALED BEAM; HEADLAMP
INNER 24V 55W 		1-82191-023-0 02 1 0107-0409
3 SEALED BEAM; HEADLAMP
OUTER 24V 65/50W 		1-82191-042-0 02 1 0107-0409
4 HEADLAMP UNIT
OUTER TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0410-
4 HEADLAMP UNIT
INNER TYPE 1 24V 70W 		1-82191-032-0 02 1 0410-
5 BULB; HEADLAMP
OUTER 24V 75/70W 		1-82193-006-0 02 1 0410-
5 BULB; HEADLAMP
INNER 24V 70W 		1-82193-007-0 02 1 0410-
6 RIM; HEADLAMP
INNER 24V 70W 		1-82114-018-0 02 1 0107-
6 RIM; HEADLAMP
OUTER 24V 75/70W 		1-82114-019-0 02 1 0107-
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91150-106-0 08 1 0107-0602
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91180-106-0 08 1 0603-
19 NUT; HEADLAMP
(B) 		1-82119-056-0 08 1 0107-
20 SCREW; HEADLAMP 1-82119-023-0 16 1 0107-
21 SPRING; ADJ HEADLAMP 1-82119-105-0 04 1 0107-
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 08 1 0107-
23 COVER; BULB,HEADLAMP 1-82119-013-0 04 1 0107-0409
çizim 82755
99 152 150 151 106 102 133 101 104 103 133 104 91
BalonParca AdiParca NoAdetTipApplied Date
91 BULB; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> 24V 25W 		9-82691-347-0 02 1 0107-
99 LAMP; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> 24V 25W 		1-82220-007-1 01 1 0107-
99 LAMP; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> 24V 25W 		1-82220-006-1 01 1 0107-
101 NUT; LAMP,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M4 FLANGE 		5-09440-007-0 12 1 0107-
102 LENS; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> 		1-82225-002-0 02 1 0107-
103 RIM; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> 		1-82224-001-0 02 1 0107-
104 SCREW; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> 		1-82229-004-0 12 1 0107-0404
104 SCREW; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> 		1-82229-009-0 12 1 0405-
106 GASKET; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> 		1-82226-002-0 02 1 0107-
133 WASHER; PL,SIDE FLASHER LAMP
TURN SIGNAL LAMP SIDE<TEL> 		1-82229-008-0 08 1 0405-
150 BRACKET; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> 		1-82187-002-0 04 1 0107-
151 BOLT; BRKT,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M8X25 FLANGE 		0-28680-825-0 04 1 0107-0512
151 BOLT; BRKT,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M8X25 FLANGE 		0-28650-825-0 04 1 0601-
152 NUT; BRKT,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M8 FLANGE 		0-91150-108-0 04 1 0107-0602
152 NUT; BRKT,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M8 FLANGE 		0-91180-108-0 04 1 0603-

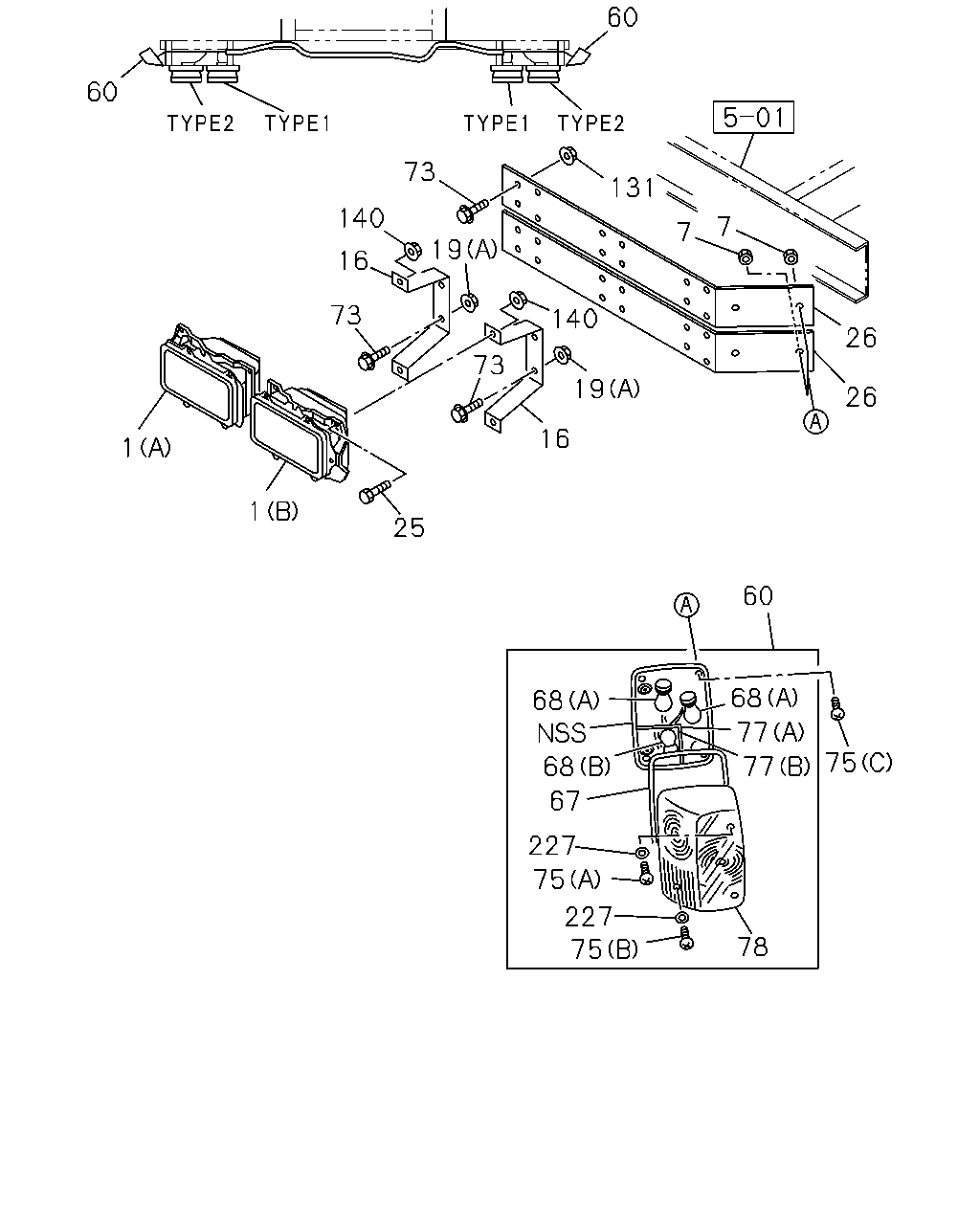

çizim 82809
60 60 73 131 140 7 7 19 16 140 73 26 73 19 26 16 1 1 25 60 68 77 68 75 77 68 67 227 75 227 75 78
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 55W 		1-82110-251-3 01 1 0107-0409
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0410-0712
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801-
1 LAMP ASM; HEAD
(B) OUTER 24V 50/65W 		1-82110-254-4 01 1 0107-0409
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-260-2 01 1 0410-
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 55W 		1-82110-250-3 01 1 0107-0409
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0410-0712
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801-
1 LAMP ASM; HEAD
(B) OUTER 24V 50/65W 		1-82110-252-4 01 1 0107-0409
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-258-2 01 1 0410-
7 NUT; FRT COMB LAMP
M5 		9-99110-405-0 08 1 0107-0512
7 NUT; FRT COMB LAMP
M5 		0-91110-505-0 08 1 0601-
16 BRACKET; HEADLAMP 9-82615-154-2 04 1 0107-
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91150-106-0 08 1 0107-0602
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91180-106-0 08 1 0603-
19 NUT; HEADLAMP
(B) 		1-82119-056-0 08 1 0107-
25 SCREW; LAMP
M5X16 W/LK WASHER 		9-03910-516-0 16 1 0107-0604
25 SCREW; LAMP
M5X16 W/LK WASHER 		0-36220-516-0 16 1 0605-
26 BRACKET ASM; HEADLAMP 1-82117-098-0 04 1 0107-
60 LAMP ASM; FRT COMB 1-82210-109-1 01 1 0107-
60 LAMP ASM; FRT COMB 1-82210-108-1 01 1 0107-
67 GASKET; FRT COMB LAMP 1-82216-004-0 01 1 0107-
67 GASKET; FRT COMB LAMP 1-82216-003-0 01 1 0107-
68 BULB; FRT COMB LAMP
(A) 24V 25W 		9-82691-347-0 04 1 0107-
68 BULB; FRT COMB LAMP
(B) 24V 10/4W 		9-82691-607-0 02 1 0107-
73 BOLT; BRKT,HEADLAMP
M6X20 FLANGE 		0-28680-620-0 08 1 0107-0512
73 BOLT; BRKT,HEADLAMP
M6X20 FLANGE 		0-28650-620-0 08 1 0601-
73 BOLT; BRKT,HEADLAMP
M10X30 FLANGE 		0-28681-030-0 08 1 0107-0512
73 BOLT; BRKT,HEADLAMP
M10X30 FLANGE 		0-28651-030-0 08 1 0601-
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-82219-015-0 04 1 0107-
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-82219-016-0 04 1 0107-
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		9-03910-516-0 08 1 0107-0604
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		0-36220-516-0 08 1 0605-
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 02 1 0107-
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 02 1 0107-
78 LENS ASM; FRT COMB 1-82215-009-0 01 1 0107-
78 LENS ASM; FRT COMB 1-82215-008-0 01 1 0107-
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91150-210-0 08 1 0107-0602
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91180-210-0 08 1 0603-
140 NUT
M5 		9-99110-405-0 12 1 0107-0512
140 NUT
M5 		0-91110-505-0 12 1 0601-
227 SEAT; SET SCREW,FRT COMB LAMP 1-82219-017-0 08 1 0107-
