6-47 — MUD GUARD AND INSULATOR (#30935) — 91 parça

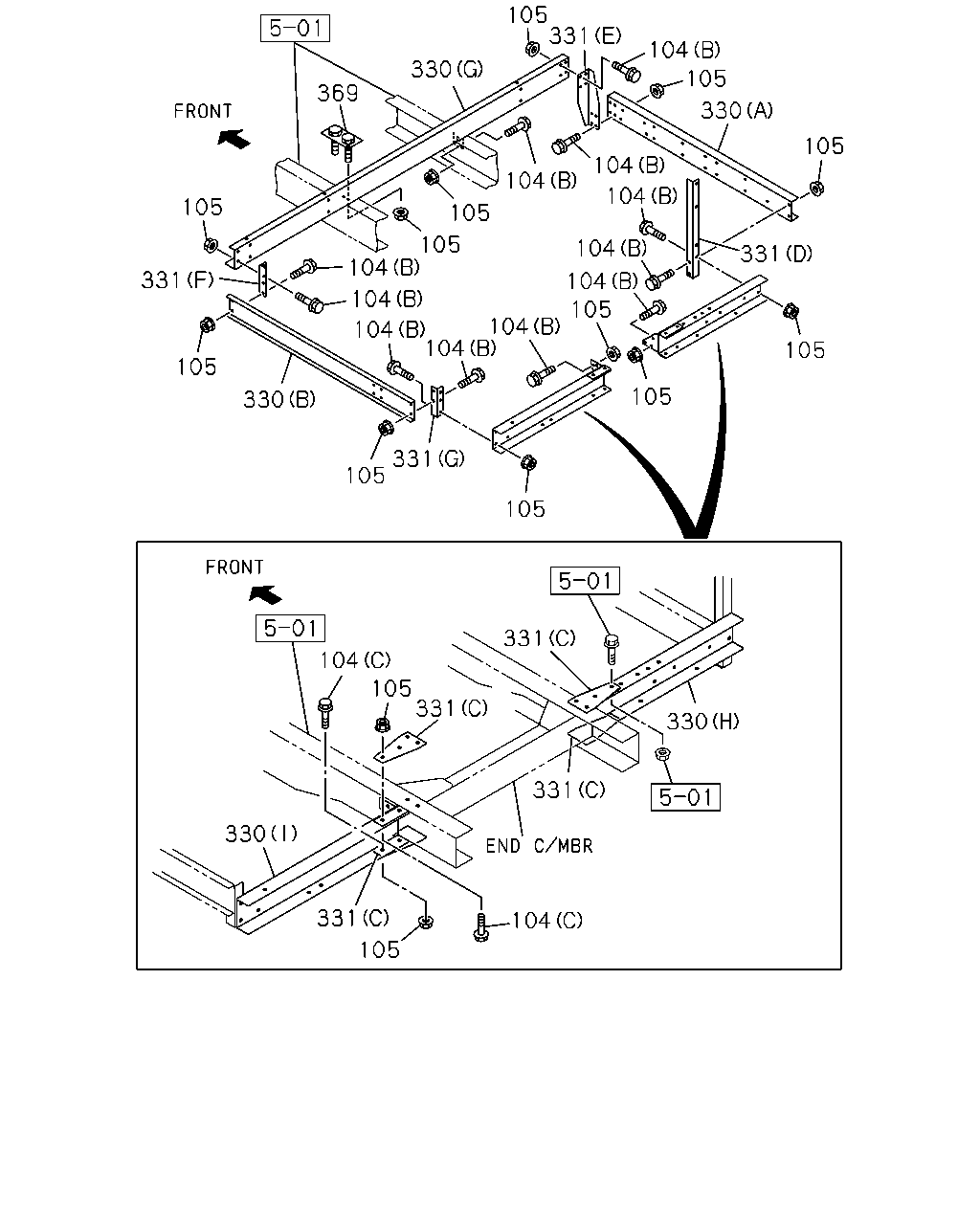

çizim 24203
105 331 104 330 105 369 330 105 104 104 104 105 105 105 104 104 331 331 104 105 104 104 104 104 105 105 105 330 331 105 105 331 104 105 331 330 331 330 331 104 105
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 52 1 0107-0304
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 34 1 0305-0512
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 34 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0107-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
104 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 08 1 0107-0512
104 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 08 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 64 1 0107-0304
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 46 1 0305-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 46 1 0603-
330 BRACKET; ENG COVER
(G) 		1-65600-712-2 01 1 0107-
330 BRACKET; ENG COVER
(A) 		1-65600-546-2 01 1 0107-
330 BRACKET; ENG COVER
(B) 		1-65600-547-1 01 1 0107-
330 BRACKET; ENG COVER
(C) 		1-65600-550-1 01 1 0107-0304
330 BRACKET; ENG COVER
(D) 		1-65600-551-1 01 1 0107-0304
330 BRACKET; ENG COVER
(E) 		1-65600-654-1 01 1 0107-
330 BRACKET; ENG COVER
(F) 		1-65600-655-1 01 1 0107-
330 BRACKET; ENG COVER
(H) 		1-65600-695-0 01 1 0107-
330 BRACKET; ENG COVER
(I) 		1-65600-696-0 01 1 0107-
330 BRACKET; ENG COVER
(J) 		1-65600-697-1 01 1 0107-
330 BRACKET; ENG COVER
(K) 		1-65600-698-0 01 1 0107-0304
330 BRACKET; ENG COVER
(L) 		1-65600-699-0 02 1 0107-0304
330 BRACKET; ENG COVER
(M) 		1-65600-700-0 01 1 0107-0304
330 BRACKET; ENG COVER
(N) 		1-65600-701-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(A) 		1-65600-624-1 01 1 0107-
331 BRACKET; ENG COVER BRKT
(B) 		1-65600-625-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(C) 		1-65600-677-0 04 1 0107-
331 BRACKET; ENG COVER BRKT
(D) 		1-65600-543-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(E) 		1-65600-544-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(F) 		1-65600-558-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(G) 		1-65600-694-0 01 1 0107-
369 PLATE 1-53497-674-0 01 1 0107-

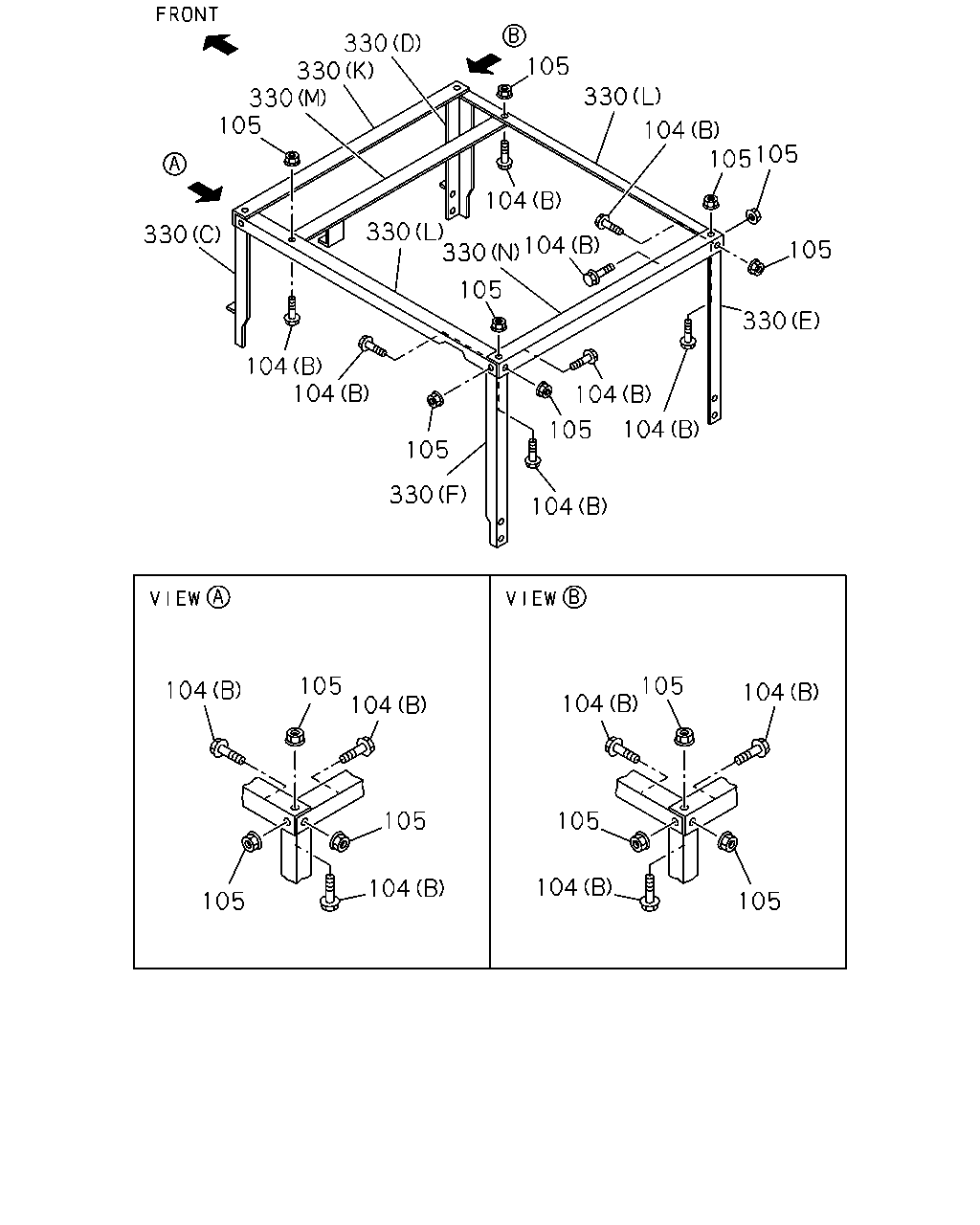

çizim 25071
330 330 330 105 105 330 104 105 105 330 104 330 104 330 105 105 330 104 104 104 104 105 105 330 104 105 104 105 104 104 104 105 105 104 104 105 105
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 52 1 0107-0304
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 34 1 0305-0512
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 34 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0107-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
104 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 08 1 0107-0512
104 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 08 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 64 1 0107-0304
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 46 1 0305-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 46 1 0603-
330 BRACKET; ENG COVER
(G) 		1-65600-712-2 01 1 0107-
330 BRACKET; ENG COVER
(A) 		1-65600-546-2 01 1 0107-
330 BRACKET; ENG COVER
(B) 		1-65600-547-1 01 1 0107-
330 BRACKET; ENG COVER
(C) 		1-65600-550-1 01 1 0107-0304
330 BRACKET; ENG COVER
(D) 		1-65600-551-1 01 1 0107-0304
330 BRACKET; ENG COVER
(E) 		1-65600-654-1 01 1 0107-
330 BRACKET; ENG COVER
(F) 		1-65600-655-1 01 1 0107-
330 BRACKET; ENG COVER
(H) 		1-65600-695-0 01 1 0107-
330 BRACKET; ENG COVER
(I) 		1-65600-696-0 01 1 0107-
330 BRACKET; ENG COVER
(J) 		1-65600-697-1 01 1 0107-
330 BRACKET; ENG COVER
(K) 		1-65600-698-0 01 1 0107-0304
330 BRACKET; ENG COVER
(L) 		1-65600-699-0 02 1 0107-0304
330 BRACKET; ENG COVER
(M) 		1-65600-700-0 01 1 0107-0304
330 BRACKET; ENG COVER
(N) 		1-65600-701-0 01 1 0107-

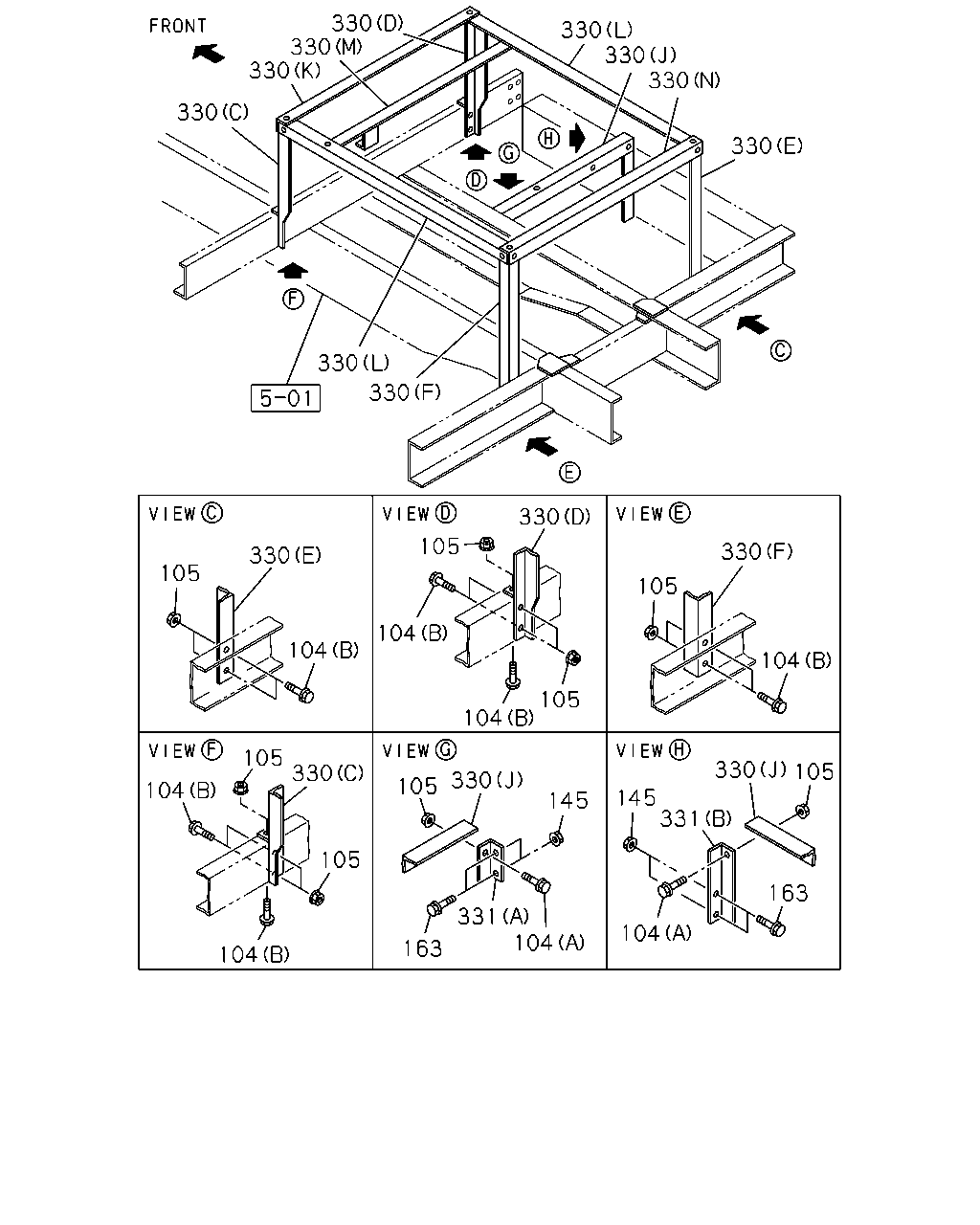

çizim 25494
330 330 330 330 330 330 330 330 330 330 330 105 330 330 105 105 104 104 104 105 104 105 330 330 105 330 105 104 145 331 145 105 163 331 104 104 163 104
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 52 1 0107-0304
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 34 1 0305-0512
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 34 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0107-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
104 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 08 1 0107-0512
104 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 08 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 64 1 0107-0304
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 46 1 0305-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 46 1 0603-
145 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602
145 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
163 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0107-0512
163 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601-
330 BRACKET; ENG COVER
(G) 		1-65600-712-2 01 1 0107-
330 BRACKET; ENG COVER
(A) 		1-65600-546-2 01 1 0107-
330 BRACKET; ENG COVER
(B) 		1-65600-547-1 01 1 0107-
330 BRACKET; ENG COVER
(C) 		1-65600-550-1 01 1 0107-0304
330 BRACKET; ENG COVER
(D) 		1-65600-551-1 01 1 0107-0304
330 BRACKET; ENG COVER
(E) 		1-65600-654-1 01 1 0107-
330 BRACKET; ENG COVER
(F) 		1-65600-655-1 01 1 0107-
330 BRACKET; ENG COVER
(H) 		1-65600-695-0 01 1 0107-
330 BRACKET; ENG COVER
(I) 		1-65600-696-0 01 1 0107-
330 BRACKET; ENG COVER
(J) 		1-65600-697-1 01 1 0107-
330 BRACKET; ENG COVER
(K) 		1-65600-698-0 01 1 0107-0304
330 BRACKET; ENG COVER
(L) 		1-65600-699-0 02 1 0107-0304
330 BRACKET; ENG COVER
(M) 		1-65600-700-0 01 1 0107-0304
330 BRACKET; ENG COVER
(N) 		1-65600-701-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(A) 		1-65600-624-1 01 1 0107-
331 BRACKET; ENG COVER BRKT
(B) 		1-65600-625-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(C) 		1-65600-677-0 04 1 0107-
331 BRACKET; ENG COVER BRKT
(D) 		1-65600-543-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(E) 		1-65600-544-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(F) 		1-65600-558-0 01 1 0107-
331 BRACKET; ENG COVER BRKT
(G) 		1-65600-694-0 01 1 0107-
