Isuzu WW
▶
BUSES
▶
LT
▶
10892 - LT134-RHD EXC.EURO4
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

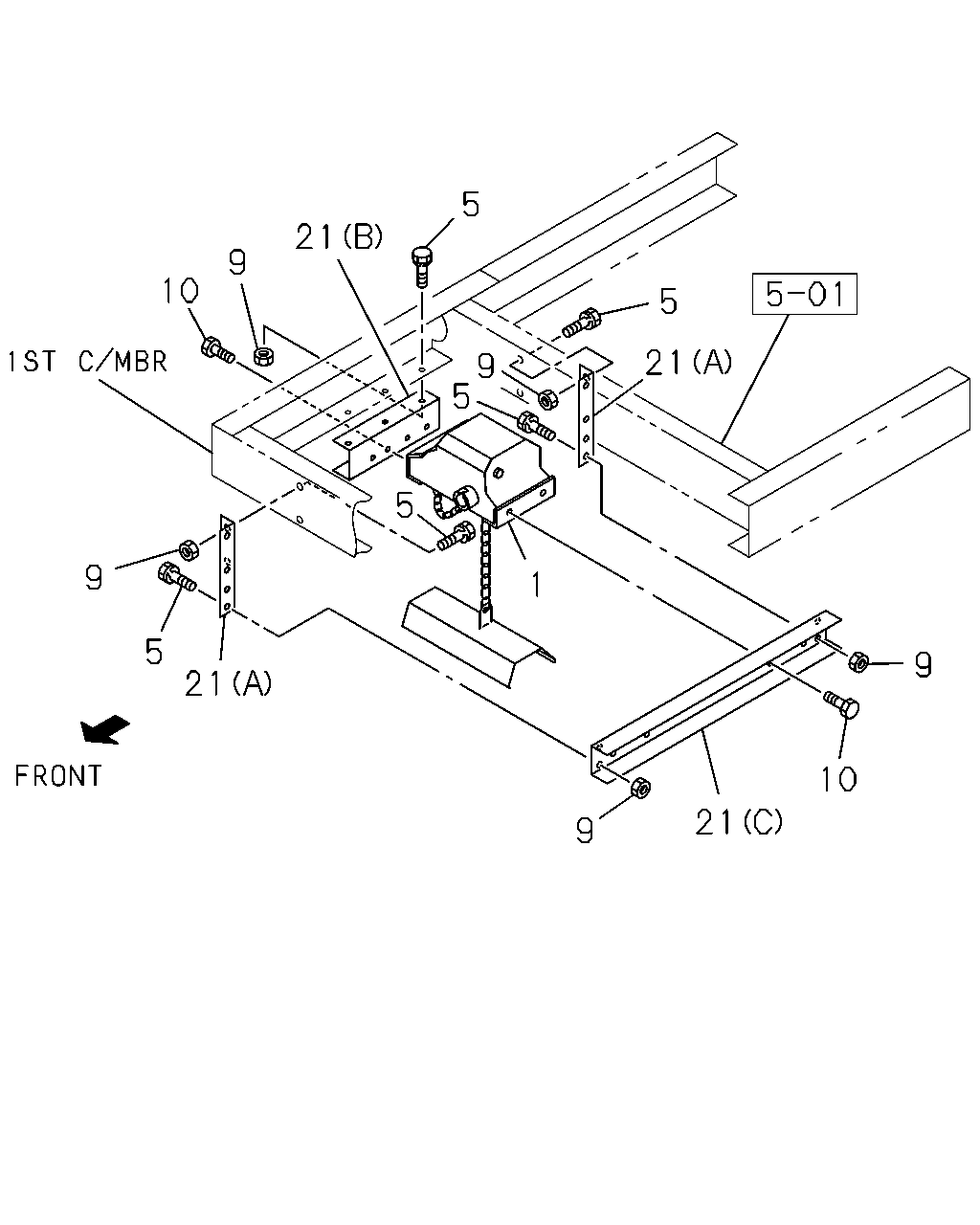

5-30 — SPARE TIRE CARRIER AND COVER
(#30933) — 11 parça
5
21
9
10
5
21
9
5
5
9
1
5
9
21
10
21
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER(SFB)
1-53630-210-2
01
1
0107-
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER(SFB) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-53630-208-2
01
1
0107-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12X35 FLANGE
0-28681-235-0
11
1
0107-0512
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12X35 FLANGE
0-28651-235-0
11
1
0601-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12
9-99110-512-0
11
1
0107-0512
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER(SFB) M12
0-91110-512-0
11
1
0601-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER(SFB) M12X30 FLANGE
0-28681-230-0
04
1
0107-0512
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER(SFB) M12X30 FLANGE
0-28651-230-0
04
1
0601-
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (A)
1-53618-046-0
02
1
0107-
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (B)
1-53618-047-0
01
1
0107-
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER(SFB) (C)
1-53618-048-0
01
1
0107-
