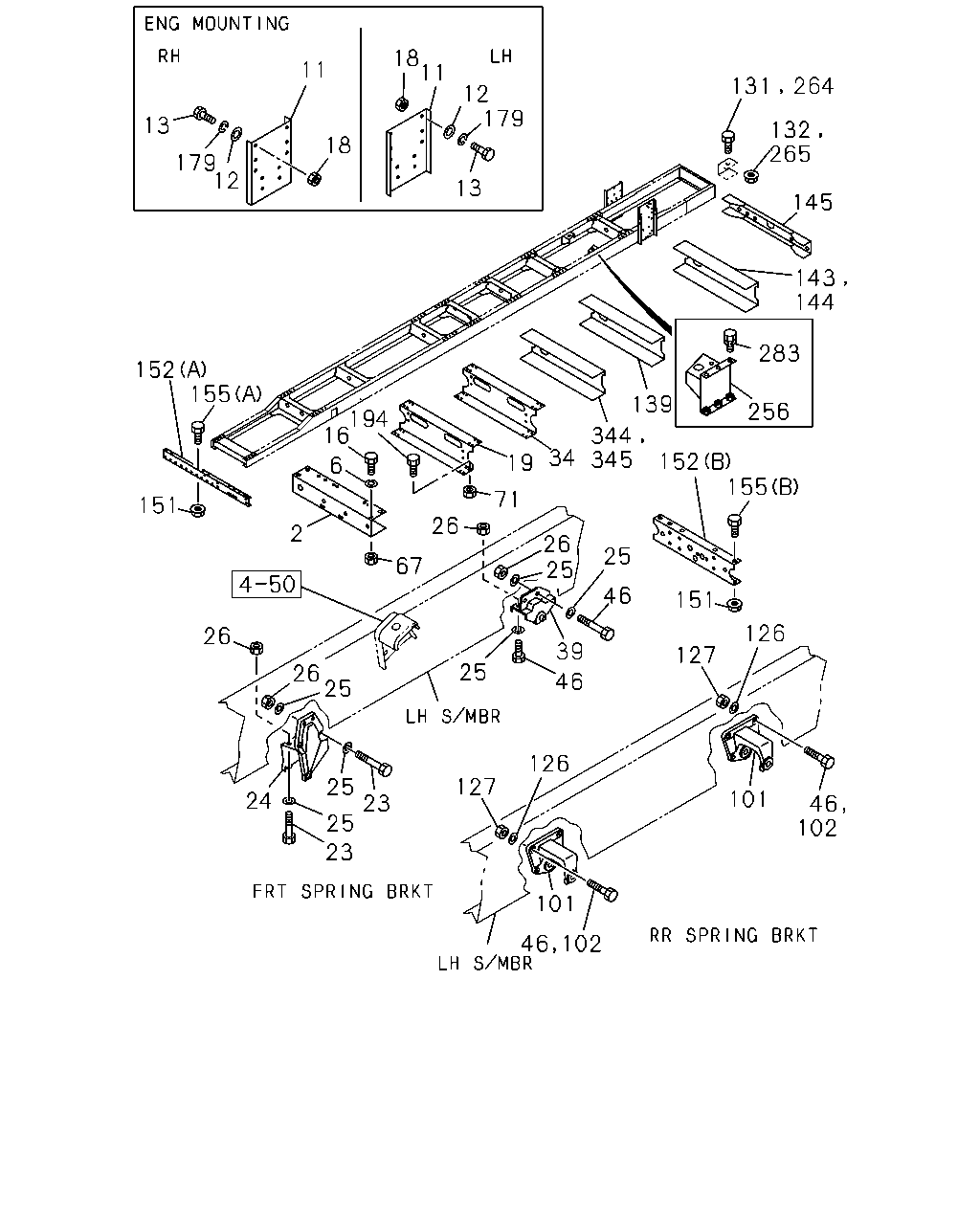

5-01 — FRAME AND OTHER PARTS
(#30931) — 72 parça
Tümü
A - WHEEL BASE 5000MM
B - WHEEL BASE 5700MM
18
11
11
131
264
12
179
13
132
265
18
179
12
13
145
143
144
283
152
155
139
194
16
256
344
345
34
152
155
19
6
71
151
26
2
26
25
25
67
46
151
126
26
39
127
25
26
25
46
126
127
2
23
25
101
24
46
102
23
101
46
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
1-53171-838-9
01
1
0107-
●
●
6
WASHER; LK,1ST C/MBR
ID=14.2
9-09150-614-0
02
1
0107-0603
●
●
6
WASHER; LK,1ST C/MBR
ID=14.2
0-91510-614-0
02
1
0604-
●
●
11
BRACKET; ENG MTG
1-53221-188-1
01
1
0107-
●
●
11
BRACKET; ENG MTG
1-53221-220-1
01
1
0107-
●
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
12
1
0107-
●
●
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
12
1
0107-0512
●
●
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
12
1
0601-
●
●
16
BOLT; 1ST C/MBR TO S/MBR
M14X30
0-20801-430-0
02
1
0107-0512
●
●
16
BOLT; 1ST C/MBR TO S/MBR
M14X30
0-20851-430-0
02
1
0601-
●
●
18
NUT; BRKT,ENG MTG
M14
9-99110-514-0
12
1
0107-0512
●
●
18
NUT; BRKT,ENG MTG
M14
0-91110-514-0
12
1
0601-
●
●
19
MEMBER; CROSS,2ND
1-53181-627-8
01
1
0107-
●
●
23
BOLT; BRKT,SPR
M16X55
9-91066-655-0
04
1
0107-
●
●
23
BOLT; BRKT,SPR
M14X45
9-92061-445-0
08
1
0107-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-179-0
01
1
0107-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-178-0
01
1
0107-
●
●
25
WASHER; PL,BRKT
ID=16.2
1-09503-223-0
08
1
0107-
●
●
25
WASHER; PL,BRKT
ID=15
9-09651-069-0
32
1
0107-
●
●
26
NUT; BRKT,SPR
M14
9-99110-514-0
16
1
0107-0512
●
●
26
NUT; BRKT,SPR
M14
0-91110-514-0
16
1
0601-
●
●
26
NUT; BRKT,SPR
M16
9-99110-516-0
04
1
0107-0512
●
●
26
NUT; BRKT,SPR
M16
0-91110-516-0
04
1
0601-
●
●
34
MEMBER; CROSS,3RD
1-53181-731-8
01
1
0107-
●
●
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
0107-
●
●
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
0107-
●
●
46
BOLT; BRKT FIX
M14X45
9-92061-445-0
08
1
0107-
●
●
67
NUT; C/MBR
M14
9-99110-414-0
02
1
0107-0512
●
●
67
NUT; C/MBR
M14
0-91110-514-0
02
1
0601-
●
●
71
NUT; 2ND C/MBR
M14 FLANGE
0-91150-214-0
02
1
0107-
●
●
101
BRACKET; RR SPR,FRT
1-53354-067-0
02
1
0107-
●
●
101
BRACKET; RR SPR,FRT
1-53354-068-0
02
1
0107-
●
●
102
BOLT; BRKT,RR SPR
M14X50
9-91066-450-0
04
1
0107-0512
●
●
102
BOLT; BRKT,RR SPR
M14X50
0-10956-450-0
04
1
0601-
●
●
102
BOLT; BRKT,RR SPR
M14X55
9-91066-455-0
20
1
0107-
●
●
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
48
1
0107-
●
●
127
NUT; BRKT
M14
9-99110-514-0
24
1
0107-0512
●
●
127
NUT; BRKT
M14
0-91110-514-0
24
1
0601-
●
●
131
BOLT; END C/MBR
M12X35 FLANGE
0-28681-235-0
08
1
0107-0512
●
●
131
BOLT; END C/MBR
M12X35 FLANGE
0-28651-235-0
08
1
0601-
●
●
132
NUT; END C/MBR
M12 FLANGE
0-91150-212-0
08
1
0107-0602
●
●
132
NUT; END C/MBR
M12 FLANGE
0-91180-212-0
08
1
0603-
●
●
139
MEMBER; CROSS,6TH
1-53181-734-7
01
1
0107-
●
139
MEMBER; CROSS,6TH
1-53181-733-9
01
1
0107-
●
143
MEMBER; CROSS,7TH
1-53181-972-2
01
1
0107-
●
143
MEMBER; CROSS,7TH
1-53181-734-7
01
1
0107-
●
144
MEMBER; CROSS,8TH
1-53181-959-0
01
1
0107-
●
144
MEMBER; CROSS,8TH
1-53181-972-2
01
1
0107-
●
145
MEMBER; CROSS,9TH
1-53181-959-0
01
1
0107-
●
151
NUT; OUTRIGGER
M12 FLANGE
0-91150-212-0
06
1
0107-0602
●
●
151
NUT; OUTRIGGER
M12 FLANGE
0-91180-212-0
06
1
0603-
●
●
152
OUTRIGGER
(A)
1-53456-261-2
01
1
0107-
●
●
152
OUTRIGGER
(B)
1-53456-394-0
01
1
0107-
●
●
155
BOLT; OUTRIGGER
(A) M12X35 FLANGE
0-28681-235-0
02
1
0107-0512
●
●
155
BOLT; OUTRIGGER
(A) M12X35 FLANGE
0-28651-235-0
02
1
0601-
●
●
155
BOLT; OUTRIGGER
(B) M12X35 FLANGE
0-28691-235-0
04
1
0107-0512
●
●
155
BOLT; OUTRIGGER
(B) M12X35 FLANGE
0-28661-235-0
04
1
0601-
●
●
179
WASHER; LK
ID=14.2
9-09150-614-0
12
1
0107-0603
●
●
179
WASHER; LK
ID=14.2
0-91510-614-0
12
1
0604-
●
●
194
BOLT; 2ND C/MBR
M14X35 FLANGE
0-28681-435-0
02
1
0107-0512
●
●
194
BOLT; 2ND C/MBR
M14X35 FLANGE
0-28651-435-0
02
1
0601-
●
●
256
BRACKET; S/ABS
1-51681-480-2
01
1
0107-
●
●
256
BRACKET; S/ABS
1-51681-479-1
01
1
0107-
●
●
264
BOLT; FRT C/MBR
M12X35 FLANGE
0-28681-235-0
08
1
0107-0512
●
●
264
BOLT; FRT C/MBR
M12X35 FLANGE
0-28651-235-0
08
1
0601-
●
●
265
NUT; FRT C/MBR
M12 FLANGE
0-91150-212-0
08
1
0107-0602
●
●
265
NUT; FRT C/MBR
M12 FLANGE
0-91180-212-0
08
1
0603-
●
●
283
BOLT; BRKT,S/ABS
M12X35 FLANGE
0-28681-235-0
12
1
0107-0512
●
●
283
BOLT; BRKT,S/ABS
M12X35 FLANGE
0-28651-235-0
12
1
0601-
●
●
344
MEMBER; CROSS,4TH
1-53181-732-9
01
1
0107-
●
●
345
MEMBER; CROSS,5TH
1-53181-733-9
01
1
0107-
●
345
MEMBER; CROSS,5TH
1-53181-732-9
01
1
0107-
●
