Sayfa 4-80 - Isuzu EPC

4-80 — ROAD WHEEL (#30930) — 176 parça

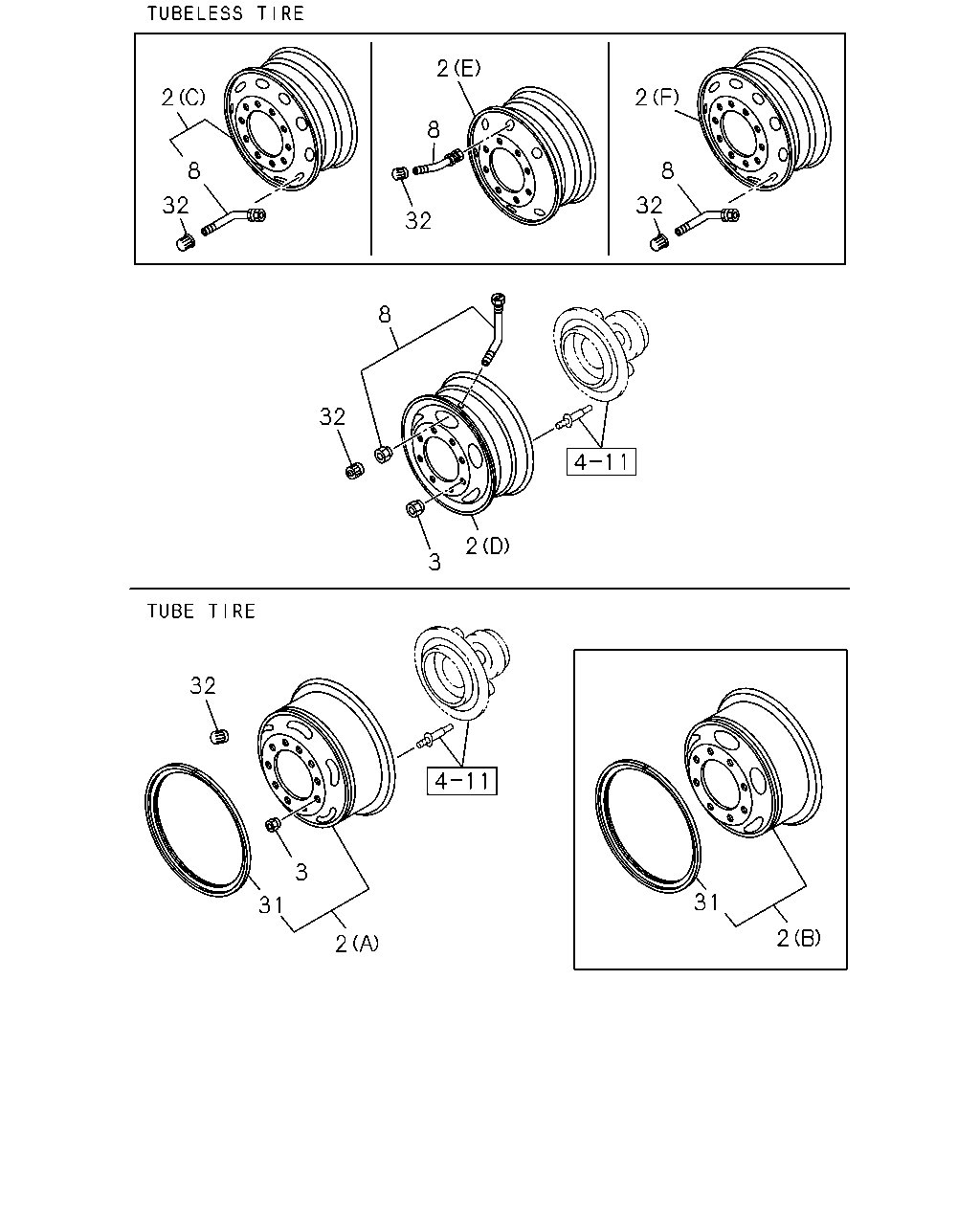

2 2 2 8 8 8 32 32 32 8 32 2 3 32 3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12<Q64> (A)	1-42350-448-0	06	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12<Q64> SPARE TIRE & DISC WHEEL RR(R46) (A) SPARE	1-42350-448-0	01	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (C)	1-42350-539-0	06	1	0107-0207
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR(R46) (C) SPARE	1-42350-539-0	01	1	0107-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (D)	1-42350-468-0	06	1	0107-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (C)	1-42350-646-0	06	1	0208-0408
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (C)	1-42350-638-1	06	1	0409-0602
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (F)	1-42350-730-0	06	1	0603-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	1-42350-468-0	01	1	0107-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) (C) SPARE	1-42350-646-0	01	1	0208-0408
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) (C) SPARE	1-42350-638-1	01	1	0409-0602
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) (F) SPARE	1-42350-730-0	01	1	0603-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) EXC. WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WH EEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) SPARE	1-42350-268-2	01	1	0107-0112
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> ,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE	1-42350-268-2	01	1	0201-0207
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 8STUD 7.50X22.5162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE	1-42350-268-2	01	1	0208-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20<Q58> (A)	1-42350-447-0	06	1	0107-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20<Q58> SPARE TIRE & DISC WHEEL RR(R46) (A) SPARE	1-42350-447-0	01	1	0107-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X8.25 165-13<QM6> (D)	1-42350-492-0	06	1	0107-0207
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D)	1-42350-597-0	06	1	0208-0304
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (E)	1-42350-657-0	06	1	0305-0311
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (E)	1-42350-667-0	06	1	0312-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X8.25 165-13<QM6> SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	1-42350-492-0	01	1	0107-0207
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) SPARE	1-42350-597-0	01	1	0208-0304
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (E) SPARE	1-42350-657-0	01	1	0305-0311
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (E) SPARE	1-42350-667-0	01	1	0312-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B)	1-42350-478-0	06	1	0107-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR(R46) (B) SPARE	1-42350-478-0	01	1	0107-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B)	1-42350-362-0	06	1	0107-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR(R46) (B) SPARE	1-42350-362-0	01	1	0107-
2	WHEEL; DISC WHEEL 8STUD 7.50X22.5 162-12<QM2> (E)	1-42350-429-2	06	1	0107-0112
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E)	1-42350-615-0	06	1	0201-0304
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E)	1-42350-655-0	06	1	0305-0311
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E)	1-42350-665-0	06	1	0312-0605
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E)	1-42350-758-0	06	1	0606-
2	WHEEL; DISC WHEEL 8STUD 7.50X22.5 162-12<QM2> SPARE TIRE & DISC WHEEL RR(R46) (E) SPARE	1-42350-429-2	01	1	0107-0112
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E) SPARE	1-42350-615-0	01	1	0201-0304
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E) SPARE	1-42350-655-0	01	1	0305-0311
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E) SPARE	1-42350-665-0	01	1	0312-0605
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E) SPARE	1-42350-758-0	01	1	0606-
2	WHEEL; DISC EXC. WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WH EEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A)	1-42350-268-2	06	1	0107-0112
2	WHEEL; DISC EXC. DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> ,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A)	1-42350-268-2	06	1	0201-0207
2	WHEEL; DISC EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 8STUD 7.50X22.5162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A)	1-42350-268-2	06	1	0208-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-0	16	1	0107-0602
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24	1-42333-022-1	16	1	0603-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-0	16	1	0107-0602
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-022-1	16	1	0603-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0603-0907
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>	1-42370-041-1	06	1	0409-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-041-1	01	1	0409-0602
8	VALVE; TIRE WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42370-020-3	06	1	0107-0112
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>	1-42370-020-3	06	1	0201-0207
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>	1-42370-020-3	06	1	0208-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42370-020-3	06	1	0208-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42370-020-3	06	1	0409-0506
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	0507-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42370-020-3	06	1	0603-
8	VALVE; TIRE WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0107-0112
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0201-0207
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0208-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0208-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0409-0506
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42370-020-3	06	1	0507-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0603-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	06	1	0107-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42355-003-1	01	1	0107-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42355-004-1	06	1	0107-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42355-004-1	01	1	0107-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12<Q64>	1-42355-014-0	06	1	0107-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12<Q64> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42355-014-0	01	1	0107-
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR(R46) EXC. WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WH EEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE	1-42355-012-1	01	1	0107-0112
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DIS C WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5162-13<SKU> SPARE	1-42355-012-1	01	1	0201-0207
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DIS C WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42355-012-1	01	1	0208-
31	RING; SIDE,DISC WHEEL EXC. WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WH EEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42355-012-1	06	1	0107-0112
31	RING; SIDE,DISC WHEEL EXC. DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DIS C WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5162-13<SKU>	1-42355-012-1	06	1	0201-0207
31	RING; SIDE,DISC WHEEL EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DIS C WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42355-012-1	06	1	0208-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	01	1	0603-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	07	1	0107-0503
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>	1-42374-001-0	07	1	0504-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	06	1	0107-0503
32	CAP; VALVE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	06	1	0504-0602
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>	1-42374-001-0	06	1	0603-
32	CAP; VALVE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	06	1	0603-

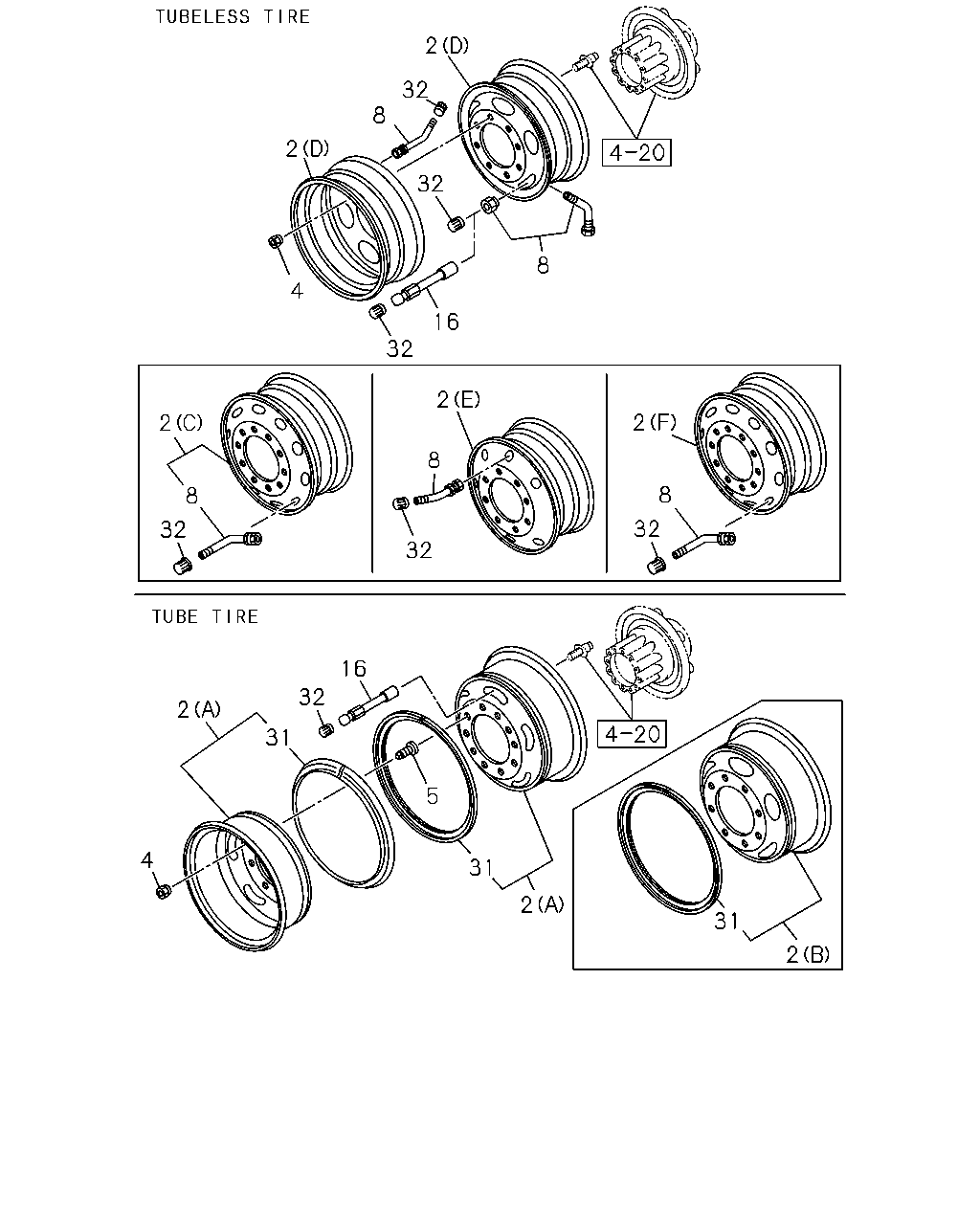

2 32 8 2 32 8 4 16 32 2 2 2 8 8 8 32 32 32 16 32 2 31 5 4 31 2 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12<Q64> (A)	1-42350-448-0	06	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12<Q64> SPARE TIRE & DISC WHEEL RR(R46) (A) SPARE	1-42350-448-0	01	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (C)	1-42350-539-0	06	1	0107-0207
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR(R46) (C) SPARE	1-42350-539-0	01	1	0107-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (D)	1-42350-468-0	06	1	0107-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (C)	1-42350-646-0	06	1	0208-0408
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (C)	1-42350-638-1	06	1	0409-0602
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (F)	1-42350-730-0	06	1	0603-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	1-42350-468-0	01	1	0107-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) (C) SPARE	1-42350-646-0	01	1	0208-0408
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) (C) SPARE	1-42350-638-1	01	1	0409-0602
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) (F) SPARE	1-42350-730-0	01	1	0603-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) EXC. WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WH EEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) SPARE	1-42350-268-2	01	1	0107-0112
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> ,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE	1-42350-268-2	01	1	0201-0207
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 8STUD 7.50X22.5162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE	1-42350-268-2	01	1	0208-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20<Q58> (A)	1-42350-447-0	06	1	0107-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20<Q58> SPARE TIRE & DISC WHEEL RR(R46) (A) SPARE	1-42350-447-0	01	1	0107-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X8.25 165-13<QM6> (D)	1-42350-492-0	06	1	0107-0207
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D)	1-42350-597-0	06	1	0208-0304
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (E)	1-42350-657-0	06	1	0305-0311
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (E)	1-42350-667-0	06	1	0312-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X8.25 165-13<QM6> SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	1-42350-492-0	01	1	0107-0207
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) SPARE	1-42350-597-0	01	1	0208-0304
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (E) SPARE	1-42350-657-0	01	1	0305-0311
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (E) SPARE	1-42350-667-0	01	1	0312-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B)	1-42350-478-0	06	1	0107-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR(R46) (B) SPARE	1-42350-478-0	01	1	0107-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B)	1-42350-362-0	06	1	0107-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR(R46) (B) SPARE	1-42350-362-0	01	1	0107-
2	WHEEL; DISC WHEEL 8STUD 7.50X22.5 162-12<QM2> (E)	1-42350-429-2	06	1	0107-0112
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E)	1-42350-615-0	06	1	0201-0304
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E)	1-42350-655-0	06	1	0305-0311
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E)	1-42350-665-0	06	1	0312-0605
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E)	1-42350-758-0	06	1	0606-
2	WHEEL; DISC WHEEL 8STUD 7.50X22.5 162-12<QM2> SPARE TIRE & DISC WHEEL RR(R46) (E) SPARE	1-42350-429-2	01	1	0107-0112
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E) SPARE	1-42350-615-0	01	1	0201-0304
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E) SPARE	1-42350-655-0	01	1	0305-0311
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E) SPARE	1-42350-665-0	01	1	0312-0605
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (E) SPARE	1-42350-758-0	01	1	0606-
2	WHEEL; DISC EXC. WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WH EEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A)	1-42350-268-2	06	1	0107-0112
2	WHEEL; DISC EXC. DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> ,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A)	1-42350-268-2	06	1	0201-0207
2	WHEEL; DISC EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 10STUD 7.00TX20<Q58>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 8STUD 7.50X22.5162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A)	1-42350-268-2	06	1	0208-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0603-0907
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	0107-0602
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	1-42334-023-0	08	1	0603-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	8-97359-810-0	08	1	0611-
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	0107-0602
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30	1-42333-023-0	08	1	0603-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 RH THREAD	8-97359-809-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-0	08	1	0107-0602
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0603-0610
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-0	08	1	0107-0602
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0603-0610
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>	1-42370-041-1	06	1	0409-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-041-1	01	1	0409-0602
8	VALVE; TIRE WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42370-020-3	06	1	0107-0112
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>	1-42370-020-3	06	1	0201-0207
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>	1-42370-020-3	06	1	0208-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42370-020-3	06	1	0208-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42370-020-3	06	1	0409-0506
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	0507-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42370-020-3	06	1	0603-
8	VALVE; TIRE WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0107-0112
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0201-0207
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0208-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0208-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0409-0506
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42370-020-3	06	1	0507-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42370-020-3	01	1	0603-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	02	1	0107-1003
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	02	1	1004-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	06	1	0107-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42355-003-1	01	1	0107-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42355-004-1	06	1	0107-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42355-004-1	01	1	0107-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12<Q64>	1-42355-014-0	06	1	0107-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12<Q64> SPARE TIRE & DISC WHEEL RR(R46) SPARE	1-42355-014-0	01	1	0107-
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR(R46) EXC. WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WH EEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE	1-42355-012-1	01	1	0107-0112
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DIS C WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5162-13<SKU> SPARE	1-42355-012-1	01	1	0201-0207
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DIS C WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42355-012-1	01	1	0208-
31	RING; SIDE,DISC WHEEL EXC. WHEEL 8STUD 7.50X22.5 162-12<QM2>,DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WH EEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42355-012-1	06	1	0107-0112
31	RING; SIDE,DISC WHEEL EXC. DISC WHEEL 8STUD 22.5X8.25 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DIS C WHEEL 10STUD 7.50VX20 165-12<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5162-13<SKU>	1-42355-012-1	06	1	0201-0207
31	RING; SIDE,DISC WHEEL EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 10STUD 7.50VX20 165-12<Q64>,DIS C WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42355-012-1	06	1	0208-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	01	1	0603-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	07	1	0107-0503
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>	1-42374-001-0	07	1	0504-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	06	1	0107-0503
32	CAP; VALVE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	06	1	0504-0602
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>	1-42374-001-0	06	1	0603-
32	CAP; VALVE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	06	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
