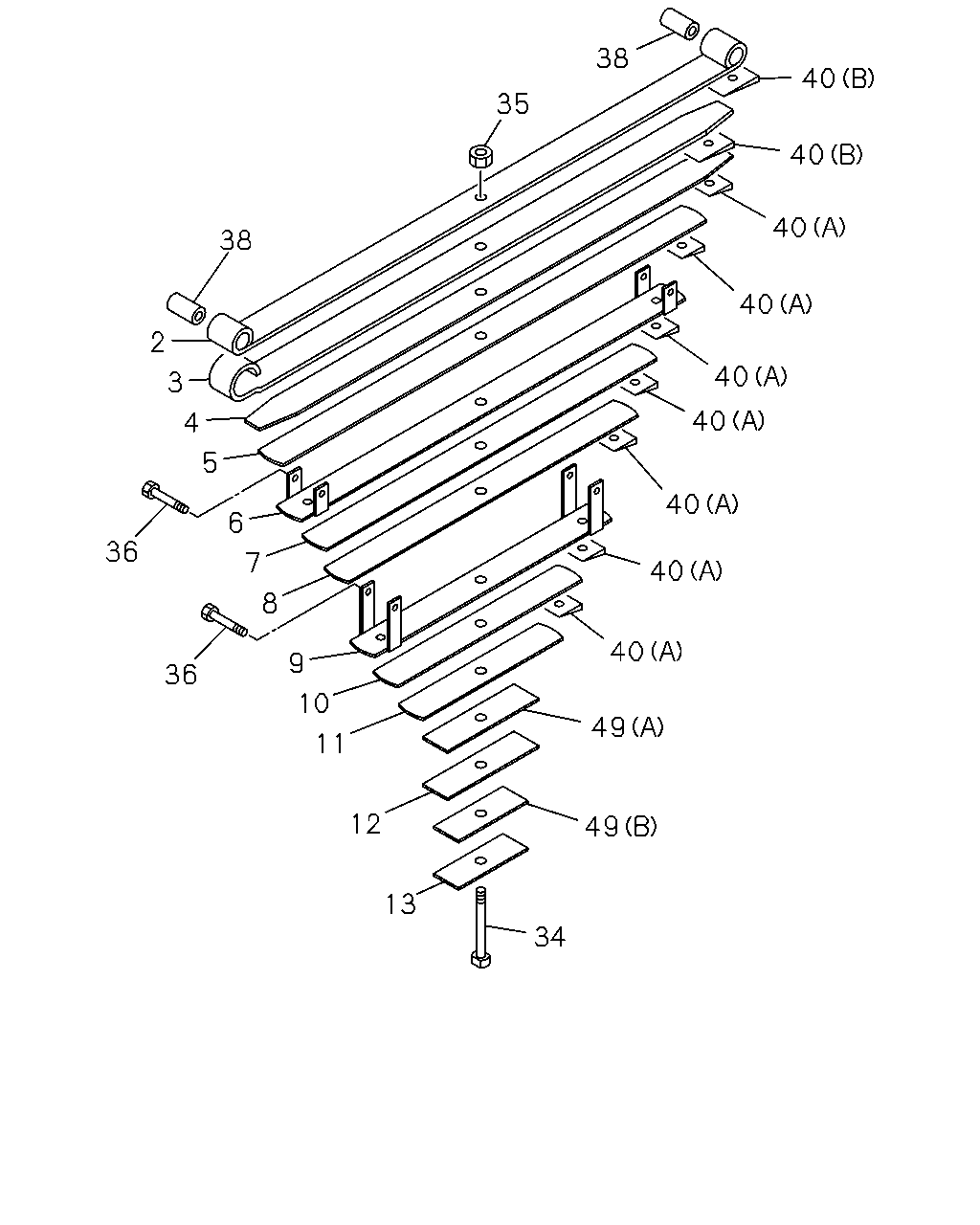

4-65 — REAR LEAF SPRING (#30929) — 20 parça

38 40 35 40 40 38 40 2 40 3 40 4 5 40 6 36 7 40 8 40 9 36 10 49 11 12 49 13 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-726-0	1-51311-726-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-726-0	1-51312-726-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-726-0	1-51313-726-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-726-0	1-51314-726-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-726-0	1-51315-726-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-726-0	1-51316-726-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-726-0	1-51317-726-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51310-726-0	1-51318-726-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-726-0	1-51319-726-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51310-726-0	1-51320-726-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: A = 1-51310-726-0	1-51321-726-0	01	1	-
13	SPRING; LEAF,NO 12,RR MAIN ASM PART: A = 1-51310-726-0	1-51322-726-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=190 ASM PART: A = 1-51310-726-0	1-51156-229-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51310-726-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X97 ASM PART: A = 1-51310-726-0	1-09000-294-0	04	1	-
38	BUSHING; LEAF SPR,RR OD=38 ASM PART: A = 1-51310-726-0	1-51351-009-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 1-51310-726-0	1-51159-022-0	14	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 1-51310-726-0	1-51159-023-0	04	1	-
49	SPRING; LEAF,INTER,RR SPR (A) ASM PART: A = 1-51310-726-0	1-51159-043-0	01	1	-
49	SPRING; LEAF,INTER,RR SPR (B) ASM PART: A = 1-51310-726-0	1-51159-044-0	01	1	-
