Isuzu WW
▶
BUSES
▶
LT
▶
10892 - LT134-RHD EXC.EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

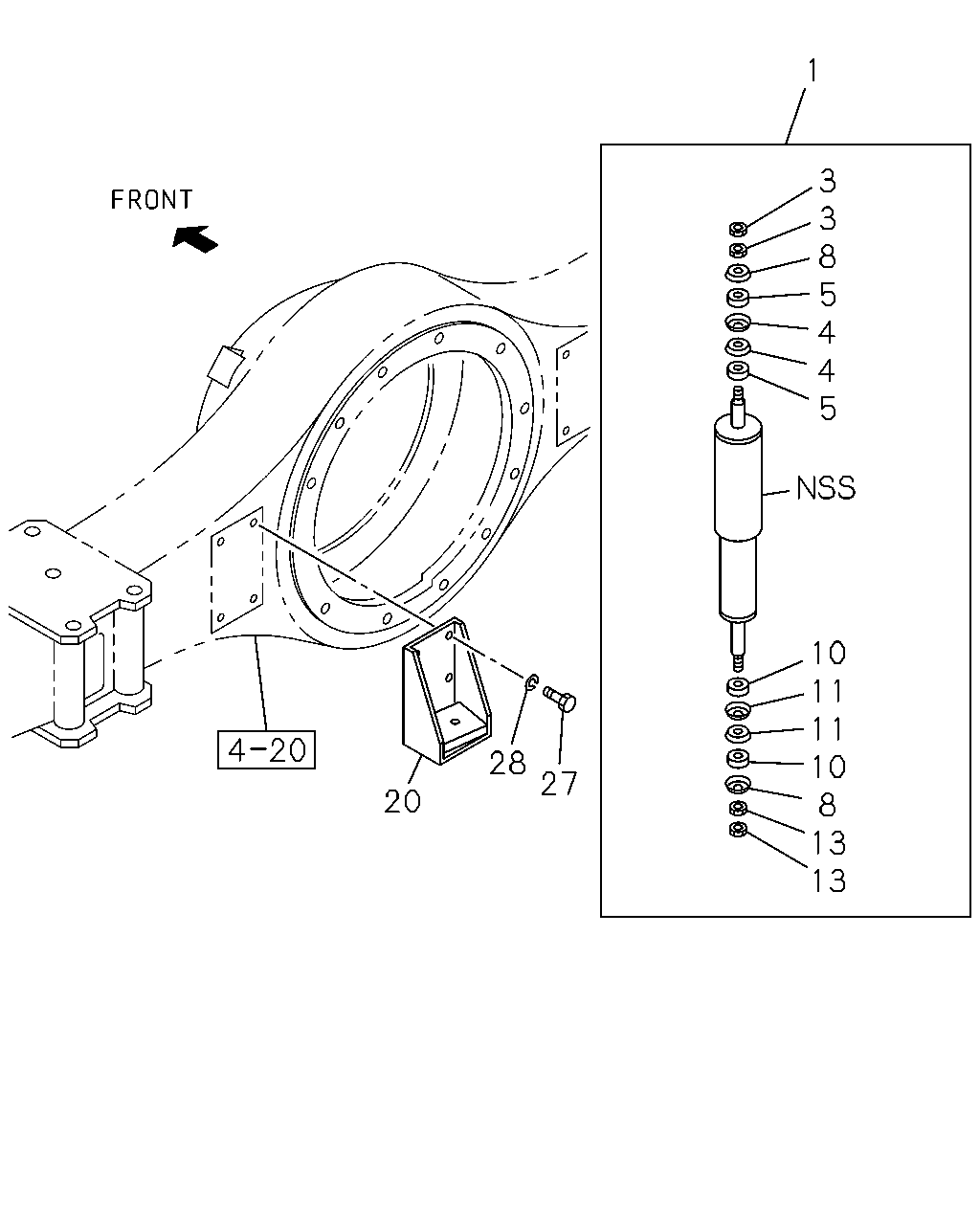

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#30928) — 13 parça
1
3
3
8
5
4
4
5
10
11
11
10
8
13
13
28
27
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
1-51630-195-2
02
1
0107-
3
NUT; S/ABS
M14
9-99111-414-0
04
1
0107-
4
WASHER; CENTER,S/ABS
ID=20.8
9-51631-041-0
04
1
0107-
5
BUSHING; RUBBER,S/ABS,UPR
9-51631-039-0
04
1
0107-
8
WASHER; S/ABS
ID=16.5
9-51631-040-0
06
1
0107-
10
BUSHING; RUBBER,S/ABS
9-51631-039-0
04
1
0107-
11
WASHER; CENTER,LWR,RR S/ABS
ID=20.8
9-51631-041-0
04
1
0107-
13
NUT; LWR,RR S/ABS
M14
9-99111-414-0
04
1
0107-
20
BRACKET; LWR,S/ABS
1-42129-095-0
01
1
0107-
20
BRACKET; LWR,S/ABS
1-42129-096-0
01
1
0107-
27
BOLT; ABSORBER BRKT
M14X25
0-20801-425-0
08
1
0107-
28
WASHER; LK,ABSORBER BRKT
ID=14.2
9-09150-614-0
08
1
0107-0603
28
WASHER; LK,ABSORBER BRKT
ID=14.2
0-91510-614-0
08
1
0604-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
