◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#30927) — 84 parça

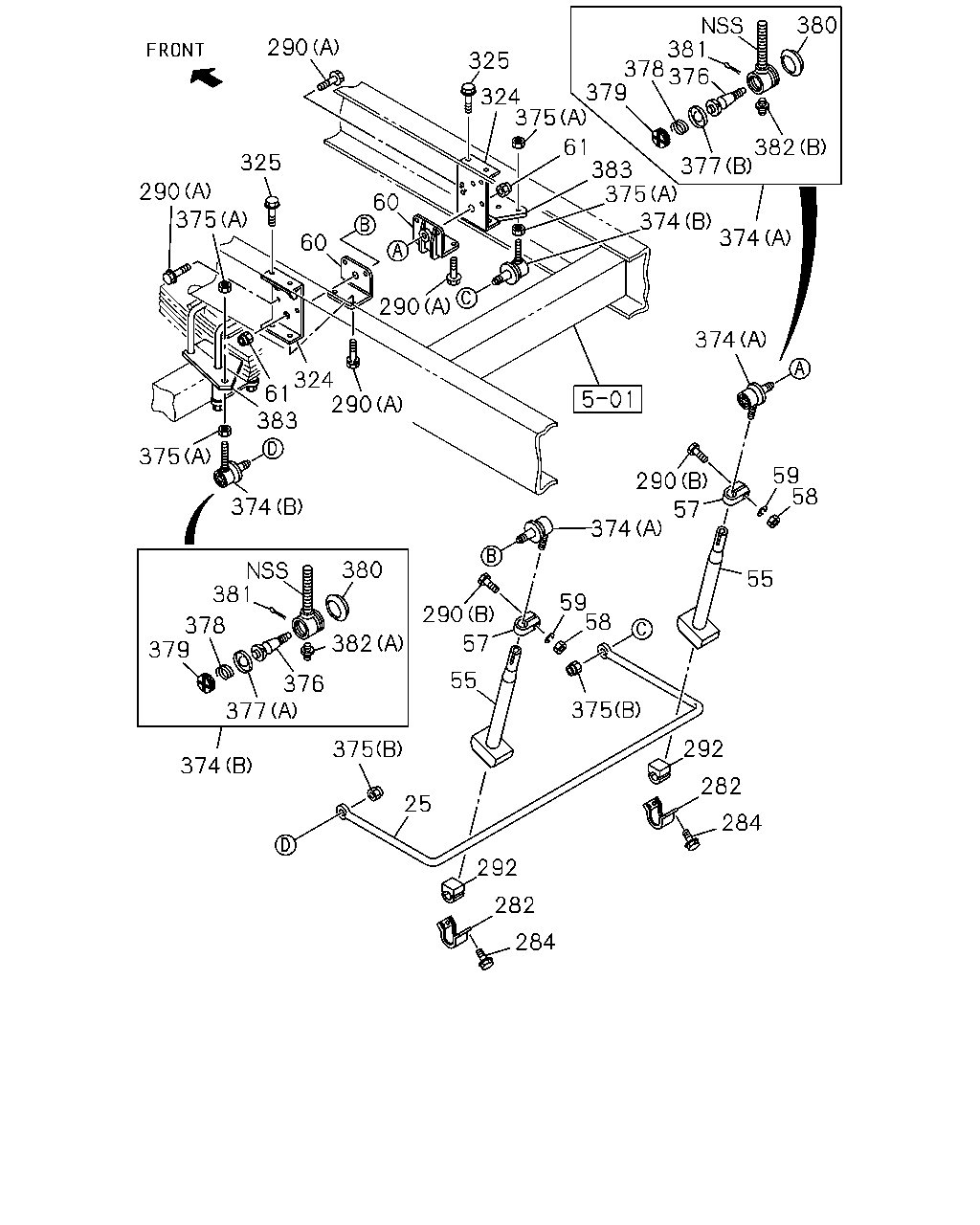

çizim 24738
380 381 378 376 379 290 325 324 375 61 383 375 374 374 382 377 325 60 290 375 60 290 374 324 61 290 383 375 59 58 290 374 57 374 380 381 55 59 58 290 378 379 382 57 55 376 377 375 292 375 374 282 25 284 292 282 284
BalonParca AdiParca NoAdetTipApplied Date
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51771-040-1 01 1 0107-0401
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-188-0 01 1 0402-
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-048-1 02 1 0107-0401
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-024-1 02 1 0402-
57 CLAMP; ROD END
STABILIZER SHAFT FRT&RR<FE6> 		1-43159-002-3 02 1 0107-0401
58 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		9-99110-512-0 02 1 0107-0401
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		9-09150-812-0 02 1 0107-0401
60 BRACKET; SUPPORT,STABILIZER
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-037-2 02 1 0107-0401
61 NUT; SUPPORT,STABILIZER
STABILIZER SHAFT FRT&RR<FE6> M16 		1-09449-014-0 02 1 0107-0401
282 RETAINER; STAB BAR
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-015-2 02 1 0107-
284 BOLT; RET TO RET
STABILIZER SHAFT FRT&RR<FE6> M10X25 		8-94463-351-0 08 1 0107-
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> (A) M12X40 FLANGE 		0-28081-240-0 08 1 0107-0401
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> (B) M12X47 		9-09801-294-0 02 1 0107-0401
292 BUSHING; RUBBER,STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-017-0 02 1 0107-0401
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-049-2 02 1 0107-0401
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-059-0 02 1 0402-
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M12X40 FLANGE 		0-28081-240-0 04 1 0107-0401
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X40 		9-92061-440-0 06 1 0402-0512
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X40 		0-20951-440-0 06 1 0601-
374 ROD END ASM; STABILIZER
STABILIZER SHAFT FRT&RR<FE6> (B) 		1-43150-472-0 01 1 0107-0401
374 ROD END ASM; STABILIZER
STABILIZER SHAFT FRT&RR<FE6> (B) 		1-43150-473-0 01 1 0107-0401
374 ROD END ASM; STABILIZER
STABILIZER SHAFT FRT&RR<FE6> (A) 		1-43150-468-0 02 1 0107-0401
375 NUT; ROD END
STABILIZER SHAFT FRT&RR<FE6> (B) M16 		1-09449-014-0 02 1 0107-0401
375 NUT; ROD END
STABILIZER SHAFT FRT&RR<FE6> (A) M20 		9-99110-520-0 02 1 0107-0401
375 NUT; ROD END
STABILIZER SHAFT FRT&RR<FE6> (A) M20 		9-09840-318-0 02 1 0107-0401
376 JOINT; BALL,ROD END
STABILIZER SHAFT FRT&RR<FE6> 		1-87090-211-0 04 1 0107-0401
377 SEAT; JOINT BALL
STABILIZER SHAFT FRT&RR<FE6> (A) 		1-44370-002-0 02 1 0107-0401
377 SEAT; JOINT BALL
STABILIZER SHAFT FRT&RR<FE6> (B) 		1-44373-002-0 02 1 0107-0401
378 SPRING; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-09580-080-0 04 1 0107-0401
379 PLUG; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> 		1-44375-001-0 04 1 0107-0401
380 BOOT; ROD END,SUPPORT
STABILIZER SHAFT FRT&RR<FE6> D=18.5,29 		1-43159-036-0 04 1 0107-0401
381 PIN; SPLIT,PLUG
STABILIZER SHAFT FRT&RR<FE6> OD=2.8 L=55 		9-08113-055-0 04 1 0107-0401
382 NIPPLE; GREASE,ROD END
STABILIZER SHAFT FRT&RR<FE6> (A) M6 STRAIGHT 		9-09031-006-0 02 1 0107-0401
382 NIPPLE; GREASE,ROD END
STABILIZER SHAFT FRT&RR<FE6> (B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0107-0401
383 BRACKET; ROD END
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-036-0 02 1 0107-0401

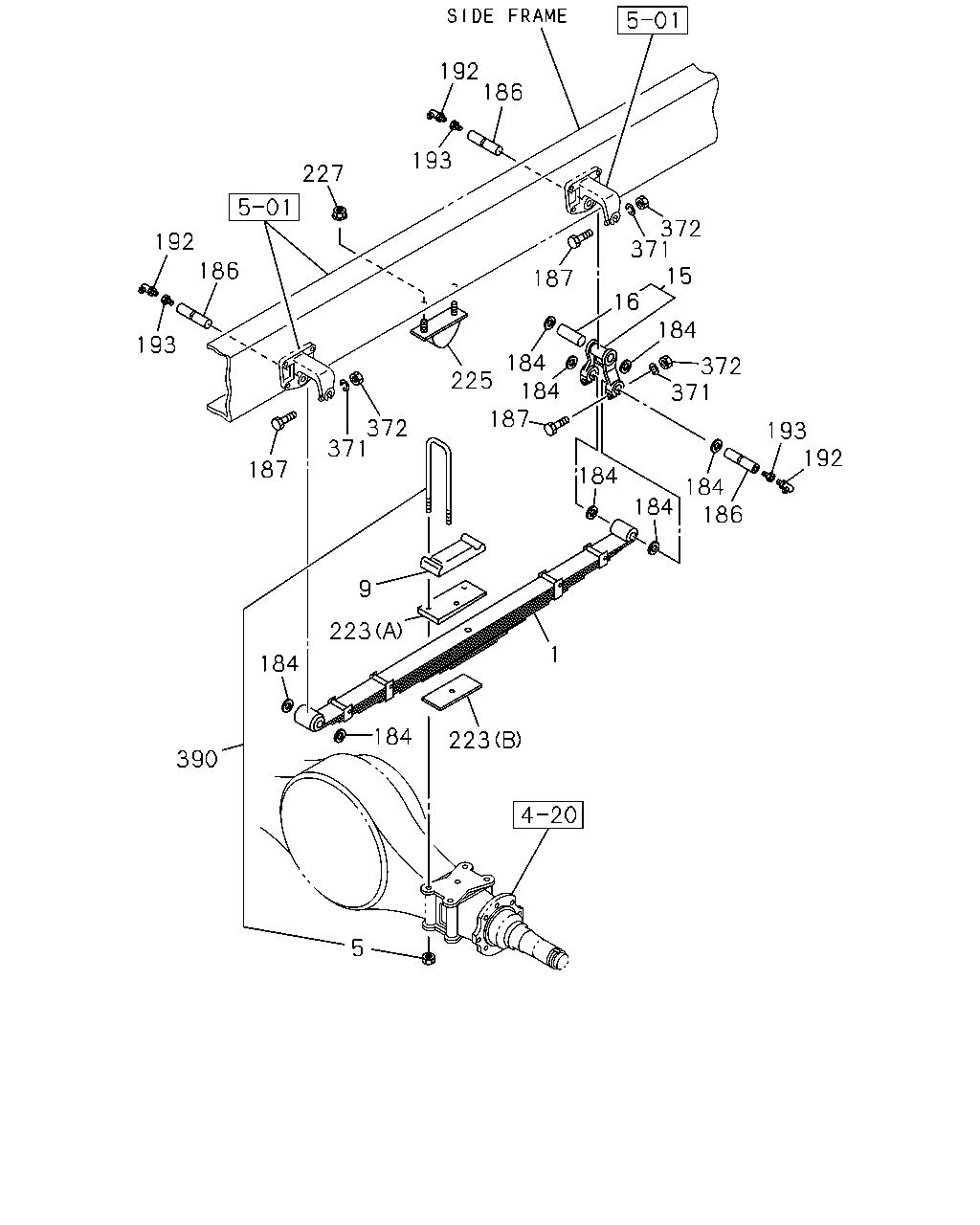

çizim 25491
192 186 193 227 372 371 15 192 186 187 16 184 193 184 184 187 372 371 225 372 371 193 192 187 184 184 186 184 9 223 1 184 184 223 390 5
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF 		1-51310-726-0 02 1 0107-
5 NUT; U-BOLT,RR SPR 9-09840-326-0 08 1 0107-
9 PAD; U BOLT,RR SPR 1-51372-036-0 02 1 0107-
15 SHACKLE; RR SPR 1-51162-039-3 02 1 0107-0907
15 SHACKLE; RR SPR 1-51162-029-5 02 1 0908-
16 BUSHING; SHACKLE,RR SPR
OD=38 		1-51351-009-0 02 1 0107-0902
16 BUSHING; SHACKLE,RR SPR
OD=38 		8-98081-829-0 02 1 0903-
184 WASHER; SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0107-
186 PIN; SHACKLE,RR SPR 1-51161-031-0 06 1 0107-
187 BOLT; SPR & SHACKLE
M12X80 		0-10806-280-0 08 1 0107-0512
187 BOLT; SPR & SHACKLE
M12X80 		0-10856-280-0 08 1 0601-
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		9-09031-210-0 06 1 0107-0512
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		0-90301-610-0 06 1 0601-
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0107-
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-076-0 02 1 0107-
223 SPACER; U BOLT,RR SPR
EXC. STABILIZER SHAFT FRT&RR<FE6> (B) 		1-51377-177-0 02 1 0107-0401
223 SPACER; U BOLT,RR SPR
(B) 		1-51377-177-0 02 1 0402-
225 RUBBER; CUSHION,RR SPR 9-53366-088-3 02 1 0107-
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0107-0602
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0603-
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 08 1 0107-0603
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 08 1 0604-
372 NUT; SHACKLE
M12 		9-99110-512-0 08 1 0107-0512
372 NUT; SHACKLE
M12 		0-91110-512-0 08 1 0601-
390 U-BOLT SET; RR SPRING
L=420 		1-87870-244-1 02 1 0107-
390 U-BOLT SET; RR SPRING
L=405 		1-87870-252-1 02 1 0107-0401
390 U-BOLT SET; RR SPRING
L=435 		1-87870-443-0 02 1 0402-

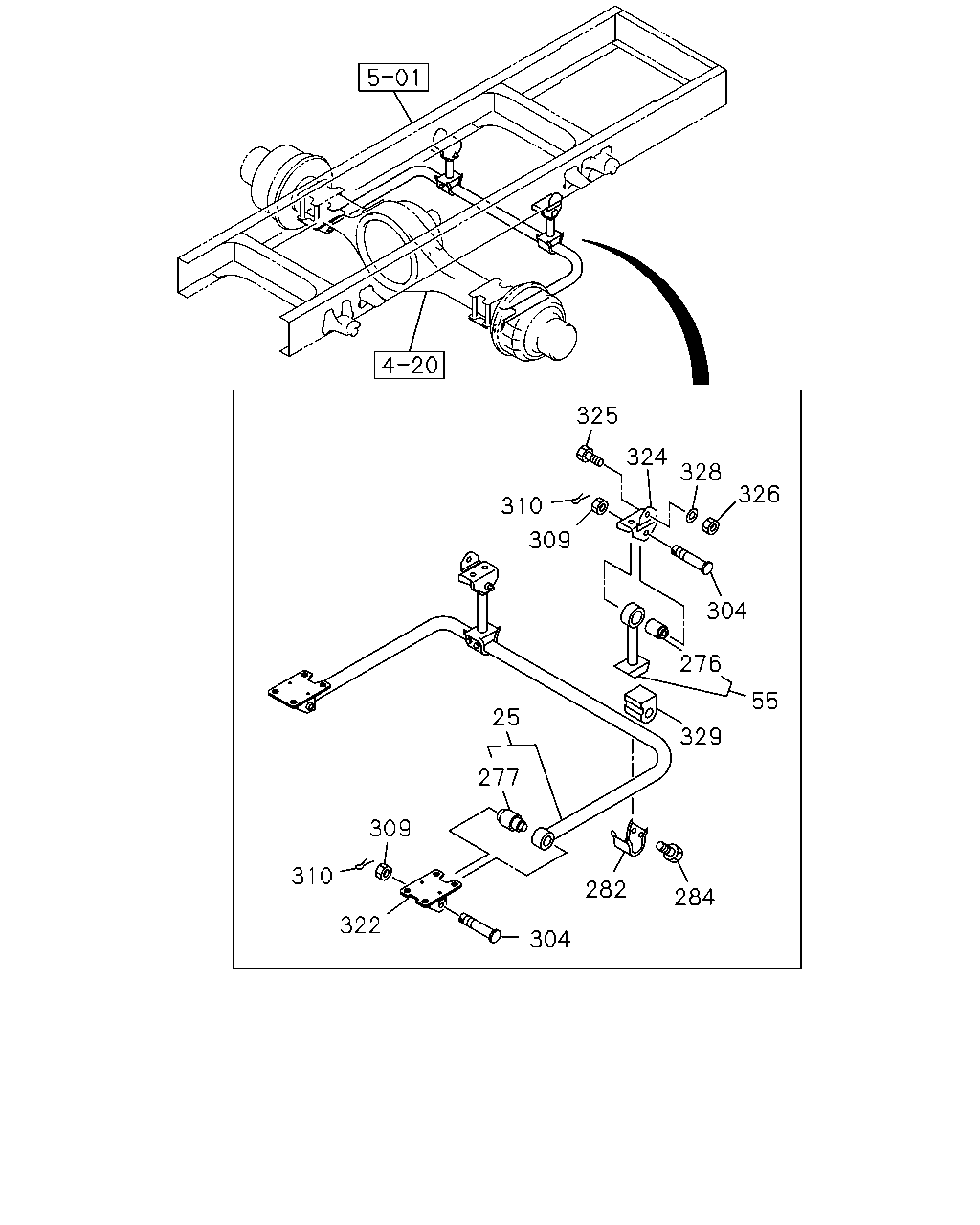

çizim 84812
325 324 328 326 310 309 304 276 55 25 329 277 309 310 282 284 322 304
BalonParca AdiParca NoAdetTipApplied Date
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51771-040-1 01 1 0107-0401
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-188-0 01 1 0402-
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-048-1 02 1 0107-0401
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-024-1 02 1 0402-
276 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-019-0 02 1 0402-
277 BUSHING; STAB,RR UPR
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-067-0 02 1 0402-
282 RETAINER; STAB BAR
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-015-2 02 1 0107-
284 BOLT; RET TO RET
STABILIZER SHAFT FRT&RR<FE6> M10X25 		8-94463-351-0 08 1 0107-
304 PIN; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-020-2 04 1 0402-
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> M24 		9-99116-424-0 04 1 0402-
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		9-08115-045-0 04 1 0402-0606
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		0-81125-045-0 04 1 0607-
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-147-0 02 1 0402-
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-049-2 02 1 0107-0401
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-059-0 02 1 0402-
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M12X40 FLANGE 		0-28081-240-0 04 1 0107-0401
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X40 		9-92061-440-0 06 1 0402-0512
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X40 		0-20951-440-0 06 1 0601-
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 		9-99110-514-0 06 1 0402-0512
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 		0-91110-514-0 06 1 0601-
328 WASHER; PL,BRKT
STABILIZER SHAFT FRT&RR<FE6> ID=15 		9-09651-069-0 12 1 0402-
329 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-017-0 02 1 0402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
