4-55 — FRONT LEAF SPRING (#30926) — 15 parça

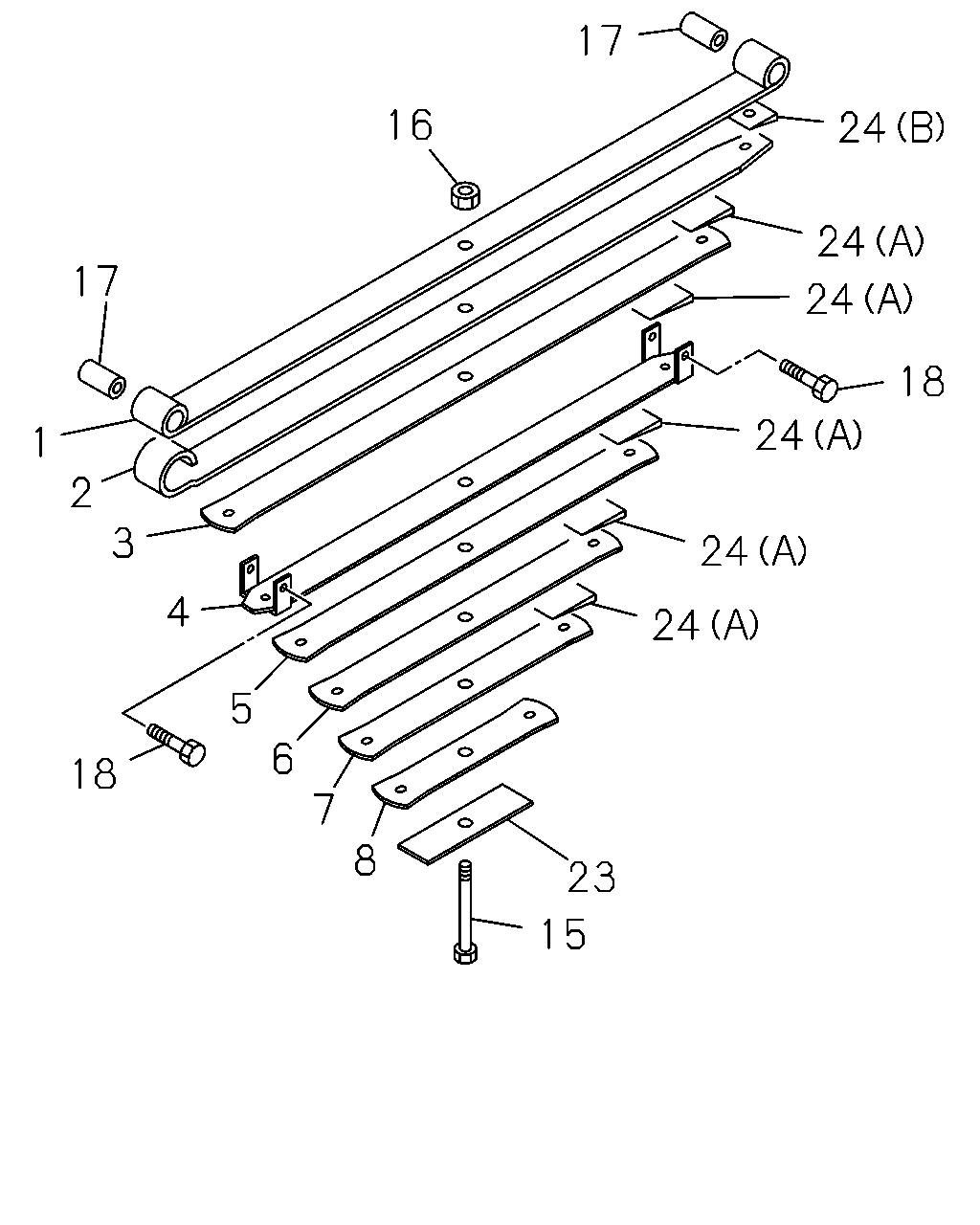

çizim 82787
17 16 24 24 17 24 18 24 1 2 3 24 4 24 5 6 7 8 18 23 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-830-0 		1-51111-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-830-0 		1-51112-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-830-0 		1-51113-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-830-0 		1-51114-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51130-830-0 		1-51115-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51130-830-0 		1-51116-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51130-830-0 		1-51117-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51130-830-0 		1-51118-825-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: A = 1-51130-830-0 		1-51156-346-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-830-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-830-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-830-0 		1-09000-328-0 02 1 -
23 SPRING; LEAF,INTER
ASM PART: A = 1-51130-830-0 		1-51159-042-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: A = 1-51130-830-0 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: A = 1-51130-830-0 		1-51159-023-0 02 1 -
