◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#30923) — 78 parça

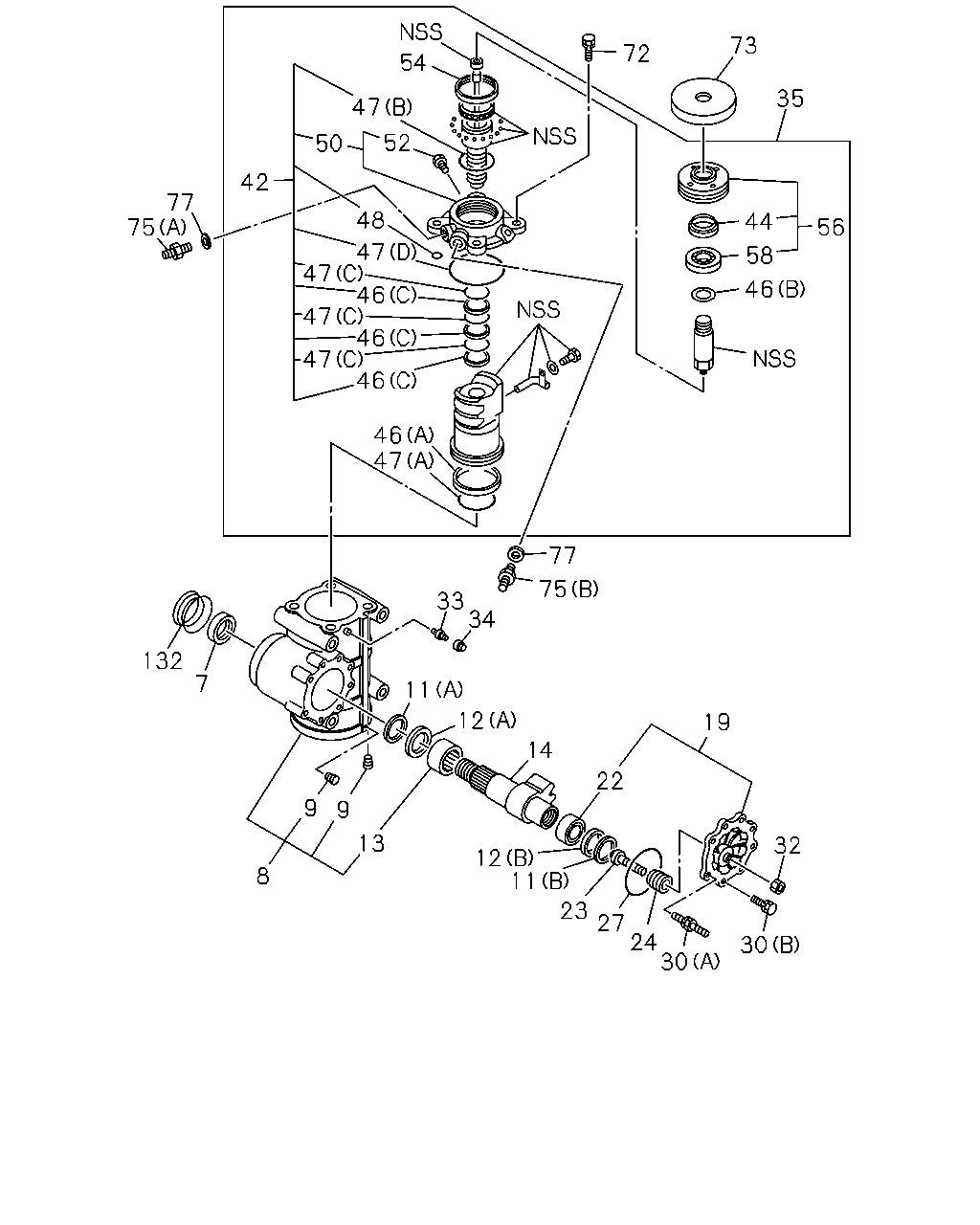

çizim 25492
73 72 54 35 47 52 50 42 77 75 48 44 56 47 47 46 47 46 47 46 58 46 46 47 77 75 33 34 132 7 11 12 19 14 22 9 9 13 32 12 11 8 23 27 24 30 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-832-3 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44240-040-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-832-3 		8-98159-747-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44249-040-0 01 1 -0401
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44249-075-0 01 1 0402-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44249-071-0 01 1 -0401
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44249-076-0 01 1 0402-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44249-038-0 01 1 -1002
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44260-006-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-832-3 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-105-0 01 1 -1002
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44269-016-0 01 1 -0401
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44269-035-0 01 1 0402-
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-832-3 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44269-007-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-832-3 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: A = 1-44000-832-3 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44150-065-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-832-3 		1-44519-100-0 03 1 -0401
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-832-3 		1-44519-255-0 03 1 0402-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-099-0 01 1 -0401
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-832-3 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-832-3 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-260-0 01 1 0402-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-097-0 01 1 -0401
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-262-0 01 1 0402-
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-832-3 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-832-3 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-832-3 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-832-3 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-227-0 01 1 -

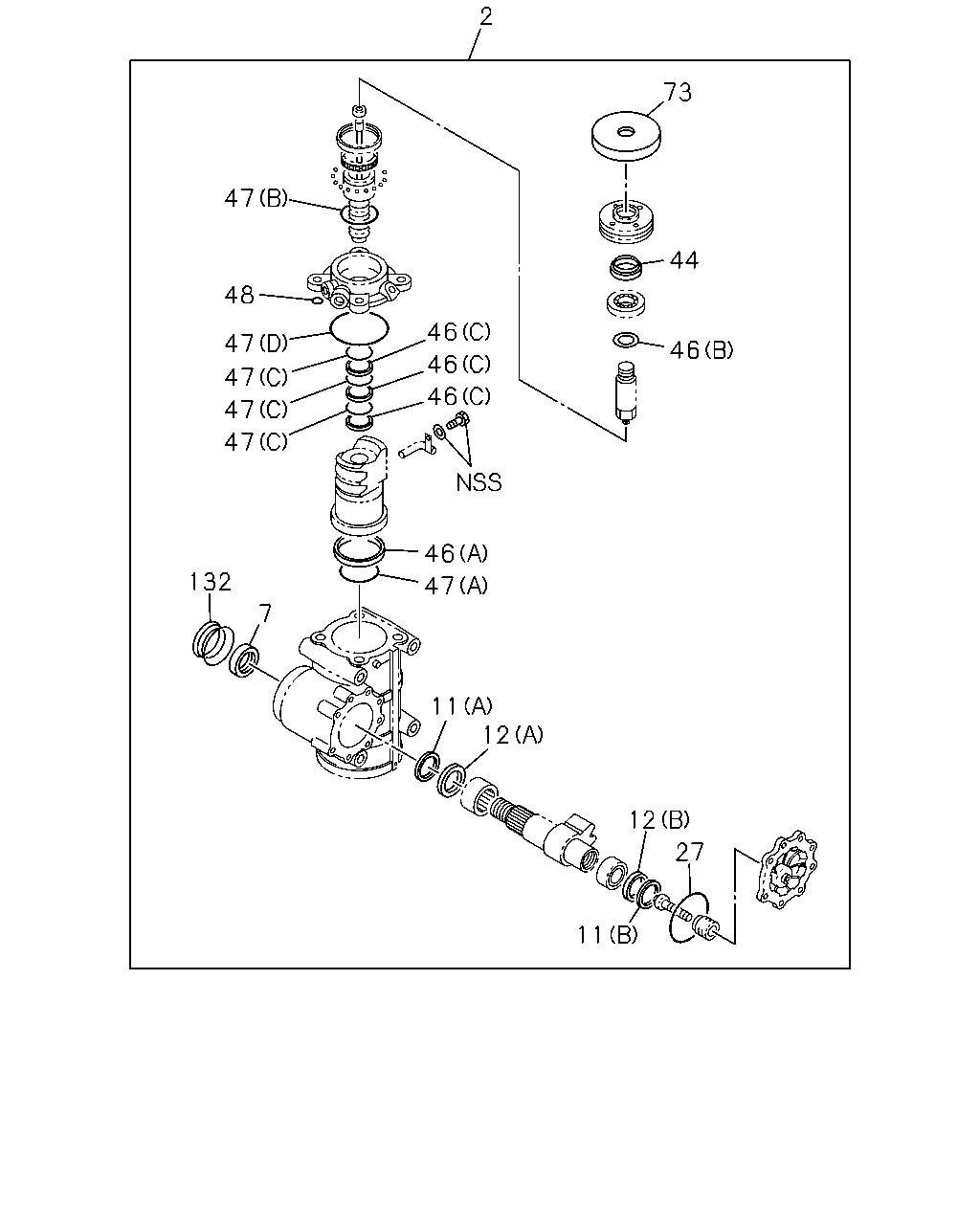

çizim 81143
2 73 47 44 48 46 47 46 46 47 46 47 47 46 132 47 7 11 12 12 27 11
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-832-3 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-832-3 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-832-3 		8-98159-116-0 01 1 1003-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44249-040-0 01 1 -0401
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44249-075-0 01 1 0402-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44249-071-0 01 1 -0401
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44249-076-0 01 1 0402-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44269-016-0 01 1 -0401
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44269-035-0 01 1 0402-
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-832-3 		1-44519-100-0 03 1 -0401
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-832-3 		1-44519-255-0 03 1 0402-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-832-3 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-099-0 01 1 -0401
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-832-3 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-832-3 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-832-3 		1-44519-260-0 01 1 0402-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-097-0 01 1 -0401
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-262-0 01 1 0402-
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-832-3 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-832-3 		1-44519-227-0 01 1 -
