Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#30921) — 337 parça

75 75 75 265 265 45 44 265 75 76 75 256 76 83 44 45 256 83 76 76 270 75 75 256 265 76 75 265 76 75 265 265 68 62 58 59 63 234 61 63 233 66 59 68 54 61 65 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-284-0	01	1	0107-
45	PIPE; OIL,P/S UNIT TO UNION	1-21114-929-0	01	1	0107-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0107-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0107-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0107-
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0107-
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	0107-
54	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	02	1	0107-0512
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0107-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	0107-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0107-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0107-
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	02	1	0107-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-536-0	01	1	0107-0606
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0607-0904
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0905-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0107-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0107-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	02	1	0107-0602
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	02	1	0603-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0107-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	02	1	0107-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	07	1	0107-
63	BRACKET; CLIP,P/S (B)	1-47477-119-0	01	1	0107-0302
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0303-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0107-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	0107-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C)	1-21117-109-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D)	1-21117-113-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (C)	1-21117-110-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (D)	1-21117-114-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21117-111-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21117-116-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-121-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (F)	1-21116-993-0	01	1	0107-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	05	1	0107-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	04	1	0107-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	0107-
76	UNION; OIL PIPE (E) M22	9-09233-315-1	01	1	0107-0607
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	0107-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE (F) M22	9-09235-215-1	01	1	0107-0607
76	UNION; OIL PIPE (F) M22	0-92135-215-0	01	1	0608-
83	NUT; UNION,OIL PIPE (A) M14	9-99111-514-0	02	1	0107-0107
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	02	1	0107-0512
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0601-
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	0107-0107
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	03	1	0108-0512
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	03	1	0601-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28680-840-0	02	1	0107-0512
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	02	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0107-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
256	NUT; UNION (A) M14	9-99111-514-0	02	1	0107-0107
256	NUT; UNION (C) M22	9-09111-422-0	01	1	0107-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (A) M14	9-99111-414-0	02	1	0107-0107
256	NUT; UNION (A) M14	9-99111-414-0	04	1	0108-0512
256	NUT; UNION (A) M14	0-91111-514-0	04	1	0601-
256	NUT; UNION (B) M20	9-99111-420-0	02	1	0107-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
265	PIPE; OIL,UNION TO UNION (F)	1-21117-112-0	01	1	0107-0112
265	PIPE; OIL,UNION TO UNION (F)	1-21117-189-0	01	1	0201-
265	PIPE; OIL,UNION TO UNION (D)	1-21117-115-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (A)	1-21117-117-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (E) L=1238	1-21116-978-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (B) L=2067	1-21116-979-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-980-0	01	1	0107-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	1-21117-406-0	01	1	0402-
270	NUT; UNION TO OIL PIPE M14	9-99111-414-0	02	1	0107-0512
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0601-

265 265 75 75 265 75 256 256 75 265 76 75 76 75 270 83 265 76 265 76 75 265 63 63 62 62 75 265 75 75 54 58 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0107-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0107-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0107-
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0107-
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	0107-
54	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	02	1	0107-0512
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0107-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	0107-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0107-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	02	1	0107-0602
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	02	1	0603-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0107-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	02	1	0107-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	07	1	0107-
63	BRACKET; CLIP,P/S (B)	1-47477-119-0	01	1	0107-0302
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0303-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C)	1-21117-109-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D)	1-21117-113-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (C)	1-21117-110-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (D)	1-21117-114-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21117-111-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21117-116-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-121-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (F)	1-21116-993-0	01	1	0107-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	05	1	0107-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	04	1	0107-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	0107-
76	UNION; OIL PIPE (E) M22	9-09233-315-1	01	1	0107-0607
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	0107-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE (F) M22	9-09235-215-1	01	1	0107-0607
76	UNION; OIL PIPE (F) M22	0-92135-215-0	01	1	0608-
83	NUT; UNION,OIL PIPE (A) M14	9-99111-514-0	02	1	0107-0107
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	02	1	0107-0512
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0601-
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	0107-0107
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	03	1	0108-0512
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	03	1	0601-
256	NUT; UNION (A) M14	9-99111-514-0	02	1	0107-0107
256	NUT; UNION (C) M22	9-09111-422-0	01	1	0107-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (A) M14	9-99111-414-0	02	1	0107-0107
256	NUT; UNION (A) M14	9-99111-414-0	04	1	0108-0512
256	NUT; UNION (A) M14	0-91111-514-0	04	1	0601-
256	NUT; UNION (B) M20	9-99111-420-0	02	1	0107-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
265	PIPE; OIL,UNION TO UNION (F)	1-21117-112-0	01	1	0107-0112
265	PIPE; OIL,UNION TO UNION (F)	1-21117-189-0	01	1	0201-
265	PIPE; OIL,UNION TO UNION (D)	1-21117-115-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (A)	1-21117-117-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (E) L=1238	1-21116-978-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (B) L=2067	1-21116-979-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-980-0	01	1	0107-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	1-21117-406-0	01	1	0402-
270	NUT; UNION TO OIL PIPE M14	9-99111-414-0	02	1	0107-0512
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0601-

75 265 265 83 265 75 265 76 265 195 256 265 76 65 78 257 255 232 239 257 79 79 256 62 63 58 65 63 75 59 265 65 54 58 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0107-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0107-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0107-
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0107-
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	0107-
54	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	02	1	0107-0512
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0107-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	0107-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0107-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0107-
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	02	1	0107-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	02	1	0107-0602
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	02	1	0603-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0107-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	02	1	0107-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	07	1	0107-
63	BRACKET; CLIP,P/S (B)	1-47477-119-0	01	1	0107-0302
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0303-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0107-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C)	1-21117-109-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D)	1-21117-113-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (C)	1-21117-110-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (D)	1-21117-114-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21117-111-0	01	1	0107-

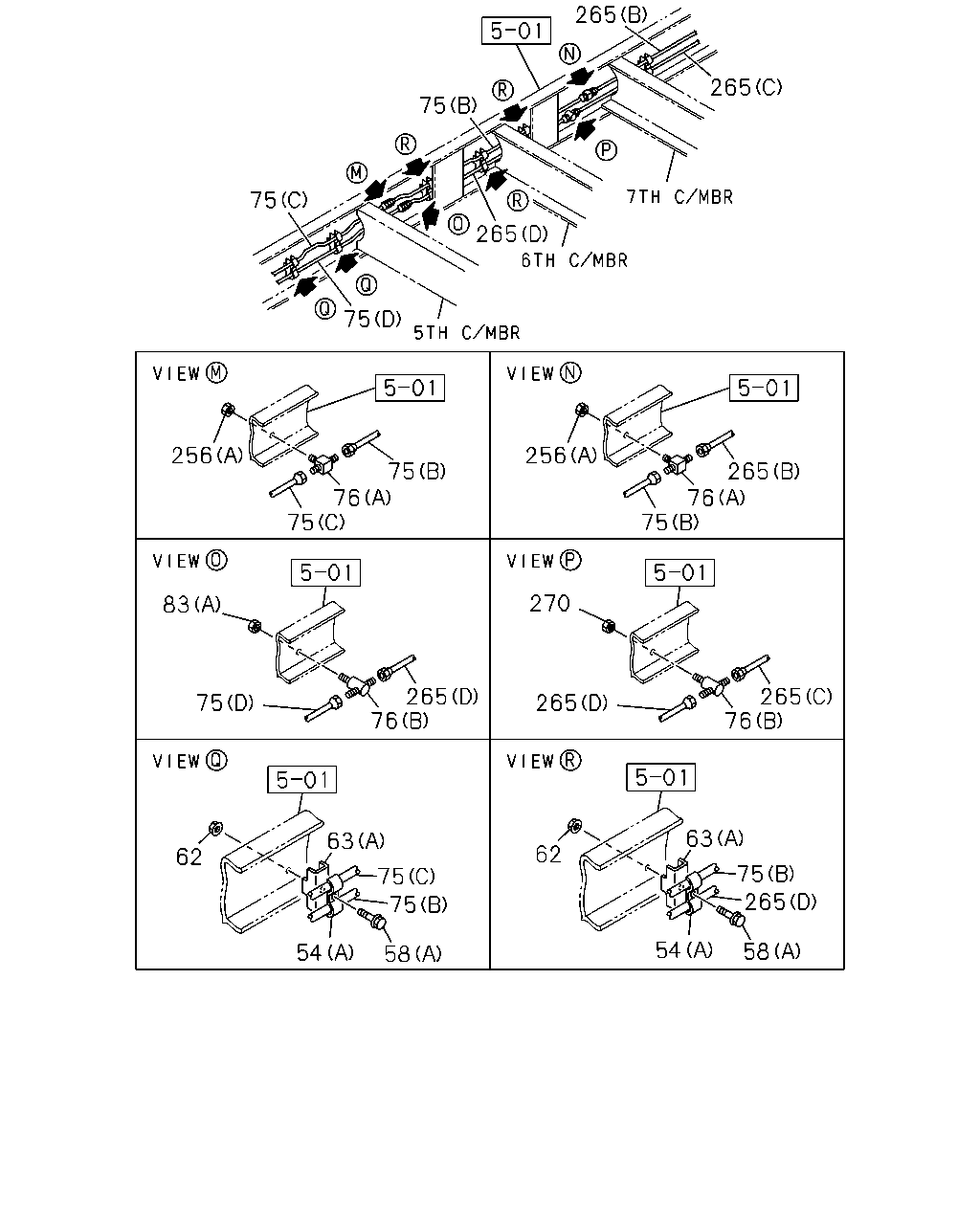

75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21117-116-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-121-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (F)	1-21116-993-0	01	1	0107-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	05	1	0107-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	04	1	0107-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	0107-
76	UNION; OIL PIPE (E) M22	9-09233-315-1	01	1	0107-0607
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	0107-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE (F) M22	9-09235-215-1	01	1	0107-0607
76	UNION; OIL PIPE (F) M22	0-92135-215-0	01	1	0608-
78	BRACKET; UNION	1-47476-729-1	01	1	0107-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
79	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
83	NUT; UNION,OIL PIPE (A) M14	9-99111-514-0	02	1	0107-0107
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	02	1	0107-0512
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0601-
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	0107-0107
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	03	1	0108-0512
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	03	1	0601-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	04	1	0107-0512
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0107-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
239	BRACKET; FLEX HOSE	1-47478-324-0	01	1	0107-
255	UNION; FLEX HOSE	1-09650-045-1	01	1	0107-
256	NUT; UNION (A) M14	9-99111-514-0	02	1	0107-0107
256	NUT; UNION (C) M22	9-09111-422-0	01	1	0107-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (A) M14	9-99111-414-0	02	1	0107-0107
256	NUT; UNION (A) M14	9-99111-414-0	04	1	0108-0512
256	NUT; UNION (A) M14	0-91111-514-0	04	1	0601-
256	NUT; UNION (B) M20	9-99111-420-0	02	1	0107-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	01	1	0107-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	02	1	0107-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	02	1	0604-
265	PIPE; OIL,UNION TO UNION (F)	1-21117-112-0	01	1	0107-0112
265	PIPE; OIL,UNION TO UNION (F)	1-21117-189-0	01	1	0201-
265	PIPE; OIL,UNION TO UNION (D)	1-21117-115-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (A)	1-21117-117-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (E) L=1238	1-21116-978-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (B) L=2067	1-21116-979-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-980-0	01	1	0107-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	1-21117-406-0	01	1	0402-

2 7 1 8 20 2 19 25 3 12 1 5 19 15 37 341 192 37 67 37 31 195 34 37 268 41 280 41 157 155 130

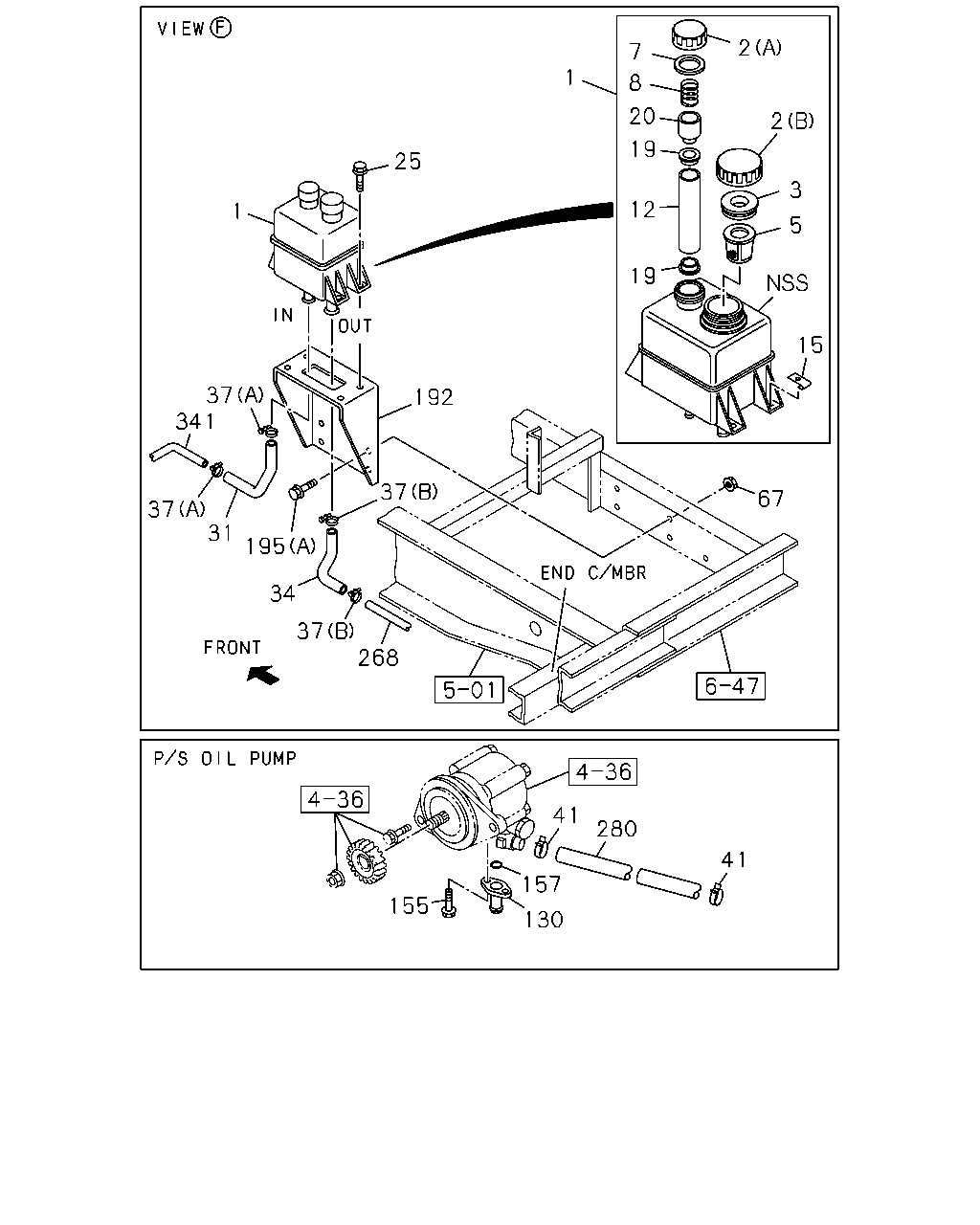

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0107-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0107-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0107-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0107-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0107-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0107-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0107-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0107-
15	PLATE; FILTER,OIL TANK	1-21249-009-0	04	1	0107-0508
15	PLATE; FILTER,OIL TANK	1-21249-017-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0107-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0107-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0107-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	1-21116-454-0	01	1	0107-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-455-0	01	1	0107-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0107-
37	CLIP; HOSE,P/S (B) ID=36	1-09704-094-0	02	1	0107-
41	CLIP; HOSE,P/S ID=36	1-09704-094-0	02	1	0107-
67	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0107-0602
67	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
130	ADAPTER; P/S PUMP	1-21122-022-0	01	1	0107-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	0107-
192	BRACKET; P/S OIL TANK	1-59459-028-0	01	1	0107-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	04	1	0107-0512
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21116-453-0	01	1	0107-
280	HOSE; P/S OIL PUMP,INL	1-21116-456-0	01	1	0107-
341	PIPE; OIL,UNION TO OIL TANK	1-21116-452-0	01	1	0107-

1 341 31 265 34 268 41 280 41 232 68 232 64 58 54 58 54 111 64 59 68 287 54 58 83 257 341 265 68 61 76 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0107-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
31	HOSE; P/S OIL TANK,INL	1-21116-454-0	01	1	0107-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-455-0	01	1	0107-
41	CLIP; HOSE,P/S ID=36	1-09704-094-0	02	1	0107-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0107-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0107-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0107-
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0107-
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	0107-
54	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	02	1	0107-0512
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0107-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	0107-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0107-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0107-
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	02	1	0107-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-536-0	01	1	0107-0606
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0607-0904
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0905-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0107-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0107-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	0107-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	05	1	0107-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	04	1	0107-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	0107-
76	UNION; OIL PIPE (E) M22	9-09233-315-1	01	1	0107-0607
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	0107-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE (F) M22	9-09235-215-1	01	1	0107-0607
76	UNION; OIL PIPE (F) M22	0-92135-215-0	01	1	0608-
83	NUT; UNION,OIL PIPE (A) M14	9-99111-514-0	02	1	0107-0107
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	02	1	0107-0512
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0601-
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	0107-0107
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	03	1	0108-0512
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	03	1	0601-
111	BRACKET; OIL PIPE L=76	1-47475-588-0	01	1	0107-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0107-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	01	1	0107-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	02	1	0107-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	02	1	0604-
265	PIPE; OIL,UNION TO UNION (F)	1-21117-112-0	01	1	0107-0112
265	PIPE; OIL,UNION TO UNION (F)	1-21117-189-0	01	1	0201-
265	PIPE; OIL,UNION TO UNION (D)	1-21117-115-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (A)	1-21117-117-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (E) L=1238	1-21116-978-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (B) L=2067	1-21116-979-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-980-0	01	1	0107-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	1-21117-406-0	01	1	0402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21116-453-0	01	1	0107-
280	HOSE; P/S OIL PUMP,INL	1-21116-456-0	01	1	0107-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
341	PIPE; OIL,UNION TO OIL TANK	1-21116-452-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
