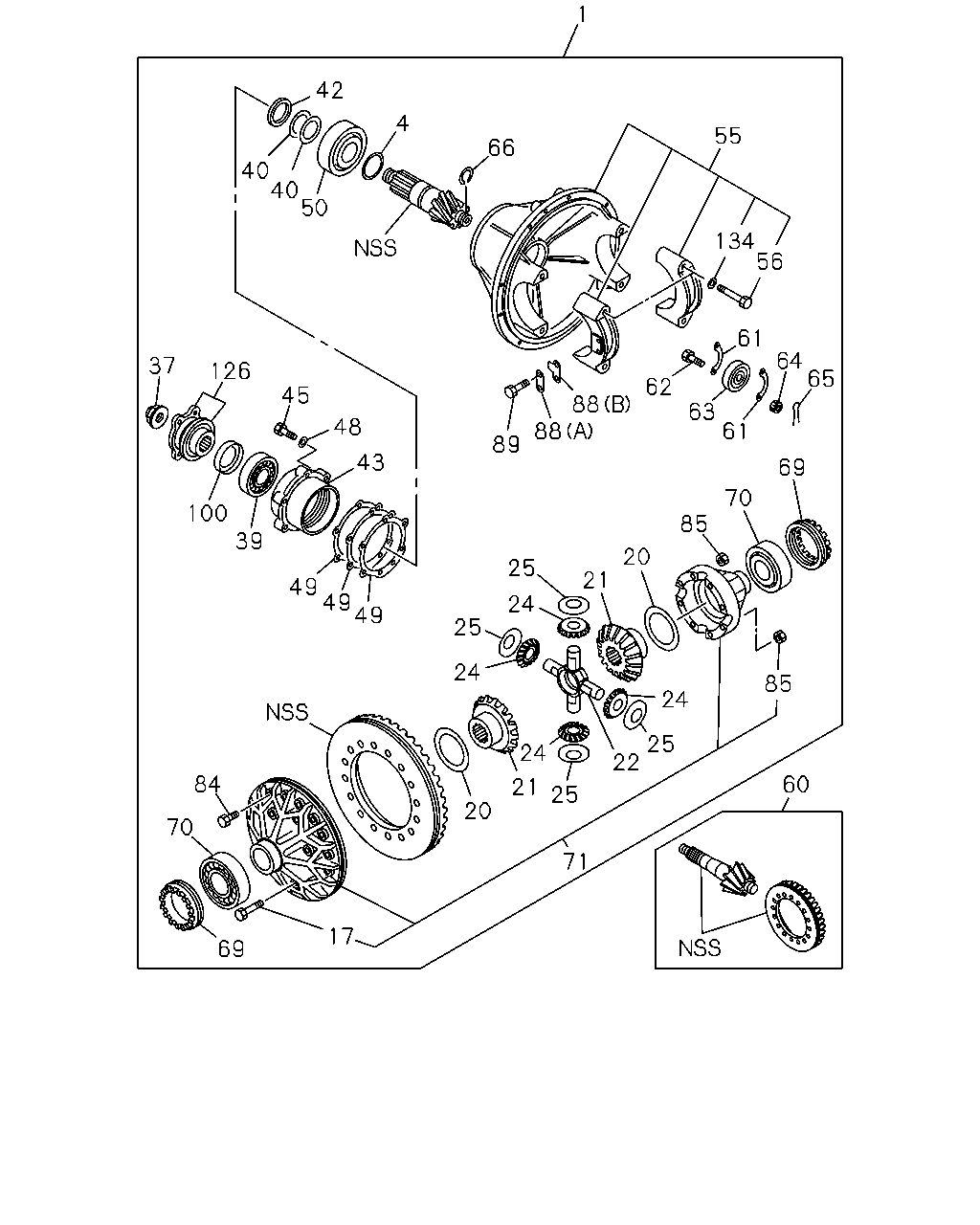

4-25 — REAR FINAL DRIVE (#30917) — 91 parça

1 42 4 55 66 40 40 50 134 56 61 64 65 37 126 62 45 88 88 63 61 48 89 43 69 70 100 39 85 20 25 21 49 49 49 24 25 24 85 24 25 22 24 84 60 21 25 20 70 71 17 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 43/7	1-41001-307-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR 39/7	1-41001-276-0	01	1	0107-		●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0107-0208	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.75	1-41562-139-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-140-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.85	1-41562-141-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-142-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.95	1-41562-143-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-144-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.05	1-41562-145-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-146-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.15	1-41562-147-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-148-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.25	1-41562-149-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-150-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.35	1-41562-151-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-152-0	AR	1	0107-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.45	1-41562-153-0	AR	1	0107-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-075-0	02	1	0107-0407	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-127-0	02	1	0408-0903	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-160-0	02	1	0904-	●	●
22	PIN; CROSS,DIFF PINION	1-41521-014-1	01	1	0107-0408	●	●
22	PIN; CROSS,DIFF PINION	1-41521-061-0	01	1	0409-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-010-2	04	1	0107-0407	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-041-0	04	1	0408-0903	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-051-0	04	1	0904-	●	●
25	WASHER; THRUST,PINION	1-41552-012-0	04	1	0107-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	0107-	●	●
39	BEARING; FINAL PINION KOYO	1-09812-218-0	01	1	0107-	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	0107-	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	0107-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0107-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0107-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0107-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0107-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0107-	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	0107-	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0107-	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0107-0603	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	0107-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	0107-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	0107-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	0107-	●	●
50	BEARING; FINAL PINION KOYO	1-09812-042-1	01	1	0612-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0107-	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	0107-	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	0107-	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	0107-	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	0107-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0107-	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0107-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	0107-	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0107-	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0107-0512	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0107-0805	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0107-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	0107-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	0107-	●	●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	0107-0911	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-	●	●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0107-0911	●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0107-1002	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0107-0411	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0510-0512		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0412-	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0107-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0107-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0107-	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0107-	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0107-0512	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0107-	●	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	0107-0208	●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0209-	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	0107-0603	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-	●	●
