4-01 — PROPELLER SHAFT (#30913) — 55 parça

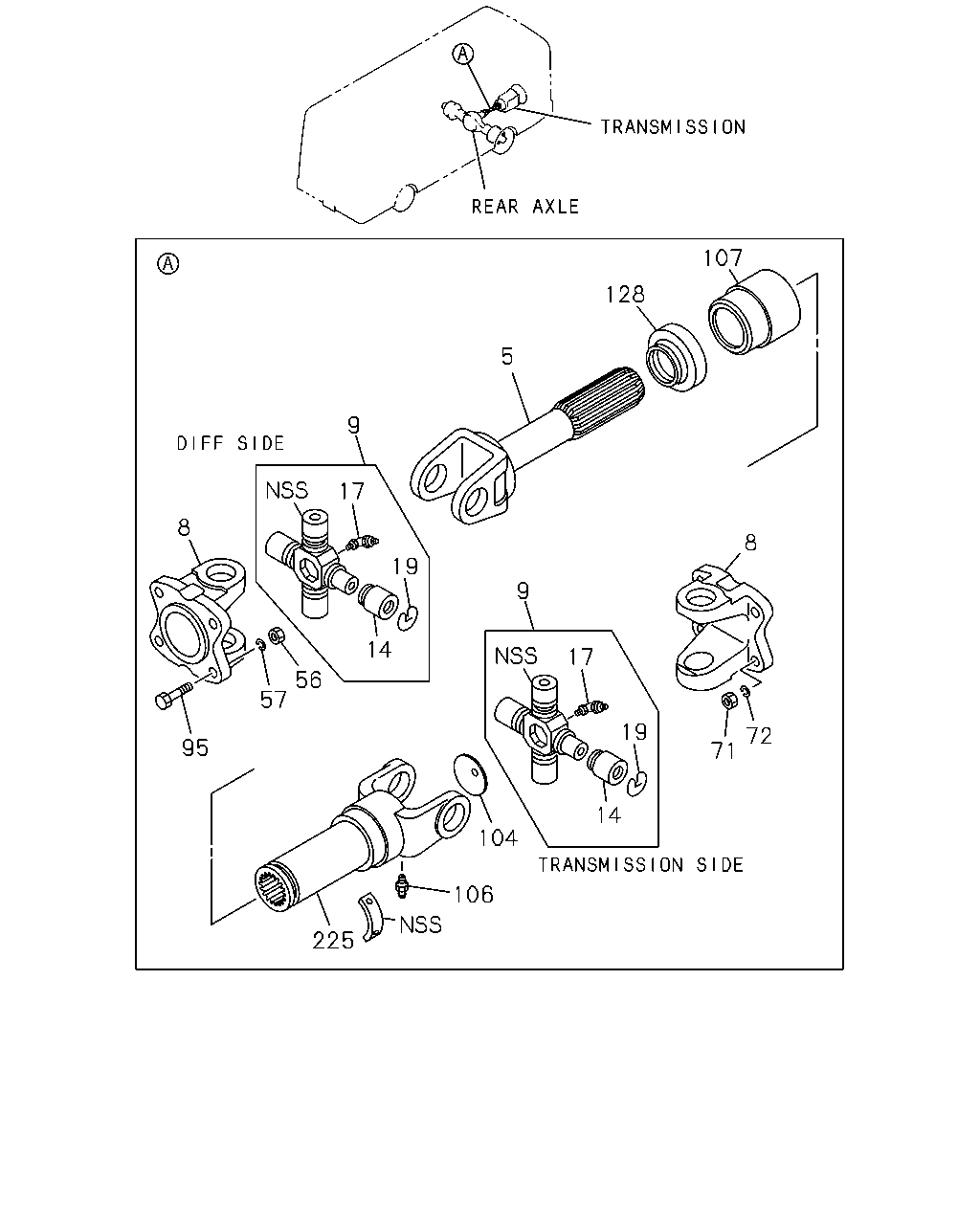

107 128 5 9 17 8 8 19 9 14 17 56 57 19 72 95 71 14 104 106 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	YOKE; STUB,PROP SHAFT MLD6Q M/T(X5J) L=387	1-37171-086-1	01	1	0107-	●	●
5	YOKE; STUB,PROP SHAFT MLD7Q M/T(X5K) L=271	1-37171-126-1	01	1	0107-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0107-	●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-102-1	AR	1	0107-	●	●
14	COVER; DUST,SPIDER	1-37319-012-0	08	1	0107-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0107-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0107-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0107-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0107-	●	●
56	NUT; YOKE M14	9-99110-514-0	04	1	0107-0512	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	0601-	●	●
57	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	0107-0603	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-	●	●
71	NUT; YOKE M14	9-99110-514-0	04	1	0107-0512	●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	0601-	●	●
72	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	0107-0603	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-	●	●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0107-	●	●
104	PLUG; SLEEVE YOKE MLD6Q M/T(X5J)	1-09600-064-0	01	1	0107-	●	●
104	PLUG; SLEEVE YOKE MLD7Q M/T(X5K)	1-09600-033-0	01	1	0107-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0107-0512	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
107	COVER; RET,SLEEVE MLD6Q M/T(X5J)	1-37249-060-1	01	1	0107-	●	●
128	SEAL; SLEEVE MLD6Q M/T(X5J)	1-37247-024-0	01	1	0107-	●	●
128	SEAL; SLEEVE MLD7Q M/T(X5K)	1-37247-002-1	01	1	0107-	●	●
225	YOKE; SLEEVE,PROP SHAFT MLD6Q M/T(X5J) L=271	1-37241-099-2	01	1	0107-	●	●
225	YOKE; SLEEVE,PROP SHAFT MLD7Q M/T(X5K) L=214	1-37241-121-1	01	1	0107-	●	●

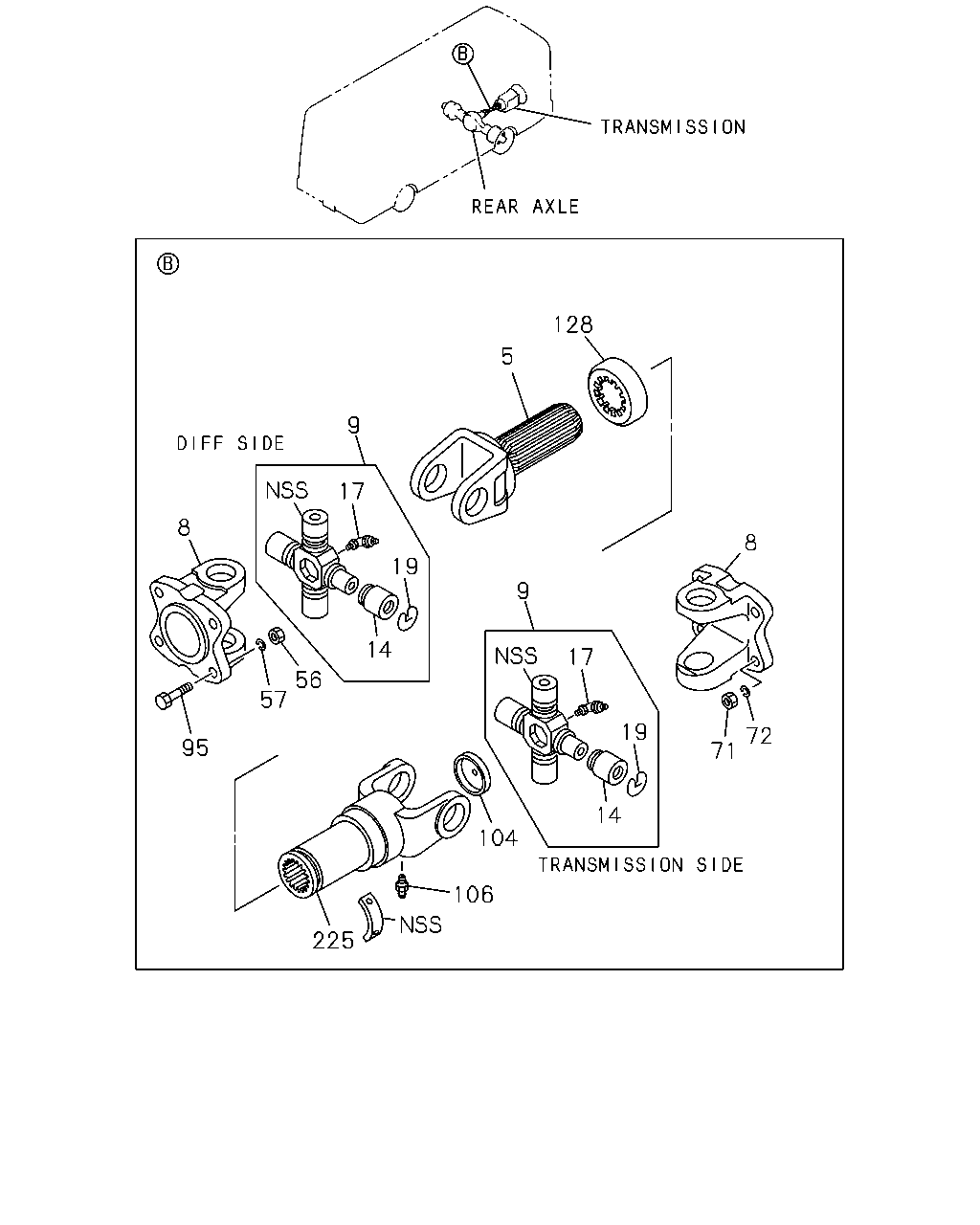

128 5 9 17 8 8 19 9 14 17 56 57 19 72 95 71 14 104 106 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	YOKE; STUB,PROP SHAFT MLD6Q M/T(X5J) L=387	1-37171-086-1	01	1	0107-	●	●
5	YOKE; STUB,PROP SHAFT MLD7Q M/T(X5K) L=271	1-37171-126-1	01	1	0107-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0107-	●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-102-1	AR	1	0107-	●	●
14	COVER; DUST,SPIDER	1-37319-012-0	08	1	0107-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0107-0512	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0107-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0107-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0107-	●	●
56	NUT; YOKE M14	9-99110-514-0	04	1	0107-0512	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	0601-	●	●
57	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	0107-0603	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-	●	●
71	NUT; YOKE M14	9-99110-514-0	04	1	0107-0512	●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	0601-	●	●
72	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	0107-0603	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-	●	●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0107-	●	●
104	PLUG; SLEEVE YOKE MLD6Q M/T(X5J)	1-09600-064-0	01	1	0107-	●	●
104	PLUG; SLEEVE YOKE MLD7Q M/T(X5K)	1-09600-033-0	01	1	0107-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0107-0512	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
128	SEAL; SLEEVE MLD6Q M/T(X5J)	1-37247-024-0	01	1	0107-	●	●
128	SEAL; SLEEVE MLD7Q M/T(X5K)	1-37247-002-1	01	1	0107-	●	●
225	YOKE; SLEEVE,PROP SHAFT MLD6Q M/T(X5J) L=271	1-37241-099-2	01	1	0107-	●	●
225	YOKE; SLEEVE,PROP SHAFT MLD7Q M/T(X5K) L=214	1-37241-121-1	01	1	0107-	●	●
