◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#30909) — 172 parça

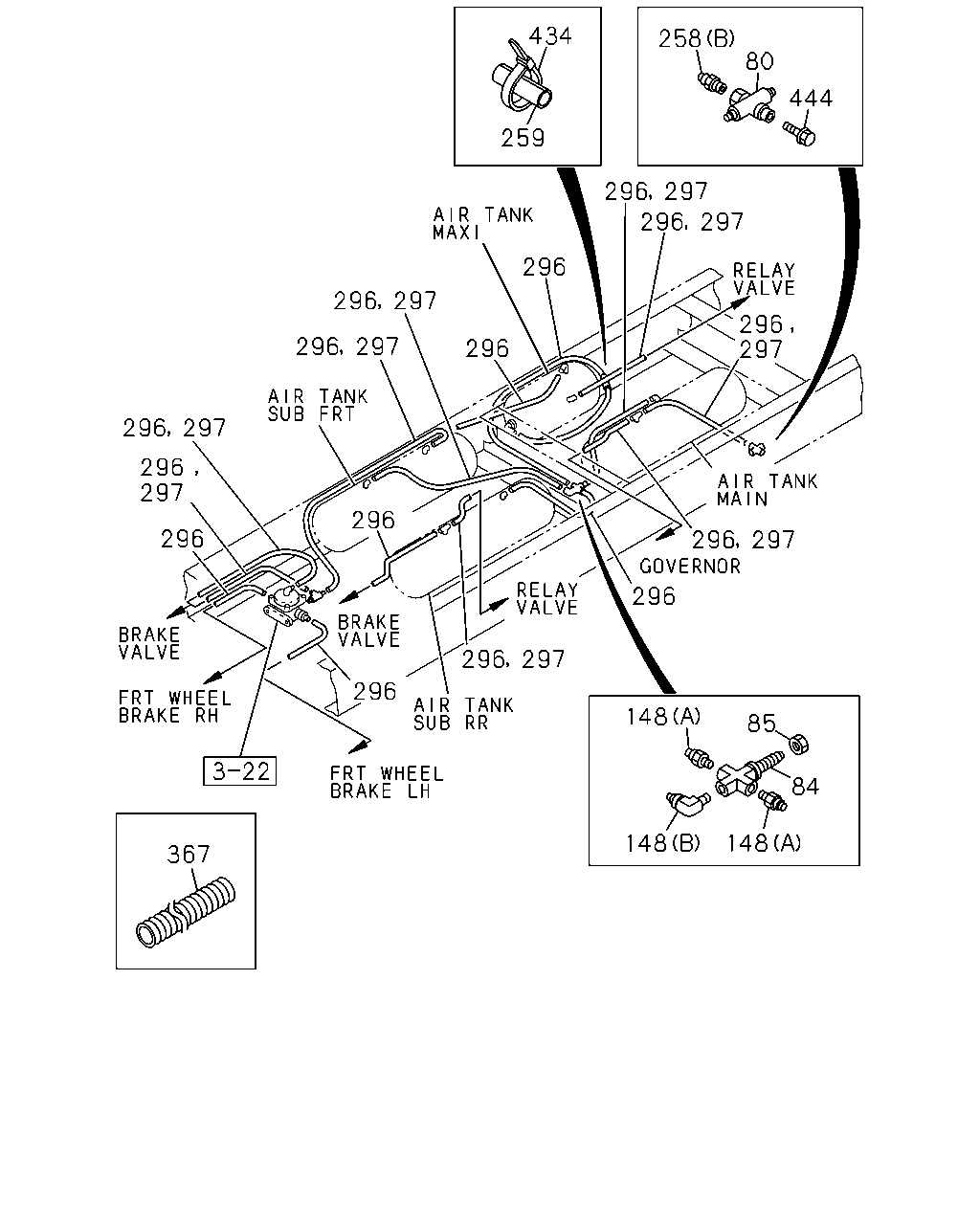

çizim 23814
434 258 80 444 259 296 297 296 297 296 296 297 296 297 296 297 296 296 297 296 297 296 296 296 297 296 296 297 296 148 85 84 148 148 367
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 0107-0306
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
BRAKE SYSTEM RETARDER<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
BRAKE SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0107-0306
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0107-0306
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307-
80 UNION; 3 WAY
EXC. AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307-
84 UNION; NYLON TUBE 1-09660-756-1 01 1 0107-
85 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512
85 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
148 CONNECTOR; UNION
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0107-0306
148 CONNECTOR; UNION
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
148 CONNECTOR; UNION
(A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 0107-0306
148 CONNECTOR; UNION
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0307-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
(D) PT1/4 		1-09664-211-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 03 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0107-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 14 1 0107-
434 CLIP
L=250 		1-09707-126-0 01 1 0107-0109
434 CLIP
L=250 		1-09707-126-0 02 1 0110-
434 CLIP
EXC. BRAKE SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 12 1 0107-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0601-

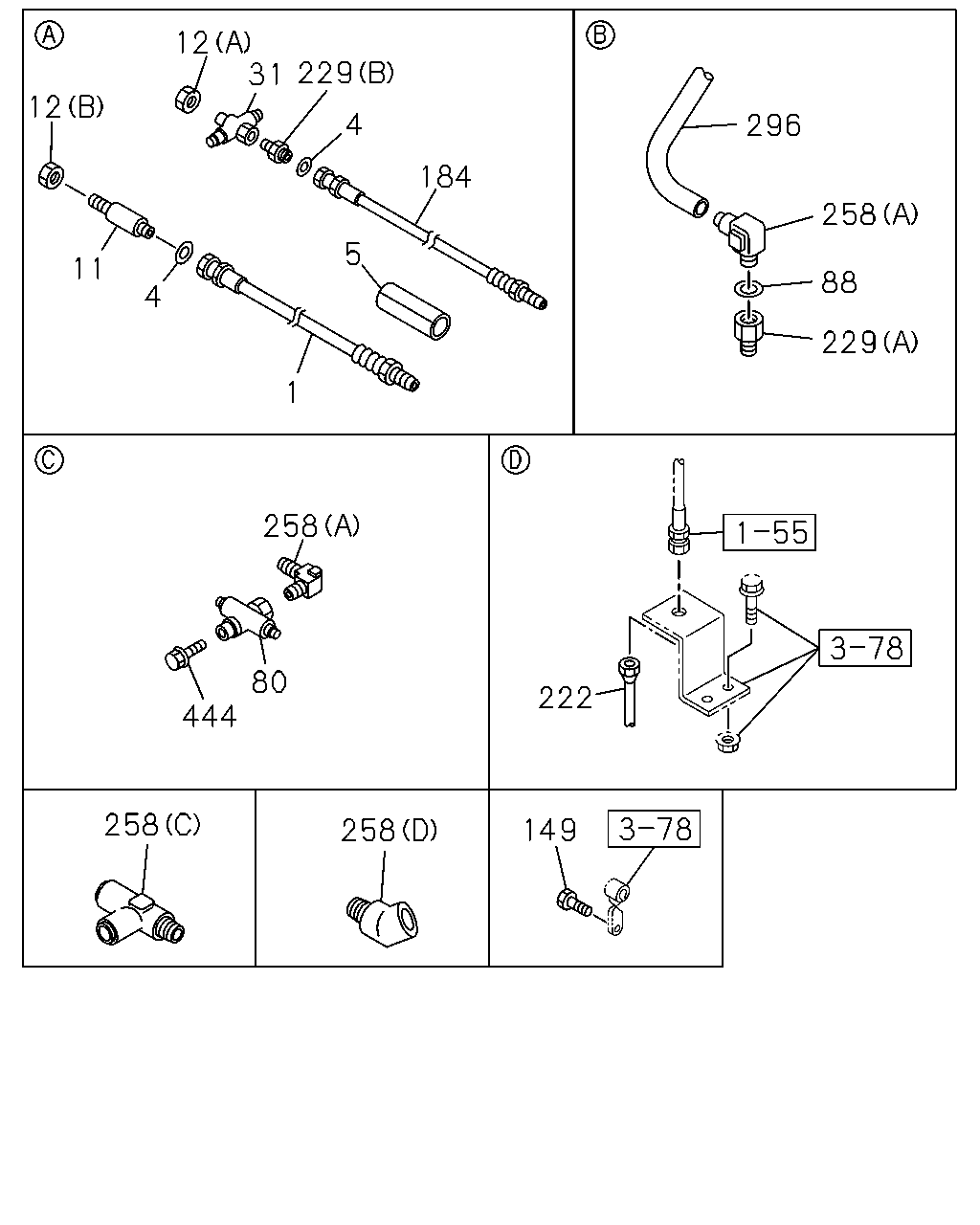

çizim 80551
12 31 229 12 4 296 184 258 5 11 88 4 229 1 258 80 222 444 258 149 258
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=650 		0-07816-650-1 01 1 0107-0605
1 HOSE; FLEX,AIR TANK
L=650 		0-57816-650-1 01 1 0606-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0107-
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0107-
11 UNION; AIR PIPE
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0107-
12 NUT; UNION
(A) M18 		9-99111-418-0 01 1 0107-0512
12 NUT; UNION
(A) M18 		0-91111-518-0 01 1 0601-
12 NUT; UNION
(B) M20 		9-99111-420-0 01 1 0107-0512
12 NUT; UNION
(B) M20 		0-91111-520-0 01 1 0601-
31 UNION; 3 WAY 1-09656-320-1 01 1 0107-
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 0107-0306
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
BRAKE SYSTEM RETARDER<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
BRAKE SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0107-0306
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0107-0306
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307-
80 UNION; 3 WAY
EXC. AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
184 HOSE; FLEX,AIR GOV
L=540 		0-07120-540-0 01 1 0107-0605
184 HOSE; FLEX,AIR GOV
L=540 		0-57120-540-0 01 1 0606-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
SERVICED BY L=1620 		1-47428-820-0 01 1 0107-
229 ADAPTER; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107-
229 ADAPTER; NYLON TUBE
(A) M14 & PT1/4 		9-48319-149-0 01 1 0107-0206
229 ADAPTER; NYLON TUBE
(A) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0207-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
(D) PT1/4 		1-09664-211-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0107-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0601-

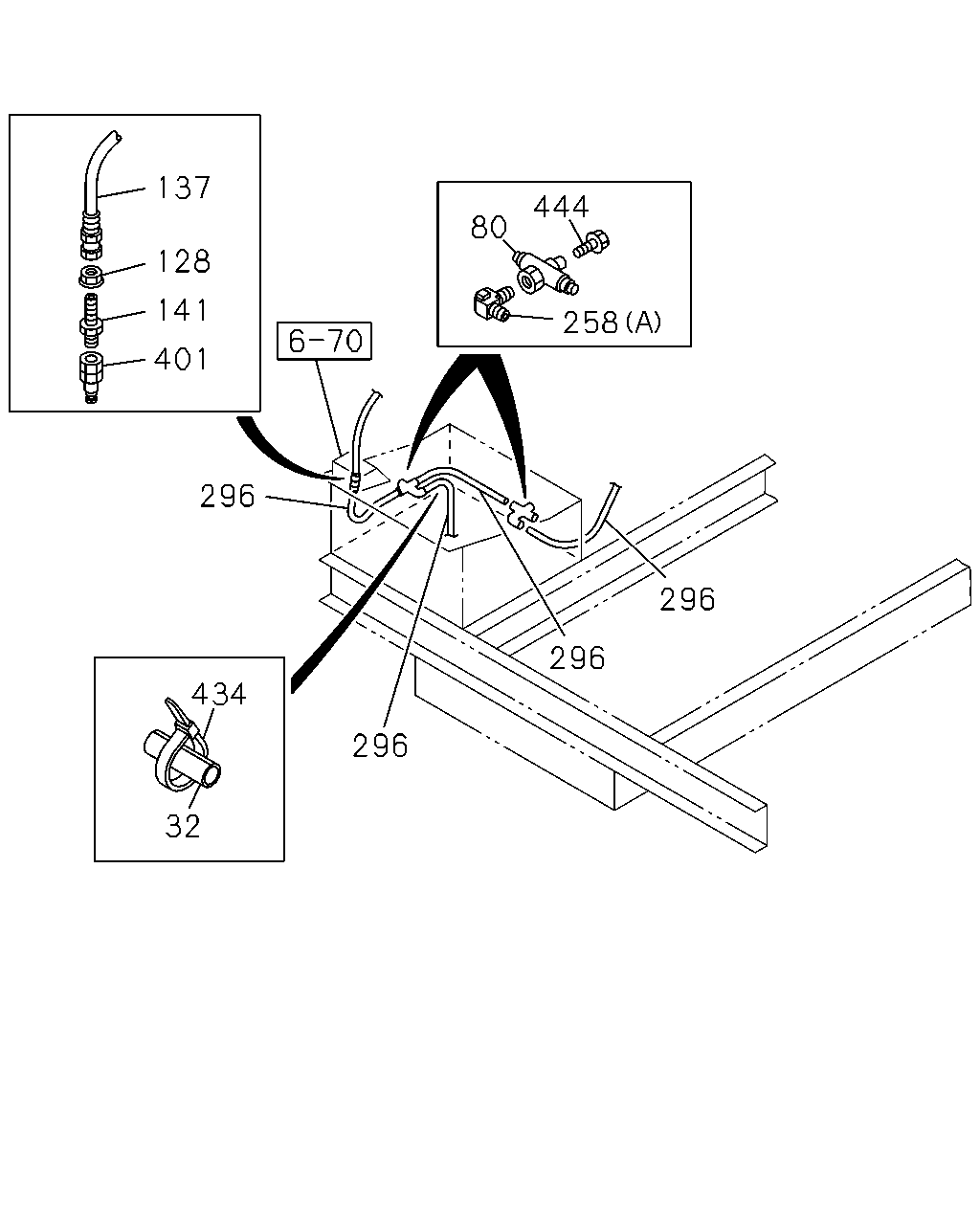

çizim 82743
137 444 80 128 141 258 401 296 296 296 434 296 32
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0107-
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 0107-0306
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
BRAKE SYSTEM RETARDER<RE2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
80 UNION; 3 WAY
BRAKE SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0107-0306
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0107-0306
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307-
80 UNION; 3 WAY
EXC. AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0307-
128 NUT; PIPE UNION
M10 FLANGE 		0-91150-210-0 01 1 0107-0602
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 01 1 0603-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 0107-0605
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 01 1 0606-
141 UNION; FLEX HOSE 1-09650-270-1 01 1 0107-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
(D) PT1/4 		1-09664-211-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0107-0306
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0107-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 14 1 0107-
434 CLIP
L=250 		1-09707-126-0 01 1 0107-0109
434 CLIP
L=250 		1-09707-126-0 02 1 0110-
434 CLIP
EXC. BRAKE SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 12 1 0107-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0601-

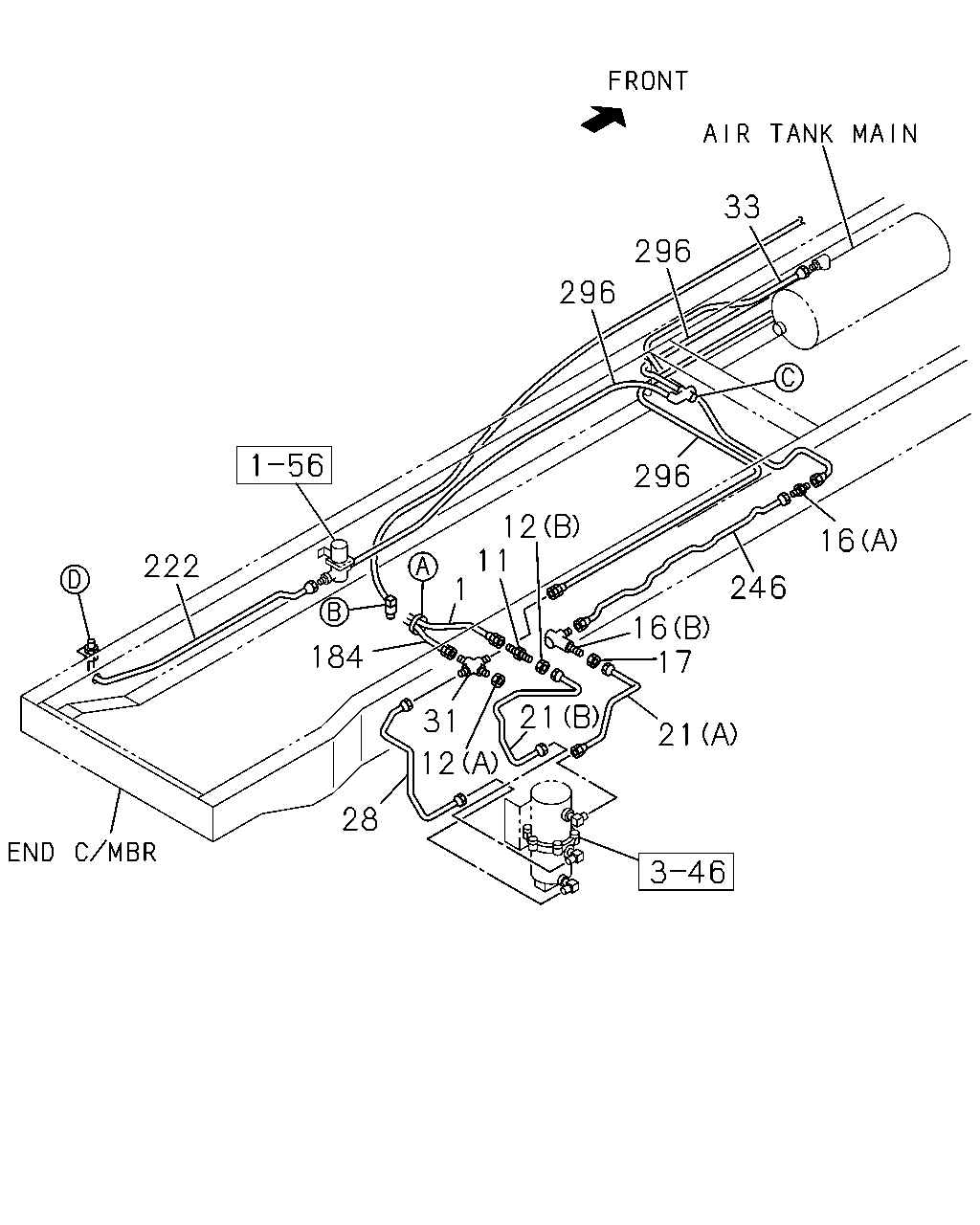

çizim 85195
33 296 296 296 12 11 16 222 246 1 16 17 184 21 31 21 12 28
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=650 		0-07816-650-1 01 1 0107-0605
1 HOSE; FLEX,AIR TANK
L=650 		0-57816-650-1 01 1 0606-
11 UNION; AIR PIPE
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0107-
12 NUT; UNION
(A) M18 		9-99111-418-0 01 1 0107-0512
12 NUT; UNION
(A) M18 		0-91111-518-0 01 1 0601-
12 NUT; UNION
(B) M20 		9-99111-420-0 01 1 0107-0512
12 NUT; UNION
(B) M20 		0-91111-520-0 01 1 0601-
16 UNION; AIR PIPE
(A) M22 		9-09233-015-1 01 1 0107-0607
16 UNION; AIR PIPE
(A) M22 		0-92123-015-0 01 1 0608-
16 UNION; AIR PIPE
(B) M22 		9-09235-215-1 01 1 0107-0607
16 UNION; AIR PIPE
(B) M22 		0-92135-215-0 01 1 0608-
17 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512
17 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		1-49122-797-0 01 1 0107-
21 PIPE; AIR,UNION TO AIR DRYER
(B) 		1-49122-996-0 01 1 0107-
28 PIPE; AIR,AIR DRYER
L=629 SERVICED BY L=600 		1-47428-809-0 01 1 0107-
31 UNION; 3 WAY 1-09656-320-1 01 1 0107-
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		1-49116-046-0 01 1 0107-0109
33 PIPE; AIR,UNION TO AIR TANK 1-49123-323-0 01 1 0110-
184 HOSE; FLEX,AIR GOV
L=540 		0-07120-540-0 01 1 0107-0605
184 HOSE; FLEX,AIR GOV
L=540 		0-57120-540-0 01 1 0606-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
SERVICED BY L=1620 		1-47428-820-0 01 1 0107-
246 PIPE; AIR,UNION TO UNION 1-49123-033-0 01 1 0107-0109
246 PIPE; AIR,UNION TO UNION 1-49123-318-0 01 1 0110-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
