Isuzu WW
▶
BUSES
▶
LT
▶
10892 - LT134-RHD EXC.EURO4
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#30907) — 42 parça
◀
[346A] COMPONENT (18 parça)
[346A] REPAIR KIT,PISTON KIT (5 parça)
[346A] ASM AND CONNECTOR (19 parça)
▶

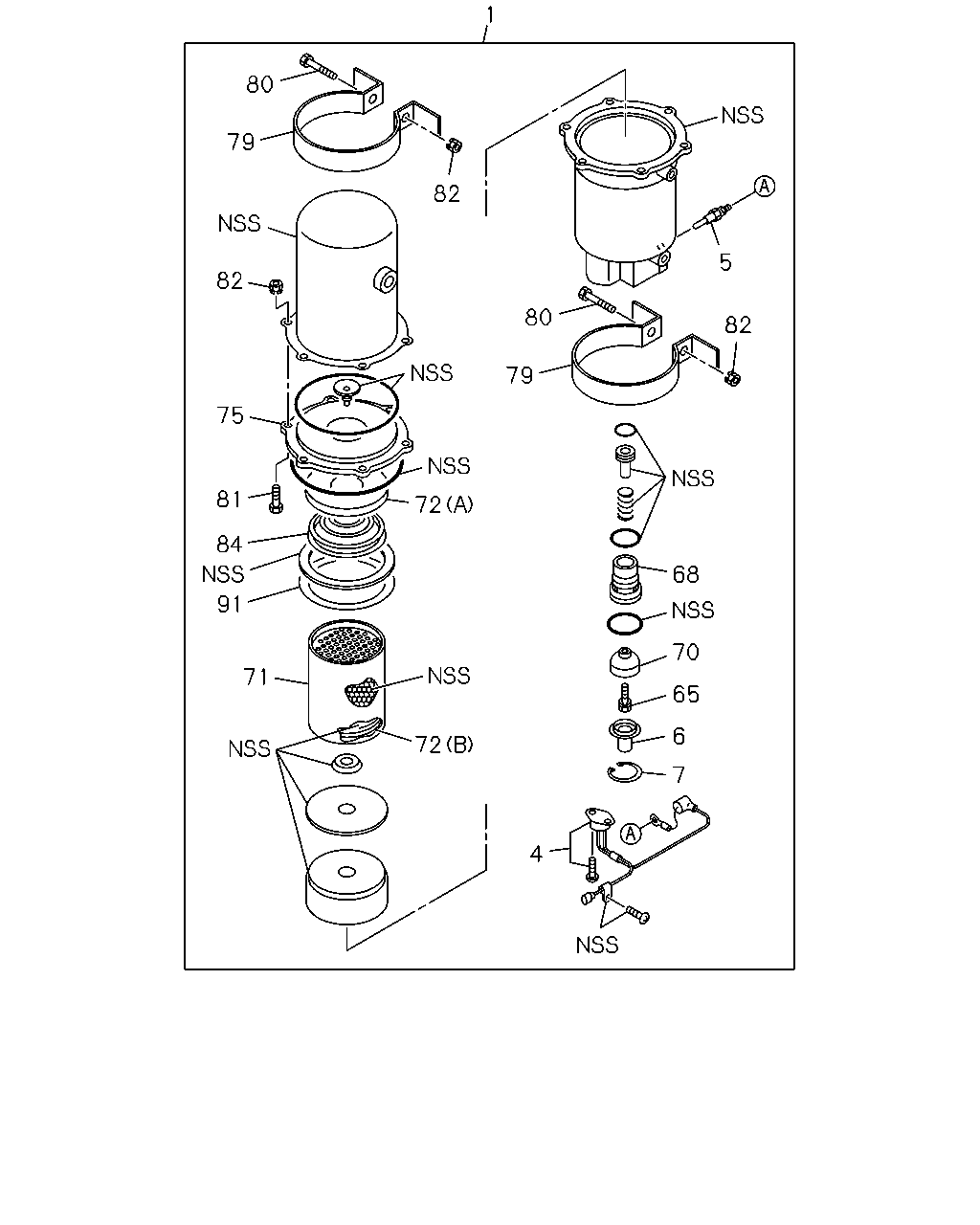

1
80
79
82
5
82
80
82
79
75
81
72
84
68
91
70
71
65
6
72
7
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-258-1
01
1
0107-
4
THERMOSTAT KIT; AIR DRYER
1-85576-220-0
01
1
0107-
5
HEATER ASM; AIR DRYER
1-48199-200-0
01
1
0107-
6
COVER; EXH,AIR DRYER
1-48199-101-0
01
1
0107-
7
RING; SNAP,AIR DRYER
1-48199-100-0
01
1
0107-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0107-
68
BODY; VALVE
1-48199-216-0
01
1
0107-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0107-
71
CASE; INNER,AIR DRYER
1-48199-099-0
01
1
0107-
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-097-0
01
1
0107-
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-098-0
01
1
0107-
75
COVER; CASE,AIR DRYER
1-48199-201-0
01
1
0107-
79
BRACKET; AIR DRYER
1-48199-209-0
02
1
0107-
80
BOLT; BRKT
1-48199-212-0
02
1
0107-
81
BOLT; CASE,AIR DRYER
1-48199-208-0
06
1
0107-
82
NUT; CASE,AIR DRYER
1-48199-320-0
08
1
0107-
84
SPRING; AIR DRYER
1-48199-092-0
01
1
0107-
91
GUIDE; CASE,AIR DRYER
1-48199-091-0
01
1
0107-

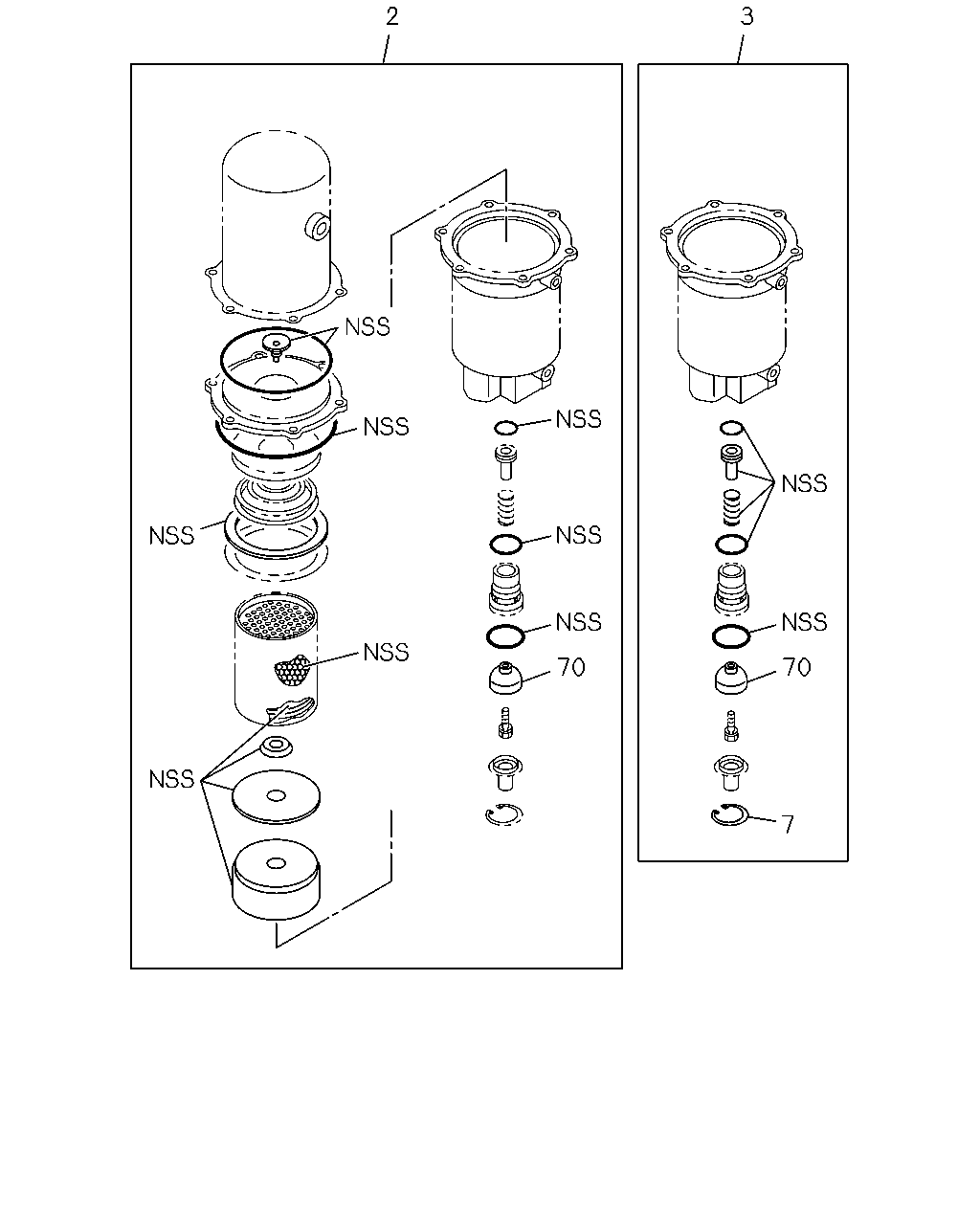

2
3
70
70
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-083-0
01
1
0107-1001
2
REPAIR KIT; AIR DRYER
1-85576-229-0
01
1
1002-
3
PISTON KIT; AIR DRYER
1-85576-084-0
01
1
0107-
7
RING; SNAP,AIR DRYER
1-48199-100-0
01
1
0107-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0107-

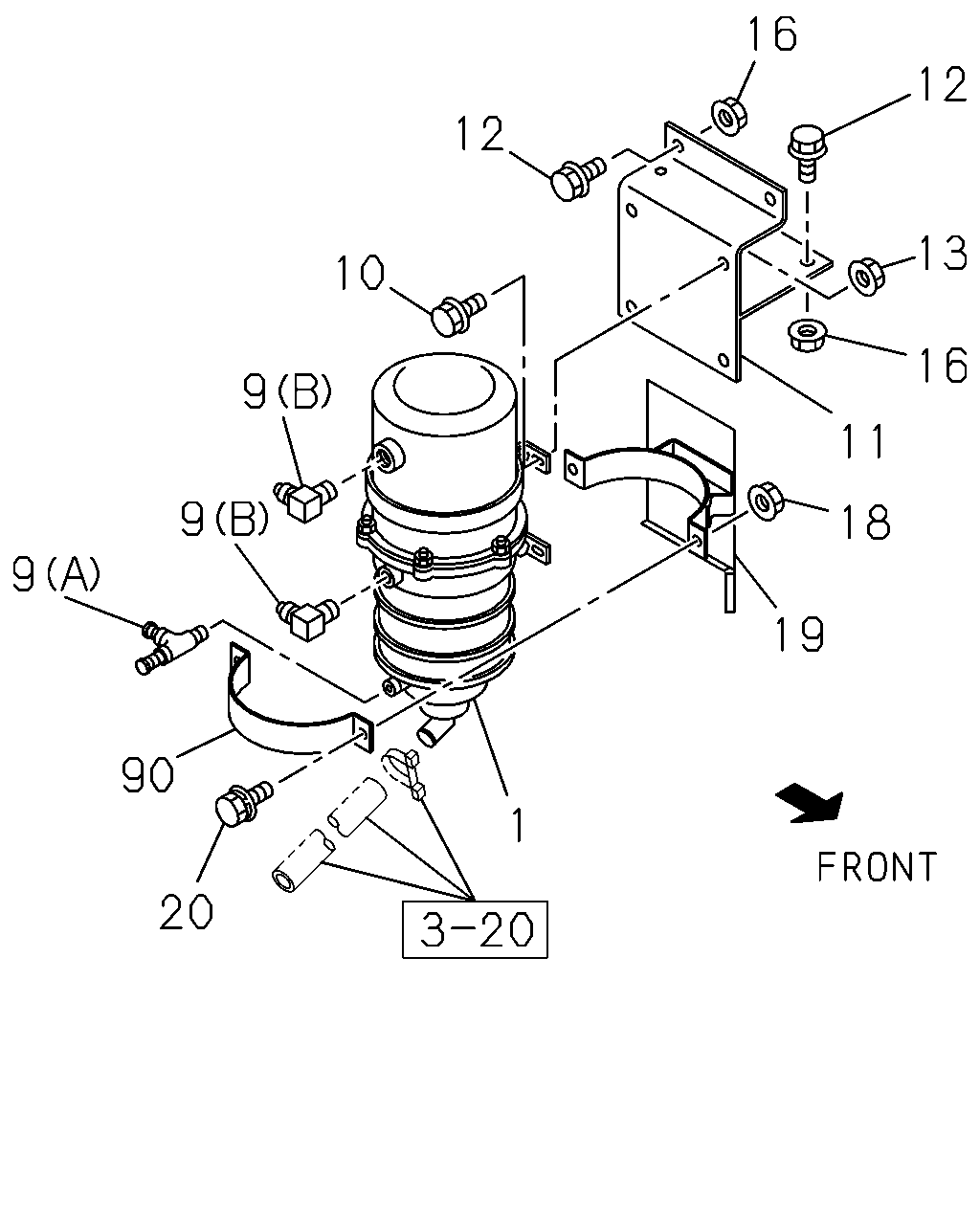

16
12
12
13
10
16
9
11
9
18
9
19
90
1
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-258-1
01
1
0107-
9
CONNECTOR; PIPE,AIR DRYER
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0107-
9
CONNECTOR; PIPE,AIR DRYER
(B) M22 & PT1/2 ELBOW
1-09650-444-0
02
1
0107-0607
9
CONNECTOR; PIPE,AIR DRYER
(B) M22 & PT1/2 ELBOW
0-92134-315-0
02
1
0608-
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28681-030-0
04
1
0107-0512
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28651-030-0
04
1
0601-
11
BRACKET; AIR DRYER
1-48317-758-2
01
1
0107-
12
BOLT; BRKT
M10X35 FLANGE
0-28681-035-0
04
1
0107-0512
12
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
0601-
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
0107-0602
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0603-
16
NUT; BRKT
M10 FLANGE
0-91150-210-0
04
1
0107-0602
16
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0603-
18
NUT; PROTECTOR
M8 FLANGE
0-91150-108-0
02
1
0107-0602
18
NUT; PROTECTOR
M8 FLANGE
0-91180-108-0
02
1
0603-
19
PROTECTOR; HEAT,AIR DRYER
1-22119-399-0
01
1
0107-
20
BOLT; PROTECTOR
M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
20
BOLT; PROTECTOR
M8X25 FLANGE
0-28650-825-0
02
1
0601-
90
CLAMP; AIR DRYER
1-22133-261-0
01
1
0107-
