◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#30903) — 90 parça
çizim 81607
107 143 12 12 8 8 120 2 12 9 9 12
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-278-0 01 1 0107-
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 0107-
8 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512
8 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
8 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0107-0512
8 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
9 NUT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602
9 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0107-0306
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0107-0306
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 02 1 0107-0306
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 0307-
12 CONNECTOR; RELAY VLV
(A) 		1-09660-719-1 01 1 0107-
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 0107-0306
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0307-
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (D) DIN12 R1/4 STRAIGHT 		1-09660-754-1 01 1 0107-
107 BOLT; VLV
M8X70 FLANGE 		0-28080-870-0 02 1 0107-0512
107 BOLT; VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0601-
120 BRACKET; VLV 1-48219-074-0 01 1 0107-
143 NUT; VLV
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
143 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0603-

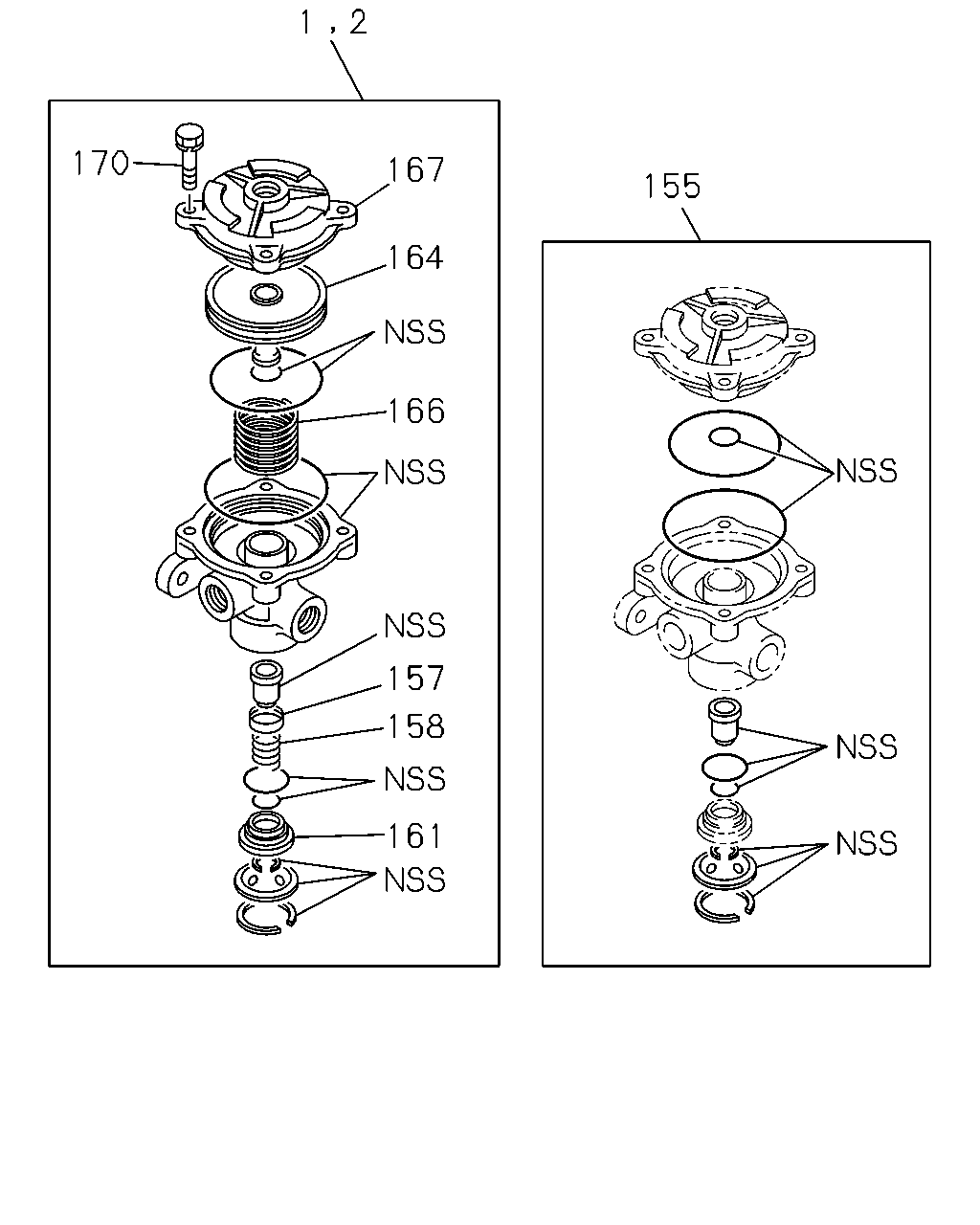

çizim 82792
2 1 170 167 155 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-278-0 01 1 0107-
2 VALVE; RELAY 1-48210-278-0 01 1 0107-
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 0107-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 02 1 0107-
155 REPAIR KIT; RELAY VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-85576-033-0 01 1 0107-
157 RETAINER; VALVE 1-48213-002-0 02 1 0107-
157 RETAINER; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-48213-002-0 01 1 0107-
158 SPRING; VALVE 1-47819-089-0 02 1 0107-
158 SPRING; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-47819-089-0 01 1 0107-
161 GUIDE; VALVE 1-48129-014-0 02 1 0107-
161 GUIDE; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-48129-014-0 01 1 0107-
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 0107-
164 PISTON; RELAY VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-48219-071-0 01 1 0107-
166 SPRING; PISTON 1-47819-090-0 02 1 0107-
166 SPRING; PISTON
BRAKE REGULATION HONG KONG<TCZ> 		1-47819-090-0 01 1 0107-
167 COVER; VALVE 1-48219-070-0 02 1 0107-
167 COVER; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-48219-070-0 01 1 0107-
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 0107-
170 SCREW; COVER TO BODY
BRAKE REGULATION HONG KONG<TCZ> 		1-48219-039-0 04 1 0107-
çizim 83383
240 35 30 31 94 93 94 93
BalonParca AdiParca NoAdetTipApplied Date
30 GOVERNOR; AIR CONT 1-48350-058-0 01 1 0107-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
93 CONNECTOR; GOV
DIN8 & M20 STRAIGHT 		1-09660-675-1 02 1 0107-
94 GASKET; GOV
ID=11 OD=18 		9-09572-510-0 02 1 0107-
240 REPAIR KIT; AIR CONT GOV 1-85576-466-0 01 1 0107-

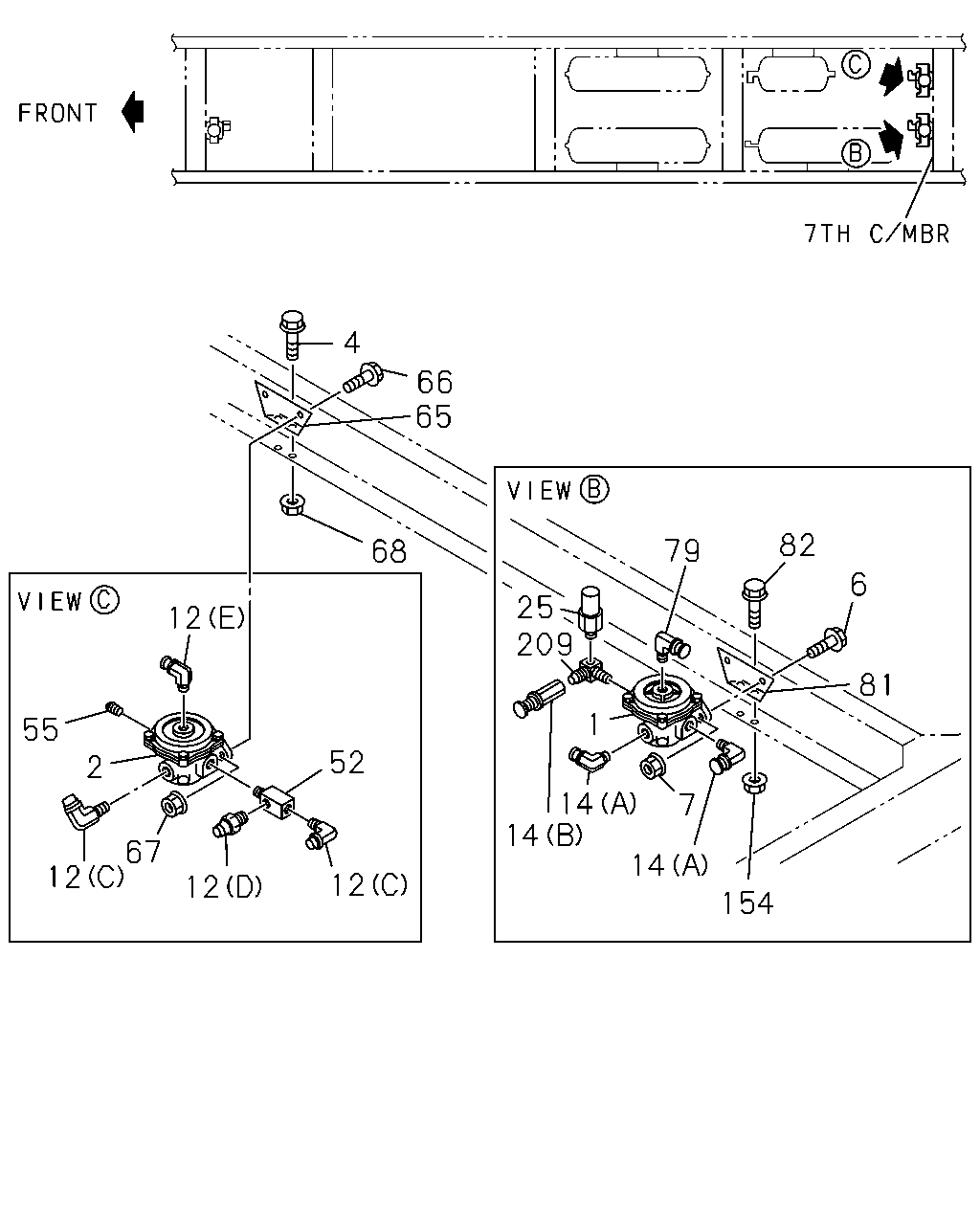

çizim 85207
4 66 65 68 82 79 6 25 209 12 81 1 55 52 2 14 14 7 67 12 14 12 12 154
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-278-0 01 1 0107-
2 VALVE; RELAY 1-48210-278-0 01 1 0107-
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 0107-
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
6 BOLT; VLV
M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512
6 BOLT; VLV
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0603-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0107-0306
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0107-0306
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 02 1 0107-0306
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 0307-
12 CONNECTOR; RELAY VLV
(A) 		1-09660-719-1 01 1 0107-
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 0107-0306
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0307-
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (D) DIN12 R1/4 STRAIGHT 		1-09660-754-1 01 1 0107-
14 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 0107-0306
14 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0307-
14 CONNECTOR; RELAY VLV
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
25 SWITCH; PRESSURE 1-82410-163-1 01 1 0107-
52 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> PT1/2 		1-09664-041-1 01 1 0107-
55 PLUG; SUPPLY
BRAKE REGULATION HONG KONG<TCZ> PT1/2 		9-09204-521-0 01 1 0107-
65 BRACKET; RELAY VLV RR 1-48219-074-0 01 1 0107-
66 BOLT; BRKT,RELAY VLV RR
M10X25 FLANGE 		0-28681-025-0 02 1 0107-0512
66 BOLT; BRKT,RELAY VLV RR
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91180-210-0 02 1 0603-
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
79 CONNECTOR; RELAY VLV
DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0107-0306
79 CONNECTOR; RELAY VLV
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
81 BRACKET; RELAY VLV,PARKING BRK 1-48219-074-0 01 1 0107-
82 BOLT; BRKT,RELAY VLV
M10X25 FLANGE 		0-28681-025-0 02 1 0107-0512
82 BOLT; BRKT,RELAY VLV
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
154 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
154 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
209 CONNECTOR; 3WAY,DEL 1-09656-672-0 01 1 0107-
