10892 - LT134-RHD EXC.EURO4
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶

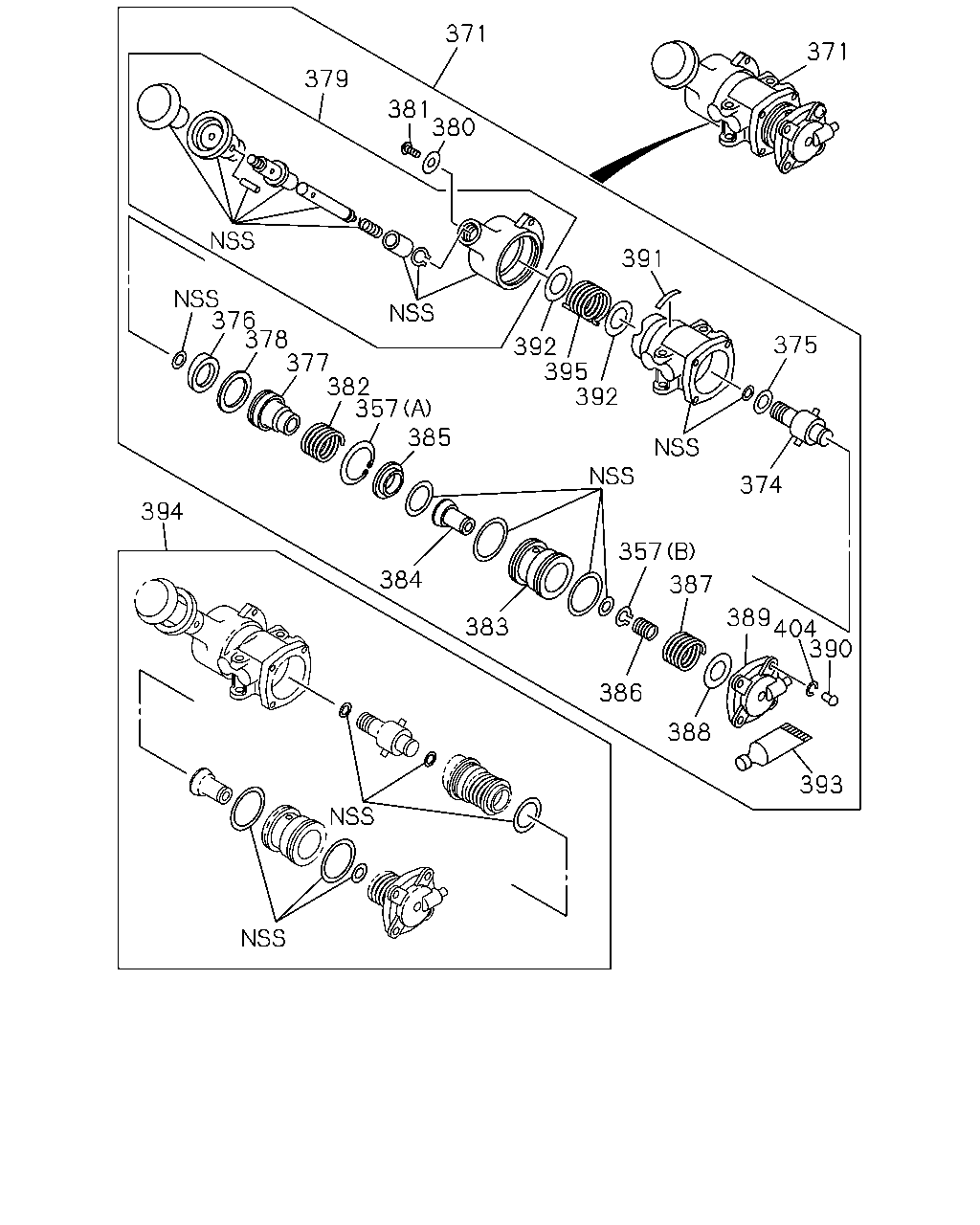

3-11 — PARKING BRAKE CONTROL
(#30901) — 29 parça
371
371
379
381
380
391
376
378
377
382
357
385
375
392
395
392
374
394
357
384
387
389
404
390
383
386
388
393
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
357
RING; SNAP
(A)
1-48469-067-0
01
1
0107-
357
RING; SNAP
(B)
1-48469-068-0
01
1
0107-
371
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0107-0107
371
VALVE; BRK,HAND CONT
1-48460-319-0
01
1
0108-
374
HOLDER; CAM
1-48469-054-0
01
1
0107-
375
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0107-
376
RING; CAM
1-48469-056-0
01
1
0107-
377
SEAT; EXH VLV
1-48469-057-0
01
1
0107-
378
GUIDE
1-48469-058-0
01
1
0107-
379
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
0107-0107
379
HANDLE ASM; HAND BRK VLV
1-48469-126-0
01
1
0108-
380
WASHER; HANDLE
1-48469-061-0
01
1
0107-
381
SCREW; HANDLE
1-48469-062-0
01
1
0107-
382
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0107-
383
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0107-
384
VALVE; FEED
1-48469-065-0
01
1
0107-
385
SEAT; FEED VLV
1-48469-066-0
01
1
0107-
386
SPRING; VLV
1-48469-070-0
01
1
0107-
387
SPRING; MAIN
1-48469-089-0
01
1
0107-
388
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0107-
389
COVER; HAND BRK VLV
1-48469-090-0
01
1
0107-
390
SCREW; COVER
1-48469-092-0
04
1
0107-0107
390
SCREW; COVER
1-48469-118-0
04
1
0108-
391
PLATE; CAUTION
1-48469-093-0
01
1
0108-
392
SEAT; SPRING
1-48469-082-0
02
1
0107-
393
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0107-
394
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
0107-
395
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0107-
404
WASHER; COVER
1-48469-091-0
04
1
0107-0107
