◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#3090) — 112 parça

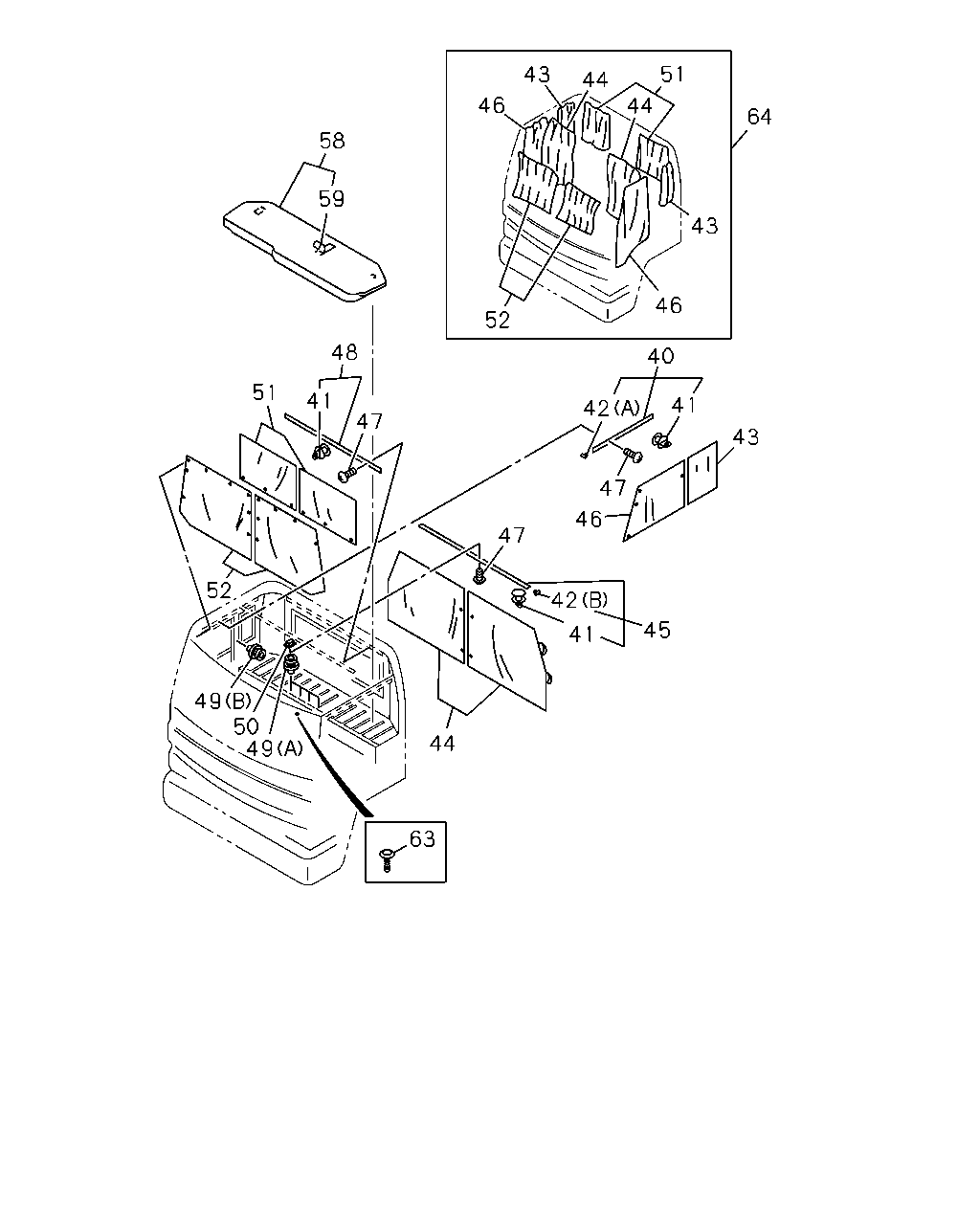

çizim 37331
63 44 41 42 45 47 46 47 41 43 42 40 46 43 64 51 44 44 43 46 52 58 59 48 41 51 47 52 49 50 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-154-0 01 1 9002-9306 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-334-0 01 1 9307- ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-153-0 01 1 9002-9306 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-333-0 01 1 9307- ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73997-940-0 02 1 9002-9306 ● ●
40 RAIL; CURTAIN,SIDE 1-73997-940-0 02 1 9002-9306 ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-182-0 02 1 9307- ●
40 RAIL; CURTAIN,SIDE 1-73907-182-0 02 1 9307- ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> GRAY MATT FINISH 		1-73997-980-0 14 1 9002-9306 ● ●
41 HOOK; CURTAIN RAIL
GRAY 		1-73907-245-0 14 1 9307- ● ●
41 HOOK; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> GRAY MATT FINISH 		1-73997-980-0 06 1 9002-9306 ● ●
41 HOOK; CURTAIN RAIL
GRAY MATT FINISH 		1-73997-980-0 06 1 9002-9306 ● ●
41 HOOK; CURTAIN RAIL
GRAY MATT FINISH 		1-73997-980-0 12 1 9002-9306 ● ● ● ●
41 HOOK; CURTAIN RAIL
GRAY 		1-73907-245-0 12 1 9307- ● ●
41 HOOK; CURTAIN RAIL
GRAY MATT FINISH 		1-73997-980-0 16 1 9002-9306 ● ● ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> GRAY 		1-73907-245-0 07 1 9307- ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> 		1-73997-245-0 07 1 9307- ●
41 HOOK; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> GRAY 		1-73907-245-0 06 1 9307- ●
41 HOOK; CURTAIN RAIL
GRAY 		1-73907-245-0 06 1 9307- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-163-0 01 1 9002-9306 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-340-0 01 1 9307- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-162-0 01 1 9002-9306 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-339-0 01 1 9307- ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73997-982-0 01 1 9002-9306 ● ● ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73907-250-0 01 1 9307- ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73997-981-0 01 1 9002-9306 ● ● ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73907-249-0 01 1 9307- ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> 		1-73997-991-0 01 1 9002-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-991-0 01 1 9002-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> 		1-73907-254-0 01 1 9307- ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> 		1-73997-990-0 01 1 9002-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-990-0 01 1 9002-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> 		1-73907-253-0 01 1 9307- ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-171-0 01 1 9212-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-170-0 01 1 9212-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> 		1-73997-989-1 01 1 9002-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-989-1 01 1 9002-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> 		1-73907-242-2 01 1 9307- ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> 		1-73997-988-1 01 1 9002-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-988-1 01 1 9002-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> 		1-73907-240-2 01 1 9307- ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-169-1 01 1 9212-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-168-1 01 1 9212-9306 ● ●
45 RAIL; CURTAIN,FRT 1-73997-939-0 01 1 9002-9306 ● ●
45 RAIL; CURTAIN,FRT
EXC. TROPICAL ZONE KIT(WB6) 		1-73997-939-0 01 1 9002-9306 ● ●
45 RAIL; CURTAIN,FRT 1-73907-180-1 01 1 9307- ● ●
45 RAIL; CURTAIN,FRT
TROPICAL ZONE KIT(WB6) 		1-73907-152-0 01 1 9002-9306 ● ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-167-0 01 1 9212-9306 ● ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-346-0 01 1 9307- ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-166-0 01 1 9212-9306 ● ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-345-0 01 1 9307- ●
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING 		1-09981-475-0 24 1 9002-9207 ● ●
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING 		1-09981-477-0 22 1 9208- ● ●
47 SCREW; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING 		1-09981-475-0 16 1 9002-9207 ● ●
47 SCREW; CURTAIN RAIL
M4X16 TAPPING 		1-09981-475-0 16 1 9002-9207 ● ●
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING 		1-09981-477-0 16 1 9208- ● ●
47 SCREW; CURTAIN RAIL
M4X16 TAPPING 		1-09981-477-0 16 1 9208- ● ●
47 SCREW; CURTAIN RAIL
TROPICAL ZONE KIT(WB6) M4X16 TAPPING 		1-09981-475-0 04 1 9002-9207 ● ●
47 SCREW; CURTAIN RAIL
TROPICAL ZONE KIT(WB6) M4X16 TAPPING 		1-09981-477-0 04 1 9208-9306 ● ●
48 RAIL; CURTAIN,BACK 1-73997-941-0 01 1 9002-9306 ● ● ● ●
48 RAIL; CURTAIN,BACK 1-73907-181-0 01 1 9307- ● ●
49 HOOK; CURTAIN
WINDOW CURTAIN ROUND<BW4> (B) 		1-09981-286-0 06 1 9002- ● ●
49 HOOK; CURTAIN
WINDOW CURTAIN ROUND<BW4> (A) 		8-94291-778-0 07 1 9203- ● ●
49 HOOK; CURTAIN
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-09981-286-0 02 1 9002-9306 ● ●
49 HOOK; CURTAIN
MATTRESS SLEEPER CAB<E40> (B) 		1-09981-286-0 02 1 9002-9306 ● ●
49 HOOK; CURTAIN
MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>,INTERIOR FULL TRIM<WM3> (B) 		1-09981-286-0 02 1 9307- ● ●
49 HOOK; CURTAIN
INTERIOR FULL TRIM<WM3> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-09981-286-0 02 1 9307- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
M4 		5-09470-002-0 01 1 9002- ● ● ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> 		1-73997-993-0 01 1 9002-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-993-0 01 1 9002-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> 		1-73907-256-0 01 1 9307- ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> 		1-73997-992-0 01 1 9002-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-992-0 01 1 9002-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> 		1-73907-255-0 01 1 9307- ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-173-0 01 1 9212-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-172-0 01 1 9212-9306 ● ●
52 CURTAIN ASM; FRT WINDOW
WINDOW CURTAIN ROUND<BW4> 		1-73907-165-0 01 1 9212-9306 ● ●
52 CURTAIN ASM; FRT WINDOW
WINDOW CURTAIN ROUND<BW4> 		1-73907-344-0 01 1 9307- ●
52 CURTAIN ASM; FRT WINDOW
WINDOW CURTAIN ROUND<BW4> 		1-73907-164-0 01 1 9212-9306 ● ●
52 CURTAIN ASM; FRT WINDOW
WINDOW CURTAIN ROUND<BW4> 		1-73907-343-0 01 1 9307- ●
58 BED; MAT
DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75117-561-3 01 1 9002-9306 ● ●
58 BED; MAT
DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75117-750-0 01 1 9307- ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-615-1 01 1 9002-9306 ● ●
58 BED; MAT
PASSENGER SEAT MULTI USED(WX9) 		1-75117-615-1 01 1 9002-9306 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-724-1 01 1 9307- ●
58 BED; MAT
PASSENGER SEAT MULTI USED(WX9) 		1-75117-724-1 01 1 9307- ●
58 BED; MAT
DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75117-562-3 01 1 9002-9306 ● ●
58 BED; MAT
DELUXE CAB(W14) 		1-75117-743-0 01 1 9307- ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14) 		1-75117-616-1 01 1 9002-9306 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14) 		1-75117-621-1 01 1 9002-9306 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-775-0 01 1 9307- ●
58 BED; MAT
SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14) 		1-75117-555-3 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75117-565-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75117-769-0 01 1 9307- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-664-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
PASSENGER SEAT MULTI USED(WX9) 		1-75117-664-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-739-1 01 1 9307- ●
59 COVER ASM; TRIM,BED MAT
PASSENGER SEAT MULTI USED(WX9) 		1-75117-739-1 01 1 9307- ●
59 COVER ASM; TRIM,BED MAT
DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75117-566-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
DELUXE CAB(W14) 		1-75117-748-0 01 1 9307- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14) 		1-75117-666-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14) 		1-75117-665-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-785-0 01 1 9307- ●
59 COVER ASM; TRIM,BED MAT
SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14) 		1-75117-671-0 01 1 9002-9306 ● ●
63 PLUG; SUPPORT
D4.7X11 		1-76378-154-0 01 1 9002- ● ● ● ●
64 CURTAIN KIT
MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4> 		1-73997-987-1 01 1 9002-9306 ● ●
64 CURTAIN KIT
MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73997-987-1 01 1 9002-9306 ● ●
64 CURTAIN KIT
MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-238-2 01 1 9307- ●
64 CURTAIN KIT
MATTRESS SLEEPER CAB<E40> 		1-73907-238-2 01 1 9307- ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73907-150-1 01 1 9002-9306 ● ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73907-332-1 01 1 9307- ●
64 CURTAIN KIT
MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) 		1-73907-151-1 01 1 9002-9306 ● ●
