◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#30899) — 49 parça

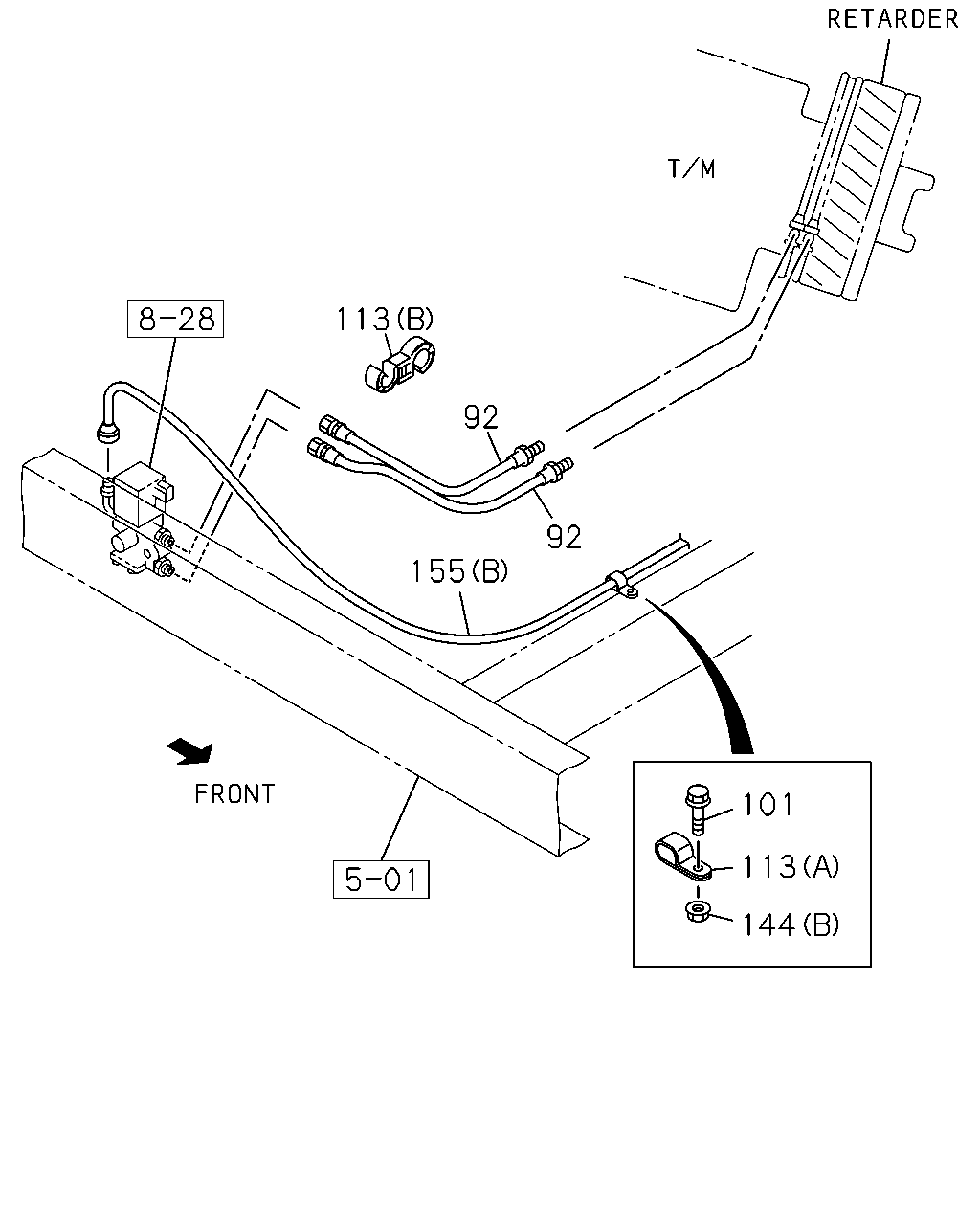

çizim 25847
113 92 92 155 101 113 144
BalonParca AdiParca NoAdetTipApplied Date A B
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=300 		1-09363-611-0 01 1 0107- ● ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=210 		1-09363-614-0 01 1 0107- ● ●
101 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ● ●
101 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> (B) ID=10 & 10 		1-09709-277-1 01 1 0107- ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> (A) ID=9 L=50 		9-09524-885-0 01 1 0107-0606 ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> (A) ID=9 L=50 		0-95234-885-0 01 1 0607- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) WO/PARKING BRAKE M14 FLANGE 		1-09440-048-0 04 1 0107-0604 ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) WO/PARKING BRAKE M14 FLANGE 		8-97365-444-0 04 1 0605- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (C) 		1-48629-244-0 01 1 0107- ● ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212 ● ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-225-0 01 1 0107- ● ●

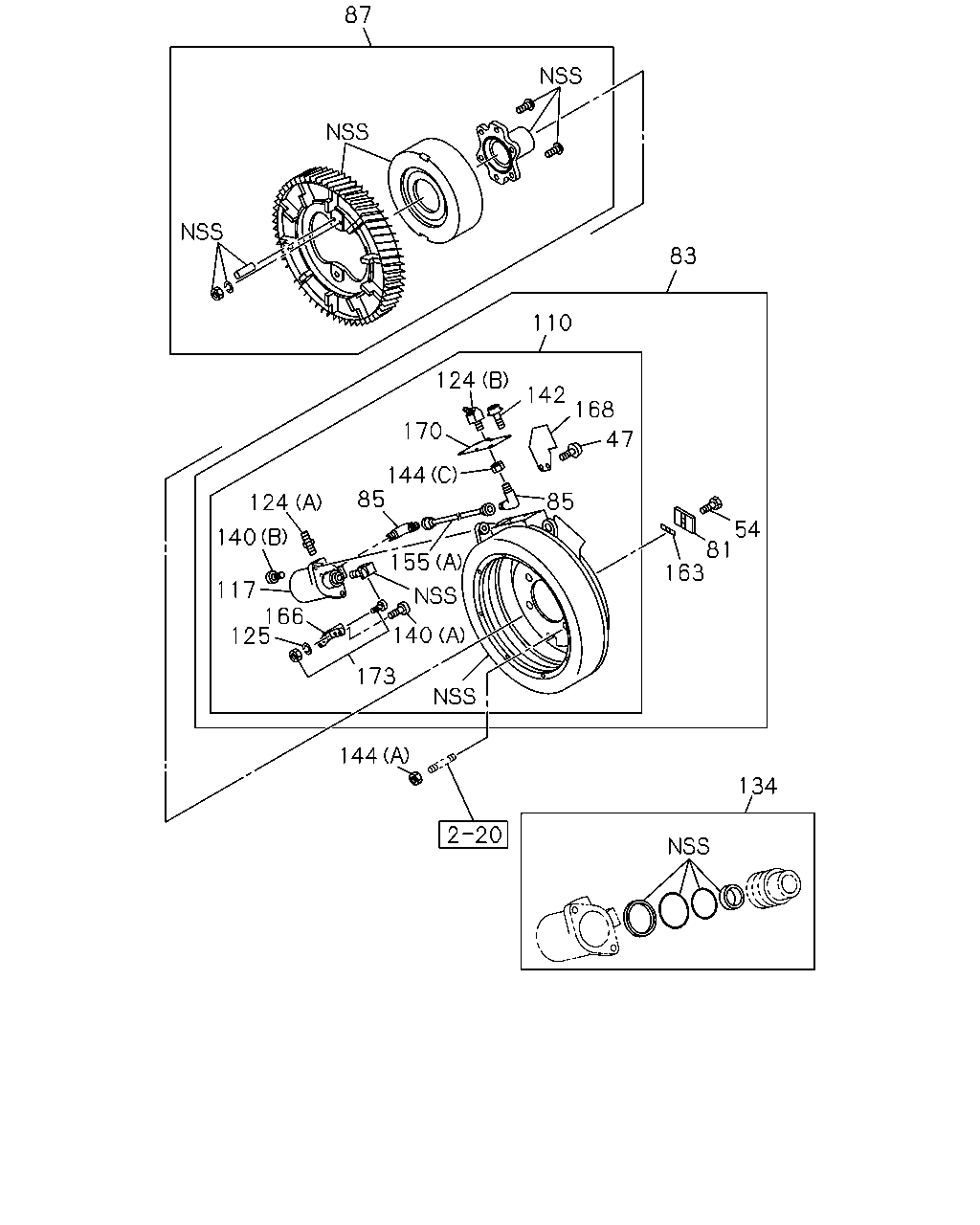

çizim 82496
87 83 110 124 142 168 170 47 144 85 85 124 54 81 163 140 155 117 166 125 140 173 144 134
BalonParca AdiParca NoAdetTipApplied Date A B
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0107- ● ●
54 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> WO/PARKING BRAKE M8X16 		9-05820-816-0 01 1 0107-0812 ● ●
81 COVER; CHECK HOLE,PARKING BRK
BRAKE SYSTEM RETARDER<RE2> WO/PARKING BRAKE 		1-48629-124-0 01 1 0107-0812 ● ●
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-330-3 01 1 0107-0206 ● ●
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-482-3 01 1 0207- ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0107- ● ●
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-365-1 01 1 0207- ● ●
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-46210-260-0 01 1 0107-0206 ● ●
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-331-3 01 1 0107-0206 ● ●
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-483-3 01 1 0207- ● ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0107- ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107- ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0107- ● ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		9-09150-506-0 01 1 0107-0603 ● ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0604- ● ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0107- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0107- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0107- ● ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0107- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) WO/PARKING BRAKE M14 FLANGE 		1-09440-048-0 04 1 0107-0604 ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) WO/PARKING BRAKE M14 FLANGE 		8-97365-444-0 04 1 0605- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (C) 		1-48629-244-0 01 1 0107- ● ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-0212 ● ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-225-0 01 1 0107- ● ●
163 BAR; FLAT
BRAKE SYSTEM RETARDER<RE2> WO/PARKING BRAKE 		1-48629-125-0 01 1 0107-0812 ● ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0107- ● ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0107- ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0107- ● ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
