3-05 — REAR WHEEL BRAKE (#30898) — 122 parça

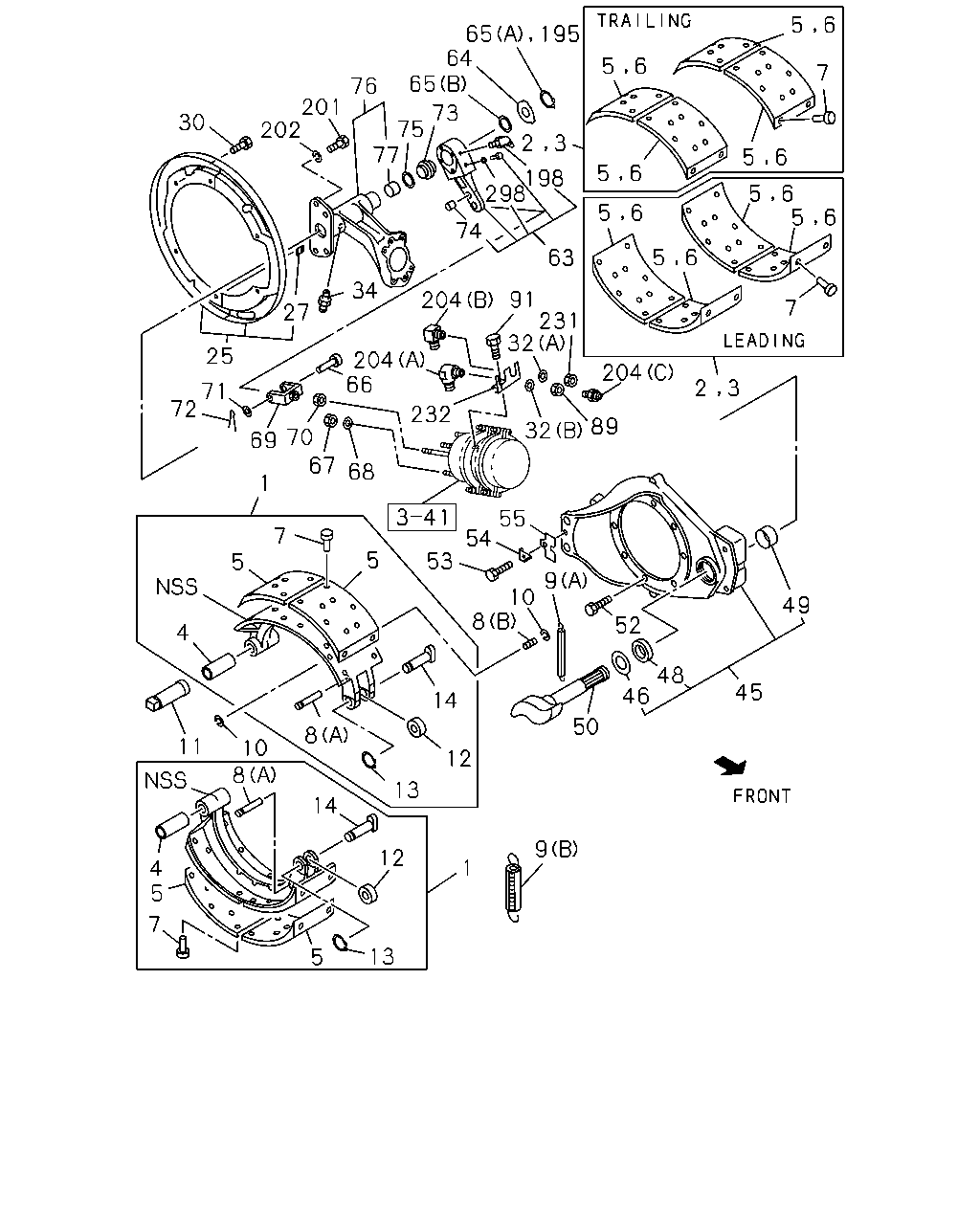

çizim 25070
5 6 65 64 65 195 5 6 7 76 201 202 73 75 77 30 3 2 5 6 5 6 198 298 5 6 5 5 6 6 74 6 5 63 34 91 231 32 204 7 27 25 204 66 204 2 3 71 72 232 32 89 70 69 67 68 1 55 54 7 5 53 5 9 10 8 49 52 4 48 46 45 14 50 8 11 10 8 12 13 14 9 12 1 4 5 7 13 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-47120-713-0 01 1 0310-0602
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0603-
1 SHOE; BRK,RR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-47120-714-0 01 1 0310-0602
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0603-
1 SHOE; BRK,RR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-47120-715-0 01 1 0310-0602
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0603-
1 SHOE; BRK,RR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-47120-716-0 01 1 0310-0602
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0603-
1 SHOE; BRK,RR
LEADING 		1-47120-495-0 01 1 0107-0309
1 SHOE; BRK,RR
INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-47120-495-0 01 1 0310-0411
1 SHOE; BRK,RR
TRAILING 		1-47120-496-0 01 1 0107-0309
1 SHOE; BRK,RR
INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-47120-496-0 01 1 0310-0411
1 SHOE; BRK,RR
LEADING 		1-47120-493-0 01 1 0107-0309
1 SHOE; BRK,RR
INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-47120-493-0 01 1 0310-0411
1 SHOE; BRK,RR
TRAILING 		1-47120-494-0 01 1 0107-0309
1 SHOE; BRK,RR
INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-47120-494-0 01 1 0310-0411
2 LINING SET; RR BRK,STANDARD
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-88310-521-0 01 1 0310-0602
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88310-521-0 01 1 0603-
2 LINING SET; RR BRK,STANDARD
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-88310-523-0 01 1 0310-0602
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-523-0 01 1 0603-
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88310-216-0 01 1 0107-0309
2 LINING SET; RR BRK,STANDARD
INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-88310-216-0 01 1 0310-0411
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-220-0 01 1 0107-0309
2 LINING SET; RR BRK,STANDARD
INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-88310-220-0 01 1 0310-0411
3 LINING SET; RR BRK,OVER SIZE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-88310-522-0 01 1 0310-0602
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-522-0 01 1 0603-
3 LINING SET; RR BRK,OVER SIZE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-88310-524-0 01 1 0310-0602
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-524-0 01 1 0603-
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-217-0 01 1 0107-0309
3 LINING SET; RR BRK,OVER SIZE
INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-88310-217-0 01 1 0310-0411
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-221-0 01 1 0107-0309
3 LINING SET; RR BRK,OVER SIZE
INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-88310-221-0 01 1 0310-0411
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0107-
5 LINING; RR BRK SHOE,STANDARD
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-47125-797-0 04 1 0310-0602
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47125-797-0 04 1 0603-
5 LINING; RR BRK SHOE,STANDARD
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-47125-799-0 04 1 0310-0602
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-799-0 04 1 0603-
5 LINING; RR BRK SHOE,STANDARD
LEADING T=16 		1-47125-326-0 04 1 0107-0309
5 LINING; RR BRK SHOE,STANDARD
INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING T=16 		1-47125-326-0 04 1 0310-0411
5 LINING; RR BRK SHOE,STANDARD
TRAILING T=16 		1-47125-328-0 04 1 0107-0309
5 LINING; RR BRK SHOE,STANDARD
INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING T=16 		1-47125-328-0 04 1 0310-0411
6 LINING; RR BRK SHOE,OVER SIZE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING 		1-47125-798-0 04 1 0310-0602
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47125-798-0 04 1 0603-
6 LINING; RR BRK SHOE,OVER SIZE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING 		1-47125-800-0 04 1 0310-0602
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-800-0 04 1 0603-
6 LINING; RR BRK SHOE,OVER SIZE
LEADING T=17 		1-47125-327-0 04 1 0107-0309
6 LINING; RR BRK SHOE,OVER SIZE
INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING T=17 		1-47125-327-0 04 1 0310-0411
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING T=17 		1-47125-329-0 04 1 0107-0309
6 LINING; RR BRK SHOE,OVER SIZE
INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING T=17 		1-47125-329-0 04 1 0310-0411
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0107-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 04 1 0107-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 04 1 0107-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0107-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 0107-
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 08 1 0107-0604
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 0605-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0107-
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0107-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0107-
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 0107-
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0107-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0107-
30 BOLT; DRUM COVER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M10X12 		1-47159-187-0 12 1 0310-0602
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0603-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0107-0309
30 BOLT; DRUM COVER
INTERNATIONAL STANDARD ISO 10STUD<B3V> M10X16 W/LK WASHER 		0-50041-016-0 12 1 0310-0411
32 WASHER; LK
(A) 		1-48255-005-0 01 1 0107-0206
32 WASHER; LK
(B) ID=21 TOOTH LK INT 		9-09151-220-0 01 1 0107-0206
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0107-0512
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-139-1 01 1 0107-
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-138-1 01 1 0107-
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 0107-
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 02 1 0107-
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 0107-
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0107-
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0107-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0107-
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0107-0512
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0107-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0107-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0107-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0107-
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 02 1 0107-
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0107-
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 0107-
66 PIN; JAW JOINT 1-09744-088-0 02 1 0107-
67 NUT; POWER CHAMBER FIX
M16 		9-99110-416-0 08 1 0107-0512
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 08 1 0601-
68 WASHER; LK,CHAMBER
ID=16.2 		9-09150-516-0 08 1 0107-0603
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-516-0 08 1 0604-0802
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 08 1 0803-
69 JOINT; JAW 1-09768-060-1 02 1 0107-
70 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 0107-0512
70 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 0601-
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 0107-
72 PIN; SPLIT
OD=3.7 L=28 		9-08114-028-0 02 1 0107-0606
72 PIN; SPLIT
OD=3.7 L=28 		0-81124-028-0 02 1 0607-
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 0107-
74 BUSHING; SLACK ADJ 1-09330-041-0 02 1 0107-
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 0107-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0107-0906
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0107-0906
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907-
77 BUSHING 1-47146-003-1 02 1 0107-
89 NUT; CHAMBER
M20 		9-99111-420-0 02 1 0107-0206
91 BOLT; CHAMBER
M8X12 W/LK WASHER 		0-50040-812-0 02 1 0107-0206
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0107-
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 0107-0512
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5? 		0-90301-510-0 02 1 0601-
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20801-435-0 08 1 0107-0512
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20851-435-0 08 1 0601-
202 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 08 1 0107-0603
202 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0604-
204 CONNECTOR; SPR CHAMBER
(C) M20 & PT1/4 		9-09902-386-0 01 1 0107-0411
204 CONNECTOR; SPR CHAMBER
(B) PT3/8 & M27 ELBOW 		1-09650-118-1 02 1 0107-0411
204 CONNECTOR; SPR CHAMBER
(A) M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 0107-0411
231 NUT; CONNECTOR
M27 		9-09840-286-0 02 1 0107-0206
232 BRACKET; FLEX HOSE,CHAMBER 1-47465-696-1 01 1 0107-0206
298 GASKET
ID=23.3 		9-09561-223-0 02 1 0107-
