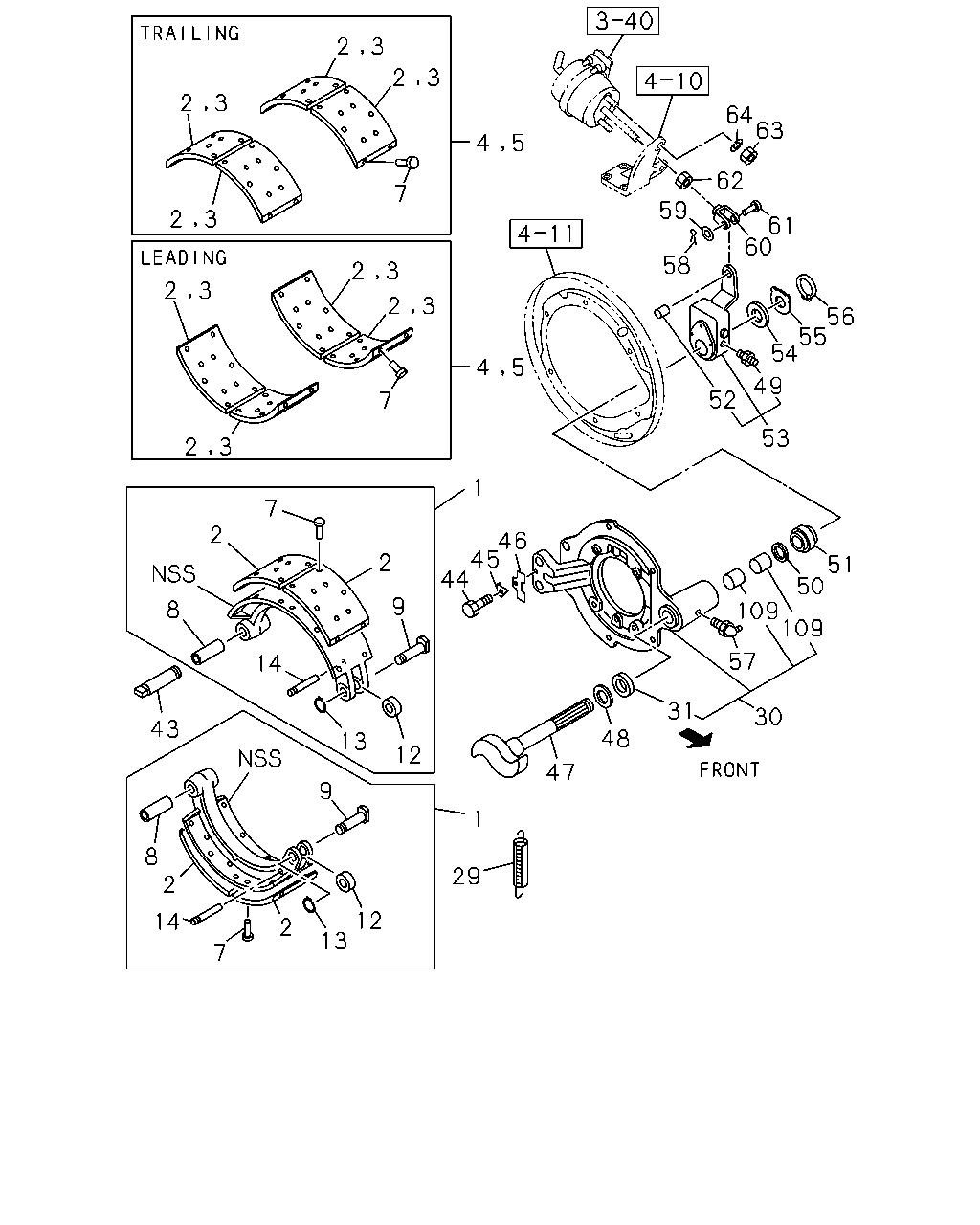

3-01 — FRONT WHEEL BRAKE (#30897) — 101 parça

2 3 2 3 3 2 64 63 5 4 62 59 7 2 3 61 60 58 2 3 2 3 2 3 56 55 54 5 4 49 52 7 53 2 3 1 7 2 46 45 44 2 51 50 9 8 109 109 57 14 31 30 43 48 13 12 47 9 1 8 2 29 12 14 2 13 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-709-0	01	1	0310-
1	SHOE; BRK,FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-710-0	01	1	0310-
1	SHOE; BRK,FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-711-0	01	1	0310-
1	SHOE; BRK,FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-712-0	01	1	0310-
1	SHOE; BRK,FRT LEADING	1-47120-491-0	01	1	0107-0308
1	SHOE; BRK,FRT LEADING	1-47170-275-0	01	1	0309-0309
1	SHOE; BRK,FRT INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47170-275-0	01	1	0310-
1	SHOE; BRK,FRT TRAILING	1-47120-492-0	01	1	0107-0308
1	SHOE; BRK,FRT TRAILING	1-47170-277-0	01	1	0309-0309
1	SHOE; BRK,FRT INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47170-277-0	01	1	0310-
1	SHOE; BRK,FRT LEADING	1-47120-489-0	01	1	0107-0308
1	SHOE; BRK,FRT LEADING	1-47170-276-0	01	1	0309-0309
1	SHOE; BRK,FRT INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47170-276-0	01	1	0310-
1	SHOE; BRK,FRT TRAILING	1-47120-490-0	01	1	0107-0308
1	SHOE; BRK,FRT TRAILING	1-47170-278-0	01	1	0309-0309
1	SHOE; BRK,FRT INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47170-278-0	01	1	0310-
2	LINING; FRT BRK SHOE,STANDARD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47125-793-0	04	1	0310-
2	LINING; FRT BRK SHOE,STANDARD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47125-795-0	04	1	0310-
2	LINING; FRT BRK SHOE,STANDARD LEADING T=16	1-47125-182-0	04	1	0107-0308
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47126-640-0	04	1	0309-0309
2	LINING; FRT BRK SHOE,STANDARD INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47126-640-0	04	1	0310-
2	LINING; FRT BRK SHOE,STANDARD TRAILING T=16	1-47125-331-0	04	1	0107-0308
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47126-643-0	04	1	0309-0309
2	LINING; FRT BRK SHOE,STANDARD INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47126-643-0	04	1	0310-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47125-794-0	04	1	0310-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47125-796-0	04	1	0310-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING T=17	1-47125-183-0	04	1	0107-0308
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47126-641-0	04	1	0309-0309
3	LINING; FRT BRK SHOE,OVER SIZE INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47126-641-0	04	1	0310-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING T=17	1-47125-332-0	04	1	0107-0308
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47126-644-0	04	1	0309-0309
3	LINING; FRT BRK SHOE,OVER SIZE INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47126-644-0	04	1	0310-
4	LINING SET; FRT BRK,STANDARD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-497-0	01	1	0310-
4	LINING SET; FRT BRK,STANDARD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-499-0	01	1	0310-
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-091-0	01	1	0107-0308
4	LINING SET; FRT BRK,STANDARD LEADING	1-88311-276-0	01	1	0309-0309
4	LINING SET; FRT BRK,STANDARD INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88311-276-0	01	1	0310-
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-218-0	01	1	0107-0308
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88311-277-0	01	1	0309-0309
4	LINING SET; FRT BRK,STANDARD INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88311-277-0	01	1	0310-
5	LINING SET; FRT BRK,OVER SIZE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-498-0	01	1	0310-
5	LINING SET; FRT BRK,OVER SIZE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-500-0	01	1	0310-
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-092-0	01	1	0107-0308
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88311-278-0	01	1	0309-0309
5	LINING SET; FRT BRK,OVER SIZE INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88311-278-0	01	1	0310-
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-219-0	01	1	0107-0308
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88311-279-0	01	1	0309-0309
5	LINING SET; FRT BRK,OVER SIZE INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88311-279-0	01	1	0310-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	0107-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0107-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0107-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0107-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0107-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0107-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0107-
30	BRACKET; ANCHOR,FRT	1-47137-119-3	01	1	0107-
30	BRACKET; ANCHOR,FRT	1-47137-118-3	01	1	0107-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0107-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0107-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	0107-0512
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-
45	WASHER; LK	1-47133-011-0	02	1	0107-
46	PLATE; LOCK	1-47133-005-0	02	1	0107-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0107-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0107-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0107-
49	NIPPLE; GREASE,SLACK ADJ EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	01	1	0310-0512
49	NIPPLE; GREASE,SLACK ADJ EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
49	NIPPLE; GREASE,SLACK ADJ EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0310-0512
49	NIPPLE; GREASE,SLACK ADJ EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5?	0-90301-510-0	01	1	0601-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	02	1	0107-0309
49	NIPPLE; GREASE,SLACK ADJ INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	0310-0512
49	NIPPLE; GREASE,SLACK ADJ INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0107-
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	0107-
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0107-
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	0107-
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	0107-
54	SPACER; CM/SHF	1-47143-004-0	02	1	0107-
55	PLATE; STOPPER,CM/SHF	1-47149-021-0	02	1	0107-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0107-
57	NIPPLE; GREASE,ANCHOR BRKT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	0310-0512
57	NIPPLE; GREASE,ANCHOR BRKT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	01	1	0107-0309
57	NIPPLE; GREASE,ANCHOR BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	01	1	0310-0512
57	NIPPLE; GREASE,ANCHOR BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0107-0309
57	NIPPLE; GREASE,ANCHOR BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0310-0512
57	NIPPLE; GREASE,ANCHOR BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5?	0-90301-510-0	02	1	0601-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	0107-0606
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	0-81124-028-0	02	1	0607-
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0107-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	0107-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	0107-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0107-0512
62	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	0107-0512
63	NUT; POWER CHAMBER M16	0-91110-516-0	04	1	0601-
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	0107-0603
64	WASHER; LK,POWER CHAMBER ID=16.2	0-91510-516-0	04	1	0604-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	0107-
