◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#30894) — 262 parça

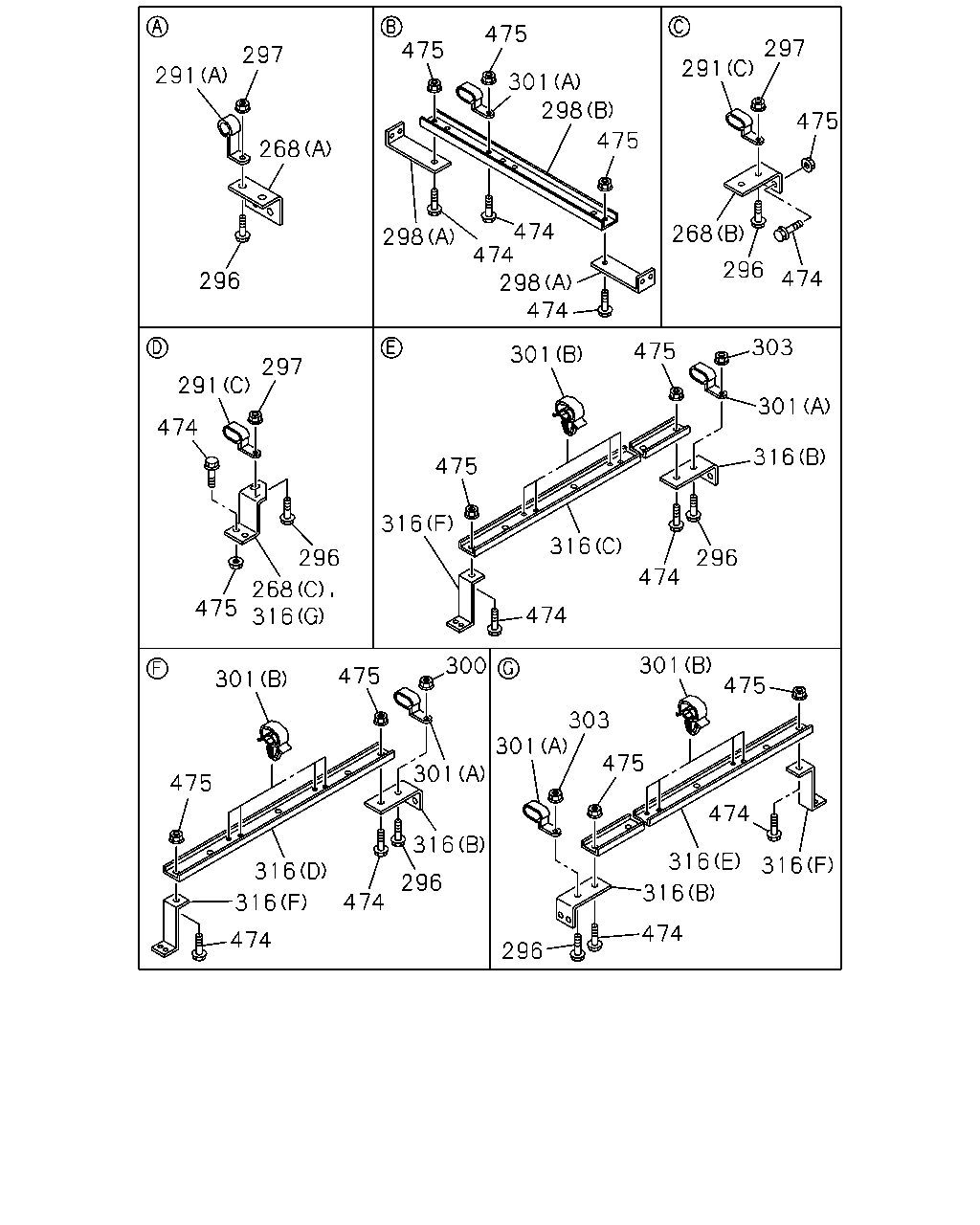

çizim 25425
475 475 297 297 291 291 301 298 475 475 268 474 474 298 474 268 298 296 474 296 303 475 301 297 291 301 474 316 475 316 316 296 296 474 268 316 475 474 301 300 475 301 475 303 301 475 301 475 474 316 316 316 316 296 316 474 316 474 474 296
BalonParca AdiParca NoAdetTipApplied Date A B
268 BRACKET; LINK ROD
(A) 		1-47479-107-0 01 1 0107- ● ●
268 BRACKET; LINK ROD
WHEEL BASE 5000MM(50W) (B) 		1-47479-108-0 02 1 0107-0410 ● ●
268 BRACKET; LINK ROD
WHEEL BASE 5700MM(57W) (B) 		1-47479-108-0 03 1 0107-0410 ● ●
268 BRACKET; LINK ROD
WHEEL BASE 5700MM(57W) (C) 		1-47479-221-0 01 1 0107-0410 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0107- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=22.2 		1-09701-209-1 01 1 0107- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
WHEEL BASE 5000MM(50W) (C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 02 1 0107-0410 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
WHEEL BASE 5700MM(57W) (C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 04 1 0107-0410 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28680-820-0 04 1 0107-0410 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28680-820-0 04 1 0107-0410 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28680-820-0 15 1 0411-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28650-820-0 15 1 0601- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5000MM(50W) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0410 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5000MM(50W) M8X20 FLANGE 		0-28680-820-0 13 1 0411-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5000MM(50W) M8X20 FLANGE 		0-28650-820-0 13 1 0601- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0410 ● ●
297 NUT; CLIP
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 02 1 0107-0410 ● ●
297 NUT; CLIP
M10 FLANGE 		0-91150-210-0 02 1 0107-0602 ● ●
297 NUT; CLIP
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
297 NUT; CLIP
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 04 1 0107-0410 ● ●
298 BRACKET
(A) 		1-47479-110-0 04 1 0107-0410 ● ●
298 BRACKET
(B) 		1-47479-112-0 02 1 0107-0410 ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0410 ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0411-0512 ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
301 CLIP; WIRE
WHEEL BASE 5700MM(57W) (C) ID=13X2 L=32 		1-09701-245-0 15 1 0411- ● ●
301 CLIP; WIRE
(A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 06 1 0107-0410 ● ●
301 CLIP; WIRE
(A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 01 1 0411-0906 ● ●
301 CLIP; WIRE
(A) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 01 1 0907- ● ●
301 CLIP; WIRE
(B) ID=10 		8-94450-392-0 12 1 0107-0410 ● ●
301 CLIP; WIRE
WHEEL BASE 5000MM(50W) (C) ID=13X2 L=32 		1-09701-245-0 13 1 0411- ● ●
303 NUT; CLIP
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 13 1 0411-0602 ● ●
303 NUT; CLIP
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 13 1 0603- ● ●
303 NUT; CLIP
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 15 1 0411-0602 ● ●
303 NUT; CLIP
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 15 1 0603- ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0107-0410 ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0411-0602 ● ●
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
316 BRACKET; CLIP
(A) 		1-33657-736-0 01 1 0107- ● ●
316 BRACKET; CLIP
(B) 		1-47479-108-0 02 1 0107-0410 ● ●
316 BRACKET; CLIP
(C) 		1-47479-113-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
(D) 		1-47479-114-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
(E) 		1-47479-115-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (F) 		1-47479-109-0 03 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (H) 		1-47479-729-0 09 1 0411- ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (G) 		1-47479-221-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (F) 		1-47479-109-0 04 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (H) 		1-47479-729-0 10 1 0411- ● ●
474 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ● ●
474 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 18 1 0107-0410 ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0411-0512 ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 24 1 0107-0410 ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0411-0512 ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28680-825-0 06 1 0107-0410 ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28680-825-0 18 1 0411-0512 ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 18 1 0601- ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28680-825-0 10 1 0107-0410 ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28680-825-0 20 1 0411-0512 ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28650-825-0 20 1 0601- ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 32 1 0107-0410 ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0411-0602 ● ●
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 06 1 0107-0410 ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 18 1 0411-0602 ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0603- ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 10 1 0107-0410 ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 20 1 0411-0602 ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 20 1 0603- ● ●

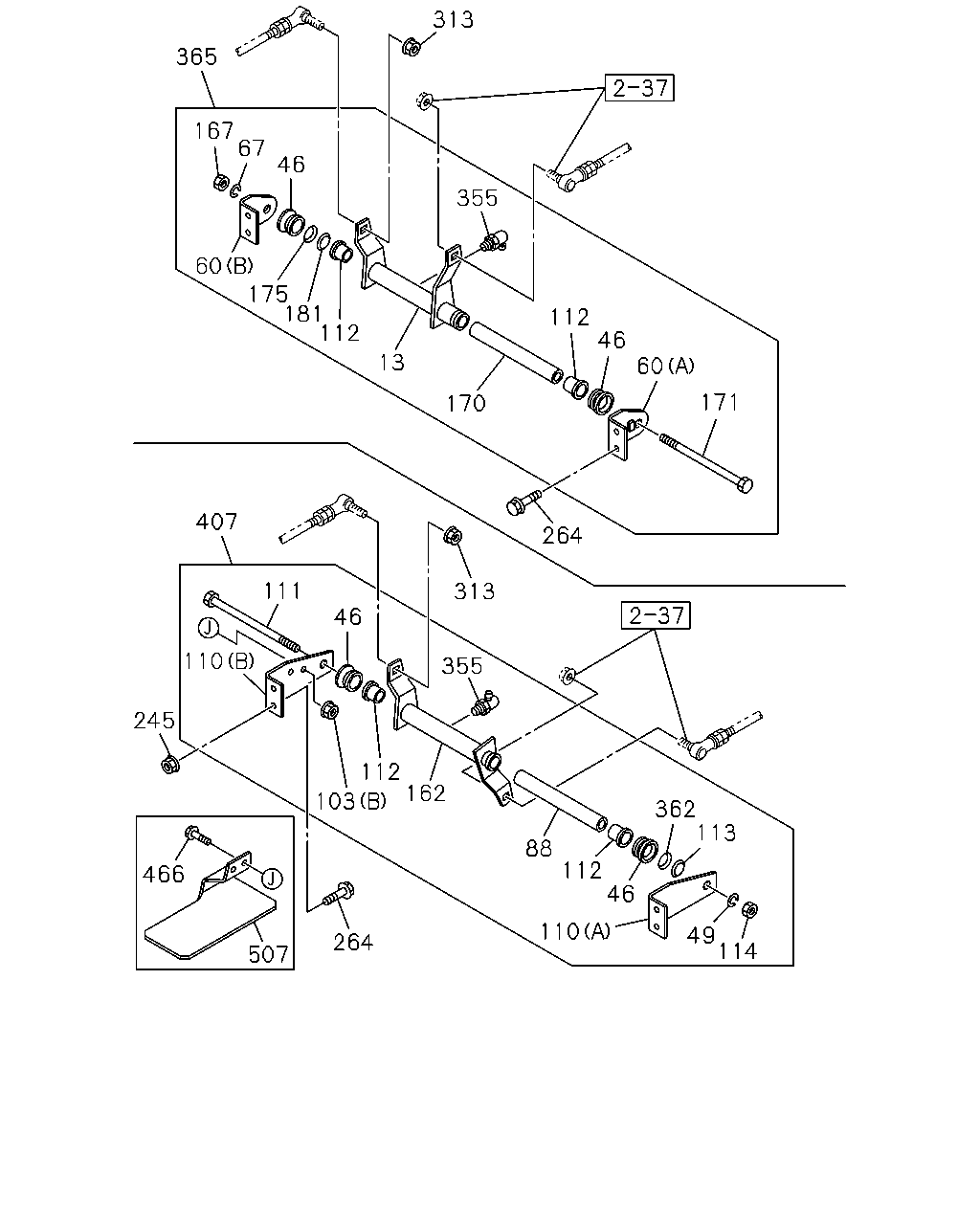

çizim 25565
313 365 167 67 46 355 60 175 181 112 112 46 13 60 171 170 407 264 111 313 46 110 355 245 112 162 103 362 113 88 112 46 466 110 49 114 264 507
BalonParca AdiParca NoAdetTipApplied Date A B
13 LEVER; RELAY,1ST SELECT INNER 1-33651-800-1 01 1 0107- ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-113-0 04 1 0107- ● ●
49 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0107-0603 ● ●
49 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
60 BRACKET; RELAY LEVER,SELECT ROD
(A) 		1-33657-800-0 01 1 0107- ● ●
60 BRACKET; RELAY LEVER,SELECT ROD
(B) 		1-33657-801-0 01 1 0107- ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 0107-0603 ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
88 COLLAR; RELAY LEVER 1-33659-154-0 01 1 0107- ● ●
103 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0206-0208 ● ●
103 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91150-108-0 02 1 0209-0602 ●
103 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
103 NUT
(A) M8 FLANGE 		1-09440-062-1 01 1 0107- ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-797-1 01 1 0107- ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-798-0 01 1 0107- ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 0107- ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 04 1 0107- ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 0107- ● ●
114 NUT; RELAY LEVER
M14 		9-99111-514-0 01 1 0107-0512 ● ●
114 NUT; RELAY LEVER
M14 		0-91111-514-0 01 1 0601- ● ●
162 LEVER; RELAY 1-33651-799-1 01 1 0107- ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 0107-0512 ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0601- ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-154-0 01 1 0107- ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-508-0 01 1 0107- ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 0107- ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 0107- ● ●
245 NUT; BRKT,RELAY LEVER
M8 FLANGE 		0-91150-108-0 04 1 0107-0602 ● ●
245 NUT; BRKT,RELAY LEVER
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 08 1 0107-0512 ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 08 1 0601- ● ●
313 NUT; CLIP BRKT
M10 FLANGE 		1-09440-061-0 01 1 0107- ● ●
313 NUT; CLIP BRKT
M8 FLANGE 		1-09440-062-1 01 1 0107- ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 02 1 0107-0512 ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
362 SHIM 1-33659-092-0 01 1 0107- ● ●
365 LEVER; RELAY,SELECT 1-33671-739-0 01 1 0107- ● ●
407 LEVER; RELAY,SHIFT 1-33671-734-1 01 1 0107- ● ●
466 BOLT; FIX
M8X25 FLANGE 		0-28680-825-0 02 1 0206-0208 ● ●
466 BOLT; FIX
BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28680-825-0 02 1 0209-0512 ●
466 BOLT; FIX
BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
507 PROTECTOR; HEAT 1-53239-117-0 01 1 0206-0208 ● ●
507 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-53239-117-0 01 1 0209- ●

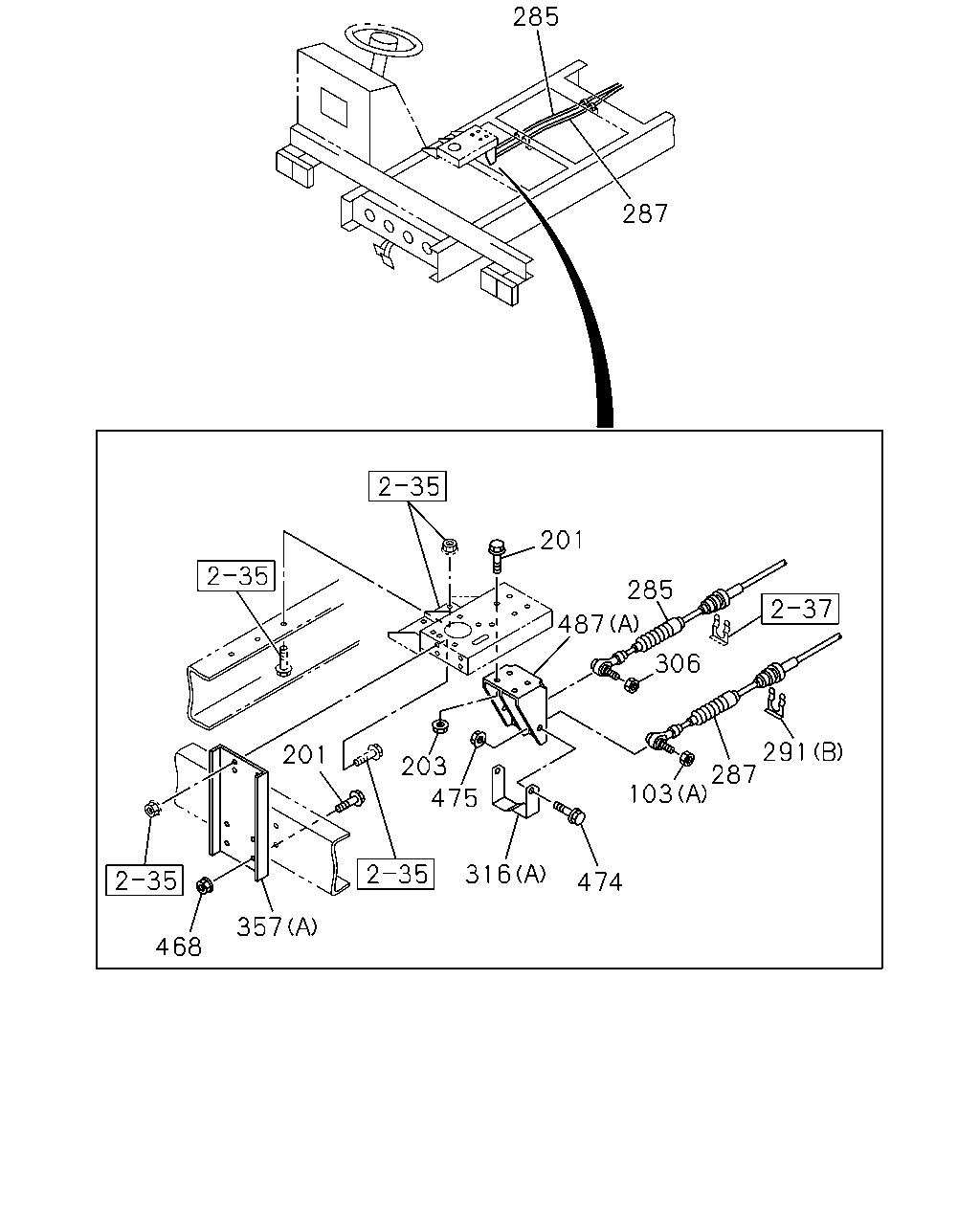

çizim 25959
285 287 201 285 487 306 291 287 201 203 103 475 316 474 357 468
BalonParca AdiParca NoAdetTipApplied Date A B
103 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0206-0208 ● ●
103 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91150-108-0 02 1 0209-0602 ●
103 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
103 NUT
(A) M8 FLANGE 		1-09440-062-1 01 1 0107- ● ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0107-0512 ● ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
201 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0107-0109 ● ●
201 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0107-0109 ● ●
201 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 10 1 0110-0512 ● ●
201 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 10 1 0601- ● ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 04 1 0107-0602 ● ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
203 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 08 1 0107-0109 ● ●
203 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 06 1 0110-0602 ● ●
203 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ●
285 WIRE; SHIFT,TRANS CONT
WHEEL BASE 5000MM(50W) 		1-33671-804-2 01 1 0107- ● ●
285 WIRE; SHIFT,TRANS CONT
WHEEL BASE 5700MM(57W) 		1-33671-736-2 01 1 0107- ● ●
287 WIRE; SELECT,TRANS CONT
WHEEL BASE 5000MM(50W) 		1-33671-805-1 01 1 0107- ● ●
287 WIRE; SELECT,TRANS CONT
WHEEL BASE 5700MM(57W) 		1-33671-735-1 01 1 0107- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0107- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=22.2 		1-09701-209-1 01 1 0107- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
WHEEL BASE 5000MM(50W) (C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 02 1 0107-0410 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
WHEEL BASE 5700MM(57W) (C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 04 1 0107-0410 ● ●
306 NUT; WIRE BRKT
M10 FLANGE 		1-09440-061-0 01 1 0107- ● ●
316 BRACKET; CLIP
(A) 		1-33657-736-0 01 1 0107- ● ●
316 BRACKET; CLIP
(B) 		1-47479-108-0 02 1 0107-0410 ● ●
316 BRACKET; CLIP
(C) 		1-47479-113-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
(D) 		1-47479-114-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
(E) 		1-47479-115-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (F) 		1-47479-109-0 03 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (H) 		1-47479-729-0 09 1 0411- ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (G) 		1-47479-221-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (F) 		1-47479-109-0 04 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (H) 		1-47479-729-0 10 1 0411- ● ●
357 BRACKET; RELAY LEVER
(A) 		1-33657-799-0 01 1 0107- ● ●
357 BRACKET; RELAY LEVER
(B) 		1-33657-802-1 01 1 0107- ● ●
468 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 0107-0410 ● ●
468 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0411-0602 ● ●
468 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
474 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ● ●
474 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 18 1 0107-0410 ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0411-0512 ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 24 1 0107-0410 ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0411-0512 ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28680-825-0 06 1 0107-0410 ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28680-825-0 18 1 0411-0512 ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 18 1 0601- ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28680-825-0 10 1 0107-0410 ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28680-825-0 20 1 0411-0512 ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28650-825-0 20 1 0601- ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 32 1 0107-0410 ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0411-0602 ● ●
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 06 1 0107-0410 ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 18 1 0411-0602 ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0603- ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 10 1 0107-0410 ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 20 1 0411-0602 ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 20 1 0603- ● ●
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0107- ● ●
487 BRACKET; CONT CABLE
(B) 		1-33657-803-0 01 1 0107- ● ●

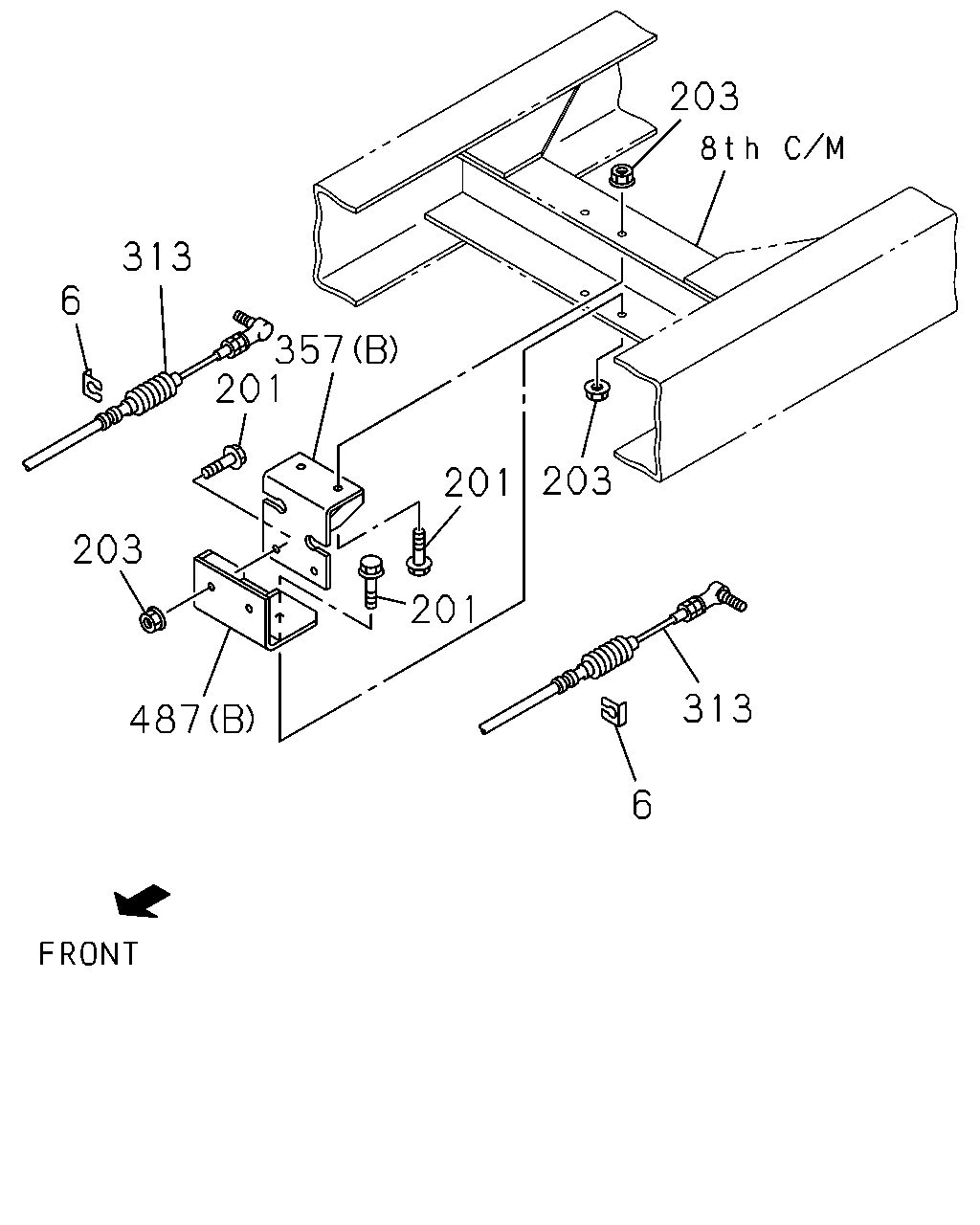

çizim 81177
203 313 6 357 201 203 201 203 201 313 487 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 CLIP; CABLE
ID=22.2 		1-09701-209-1 02 1 0107- ● ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0107-0512 ● ●
201 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
201 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0107-0109 ● ●
201 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0107-0109 ● ●
201 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 10 1 0110-0512 ● ●
201 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 10 1 0601- ● ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 04 1 0107-0602 ● ●
203 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
203 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 08 1 0107-0109 ● ●
203 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 06 1 0110-0602 ● ●
203 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ●
313 NUT; CLIP BRKT
M10 FLANGE 		1-09440-061-0 01 1 0107- ● ●
313 NUT; CLIP BRKT
M8 FLANGE 		1-09440-062-1 01 1 0107- ● ●
357 BRACKET; RELAY LEVER
(A) 		1-33657-799-0 01 1 0107- ● ●
357 BRACKET; RELAY LEVER
(B) 		1-33657-802-1 01 1 0107- ● ●
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0107- ● ●
487 BRACKET; CONT CABLE
(B) 		1-33657-803-0 01 1 0107- ● ●

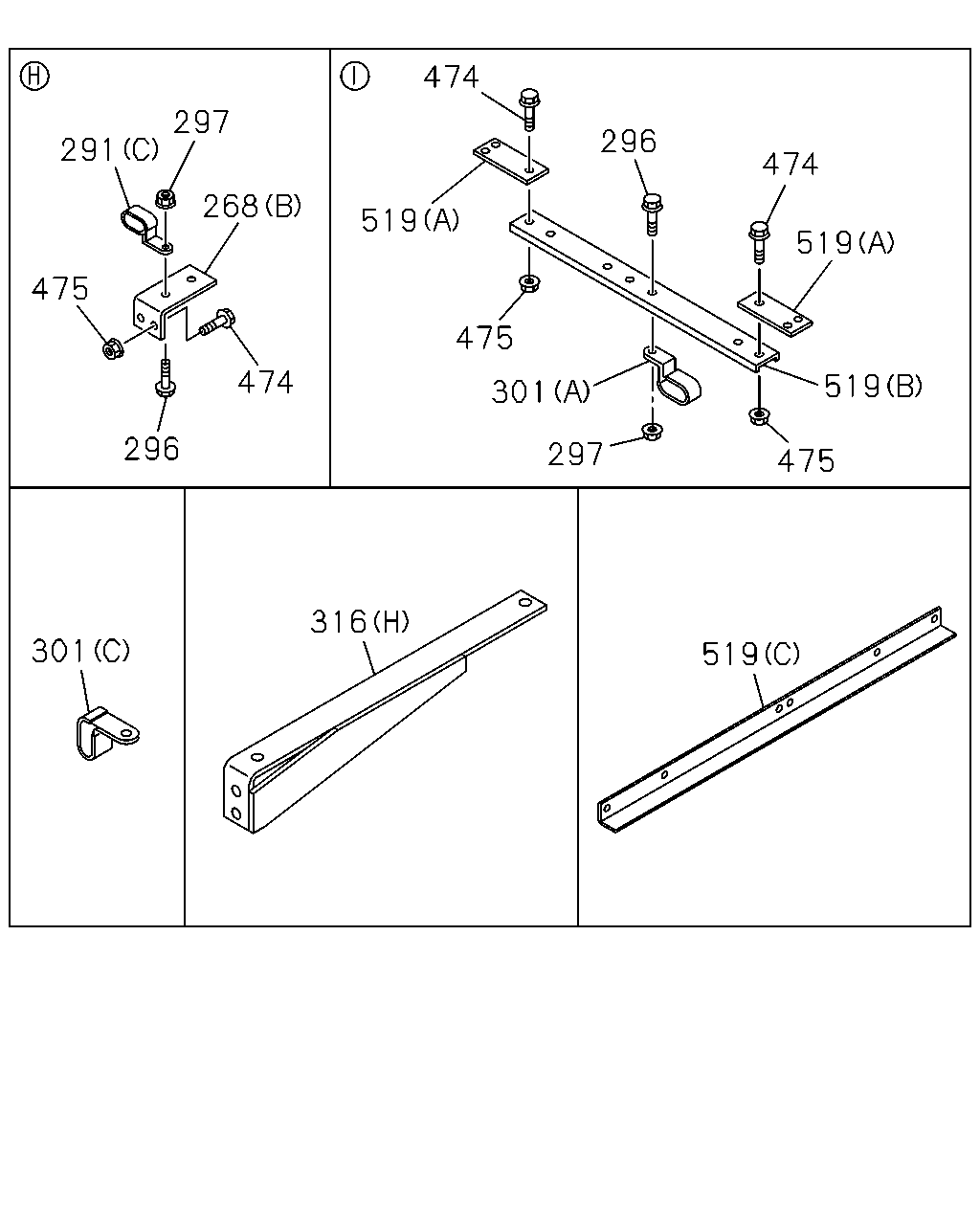

çizim 82501
474 297 296 291 474 268 519 519 475 475 474 519 301 296 297 475 316 301 519
BalonParca AdiParca NoAdetTipApplied Date A B
268 BRACKET; LINK ROD
(A) 		1-47479-107-0 01 1 0107- ● ●
268 BRACKET; LINK ROD
WHEEL BASE 5000MM(50W) (B) 		1-47479-108-0 02 1 0107-0410 ● ●
268 BRACKET; LINK ROD
WHEEL BASE 5700MM(57W) (B) 		1-47479-108-0 03 1 0107-0410 ● ●
268 BRACKET; LINK ROD
WHEEL BASE 5700MM(57W) (C) 		1-47479-221-0 01 1 0107-0410 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0107- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=22.2 		1-09701-209-1 01 1 0107- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
WHEEL BASE 5000MM(50W) (C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 02 1 0107-0410 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
WHEEL BASE 5700MM(57W) (C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 04 1 0107-0410 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28680-820-0 04 1 0107-0410 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28680-820-0 04 1 0107-0410 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28680-820-0 15 1 0411-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28650-820-0 15 1 0601- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5000MM(50W) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0410 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5000MM(50W) M8X20 FLANGE 		0-28680-820-0 13 1 0411-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
WHEEL BASE 5000MM(50W) M8X20 FLANGE 		0-28650-820-0 13 1 0601- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0410 ● ●
297 NUT; CLIP
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 02 1 0107-0410 ● ●
297 NUT; CLIP
M10 FLANGE 		0-91150-210-0 02 1 0107-0602 ● ●
297 NUT; CLIP
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
297 NUT; CLIP
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 04 1 0107-0410 ● ●
301 CLIP; WIRE
WHEEL BASE 5700MM(57W) (C) ID=13X2 L=32 		1-09701-245-0 15 1 0411- ● ●
301 CLIP; WIRE
(A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 06 1 0107-0410 ● ●
301 CLIP; WIRE
(A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 01 1 0411-0906 ● ●
301 CLIP; WIRE
(A) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 01 1 0907- ● ●
301 CLIP; WIRE
(B) ID=10 		8-94450-392-0 12 1 0107-0410 ● ●
301 CLIP; WIRE
WHEEL BASE 5000MM(50W) (C) ID=13X2 L=32 		1-09701-245-0 13 1 0411- ● ●
316 BRACKET; CLIP
(A) 		1-33657-736-0 01 1 0107- ● ●
316 BRACKET; CLIP
(B) 		1-47479-108-0 02 1 0107-0410 ● ●
316 BRACKET; CLIP
(C) 		1-47479-113-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
(D) 		1-47479-114-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
(E) 		1-47479-115-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (F) 		1-47479-109-0 03 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (H) 		1-47479-729-0 09 1 0411- ● ●
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) (G) 		1-47479-221-0 01 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (F) 		1-47479-109-0 04 1 0107-0410 ● ●
316 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (H) 		1-47479-729-0 10 1 0411- ● ●
474 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ● ●
474 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 18 1 0107-0410 ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0411-0512 ● ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 24 1 0107-0410 ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0411-0512 ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28680-825-0 06 1 0107-0410 ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28680-825-0 18 1 0411-0512 ● ●
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 18 1 0601- ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28680-825-0 10 1 0107-0410 ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28680-825-0 20 1 0411-0512 ● ●
474 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28650-825-0 20 1 0601- ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 32 1 0107-0410 ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0411-0602 ● ●
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 06 1 0107-0410 ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91150-108-0 18 1 0411-0602 ● ●
475 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0603- ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 10 1 0107-0410 ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91150-108-0 20 1 0411-0602 ● ●
475 NUT; BRKT
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 20 1 0603- ● ●
519 BRACKET; FRAME
(A) 		1-47479-111-0 04 1 0107-0410 ● ●
519 BRACKET; FRAME
(C) 		1-47479-486-0 01 1 0411- ● ●
519 BRACKET; FRAME
(B) 		1-47479-112-0 02 1 0107-0410 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
