Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#30892) — 240 parça

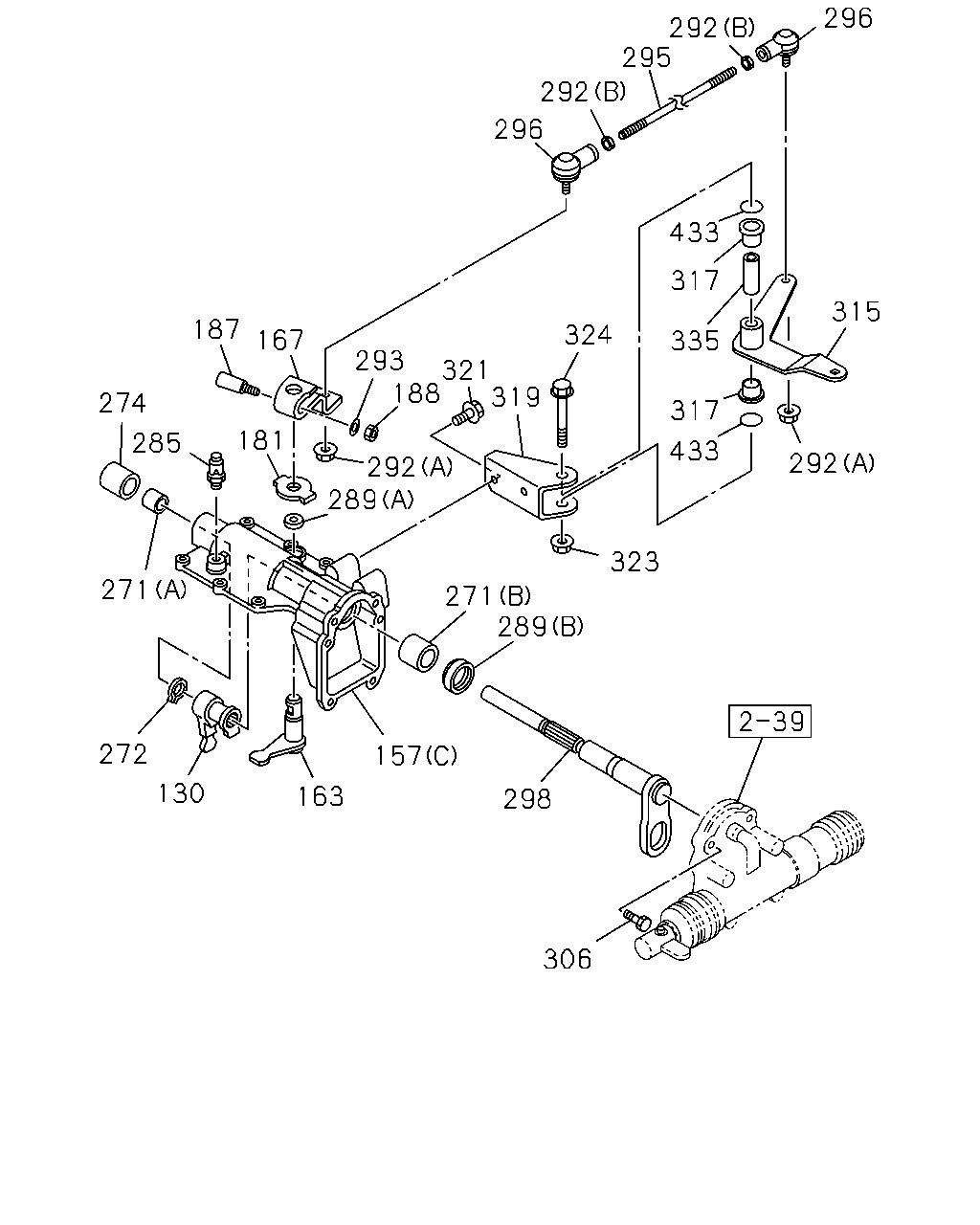

296 292 295 292 296 433 317 315 187 324 167 335 293 321 188 319 274 317 181 285 433 292 292 289 323 271 271 289 272 157 130 163 298 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0107-	●
130	LEVER; SHIFT,INTERNAL	1-33521-110-1	01	1	0107-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0107-	●
157	BOX; QUAD,TRANS (C)	1-33541-349-1	01	1	0107-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-482-0	01	1	0107-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0107-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0107-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0107-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0107-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0107-	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0107-	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0107-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0107-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0107-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0107-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-334-0	01	1	0107-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	0107-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0107-0512	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0107-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0107-	●	●
296	ROD END L=48	1-09760-038-1	02	1	0107-0309	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-	●	●
298	SHAFT; SHIFT LEVER	1-33522-105-1	01	1	0107-0307	●	●
298	SHAFT; SHIFT LEVER	1-33522-182-0	01	1	0308-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0107-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	0107-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-	●	●
315	LEVER; SELECT	1-33651-795-0	01	1	0107-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0107-	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0107-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0107-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0107-	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0107-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0107-	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0107-	●	●

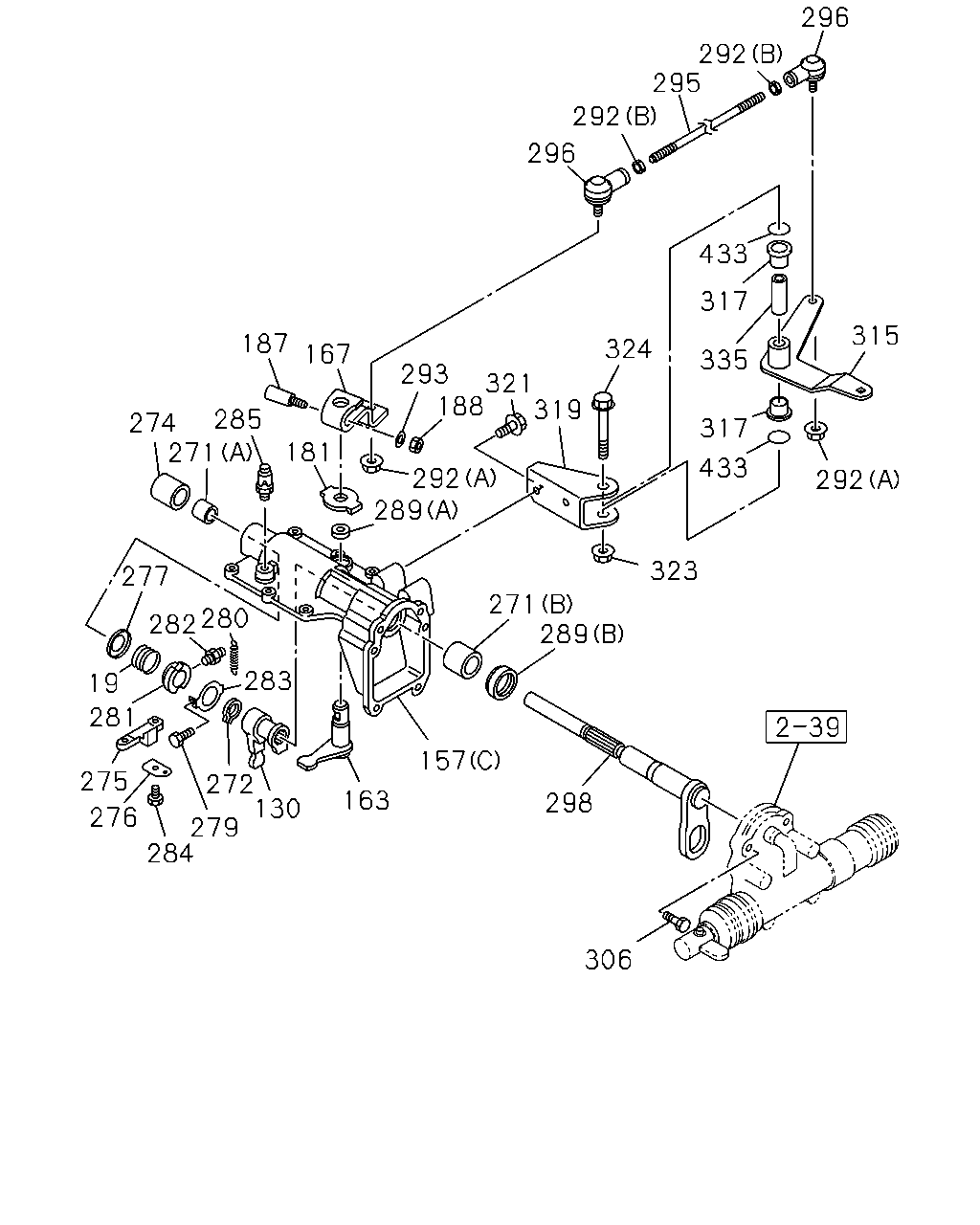

296 292 295 292 296 433 317 315 187 324 167 335 293 321 188 319 285 274 271 317 181 433 292 289 292 323 277 271 289 280 282 283 19 281 157 275 272 130 163 298 276 279 284 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP	1-09580-441-0	01	1	0107-	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	0107-		●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0107-	●
130	LEVER; SHIFT,INTERNAL	1-33521-110-1	01	1	0107-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0107-	●
157	BOX; QUAD,TRANS (C)	1-33541-349-1	01	1	0107-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-482-0	01	1	0107-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0107-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0107-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0107-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0107-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0107-	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0107-	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0107-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0107-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0107-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	0107-		●
276	PLATE; SPRING RET	1-33529-010-0	01	1	0107-		●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	0107-		●
279	BOLT; STOPPER M5X8	0-20800-508-0	01	1	0107-		●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	0107-		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-025-2	01	1	0107-		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	0107-		●
283	STOPPER; SHIFT SHAFT	1-33529-029-0	01	1	0107-		●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	0107-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0107-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-334-0	01	1	0107-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	0107-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0107-0512	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0107-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0107-	●	●
296	ROD END L=48	1-09760-038-1	02	1	0107-0309	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-	●	●
298	SHAFT; SHIFT LEVER	1-33522-105-1	01	1	0107-0307	●	●
298	SHAFT; SHIFT LEVER	1-33522-182-0	01	1	0308-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0107-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	0107-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-	●	●
315	LEVER; SELECT	1-33651-795-0	01	1	0107-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0107-	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0107-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0107-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0107-	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0107-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0107-	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0107-	●	●

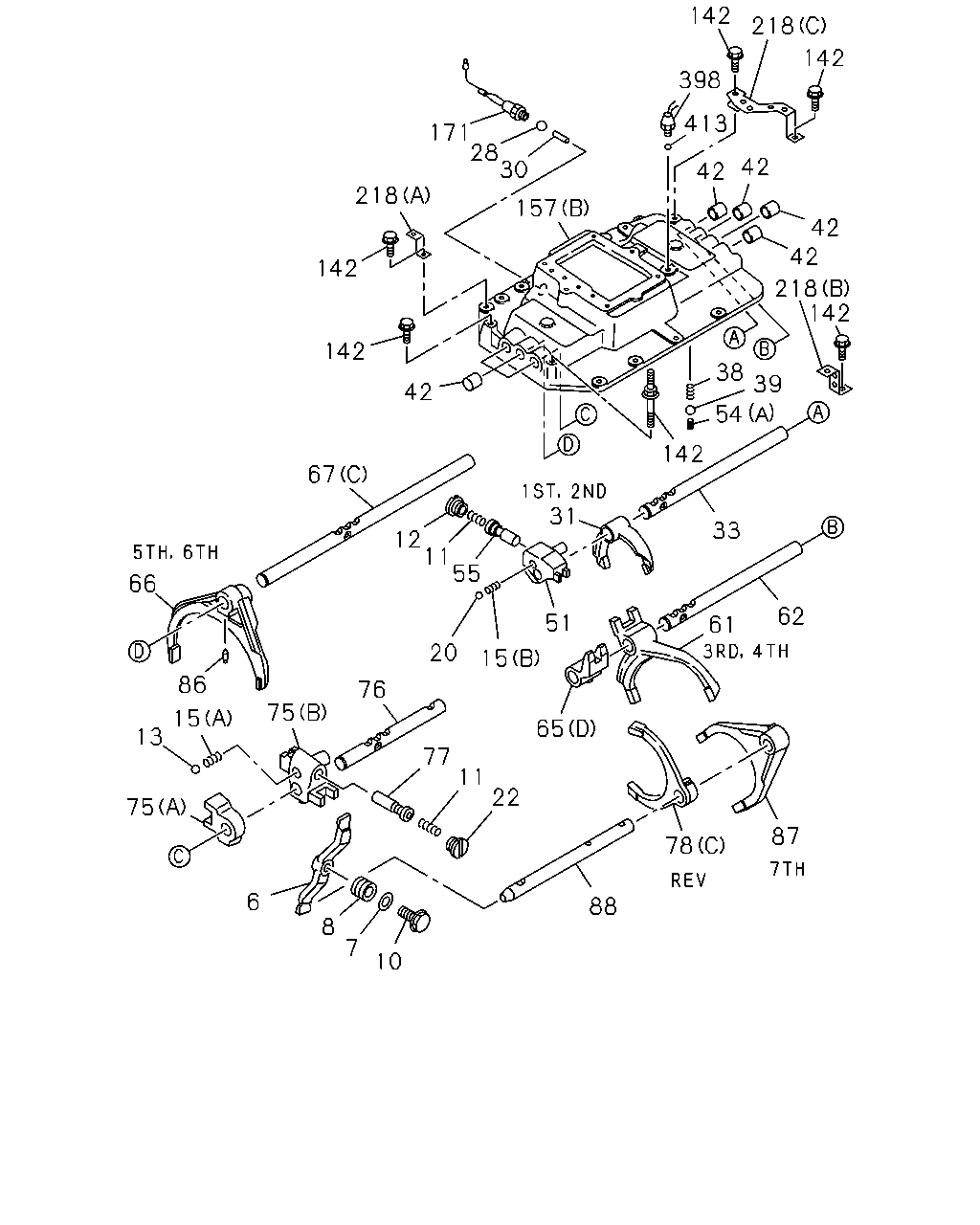

142 218 142 398 413 171 28 30 42 42 218 157 42 42 142 218 142 142 38 39 42 54 142 67 31 33 12 11 55 66 62 51 61 20 15 86 76 75 15 65 13 77 11 22 75 87 78 7 6 88 8 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	1-33511-009-1	01	1	0107-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0107-		●
8	SPINDLE; REV & 7TH	9-33513-022-1	01	1	0107-		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0107-		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0107-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0107-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0107-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	0107-	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	0107-		●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	0107-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0107-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0107-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0107-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0107-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0107-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0107-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	0107-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0107-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	0107-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0107-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0107-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0107-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0107-		●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-311-2	01	1	0107-		●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	0107-0201	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0107-	●	●
55	SLEEVE; 1ST & 2ND	1-33516-025-0	01	1	0107-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0107-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	0107-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0107-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	0107-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0107-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0107-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0107-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-331-3	01	1	0107-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0107-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	0107-		●
67	ROD; SHIFT,5TH & 6TH (B) L=122	1-33531-235-1	01	1	0107-	●
67	ROD; SHIFT,5TH & 6TH (A) L=278	1-33531-255-1	01	1	0107-	●
67	ROD; SHIFT,5TH & 6TH (C) L=407	1-33531-248-0	01	1	0107-		●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-202-3	01	1	0107-		●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-309-1	01	1	0107-		●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-249-0	01	1	0107-		●
77	SLEEVE; REV & 7TH	1-33516-025-0	01	1	0107-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0107-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0107-	●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	0107-		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0107-	●	●
87	ARM; SHIFT,7TH	1-33511-229-4	01	1	0107-		●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-250-0	01	1	0107-		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0107-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	0107-0512	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	0107-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0107-	●
157	BOX; QUAD,TRANS (C)	1-33541-349-1	01	1	0107-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-482-0	01	1	0107-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0107-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	02	1	0107-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	0107-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0107-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0107-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0107-	●	●

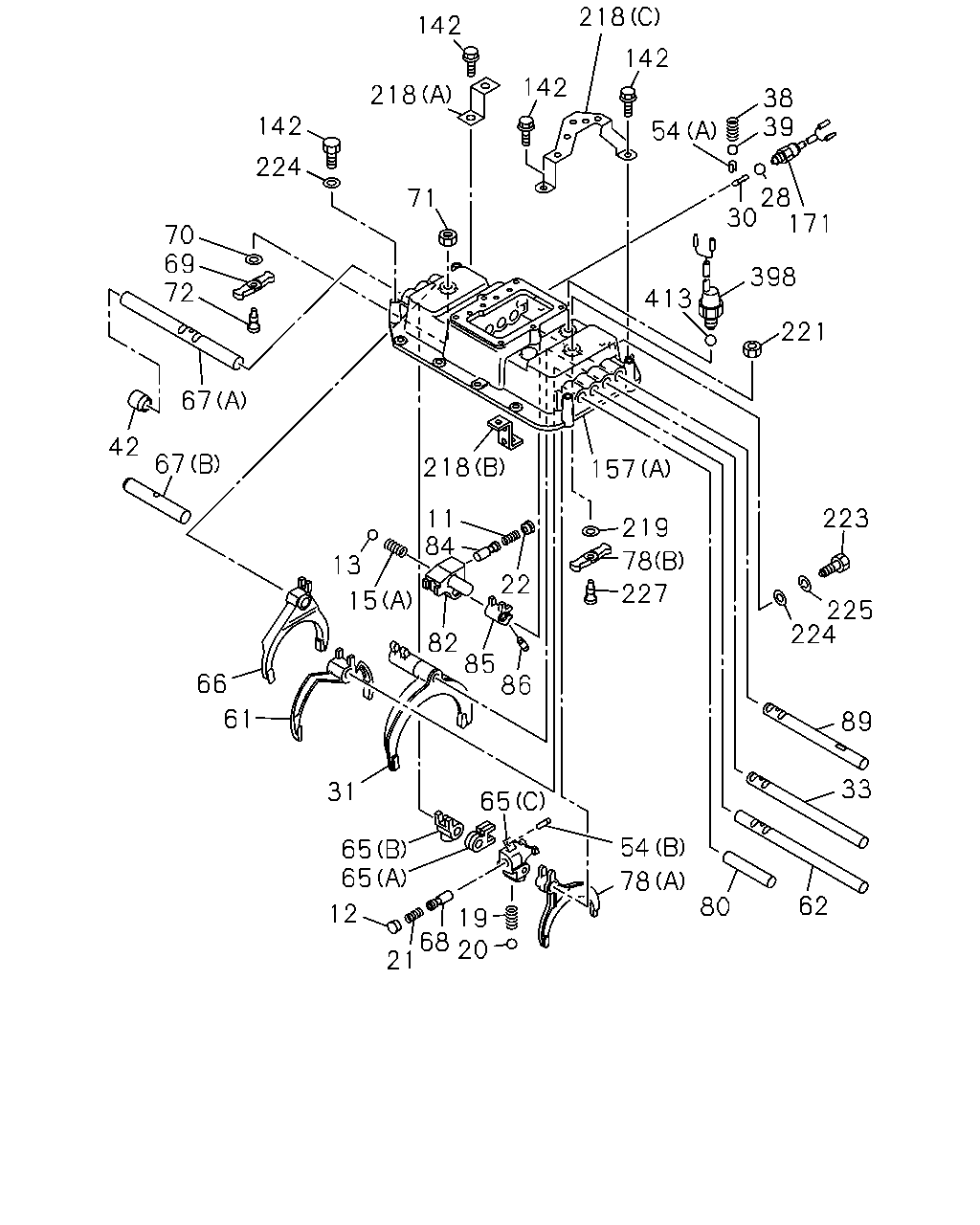

218 142 142 142 218 38 39 142 54 224 28 30 171 71 70 69 72 398 413 221 67 42 218 67 157 223 11 84 219 78 13 22 227 15 225 224 82 85 86 66 61 89 33 31 65 19 68 20 21 54 65 65 78 62 80 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0107-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0107-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0107-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	0107-	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	0107-		●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	0107-		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0107-	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	0107-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0107-	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0107-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0107-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0107-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0107-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0107-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0107-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	0107-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0107-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	0107-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0107-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0107-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0107-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0107-		●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	0107-0201	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0107-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0107-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	0107-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0107-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	0107-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0107-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0107-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0107-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-331-3	01	1	0107-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0107-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	0107-		●
67	ROD; SHIFT,5TH & 6TH (B) L=122	1-33531-235-1	01	1	0107-	●
67	ROD; SHIFT,5TH & 6TH (A) L=278	1-33531-255-1	01	1	0107-	●
67	ROD; SHIFT,5TH & 6TH (C) L=407	1-33531-248-0	01	1	0107-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0107-	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0107-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0107-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0107-0602	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0603-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0107-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0107-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0107-	●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	0107-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0107-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0107-	●
84	SLEEVE; REV	1-33516-025-0	01	1	0107-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0107-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0107-	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0107-	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0107-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	0107-0512	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	0107-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0107-	●
157	BOX; QUAD,TRANS (C)	1-33541-349-1	01	1	0107-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-482-0	01	1	0107-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0107-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	02	1	0107-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	0107-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0107-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0107-	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0107-0602	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0107-	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0107-0605	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0107-0603	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0107-	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0107-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0107-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
