2-20 — MANUAL TRANSMISSION ASM AND CASE (#30889) — 96 parça

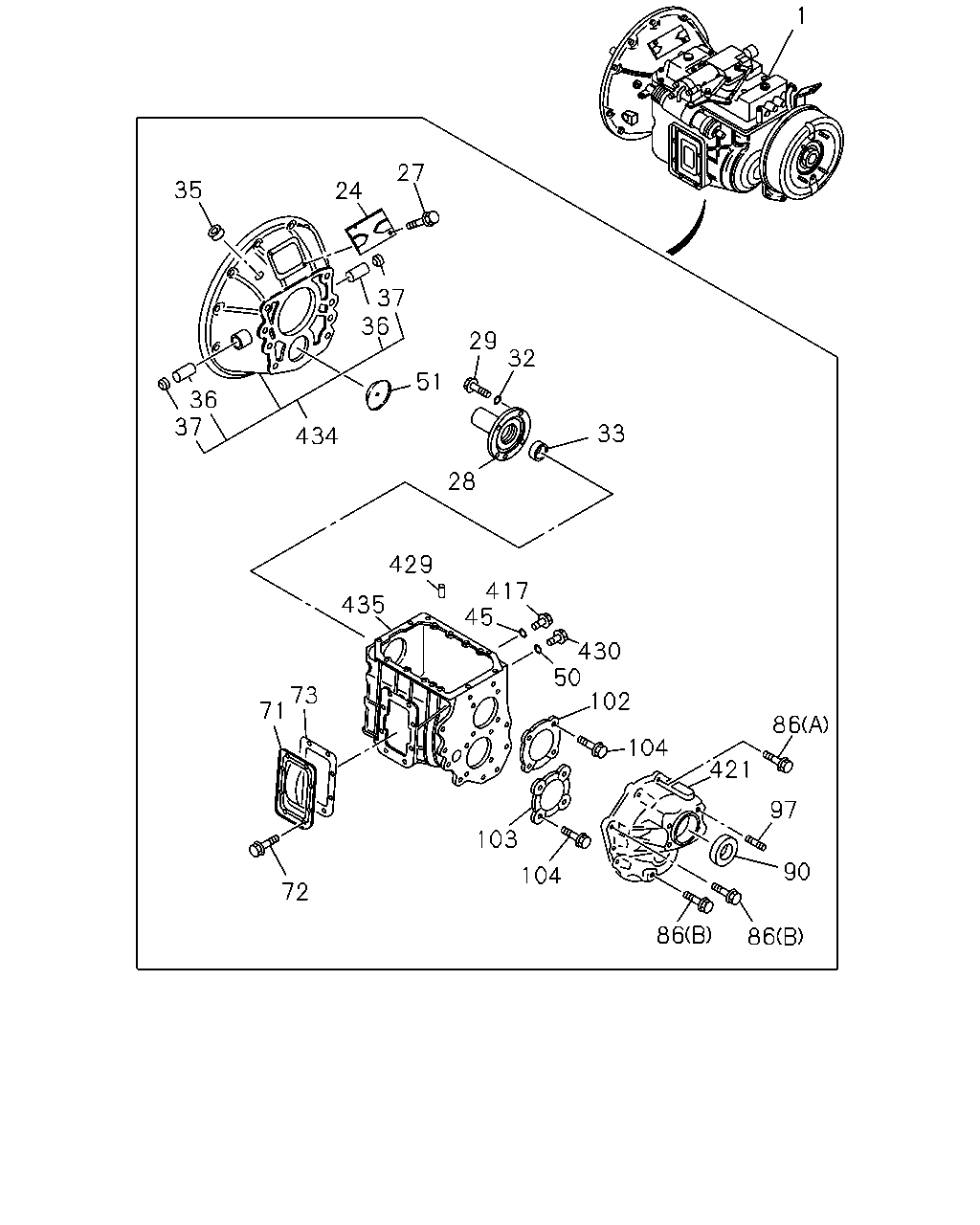

1 27 35 24 37 36 29 32 51 36 37 33 434 28 429 417 45 435 430 50 73 71 102 104 421 97 103 90 104 72 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	1-33043-320-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-321-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	1-33043-322-0	01	1	0107-		●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-323-0	01	1	0107-		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0107-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0107-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0107-0805	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0107-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0107-	●	●
35	GROMMET; CLU HSG OD=15 T=6.6	8-97037-246-0	01	1	0107-	●	●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	0107-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0107-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0107-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0107-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0107-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0107-	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0107-0512	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0107-	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0107-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0107-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	0107-		●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	0107-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0107-	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0107-	●	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	03	1	0107-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	0107-		●
103	RETAINER; BRG	1-33151-037-0	01	1	0107-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0107-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0107-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-178-1	01	1	0107-	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-177-1	01	1	0107-	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-215-0	01	1	0107-		●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-087-4	01	1	0107-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0107-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0107-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	0107-		●
434	HOUSING; CLU	1-31110-169-0	01	1	0107-	●	●
435	CASE; TRANS	1-33111-235-0	01	1	0107-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●
435	CASE; TRANS	1-33111-236-1	01	1	0107-		●

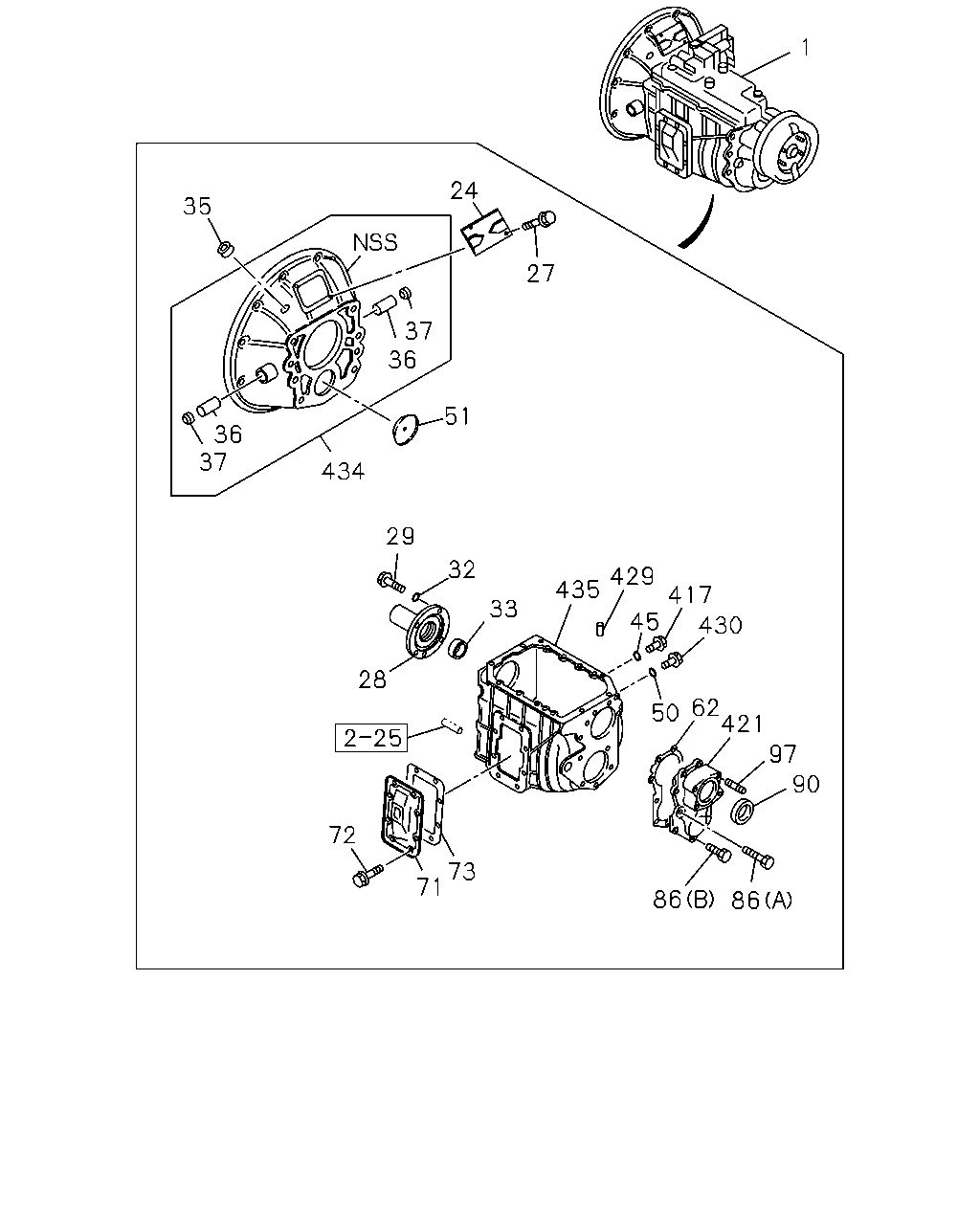

1 24 35 27 37 36 51 36 37 434 29 32 429 435 417 45 33 430 28 62 421 50 97 90 72 73 71 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	1-33043-320-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-321-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	1-33043-322-0	01	1	0107-		●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-323-0	01	1	0107-		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0107-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0107-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0107-0805	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0107-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0107-	●	●
35	GROMMET; CLU HSG OD=15 T=6.6	8-97037-246-0	01	1	0107-	●	●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	0107-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0107-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0107-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0107-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0107-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0107-	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0107-	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0107-0512	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0107-	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0107-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0107-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	0107-		●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	0107-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0107-	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0107-	●	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	03	1	0107-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0107-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-178-1	01	1	0107-	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-177-1	01	1	0107-	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-215-0	01	1	0107-		●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-087-4	01	1	0107-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0107-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0107-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	0107-		●
434	HOUSING; CLU	1-31110-169-0	01	1	0107-	●	●
435	CASE; TRANS	1-33111-235-0	01	1	0107-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●
435	CASE; TRANS	1-33111-236-1	01	1	0107-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
