Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#30885) — 72 parça

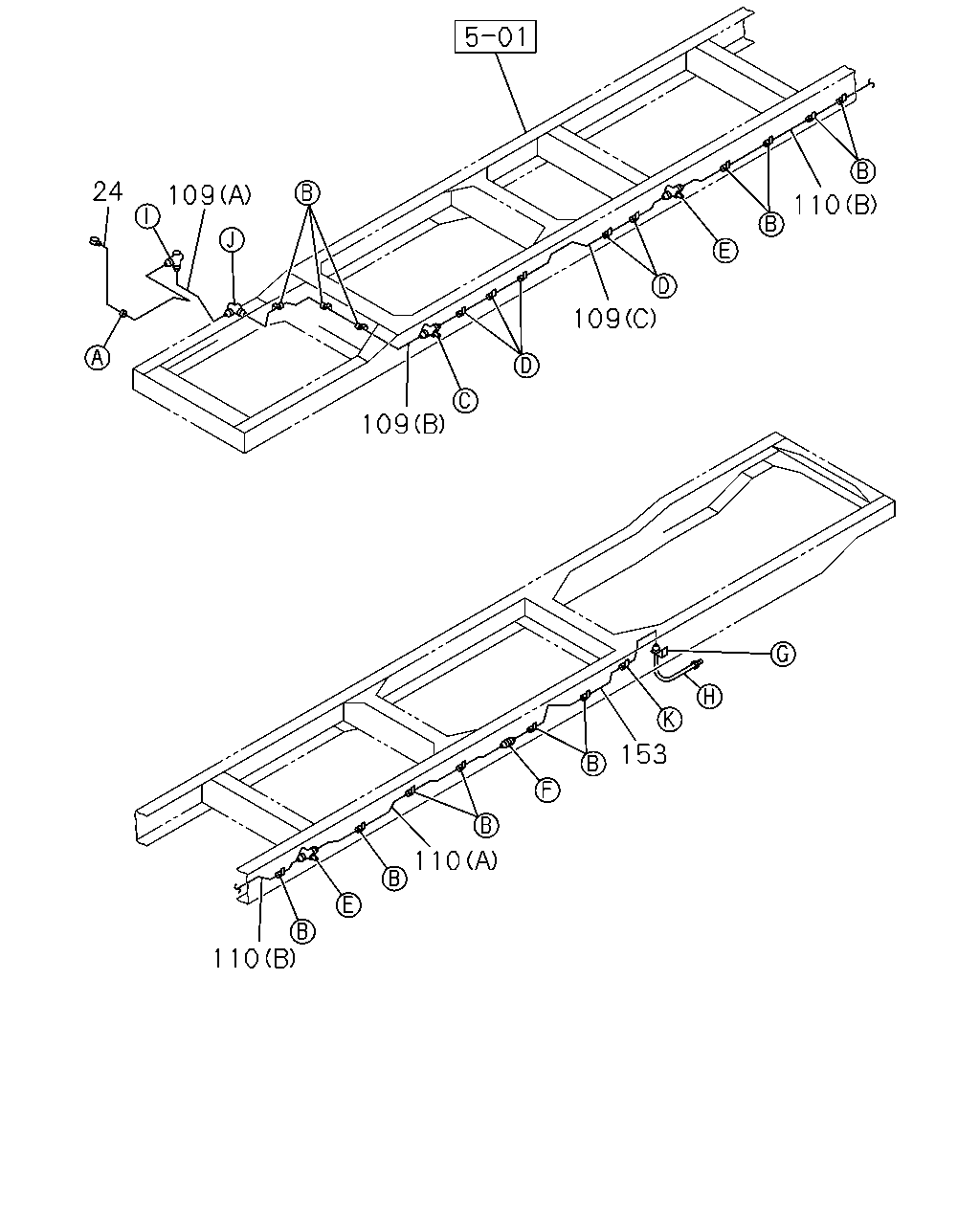

109 33 109 154 34 35 106 107 110 33 111 109 34 153 35 110 106 153 115 116 37 36 36 38 48 47 87 88 24 106 107 109 92 29 147 109 109 50 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	0107-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	14	1	0107-	●	●
33	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-	●	●
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0107-	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	14	1	0107-0512	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28650-830-0	14	1	0601-	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) (B) M8X30 FLANGE	0-28680-830-0	03	1	0107-0512	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) (B) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) (B) M8X30 FLANGE	0-28680-830-0	05	1	0107-0512	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) (B) M8X30 FLANGE	0-28650-830-0	05	1	0601-	●	●
35	NUT; PIPE CLIP (A) M8 FLANGE	0-91150-108-0	14	1	0107-0602	●	●
35	NUT; PIPE CLIP (A) M8 FLANGE	0-91180-108-0	14	1	0603-	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) (B) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) (B) M8 FLANGE	0-91150-108-0	05	1	0107-0602	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) (B) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
36	BRACKET; CLIP	1-47477-865-0	01	1	0107-	●	●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●	●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
47	HOSE; FLEX,CLU CONT L=500	1-09364-329-0	01	1	0107-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-	●	●
50	NUT; UNION M12 FLANGE	0-91150-212-0	02	1	0107-0602	●	●
50	NUT; UNION M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
87	UNION; OIL PIPE M14	9-09225-108-1	01	1	0107-0607	●	●
87	UNION; OIL PIPE M14	0-92125-108-0	01	1	0608-	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	0107-0512	●	●
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0601-	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0107-	●	●
106	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	02	1	0107-	●	●
106	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0107-0607	●	●
106	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0608-	●	●
107	NUT; UNION,OIL PIPE (A) M12 FLANGE	0-91150-212-0	02	1	0107-0602	●	●
107	NUT; UNION,OIL PIPE (A) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
107	NUT; UNION,OIL PIPE (B) M14	9-99111-414-0	01	1	0107-0512	●	●
107	NUT; UNION,OIL PIPE (B) M14	0-91111-514-0	01	1	0601-	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1534 SERVICED BY L=1550	1-47426-390-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION (A) L=455 SERVICED BY L=500	1-47426-376-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=1359 SERVICED BY L=1400	1-47428-850-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) (C) L=2068 SERVICED BY L=2150	1-47428-855-0	01	1	0107-	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1007 SERVICED BY L=1000	1-47426-386-0	01	1	0107-	●	●
110	PIPE; OIL,UNION TO UNION (B) L=1934 SERVICED BY L=2150	1-47426-394-0	01	1	0107-	●	●
111	UNION; OIL PIPE M14 2WAY	1-09654-176-2	02	1	0107-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2256 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0401	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2265 SERVICED BY L=2400	1-47426-395-0	01	1	0402-	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0107-	●	●

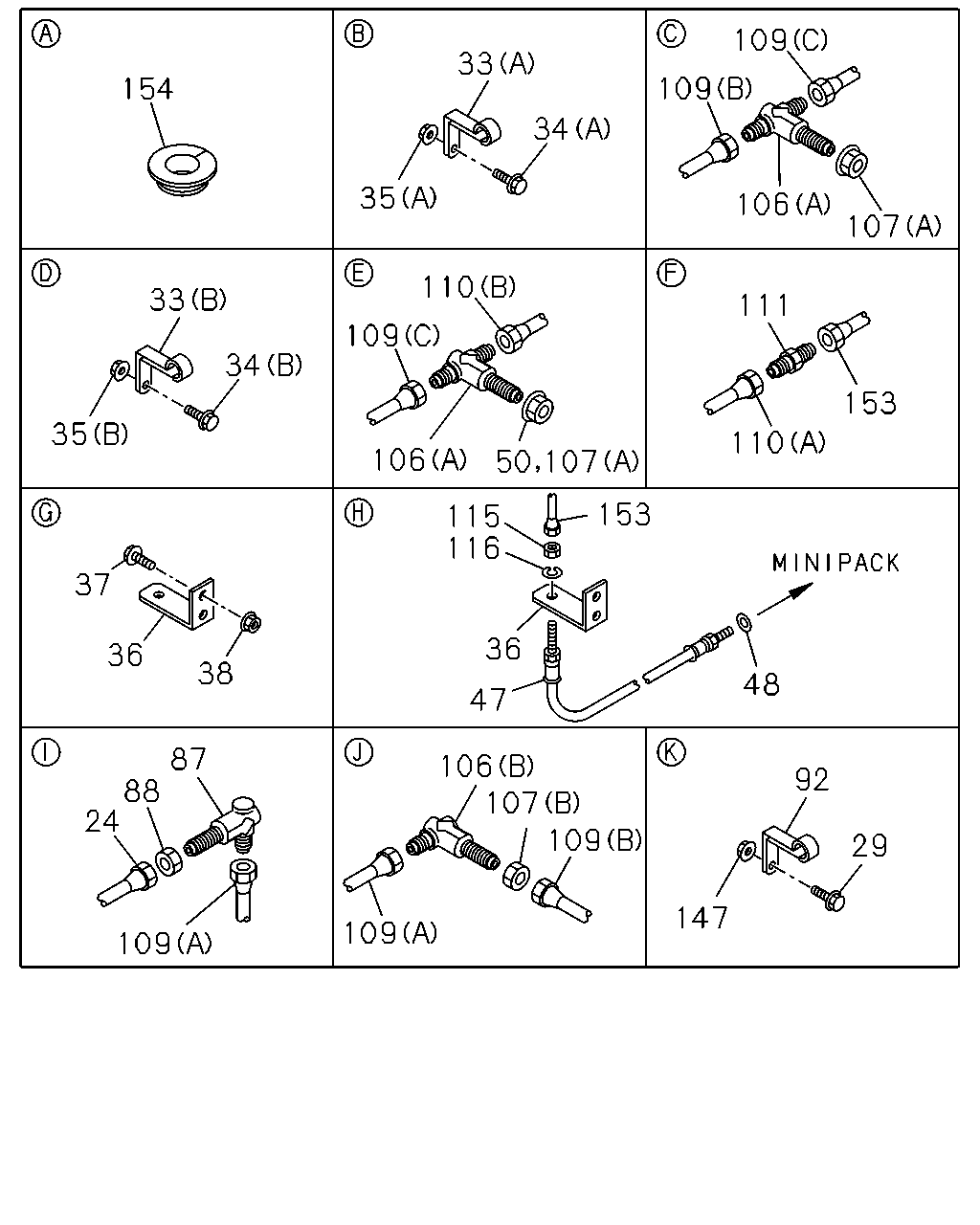

24 109 110 109 109 153 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1534 SERVICED BY L=1550	1-47426-390-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION (A) L=455 SERVICED BY L=500	1-47426-376-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=1359 SERVICED BY L=1400	1-47428-850-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) (C) L=2068 SERVICED BY L=2150	1-47428-855-0	01	1	0107-	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1007 SERVICED BY L=1000	1-47426-386-0	01	1	0107-	●	●
110	PIPE; OIL,UNION TO UNION (B) L=1934 SERVICED BY L=2150	1-47426-394-0	01	1	0107-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2256 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0401	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2265 SERVICED BY L=2400	1-47426-395-0	01	1	0402-	●	●

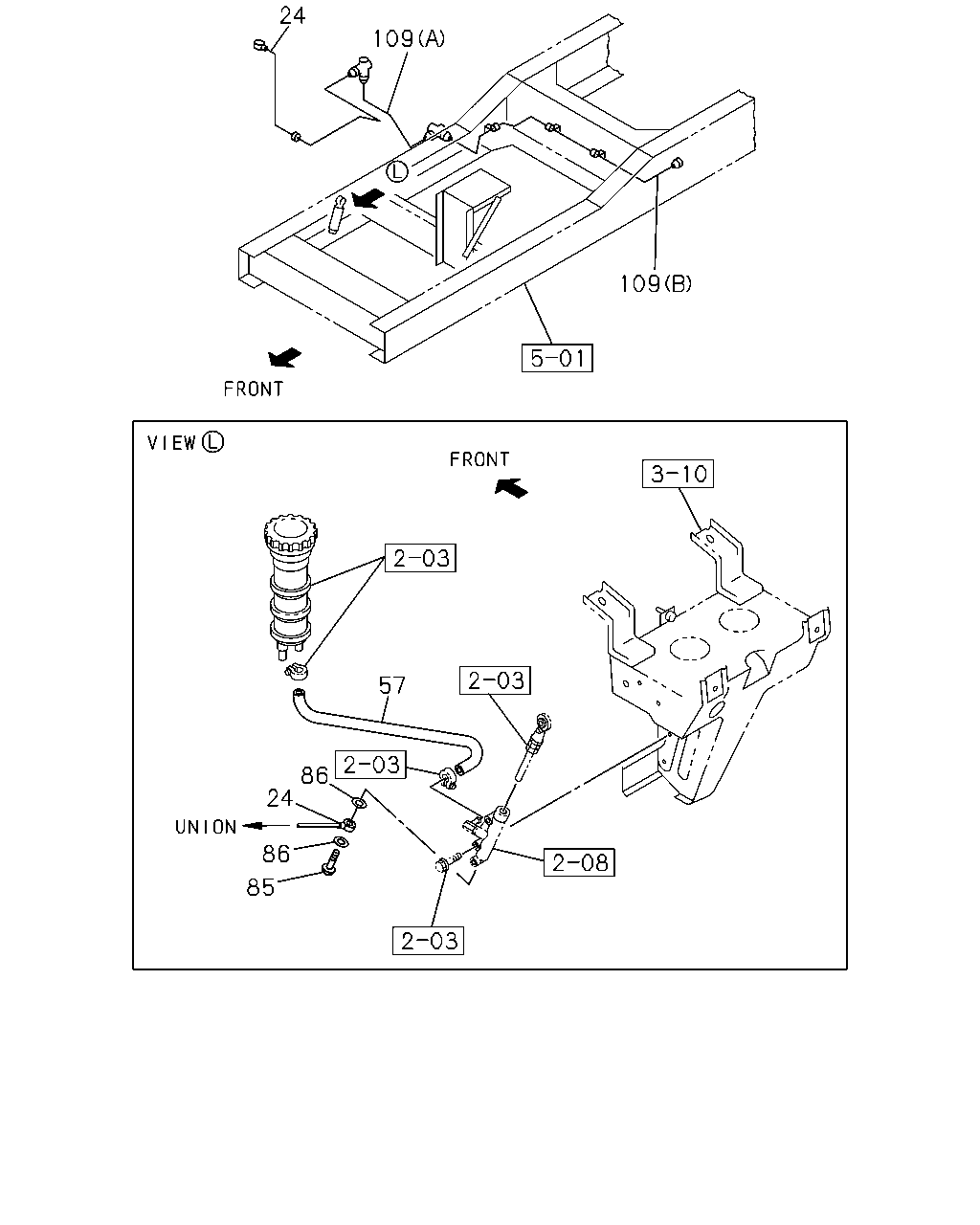

24 109 109 57 86 24 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	0107-	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0107-	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE BOLT	9-09906-325-1	01	1	0107-	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1534 SERVICED BY L=1550	1-47426-390-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION (A) L=455 SERVICED BY L=500	1-47426-376-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=1359 SERVICED BY L=1400	1-47428-850-0	01	1	0107-	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) (C) L=2068 SERVICED BY L=2150	1-47428-855-0	01	1	0107-	●	●
