2-01 — CLUTCH (#30883) — 67 parça

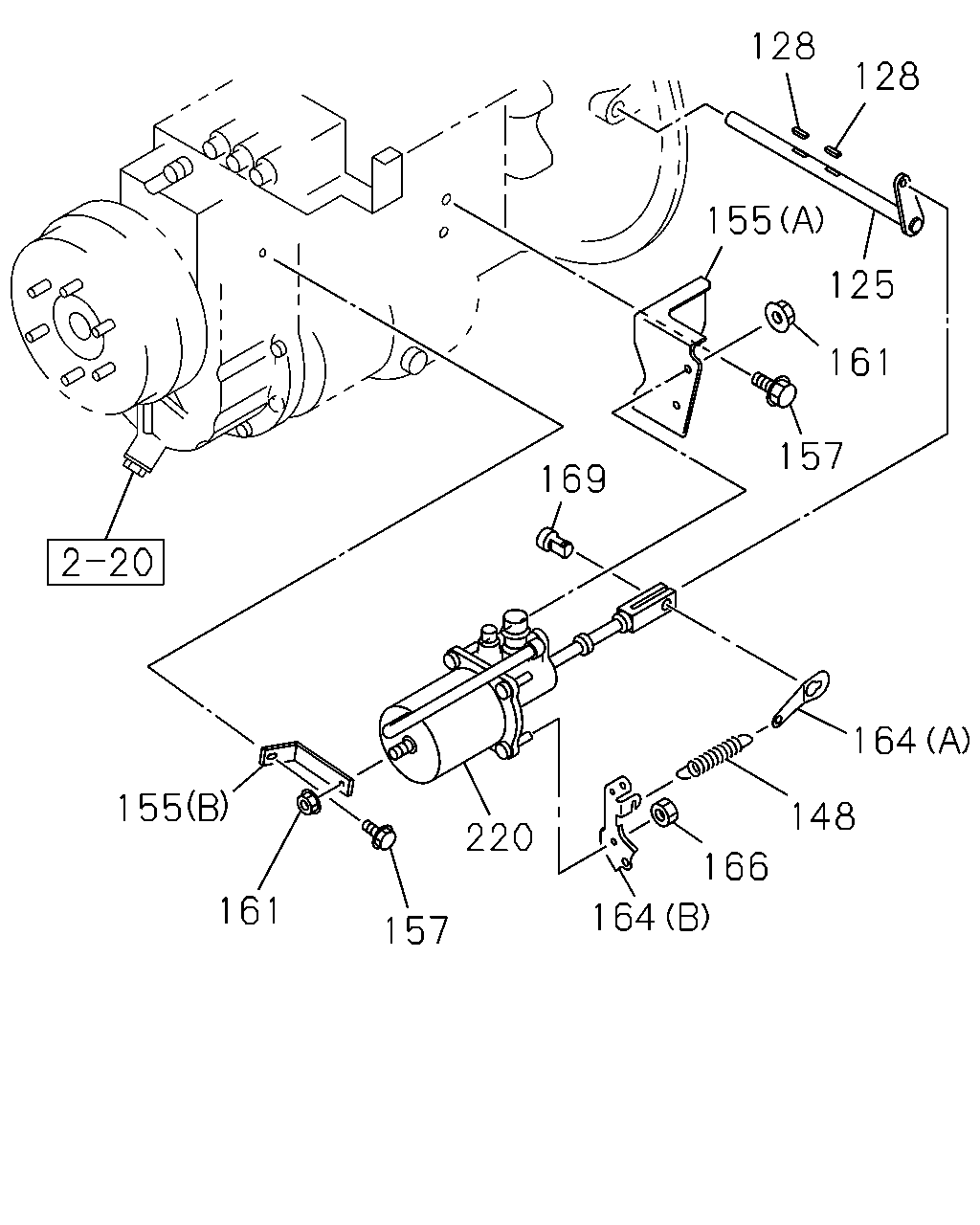

128 128 155 125 161 157 169 164 155 148 220 166 161 164 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
125	SHAFT; CLU	1-31342-169-1	01	1	0107-	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0107-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0107-	●	●
155	BRACKET; MINIPACK (A)	1-31429-175-2	01	1	0107-	●	●
155	BRACKET; MINIPACK (B)	1-31429-176-0	01	1	0107-	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0107-	●	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	0107-0602	●	●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-	●	●
164	EYE; SPRING (A)	1-31426-041-0	01	1	0107-	●	●
164	EYE; SPRING (B)	1-47477-789-0	01	1	0107-	●	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	0107-0602	●	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0107-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-499-1	01	1	0107-	●	●

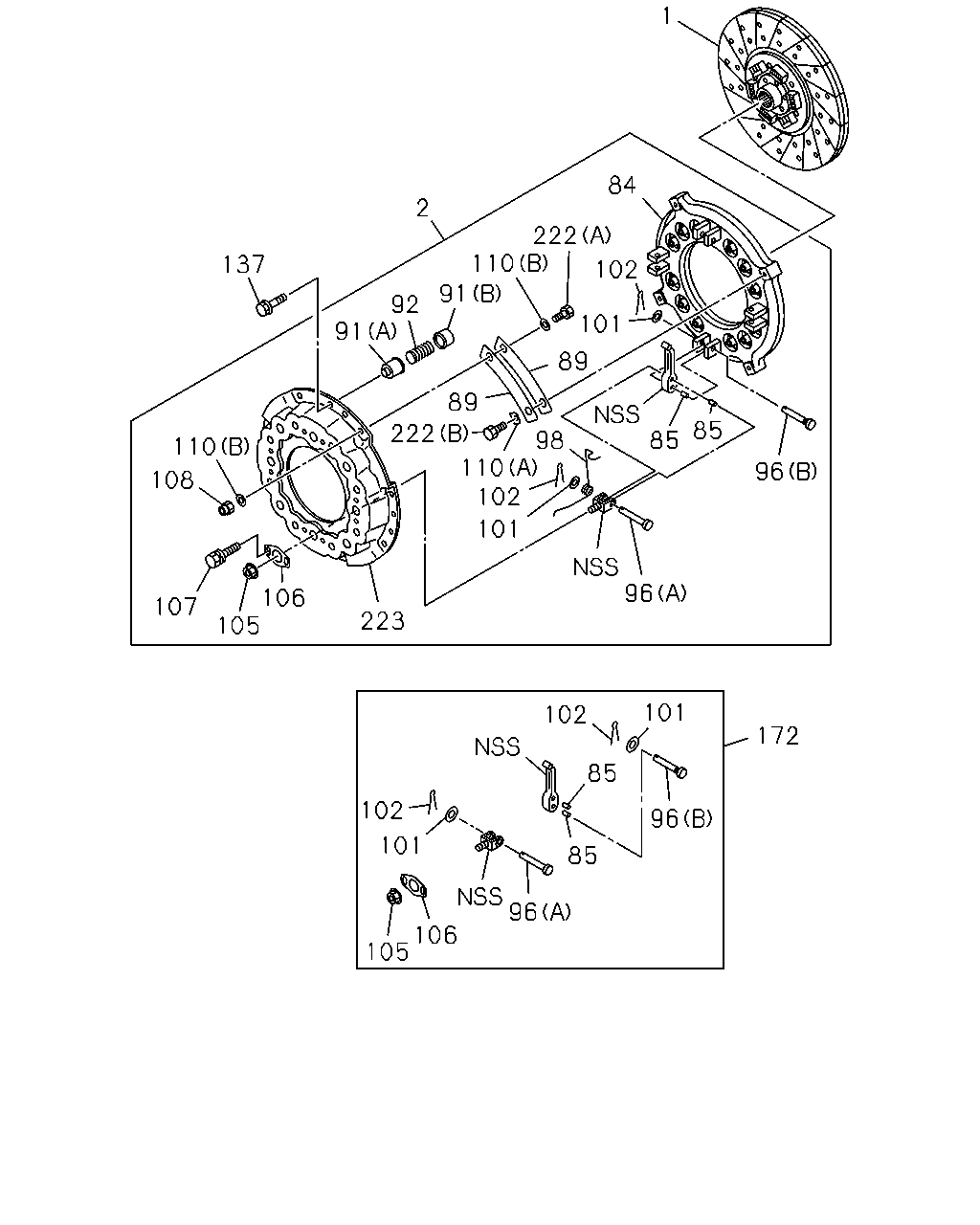

1 84 2 222 110 91 137 102 92 101 91 89 89 85 85 222 98 110 102 110 96 108 101 96 106 105 107 223 101 102 172 85 102 96 101 85 96 106 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 15"	1-31240-851-1	01	1	0107-	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-207-2	01	1	0107-0109	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0110-	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0107-	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0107-	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0107-	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0107-	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0107-	●	●
92	SPRING; CLU	1-31214-019-0	12	1	0107-0308	●	●
92	SPRING; CLU	1-31214-086-0	12	1	0309-	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0107-	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0107-	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0107-	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0107-0109	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0107-	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0107-0109	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0107-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0107-0308	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0107-	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0107-0403	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0404-	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0107-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0107-0512	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-513-0	01	1	0107-0109	●	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-3	01	1	0110-0305	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0306-	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0107-	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0107-	●	●
223	COVER; CLU	1-31211-019-1	01	1	0107-	●	●

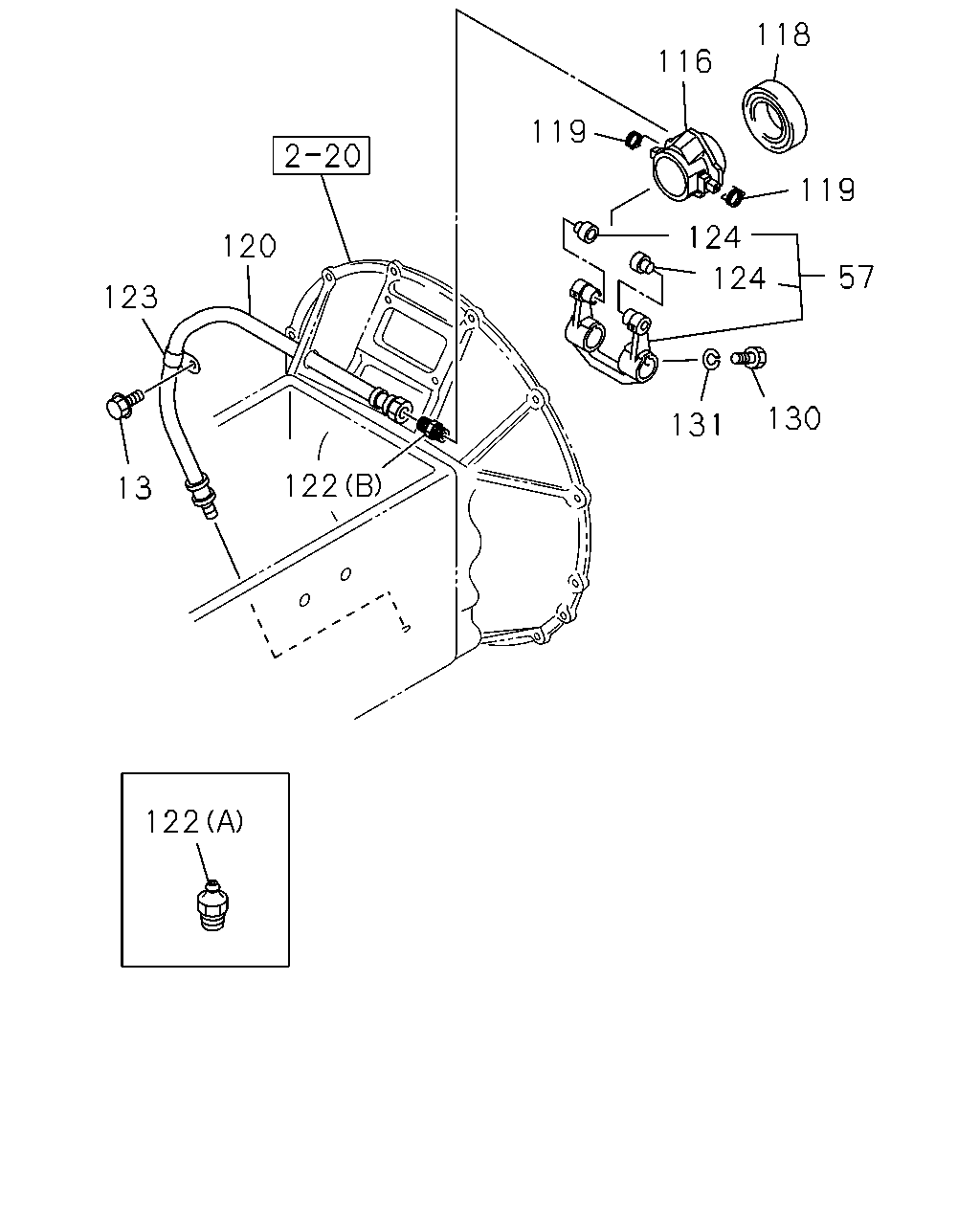

118 116 119 119 124 120 57 124 123 130 131 122 13 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0107-0512	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0107-	●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0107-	●	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	0107-0111	●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0112-	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0107-	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0107-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0107-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 L=23	1-09660-710-0	01	1	0107-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0107-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0107-0606	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0107-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0107-0512	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0107-0603	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
