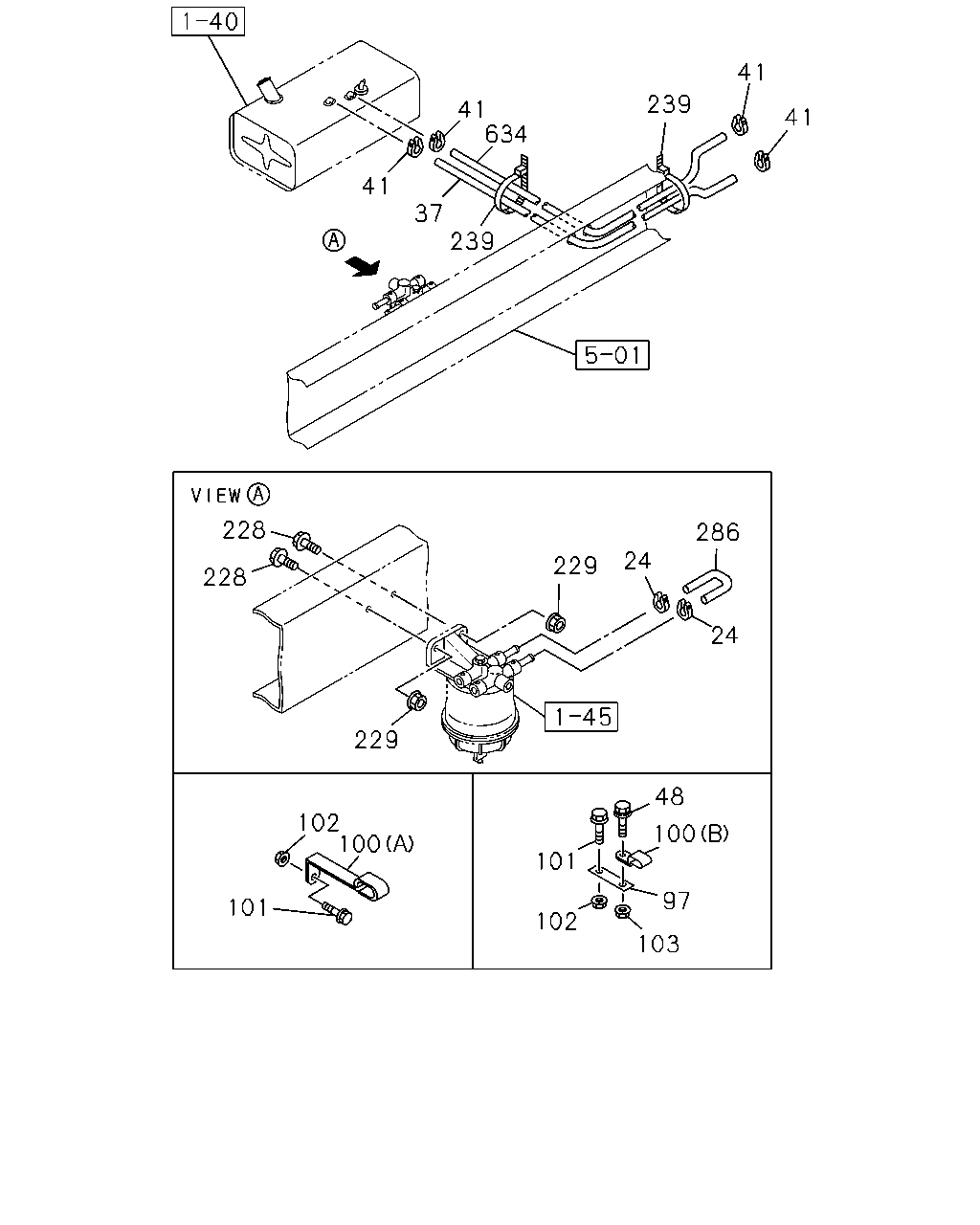

1-41 — FUEL PIPING; CHASSIS
(#30878) — 24 parça
41
239
41
634
41
41
37
239
228
286
24
229
228
24
229
48
102
100
100
101
97
101
102
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
ID=14
1-09704-102-0
02
1
0107-
37
HOSE; RUBBER DELIVERY
L=7000 SERVICED BY L=8000
0-01260-800-0
01
1
0107-
41
CLIP; FUEL PIPE,FUEL TANK
ID=14
1-09704-102-0
04
1
0107-
48
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
01
1
0107-0512
48
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0601-
97
BRACKET; CLIP
1-47475-704-0
01
1
0107-
100
CLIP; FUEL PIPE
(A) ID=14X2 H=85 L=30
1-09701-062-0
01
1
0107-
100
CLIP; FUEL PIPE
(B) ID=16X2 L=20
9-09535-536-0
01
1
0107-0606
100
CLIP; FUEL PIPE
(B) ID=16X2 L=20
0-95325-536-0
01
1
0607-
101
BOLT; CLIP,FUEL PIPE
M8X30 FLANGE
0-28680-830-0
02
1
0107-0512
101
BOLT; CLIP,FUEL PIPE
M8X30 FLANGE
0-28650-830-0
02
1
0601-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91150-108-0
02
1
0107-0602
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
02
1
0603-
103
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0107-0602
103
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
228
BOLT; BRKT,SEDIMENTER
M10X35 FLANGE
0-28681-035-0
02
1
0107-0512
228
BOLT; BRKT,SEDIMENTER
M10X35 FLANGE
0-28651-035-0
02
1
0601-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
0107-0602
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91180-210-0
02
1
0603-
239
CLIP; FUEL PIPE
L=250
5-09707-030-1
02
1
0107-0303
239
CLIP; FUEL PIPE
L=300
1-09707-001-1
03
1
0304-
286
PIPE; VINYL SEDIMENTER
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
0107-0403
286
PIPE; VINYL SEDIMENTER
L=260 SERVICED BY L=3000
0-01260-300-0
01
1
0404-
634
HOSE; RUBBER RETURN
L=7000 SERVICED BY L=8000
0-01260-800-0
01
1
0107-
