◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#30875) — 82 parça

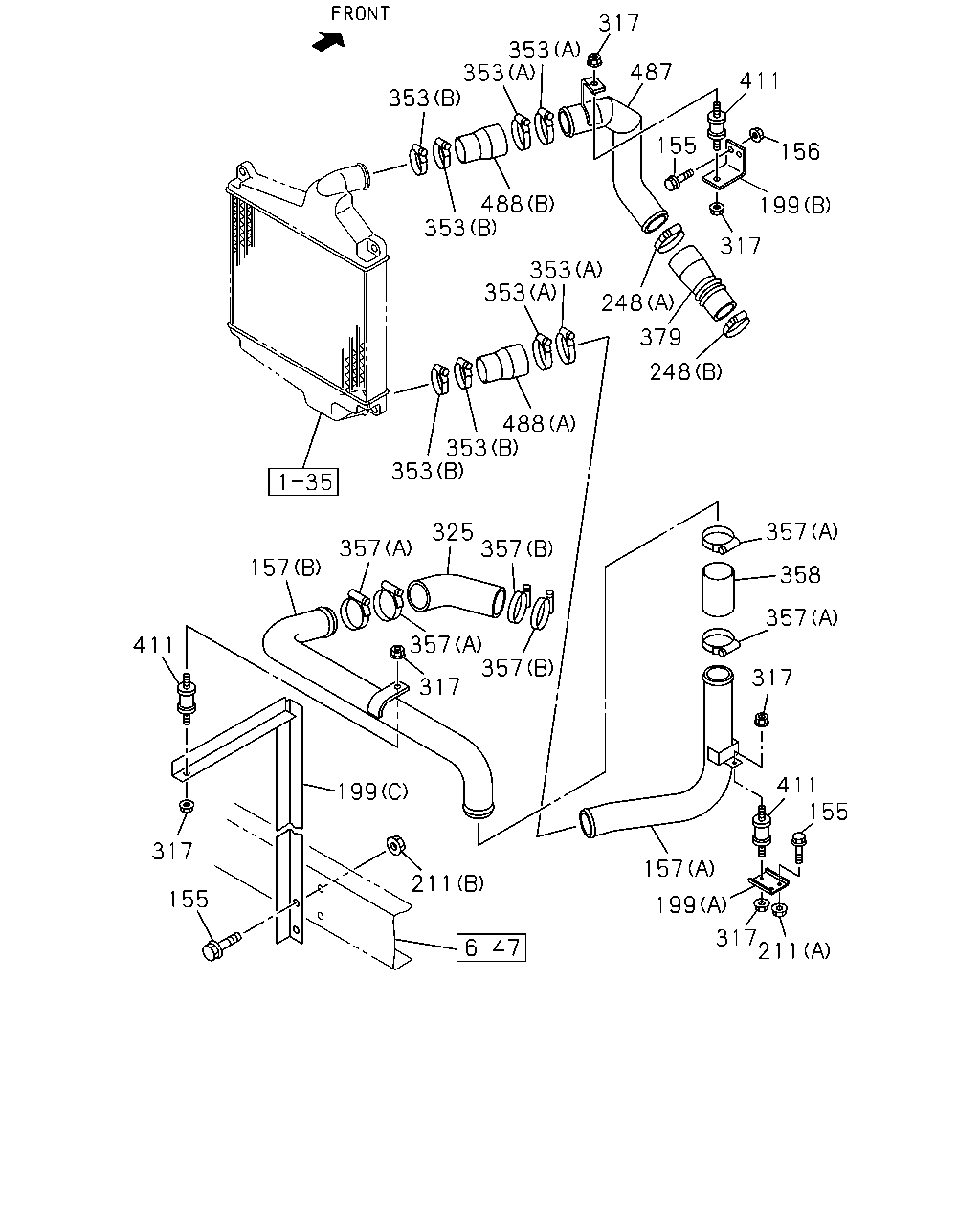

çizim 23604
317 353 353 353 487 411 155 156 488 353 199 317 353 353 248 379 248 488 353 353 357 325 357 357 157 358 357 357 357 411 317 317 411 155 199 317 157 211 155 199 317 211
BalonParca AdiParca NoAdetTipApplied Date
155 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0107-0304
155 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0305-0512
155 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-
156 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
156 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
157 PIPE; AIR
(A) 		1-14121-157-1 01 1 0107-
157 PIPE; AIR
(B) 		1-14121-159-1 01 1 0107-
199 BRACKET; PIPE
(C) 		1-14239-268-0 01 1 0305-
199 BRACKET; PIPE
(A) 		1-14239-259-0 01 1 0107-
199 BRACKET; PIPE
(B) 		1-47479-088-0 01 1 0107-
211 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0304
211 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 04 1 0305-0602
211 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
211 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 06 1 0107-0602
211 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0603-
248 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 01 1 1002-
248 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99 		1-09707-141-0 01 1 1002-
248 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-114-0 01 1 0107-0306
248 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-198-0 01 1 0307-0810
248 CLIP; RUBBER HOSE
(A) ID=75-95 		8-98133-357-0 01 1 0811-1001
248 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=75-95 		8-98133-357-0 01 1 1002-
248 CLIP; RUBBER HOSE
(B) ID=58-79 		8-94126-771-0 01 1 0107-0306
248 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 01 1 0307-0811
248 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 01 1 0812-1001
248 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 01 1 1002-
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 06 1 0107-0602
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 06 1 0603-
325 HOSE; RUBBER,ENG TO PIPE 1-09361-078-0 01 1 0107-
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 04 1 1002-
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99 		1-09707-141-0 04 1 1002-
353 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-114-0 04 1 0107-0306
353 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-198-0 04 1 0307-0810
353 CLIP; RUBBER HOSE
(A) ID=75-95 		8-98133-357-0 04 1 0811-1001
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=75-95 		8-98133-357-0 04 1 1002-
353 CLIP; RUBBER HOSE
(B) ID=58-79 		8-94126-771-0 04 1 0107-0306
353 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 04 1 0307-0811
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 04 1 0812-1001
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 04 1 1002-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1002-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99 		1-09707-141-0 04 1 1002-
357 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-114-0 04 1 0107-0306
357 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-198-0 04 1 0307-0810
357 CLIP; RUBBER HOSE
(A) ID=75-95 		8-98133-357-0 04 1 0811-1001
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=75-95 		8-98133-357-0 04 1 1002-
357 CLIP; RUBBER HOSE
(B) ID=58-79 		8-94126-771-0 02 1 0107-0306
357 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 02 1 0307-0811
357 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 0812-1001
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1002-
358 HOSE; RUBBER,PIPE TO PIPE 1-09361-021-0 01 1 0107-
379 HOSE; RUBBER 1-09361-076-0 01 1 0107-
411 RUBBER; CUSHION 8-94394-268-1 03 1 0107-
487 PIPE; TURBO TO CHARGE AIR COOLER 1-14121-158-1 01 1 0107-
488 HOSE; RUBBER,PIPE
(A) 		1-09361-030-0 01 1 0107-
488 HOSE; RUBBER,PIPE
(B) 		1-09361-077-0 01 1 0107-

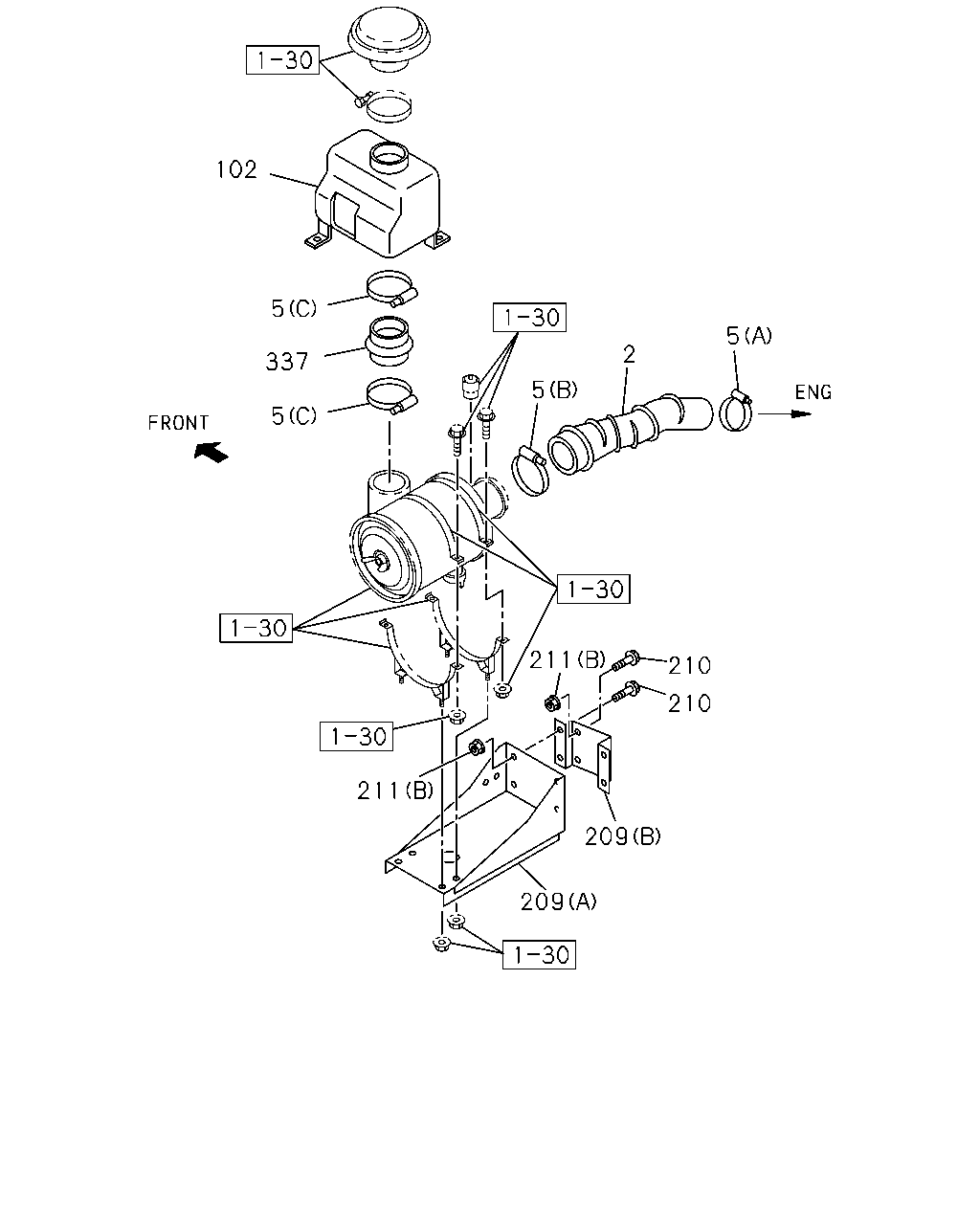

çizim 24763
102 5 5 2 337 5 5 211 210 210 211 209 209
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 1-14232-118-0 01 1 0107-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99 		1-09707-141-0 01 1 1002-
5 CLIP; AIR DUCT
(B) ID=104-142 		1-09707-155-0 01 1 0905-
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0107-0306
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-198-0 01 1 0307-0810
5 CLIP; AIR DUCT
(A) ID=75-95 		8-98133-357-0 01 1 0811-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=75-95 		8-98133-357-0 01 1 1002-
5 CLIP; AIR DUCT
(B) ID=104-142 		1-09707-155-0 02 1 0107-0306
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 02 1 0307-0812
5 CLIP; AIR DUCT
(B) ID=120-140 		8-98133-367-0 02 1 0901-0904
5 CLIP; AIR DUCT
(B) ID=120-140 		8-98133-367-0 01 1 0905-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=120-140 		8-98133-367-0 01 1 1002-
5 CLIP; AIR DUCT
(C) ID=130-169 		1-09707-157-0 01 1 0107-0306
5 CLIP; AIR DUCT
(C) ID=130-165 		1-09707-201-0 01 1 0307-0810
5 CLIP; AIR DUCT
(C) ID=150-170 		8-98133-369-0 01 1 0811-0904
5 CLIP; AIR DUCT
(C) ID=130-169 		1-09707-157-0 01 1 0905-
102 RESONATOR; AIR INT 1-14114-678-0 01 1 0107-
209 BRACKET; ACL
(A) 		1-53497-605-3 01 1 0107-
209 BRACKET; ACL
(B) 		1-53497-668-0 01 1 0107-
210 BOLT; ACL BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0107-0512
210 BOLT; ACL BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 0601-
211 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0304
211 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 04 1 0305-0602
211 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
211 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 06 1 0107-0602
211 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0603-
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 0107-
