◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

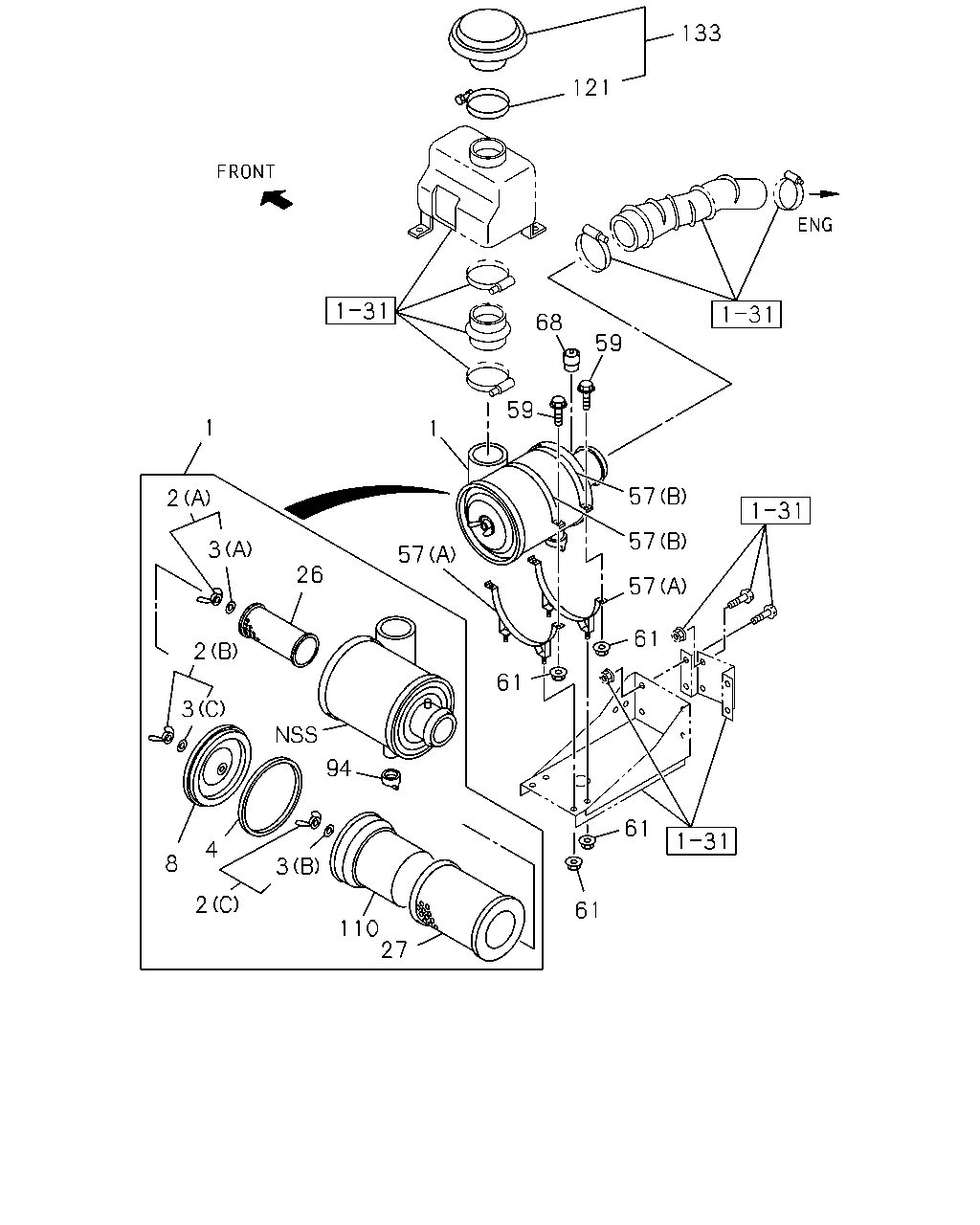

1-30 — AIR CLEANER (#30874) — 22 parça
çizim 80598
133 121 68 59 59 1 1 57 2 57 3 57 26 57 2 61 61 3 94 61 4 8 3 2 61 110 27
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 8-97600-038-0 01 1 0107-
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 0107-
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 0107-
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 0107-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 0107-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 0107-
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 0107-
4 GASKET; COVER TO BODY 1-14218-128-0 01 1 0107-
8 COVER ASM; ACL 1-14212-064-0 01 1 0107-
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0107-
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0107-
57 BAND; ACL
(A) 		1-53419-249-0 02 1 0107-
57 BAND; ACL
(B) 		1-53419-251-0 02 1 0107-
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28681-030-0 04 1 0107-0512
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28651-030-0 04 1 0601-
61 NUT; ACL BAND
M10 FLANGE 		0-91150-210-0 08 1 0107-0602
61 NUT; ACL BAND
M10 FLANGE 		0-91180-210-0 08 1 0603-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0107-
94 VALVE; VACUATOR 1-14219-129-0 01 1 0107-
110 ADAPTER; ACL 1-14219-175-0 01 1 0107-
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 0107-
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
