Sayfa 7-45 - Isuzu EPC

7-45 — CONSOLE BOX (#3087) — 212 parça

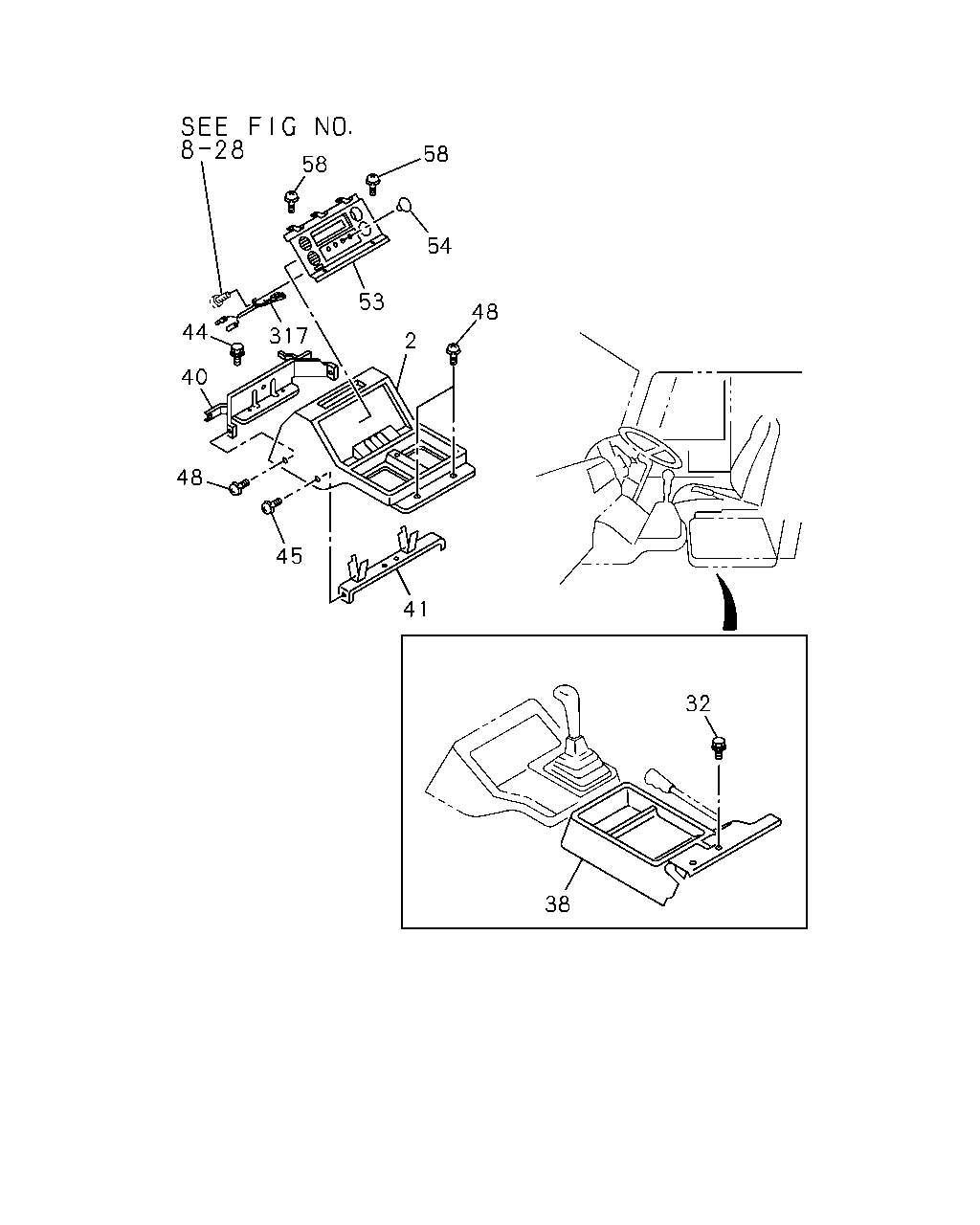

32 38 41 45 48 40 44 317 53 2 48 54 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306	●	●	●	●
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-		●		●
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-	●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-			●	●
32	SCREW; PARCEL BOX EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), BRAKESYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X30 W/PL WASHER	1-09981-448-0	01	1	9002-			●	●
32	SCREW; PARCEL BOX EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), BRAKESYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/PL WASHER	5-09981-023-0	03	1	9002-			●	●
38	TRAY; PARCEL,PIPING COVER EXC. HONG KONG EQUIPMENT(PQ1)	1-72497-036-2	01	1	9002-9306	●	●
38	TRAY; PARCEL,PIPING COVER EXC. HONG KONG EQUIPMENT(PQ1)	1-72497-055-0	01	1	9307-		●
38	TRAY; PARCEL,PIPING COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72497-037-2	01	1	9002-9306			●	●
38	TRAY; PARCEL,PIPING COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72497-056-0	01	1	9307-				●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-614-4	01	1	9002-	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE EXC. POWER WINDOW<A30>	1-65670-689-2	01	1	9307-9505		●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-689-2	01	1	9307-9505				●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65671-481-0	01	1	9506-				●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-689-2	01	1	9002-9008			●	●
40	BRACKET; SUPPORT,CENTER CONSOLE EXC. POWER WINDOW<A30>	1-65670-689-2	01	1	9009-9306			●	●
40	BRACKET; SUPPORT,CENTER CONSOLE POWER WINDOW<A30>	1-65671-481-0	01	1	9009-9306			●	●
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	9002-	●	●	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●	●	●
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	9002-	●	●	●	●
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	9002-	●	●	●	●
53	PANEL; SW,CENTER CONSOLE	1-72447-362-6	01	1	9002-9205	●	●
53	PANEL; SW,CENTER CONSOLE EXC. RADIO AM & TAPE PLAYER(UM1)	1-72447-362-6	01	1	9206-	●	●
53	PANEL; SW,CENTER CONSOLE RADIO AM & TAPE PLAYER(UM1)	1-72447-588-0	01	1	9206-	●	●
53	PANEL; SW,CENTER CONSOLE	1-65670-883-3	01	1	9002-			●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9002-9502	●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9503-		●
54	BUTTON; CLIP,CTR CONSOLE GOVERNOR CONTROL<W69>	1-72447-390-0	01	1	9503-				●
54	BUTTON; CLIP,CTR CONSOLE EXC. GOVERNOR CONTROL<W69>	1-72447-390-0	02	1	9503-				●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	05	1	9002-	●	●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-			●	●
317	CONSENT	1-82523-011-3	01	1	9002-	●	●
317	CONSENT	1-82523-010-2	01	1	9002-			●	●

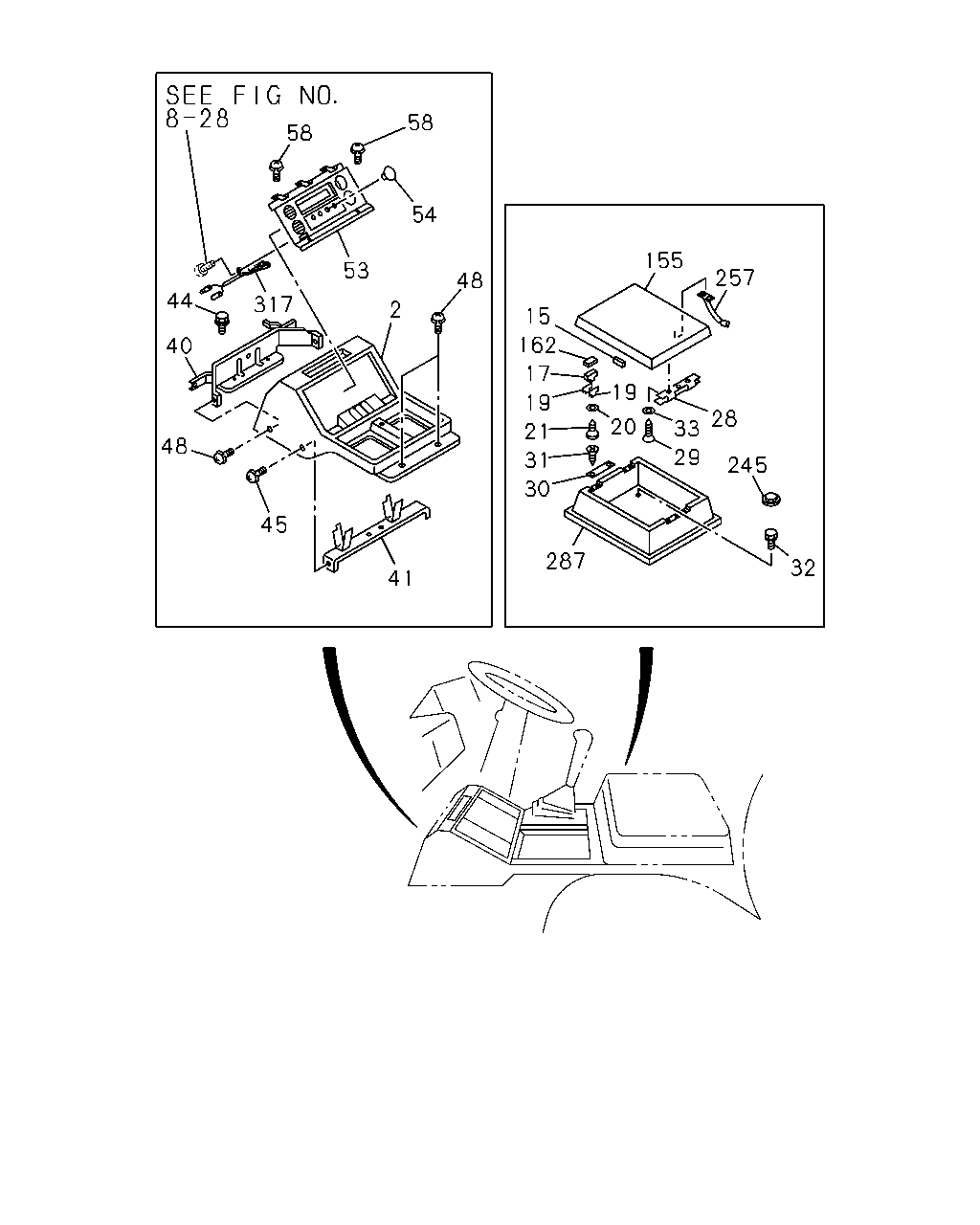

287 32 245 29 33 28 20 30 31 21 19 17 162 15 155 257 19 40 44 48 45 41 43 39 38 32 58 58 54 48 53 317 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306	●	●	●	●
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-		●		●
15	FINISHER; PARCEL BOX HONG KONG EQUIPMENT(PQ1) L=190	1-71998-300-0	04	1	9002-9306	●	●
15	FINISHER; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=190	1-71998-300-0	04	1	9002-9306			●	●
15	FINISHER; PARCEL BOX HONG KONG EQUIPMENT(PQ1) L=190	1-71998-300-0	04	1	9307-		●
15	FINISHER; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=190	1-71998-300-0	04	1	9307-				●
17	MAGNET; LID HONG KONG EQUIPMENT(PQ1)	8-94286-017-2	02	1	9002-9306	●	●
17	MAGNET; LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-017-2	02	1	9002-9306			●	●
17	MAGNET; LID HONG KONG EQUIPMENT(PQ1)	8-94286-017-2	02	1	9307-		●
17	MAGNET; LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-017-2	02	1	9307-				●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID HONG KONG EQUIPMENT(PQ1)	8-94286-457-0	04	1	9002-9306	●	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-457-0	04	1	9002-9306			●	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID HONG KONG EQUIPMENT(PQ1)	8-94286-457-0	04	1	9307-		●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-457-0	04	1	9307-				●
20	WASHER; PL,MAGNET HONG KONG EQUIPMENT(PQ1) ID=4.3 OD=10	9-09160-604-0	04	1	9002-9306	●	●
20	WASHER; PL,MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=4.3 OD=10	9-09160-604-0	04	1	9002-9306			●	●
20	WASHER; PL,MAGNET HONG KONG EQUIPMENT(PQ1) ID=4.3 OD=10	9-09160-604-0	04	1	9307-		●
20	WASHER; PL,MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=4.3 OD=10	9-09160-604-0	04	1	9307-				●
21	SCREW; MAGNET HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING	9-07066-310-0	04	1	9002-9306	●	●
21	SCREW; MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M3X10 TAPPING	9-07066-310-0	04	1	9002-9306			●	●
21	SCREW; MAGNET HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING	9-07066-310-0	04	1	9307-		●
21	SCREW; MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING	9-07066-310-0	04	1	9307-				●
28	HINGE; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-391-1	01	1	9002-9306	●	●
28	HINGE; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-391-1	01	1	9002-9306			●	●
28	HINGE; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-391-1	01	1	9307-		●
28	HINGE; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-391-1	01	1	9307-				●
29	SCREW; HINGE HONG KONG EQUIPMENT(PQ1) M4X16	0-70080-416-0	06	1	9002-9306	●	●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M4X16	0-70080-416-0	06	1	9002-9306			●	●
29	SCREW; HINGE HONG KONG EQUIPMENT(PQ1) M4X16	0-70080-416-0	06	1	9307-		●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M4X16	0-70080-416-0	06	1	9307-				●
29	SCREW; HINGE HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING	9-07066-310-0	02	1	9307-		●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING	9-07066-310-0	02	1	9307-				●
30	PLATE; MAGNET,PARCEL BOX LOCK HONG KONG EQUIPMENT(PQ1)	8-94286-018-0	02	1	9002-9306	●	●
30	PLATE; MAGNET,PARCEL BOX LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-018-0	02	1	9002-9306			●	●
30	PLATE; MAGNET,PARCEL BOX LOCK HONG KONG EQUIPMENT(PQ1)	8-94286-018-0	02	1	9307-		●
30	PLATE; MAGNET,PARCEL BOX LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-018-0	02	1	9307-				●
31	SCREW; MAGNET PLATE,PARCEL BOX HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9002-9306	●	●
31	SCREW; MAGNET PLATE,PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9002-9306			●	●
31	SCREW; MAGNET PLATE,PARCEL BOX HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9307-		●
31	SCREW; MAGNET PLATE,PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9307-				●
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-	●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-			●	●
32	SCREW; PARCEL BOX EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), BRAKESYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X30 W/PL WASHER	1-09981-448-0	01	1	9002-			●	●
32	SCREW; PARCEL BOX EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), BRAKESYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/PL WASHER	5-09981-023-0	03	1	9002-			●	●
33	WASHER; PL,CONSOLE BOX HONG KONG EQUIPMENT(PQ1) ID=3.9	8-94279-622-0	04	1	9002-9302	●	●
33	WASHER; PL,CONSOLE BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=3.9	8-94279-622-0	04	1	9002-9302			●	●
38	TRAY; PARCEL,PIPING COVER EXC. HONG KONG EQUIPMENT(PQ1)	1-72497-036-2	01	1	9002-9306	●	●
38	TRAY; PARCEL,PIPING COVER EXC. HONG KONG EQUIPMENT(PQ1)	1-72497-055-0	01	1	9307-		●
38	TRAY; PARCEL,PIPING COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72497-037-2	01	1	9002-9306			●	●
38	TRAY; PARCEL,PIPING COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72497-056-0	01	1	9307-				●
39	BRACKET; TRAY,PIPE COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72497-016-1	01	1	9002-			●	●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-614-4	01	1	9002-	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE EXC. POWER WINDOW<A30>	1-65670-689-2	01	1	9307-9505		●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-689-2	01	1	9307-9505				●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65671-481-0	01	1	9506-				●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-689-2	01	1	9002-9008			●	●
40	BRACKET; SUPPORT,CENTER CONSOLE EXC. POWER WINDOW<A30>	1-65670-689-2	01	1	9009-9306			●	●
40	BRACKET; SUPPORT,CENTER CONSOLE POWER WINDOW<A30>	1-65671-481-0	01	1	9009-9306			●	●
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	9002-	●	●	●	●
43	SCREW; BRKT,PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	01	1	9307-			●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●	●	●
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	9002-	●	●	●	●
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	9002-	●	●	●	●
53	PANEL; SW,CENTER CONSOLE	1-72447-362-6	01	1	9002-9205	●	●
53	PANEL; SW,CENTER CONSOLE EXC. RADIO AM & TAPE PLAYER(UM1)	1-72447-362-6	01	1	9206-	●	●
53	PANEL; SW,CENTER CONSOLE RADIO AM & TAPE PLAYER(UM1)	1-72447-588-0	01	1	9206-	●	●
53	PANEL; SW,CENTER CONSOLE	1-65670-883-3	01	1	9002-			●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9002-9502	●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9503-		●
54	BUTTON; CLIP,CTR CONSOLE GOVERNOR CONTROL<W69>	1-72447-390-0	01	1	9503-				●
54	BUTTON; CLIP,CTR CONSOLE EXC. GOVERNOR CONTROL<W69>	1-72447-390-0	02	1	9503-				●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	05	1	9002-	●	●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-			●	●
155	LID; PARCEL BOX HONG KONG EQUIPMENT(PQ1) DARK GRAY	1-72447-423-2	01	1	9002-9306	●	●
155	LID; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) DARK GRAY	1-72447-423-2	01	1	9002-9306			●	●
155	LID; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-510-0	01	1	9307-		●
155	LID; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-510-0	01	1	9307-				●
162	CUSHION; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-485-1	02	1	9002-9306	●	●
162	CUSHION; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-485-1	02	1	9002-9306			●	●
162	CUSHION; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-485-1	02	1	9307-		●
162	CUSHION; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-485-1	02	1	9307-				●
245	CAP; CTR,CONSOLE HONG KONG EQUIPMENT(PQ1)	1-72447-467-1	01	1	9002-9306	●	●
245	CAP; CTR,CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-467-1	01	1	9002-9306			●	●
257	CONSOLE; BEAR HONG KONG EQUIPMENT(PQ1)	1-72447-468-1	01	1	9307-		●
257	CONSOLE; BEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-468-1	01	1	9307-				●
287	BOX; PARCEL HONG KONG EQUIPMENT(PQ1)	1-72447-493-0	01	1	9002-9306	●	●
287	BOX; PARCEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-493-0	01	1	9002-9306			●	●
287	BOX; PARCEL HONG KONG EQUIPMENT(PQ1)	1-72447-508-0	01	1	9307-		●
287	BOX; PARCEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-508-0	01	1	9307-				●
317	CONSENT	1-82523-011-3	01	1	9002-	●	●
317	CONSENT	1-82523-010-2	01	1	9002-			●	●

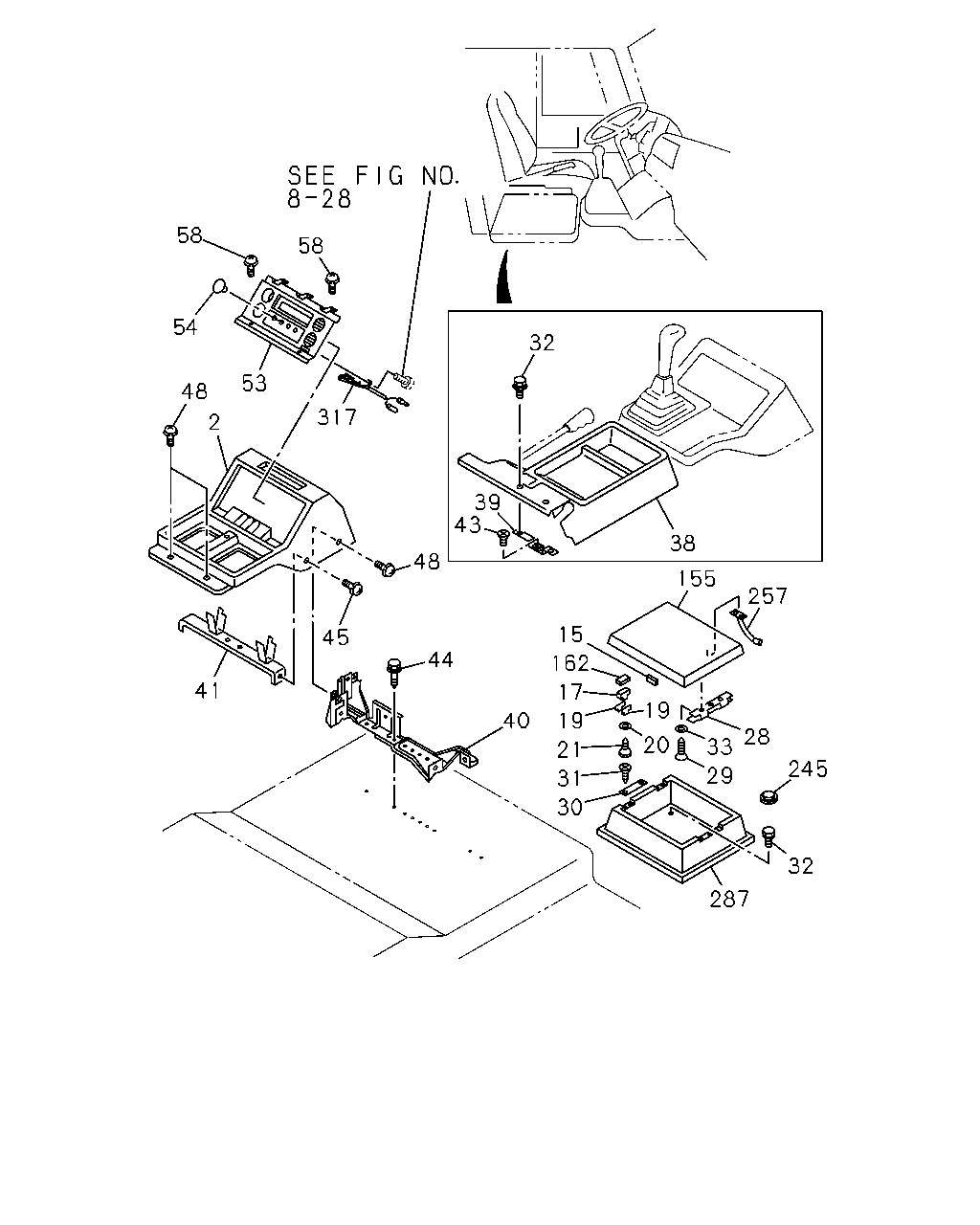

58 58 54 53 317 44 40 48 45 41 48 2 15 162 17 19 21 31 30 287 32 245 29 33 28 20 19 257 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306	●	●	●	●
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-		●		●
15	FINISHER; PARCEL BOX HONG KONG EQUIPMENT(PQ1) L=190	1-71998-300-0	04	1	9002-9306	●	●
15	FINISHER; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=190	1-71998-300-0	04	1	9002-9306			●	●
15	FINISHER; PARCEL BOX HONG KONG EQUIPMENT(PQ1) L=190	1-71998-300-0	04	1	9307-		●
15	FINISHER; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=190	1-71998-300-0	04	1	9307-				●
17	MAGNET; LID HONG KONG EQUIPMENT(PQ1)	8-94286-017-2	02	1	9002-9306	●	●
17	MAGNET; LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-017-2	02	1	9002-9306			●	●
17	MAGNET; LID HONG KONG EQUIPMENT(PQ1)	8-94286-017-2	02	1	9307-		●
17	MAGNET; LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-017-2	02	1	9307-				●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID HONG KONG EQUIPMENT(PQ1)	8-94286-457-0	04	1	9002-9306	●	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-457-0	04	1	9002-9306			●	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID HONG KONG EQUIPMENT(PQ1)	8-94286-457-0	04	1	9307-		●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-457-0	04	1	9307-				●
20	WASHER; PL,MAGNET HONG KONG EQUIPMENT(PQ1) ID=4.3 OD=10	9-09160-604-0	04	1	9002-9306	●	●
20	WASHER; PL,MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=4.3 OD=10	9-09160-604-0	04	1	9002-9306			●	●
20	WASHER; PL,MAGNET HONG KONG EQUIPMENT(PQ1) ID=4.3 OD=10	9-09160-604-0	04	1	9307-		●
20	WASHER; PL,MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=4.3 OD=10	9-09160-604-0	04	1	9307-				●
21	SCREW; MAGNET HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING	9-07066-310-0	04	1	9002-9306	●	●
21	SCREW; MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M3X10 TAPPING	9-07066-310-0	04	1	9002-9306			●	●
21	SCREW; MAGNET HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING	9-07066-310-0	04	1	9307-		●
21	SCREW; MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING	9-07066-310-0	04	1	9307-				●
28	HINGE; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-391-1	01	1	9002-9306	●	●
28	HINGE; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-391-1	01	1	9002-9306			●	●
28	HINGE; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-391-1	01	1	9307-		●
28	HINGE; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-391-1	01	1	9307-				●
29	SCREW; HINGE HONG KONG EQUIPMENT(PQ1) M4X16	0-70080-416-0	06	1	9002-9306	●	●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M4X16	0-70080-416-0	06	1	9002-9306			●	●
29	SCREW; HINGE HONG KONG EQUIPMENT(PQ1) M4X16	0-70080-416-0	06	1	9307-		●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M4X16	0-70080-416-0	06	1	9307-				●
29	SCREW; HINGE HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING	9-07066-310-0	02	1	9307-		●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING	9-07066-310-0	02	1	9307-				●
30	PLATE; MAGNET,PARCEL BOX LOCK HONG KONG EQUIPMENT(PQ1)	8-94286-018-0	02	1	9002-9306	●	●
30	PLATE; MAGNET,PARCEL BOX LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-018-0	02	1	9002-9306			●	●
30	PLATE; MAGNET,PARCEL BOX LOCK HONG KONG EQUIPMENT(PQ1)	8-94286-018-0	02	1	9307-		●
30	PLATE; MAGNET,PARCEL BOX LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-018-0	02	1	9307-				●
31	SCREW; MAGNET PLATE,PARCEL BOX HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9002-9306	●	●
31	SCREW; MAGNET PLATE,PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9002-9306			●	●
31	SCREW; MAGNET PLATE,PARCEL BOX HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9307-		●
31	SCREW; MAGNET PLATE,PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9307-				●
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-	●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-			●	●
32	SCREW; PARCEL BOX EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), BRAKESYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X30 W/PL WASHER	1-09981-448-0	01	1	9002-			●	●
32	SCREW; PARCEL BOX EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), BRAKESYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/PL WASHER	5-09981-023-0	03	1	9002-			●	●
33	WASHER; PL,CONSOLE BOX HONG KONG EQUIPMENT(PQ1) ID=3.9	8-94279-622-0	04	1	9002-9302	●	●
33	WASHER; PL,CONSOLE BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=3.9	8-94279-622-0	04	1	9002-9302			●	●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-614-4	01	1	9002-	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE EXC. POWER WINDOW<A30>	1-65670-689-2	01	1	9307-9505		●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-689-2	01	1	9307-9505				●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65671-481-0	01	1	9506-				●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-689-2	01	1	9002-9008			●	●
40	BRACKET; SUPPORT,CENTER CONSOLE EXC. POWER WINDOW<A30>	1-65670-689-2	01	1	9009-9306			●	●
40	BRACKET; SUPPORT,CENTER CONSOLE POWER WINDOW<A30>	1-65671-481-0	01	1	9009-9306			●	●
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	9002-	●	●	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●	●	●
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	9002-	●	●	●	●
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	9002-	●	●	●	●
53	PANEL; SW,CENTER CONSOLE	1-72447-362-6	01	1	9002-9205	●	●
53	PANEL; SW,CENTER CONSOLE EXC. RADIO AM & TAPE PLAYER(UM1)	1-72447-362-6	01	1	9206-	●	●
53	PANEL; SW,CENTER CONSOLE RADIO AM & TAPE PLAYER(UM1)	1-72447-588-0	01	1	9206-	●	●
53	PANEL; SW,CENTER CONSOLE	1-65670-883-3	01	1	9002-			●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9002-9502	●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9503-		●
54	BUTTON; CLIP,CTR CONSOLE GOVERNOR CONTROL<W69>	1-72447-390-0	01	1	9503-				●
54	BUTTON; CLIP,CTR CONSOLE EXC. GOVERNOR CONTROL<W69>	1-72447-390-0	02	1	9503-				●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	05	1	9002-	●	●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-			●	●
155	LID; PARCEL BOX HONG KONG EQUIPMENT(PQ1) DARK GRAY	1-72447-423-2	01	1	9002-9306	●	●
155	LID; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) DARK GRAY	1-72447-423-2	01	1	9002-9306			●	●
155	LID; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-510-0	01	1	9307-		●
155	LID; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-510-0	01	1	9307-				●
162	CUSHION; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-485-1	02	1	9002-9306	●	●
162	CUSHION; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-485-1	02	1	9002-9306			●	●
162	CUSHION; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-485-1	02	1	9307-		●
162	CUSHION; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-485-1	02	1	9307-				●
245	CAP; CTR,CONSOLE HONG KONG EQUIPMENT(PQ1)	1-72447-467-1	01	1	9002-9306	●	●
245	CAP; CTR,CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-467-1	01	1	9002-9306			●	●
257	CONSOLE; BEAR HONG KONG EQUIPMENT(PQ1)	1-72447-468-1	01	1	9307-		●
257	CONSOLE; BEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-468-1	01	1	9307-				●
287	BOX; PARCEL HONG KONG EQUIPMENT(PQ1)	1-72447-493-0	01	1	9002-9306	●	●
287	BOX; PARCEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-493-0	01	1	9002-9306			●	●
287	BOX; PARCEL HONG KONG EQUIPMENT(PQ1)	1-72447-508-0	01	1	9307-		●
287	BOX; PARCEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-508-0	01	1	9307-				●
317	CONSENT	1-82523-011-3	01	1	9002-	●	●
317	CONSENT	1-82523-010-2	01	1	9002-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
