8-52 — PIPING; AIR CONDITIONING (#30861) — 55 parça

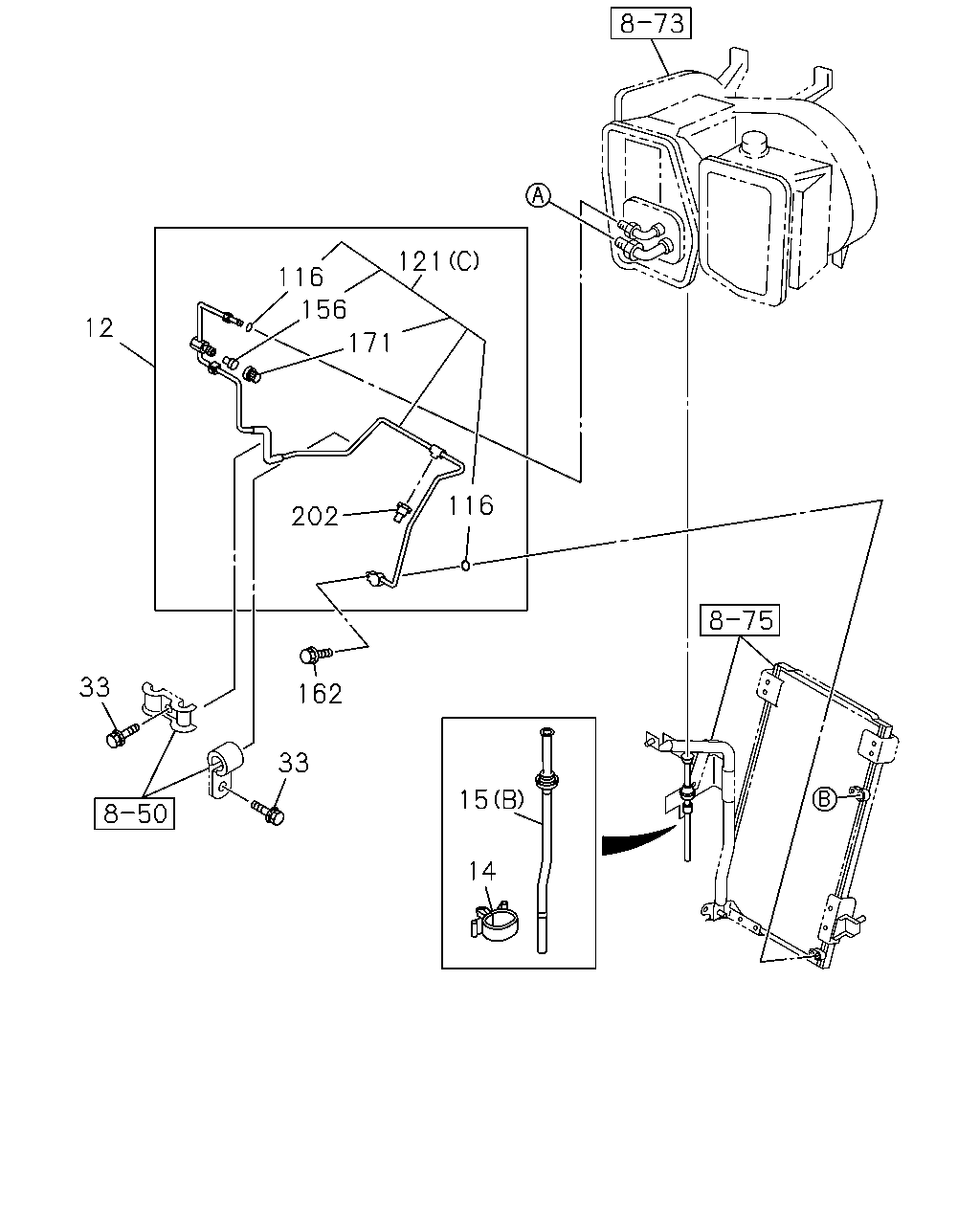

çizim 90014
121 116 156 12 171 116 202 33 162 33 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-877-1 01 1 0604-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0604-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) (A) 		1-83572-412-0 01 1 0604-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0604-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0604-0904
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=7.4 		8-97095-906-0 02 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-115-0 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-116-0 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83577-054-0 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83577-055-0 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83577-086-0 01 1 0604-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0604-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0604-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0604-
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0604-
çizim 106142
189 15
BalonParca AdiParca NoAdetTipApplied Date
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) (A) 		1-83572-412-0 01 1 0604-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0604-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		9-09575-397-0 01 1 0604-0610

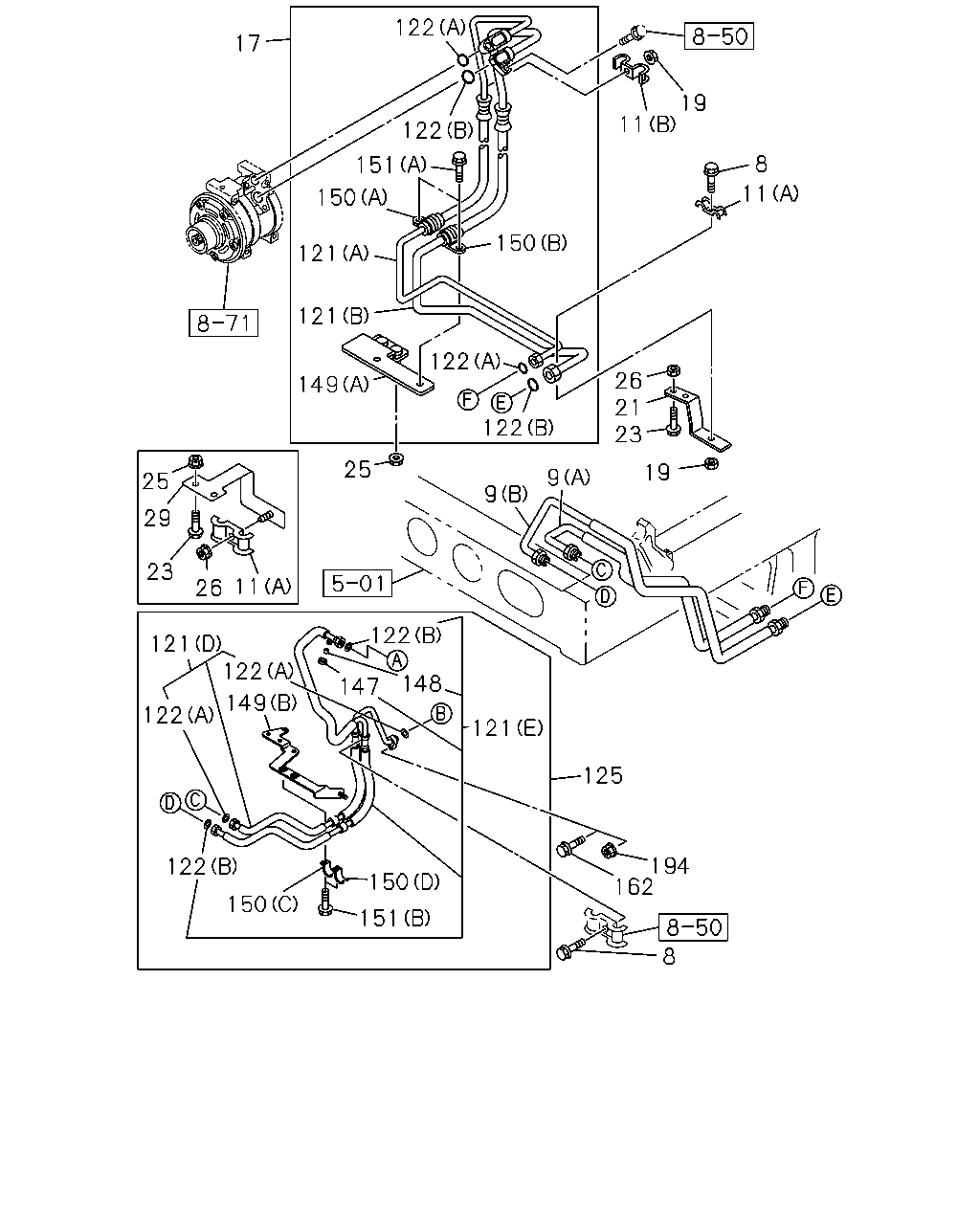

çizim 106293
122 17 19 11 122 8 151 11 150 150 121 121 122 26 21 23 149 122 25 19 9 25 9 29 23 11 26 122 148 121 122 147 149 122 121 125 194 162 122 150 150 151 8
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 0604-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-892-0 01 1 0604-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-893-0 01 1 0604-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 02 1 0604-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0604-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83577-114-0 01 1 0604-
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0604-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-297-0 01 1 0604-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28050-820-0 02 1 0604-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28050-820-0 04 1 0604-
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0604-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0604-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0604-
29 BRACKET; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-282-1 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-115-0 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-116-0 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83577-054-0 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83577-055-0 01 1 0604-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83577-086-0 01 1 0604-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0604-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0604-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0604-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0604-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83577-026-1 01 1 0604-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97095-910-0 01 1 0604-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0604-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-255-0 01 1 0604-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-265-0 01 1 0604-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-249-0 01 1 0604-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-262-0 01 1 0604-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-263-0 01 1 0604-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-264-0 01 1 0604-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0604-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83578-098-0 02 1 0604-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0604-
194 NUT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91180-106-0 01 1 0604-0610
