7-43 — SUN VISOR AND ASSIST GRIP (#3086) — 145 parça

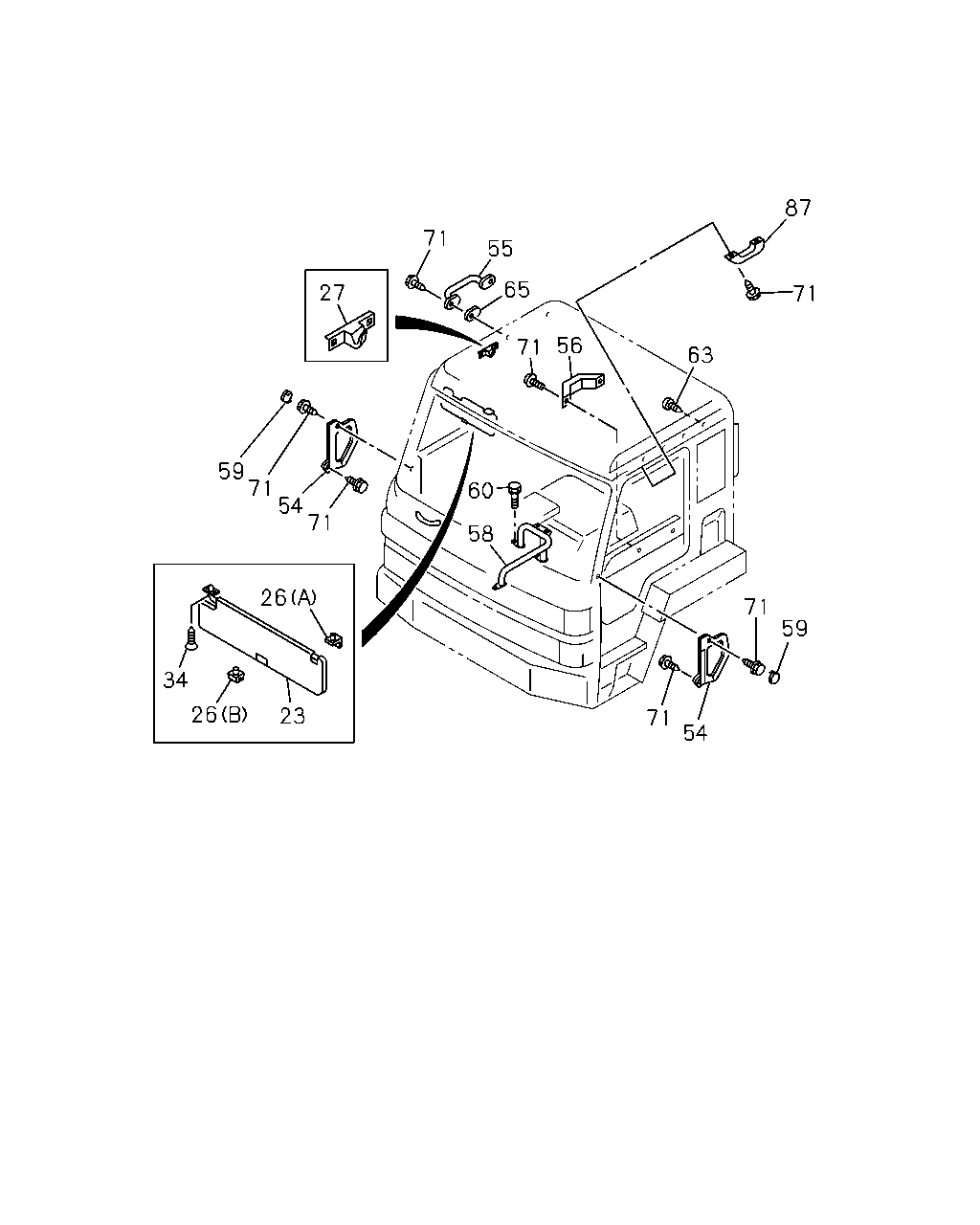

26 34 23 26 71 54 71 59 71 56 71 55 65 71 87 63 60 58 71 59 54 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	SUN VISOR	1-73137-151-0	01	1	9002-9209	●	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-151-0	01	1	9002-9209			●	●
23	SUN VISOR	1-73137-151-0	01	1	9210-9306	●	●	●	●
23	SUN VISOR	1-73137-169-0	01	1	9307-		●		●
23	SUN VISOR	1-73137-149-0	01	1	9002-9209	●	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-149-0	01	1	9002-9209			●	●
23	SUN VISOR	1-73137-149-0	01	1	9210-9306	●	●	●	●
23	SUN VISOR	1-73137-155-0	01	1	9307-		●		●
23	SUN VISOR CHEAPER CAB(SAX)	1-73137-152-0	01	1	9002-9209			●	●
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9002-9209	●	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (A)	1-73137-141-0	02	1	9002-9209			●	●
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9210-9306	●	●	●	●
26	HOLDER; SUN VISOR (A)	1-73137-156-0	02	1	9307-		●		●
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9002-9209	●	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (B)	1-73137-150-0	02	1	9002-9209			●	●
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9210-9306	●	●	●	●
26	HOLDER; SUN VISOR (B)	1-73137-157-0	02	1	9307-		●		●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (A)	1-73137-141-0	01	1	9002-9209			●	●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (B)	1-73137-150-0	01	1	9002-9209			●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9002-9209	●	●
34	SCREW; SUN VISOR EXC. CHEAPER CAB(SAX) M6X20	1-09981-310-0	02	1	9002-9209			●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9210-	●	●	●	●
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9002-	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-055-1	01	1	9002-9306	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-187-0	01	1	9307-		●		●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-054-1	01	1	9002-9306	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-186-0	01	1	9307-		●		●
55	GRIP; ASSIST,CAB SIDE UPR	1-71997-477-0	02	1	9002-	●	●	●	●
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9002-	●	●
56	GRIP; ASSIST,SIDE SILL EXC. CHEAPER CAB(SAX) WHITE	1-71998-131-0	02	1	9002-			●	●
58	GRIP; ASSIST,ENG HOOD HONG KONG EQUIPMENT(PQ1)	1-75147-573-0	01	1	9002-	●	●
58	GRIP; ASSIST,ENG HOOD EXC. HONG KONG EQUIPMENT(PQ1)	1-75147-579-0	01	1	9002-	●	●
58	GRIP; ASSIST,ENG HOOD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-75147-588-0	01	1	9002-			●	●
58	GRIP; ASSIST,ENG HOOD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-75147-583-0	01	1	9002-			●	●
59	COVER; ASSIST GRIP	1-73617-056-0	02	1	9002-9306	●	●	●	●
59	COVER; ASSIST GRIP	1-73617-060-0	02	1	9307-		●		●
60	BOLT; ASSIST GRIP,ENG HOOD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9112	●	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X25	1-09980-544-0	02	1	9201-	●	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9002-9112	●	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X25	1-09980-491-0	01	1	9201-	●	●	●	●
63	PLUG; ASSIST GRIP,HOLE OD=15 L=14.5	1-76378-157-0	01	1	9002-9306	●	●	●	●
63	PLUG; ASSIST GRIP,HOLE CENTER SEAT DELETE<SP9> OD=15 L=14.5	1-76378-157-0	02	1	9002-9306			●	●
63	PLUG; ASSIST GRIP,HOLE OD=15 L=14.5	1-76378-157-0	01	1	9307-		●		●
63	PLUG; ASSIST GRIP,HOLE PASSENGER SEAT MULTI USED(WX9) OD=15 L=14.5	1-76378-157-0	01	1	9307-		●
65	SHEET; ASSIST GRIP,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-478-1	04	1	9002-	●	●	●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-	●	●
71	SCREW EXC. CHEAPER CAB(SAX) M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-			●	●
71	SCREW WINDOW CURTAIN ROUND<BW4> M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-	●	●
71	SCREW M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-			●	●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9002-	●	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE WINDOW CURTAIN ROUND<BW4>	1-73618-156-0	01	1	9002-9306	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-156-0	01	1	9002-9306			●	●
87	GRIP; ASSIST,CANT RAIL SIDE WINDOW CURTAIN ROUND<BW4>	1-73618-161-0	01	1	9307-		●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-161-0	01	1	9307-				●

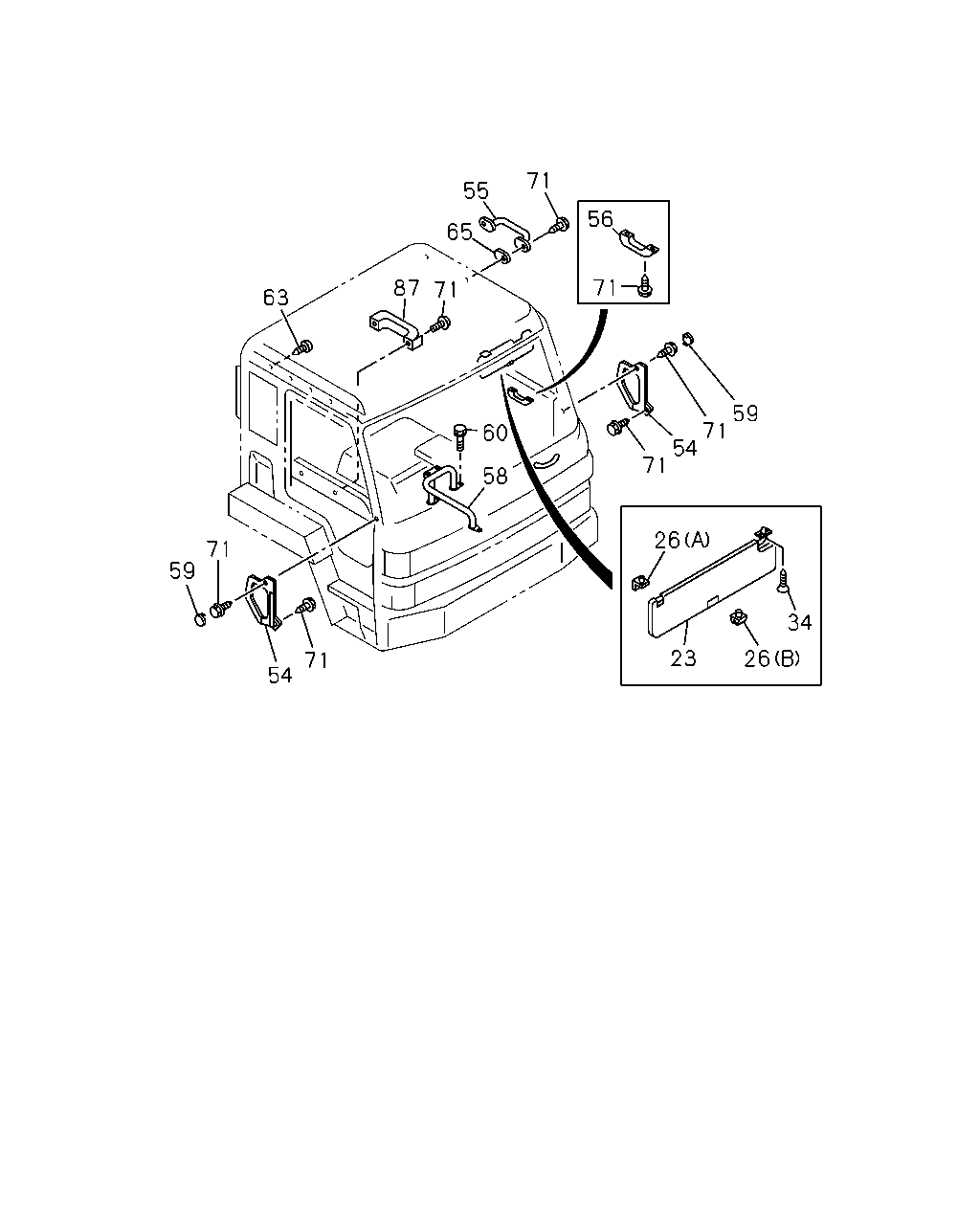

59 71 71 54 23 26 34 26 71 54 71 59 27 71 55 65 71 56 63 71 87 60 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	SUN VISOR	1-73137-151-0	01	1	9002-9209	●	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-151-0	01	1	9002-9209			●	●
23	SUN VISOR	1-73137-151-0	01	1	9210-9306	●	●	●	●
23	SUN VISOR	1-73137-169-0	01	1	9307-		●		●
23	SUN VISOR	1-73137-149-0	01	1	9002-9209	●	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-149-0	01	1	9002-9209			●	●
23	SUN VISOR	1-73137-149-0	01	1	9210-9306	●	●	●	●
23	SUN VISOR	1-73137-155-0	01	1	9307-		●		●
23	SUN VISOR CHEAPER CAB(SAX)	1-73137-152-0	01	1	9002-9209			●	●
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9002-9209	●	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (A)	1-73137-141-0	02	1	9002-9209			●	●
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9210-9306	●	●	●	●
26	HOLDER; SUN VISOR (A)	1-73137-156-0	02	1	9307-		●		●
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9002-9209	●	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (B)	1-73137-150-0	02	1	9002-9209			●	●
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9210-9306	●	●	●	●
26	HOLDER; SUN VISOR (B)	1-73137-157-0	02	1	9307-		●		●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (A)	1-73137-141-0	01	1	9002-9209			●	●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (B)	1-73137-150-0	01	1	9002-9209			●	●
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-154-0	01	1	9002-9306	●	●
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-172-0	01	1	9307-		●
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-153-0	01	1	9002-9306	●	●
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-171-0	01	1	9307-		●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9002-9209	●	●
34	SCREW; SUN VISOR EXC. CHEAPER CAB(SAX) M6X20	1-09981-310-0	02	1	9002-9209			●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9210-	●	●	●	●
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9002-	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-055-1	01	1	9002-9306	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-187-0	01	1	9307-		●		●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-054-1	01	1	9002-9306	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-186-0	01	1	9307-		●		●
55	GRIP; ASSIST,CAB SIDE UPR	1-71997-477-0	02	1	9002-	●	●	●	●
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9002-	●	●
56	GRIP; ASSIST,SIDE SILL EXC. CHEAPER CAB(SAX) WHITE	1-71998-131-0	02	1	9002-			●	●
58	GRIP; ASSIST,ENG HOOD HONG KONG EQUIPMENT(PQ1)	1-75147-573-0	01	1	9002-	●	●
58	GRIP; ASSIST,ENG HOOD EXC. HONG KONG EQUIPMENT(PQ1)	1-75147-579-0	01	1	9002-	●	●
58	GRIP; ASSIST,ENG HOOD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-75147-588-0	01	1	9002-			●	●
58	GRIP; ASSIST,ENG HOOD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-75147-583-0	01	1	9002-			●	●
59	COVER; ASSIST GRIP	1-73617-056-0	02	1	9002-9306	●	●	●	●
59	COVER; ASSIST GRIP	1-73617-060-0	02	1	9307-		●		●
60	BOLT; ASSIST GRIP,ENG HOOD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9112	●	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X25	1-09980-544-0	02	1	9201-	●	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9002-9112	●	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X25	1-09980-491-0	01	1	9201-	●	●	●	●
63	PLUG; ASSIST GRIP,HOLE OD=15 L=14.5	1-76378-157-0	01	1	9002-9306	●	●	●	●
63	PLUG; ASSIST GRIP,HOLE CENTER SEAT DELETE<SP9> OD=15 L=14.5	1-76378-157-0	02	1	9002-9306			●	●
63	PLUG; ASSIST GRIP,HOLE OD=15 L=14.5	1-76378-157-0	01	1	9307-		●		●
63	PLUG; ASSIST GRIP,HOLE PASSENGER SEAT MULTI USED(WX9) OD=15 L=14.5	1-76378-157-0	01	1	9307-		●
65	SHEET; ASSIST GRIP,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-478-1	04	1	9002-	●	●	●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-	●	●
71	SCREW EXC. CHEAPER CAB(SAX) M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-			●	●
71	SCREW WINDOW CURTAIN ROUND<BW4> M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-	●	●
71	SCREW M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-			●	●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9002-	●	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE WINDOW CURTAIN ROUND<BW4>	1-73618-156-0	01	1	9002-9306	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-156-0	01	1	9002-9306			●	●
87	GRIP; ASSIST,CANT RAIL SIDE WINDOW CURTAIN ROUND<BW4>	1-73618-161-0	01	1	9307-		●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-161-0	01	1	9307-				●

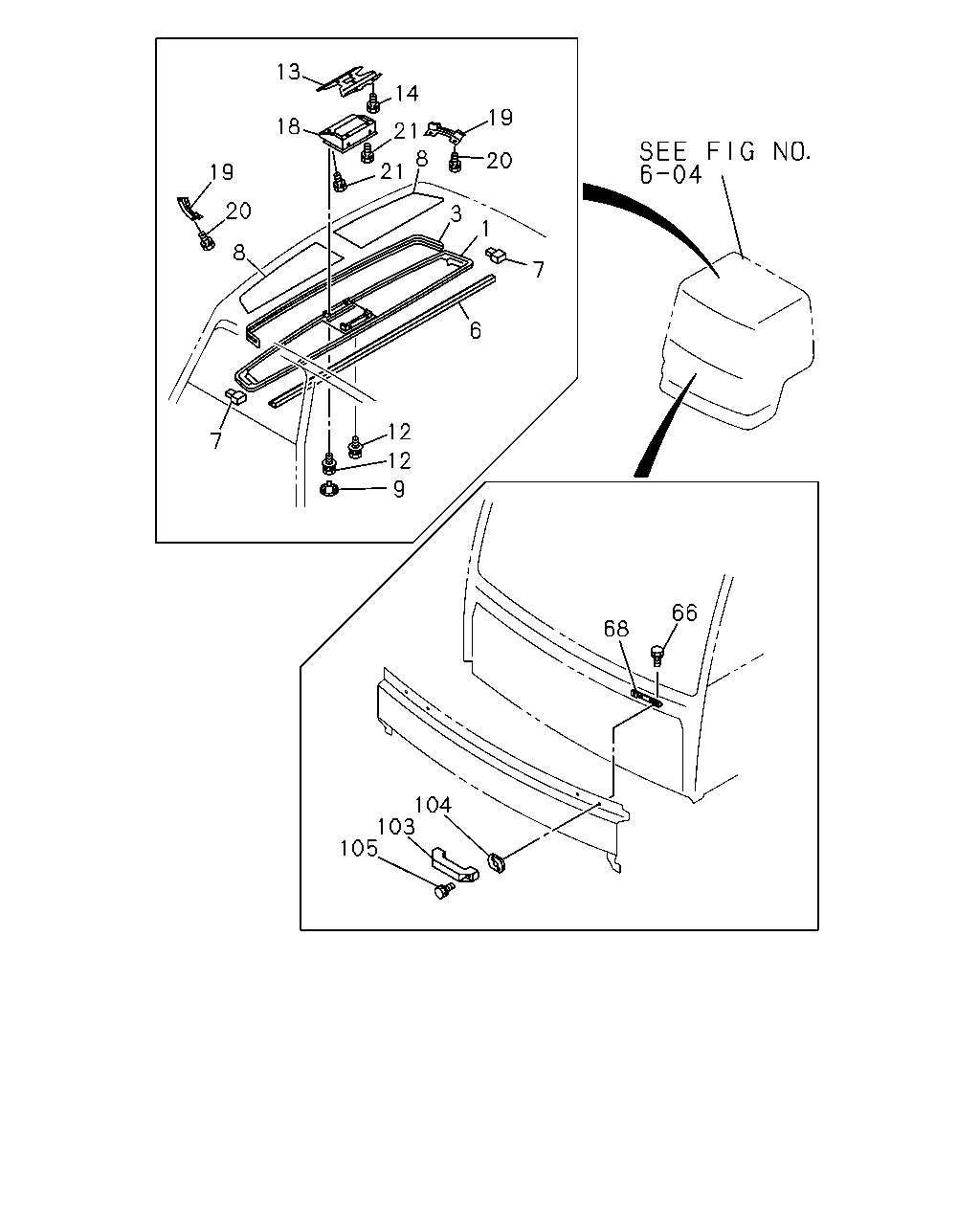

104 103 105 68 66 9 12 12 7 8 20 19 13 18 14 21 21 8 20 19 3 1 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BOARD; HEADER SHELF WINDOW CURTAIN ROUND<BW4>	1-73317-263-0	01	1	9002-9306	●	●
1	BOARD; HEADER SHELF WINDOW CURTAIN ROUND<BW4>	1-73317-312-0	01	1	9307-		●
1	BOARD; HEADER SHELF EXC. WINDOW CURTAIN ROUND<BW4>	1-73317-262-0	01	1	9002-9209	●	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(SAX)	1-73317-262-0	01	1	9002-9209			●	●
1	BOARD; HEADER SHELF EXC. WINDOW CURTAIN ROUND<BW4>	1-73317-262-0	01	1	9210-9306	●	●
1	BOARD; HEADER SHELF	1-73317-262-0	01	1	9210-9306			●	●
1	BOARD; HEADER SHELF EXC. WINDOW CURTAIN ROUND<BW4>	1-73317-304-0	01	1	9307-		●
1	BOARD; HEADER SHELF	1-73317-304-0	01	1	9307-				●
1	BOARD; HEADER SHELF CHEAPER CAB(SAX)	1-73317-264-0	01	1	9002-9209			●	●
3	FINISHER; HEADER SHELF,FRT	1-73317-146-1	01	1	9002-	●	●	●	●
6	FINISHER; HEADER SHELF,REAR	1-73317-147-2	01	1	9002-	●	●	●	●
7	FINISHER; HEADER SHELF,CORNER	1-73317-165-2	01	1	9002-	●	●	●	●
7	FINISHER; HEADER SHELF,CORNER	1-73317-164-2	01	1	9002-	●	●	●	●
8	MAT; HD SHELF	1-73317-144-1	02	1	9002-9306	●	●
8	MAT; HD SHELF EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73317-144-1	02	1	9002-9306			●	●
8	MAT; HD SHELF	1-73317-144-1	02	1	9307-		●		●
8	MAT; HD SHELF SAUDI ARABIA EQUIPMENT(WH1)	1-73317-226-0	02	1	9002-9306			●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-231-0	06	1	9002-9306	●	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-271-0	06	1	9307-		●		●
12	SCREW; HEADER SHELF M6X20 W/LK&PL WASHER	1-09981-312-0	08	1	9002-	●	●	●	●
13	BRACKET ASM; ROOF CTR FRT	1-73317-149-2	01	1	9002-	●	●	●	●
14	SCREW; BRKT M6X16 W/LK WASHER	9-03910-616-0	05	1	9002-	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER	1-73317-232-2	01	1	9002-9306	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER	1-73317-267-0	01	1	9307-		●		●
19	SUPPORT ASM; HEADER SHELF	1-73317-155-3	01	1	9002-	●	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-73317-154-3	01	1	9002-	●	●	●	●
20	SCREW; SUPPORT,HEADER SHELF M6X16 W/LK WASHER	9-03910-616-0	04	1	9002-	●	●	●	●
21	SCREW; SUPPORT,HEADER SHELF CENTER M6X20 W/LK&PL WASHER	1-09981-312-0	04	1	9002-	●	●	●	●
66	BOLT; ASSIST GRIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-	●	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-192-0	02	1	9002-	●	●	●	●
103	GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	02	1	9002-	●	●	●	●
104	SPACER; ASSIST GRIP	1-71997-529-2	04	1	9002-	●	●	●	●
105	SCREW; ASSIST GRIP M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9002-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
