8-40 — HEATER SYSTEM (#30858) — 42 parça

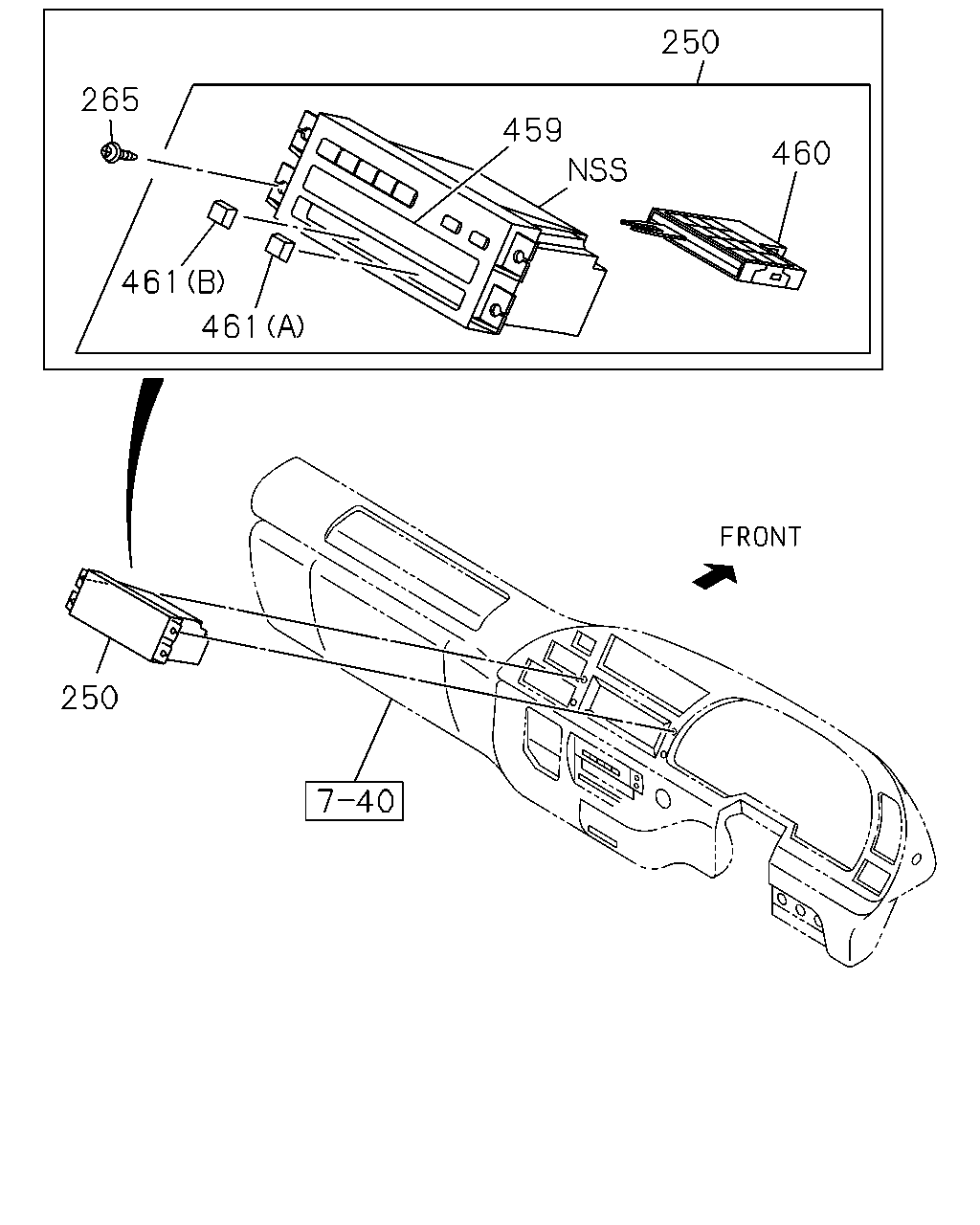

250 265 459 460 461 461 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-050-0	01	1	0604-0609
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98034-326-0	01	1	0610-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0604-0604
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	0604-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	0604-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0604-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	0604-

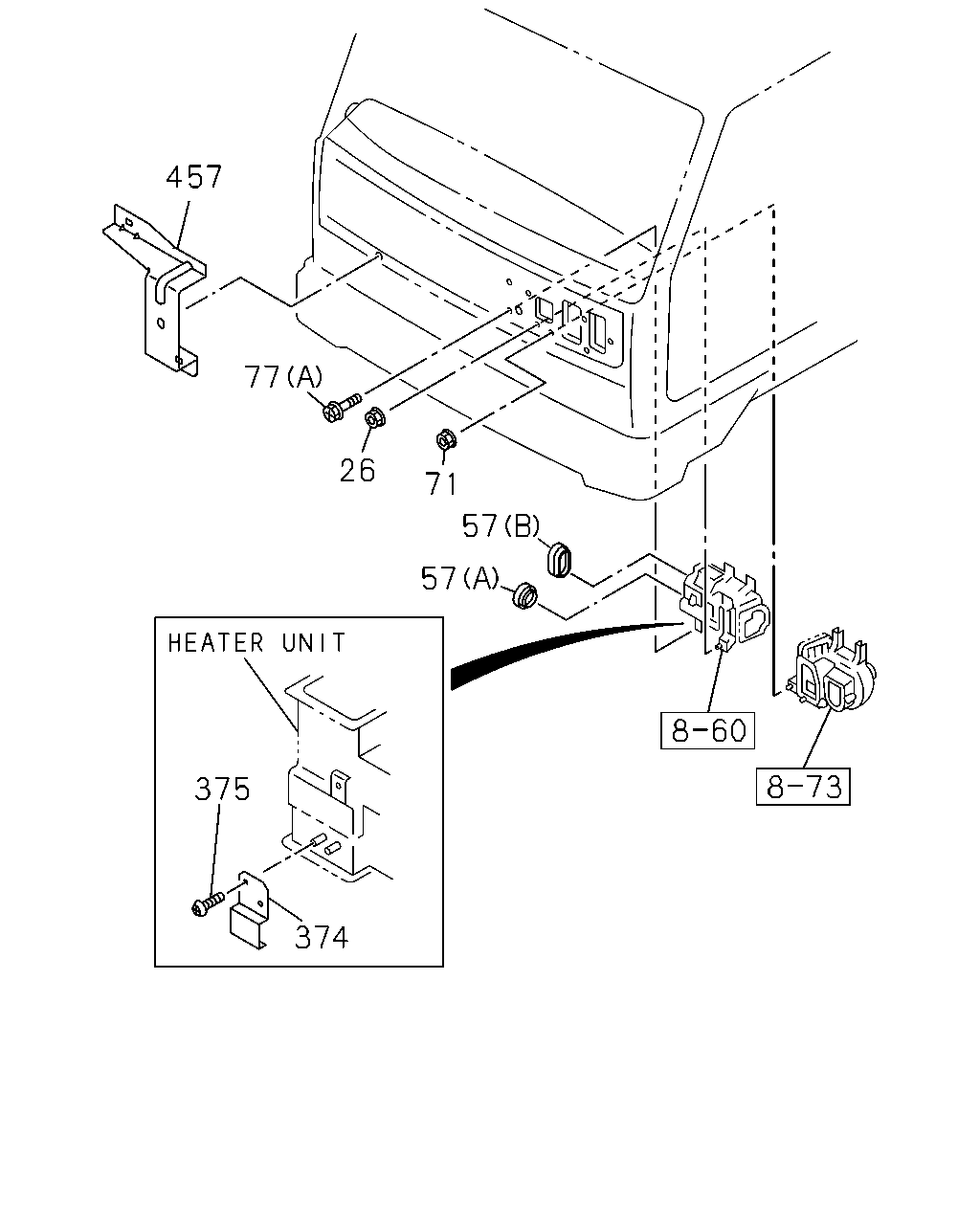

457 77 26 71 57 57 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0604-
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	0604-
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	0604-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0604-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0604-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0604-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0604-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0604-
457	BRACKET; SENSOR	1-71907-603-1	01	1	0604-

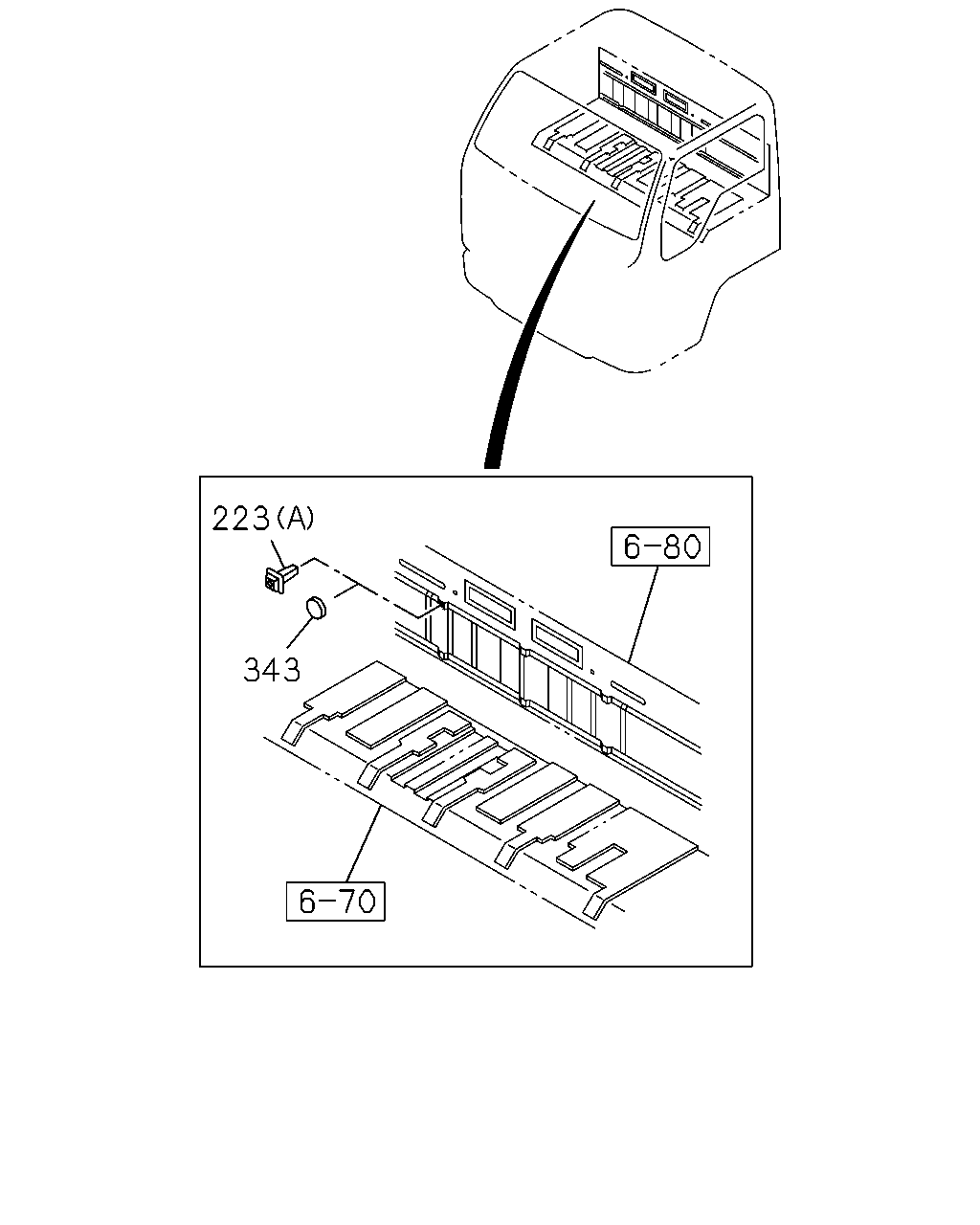

223 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0710-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0604-
343	SEAL; AIR DUCT OD=25 BLACK	1-76798-019-0	05	1	0604-0709

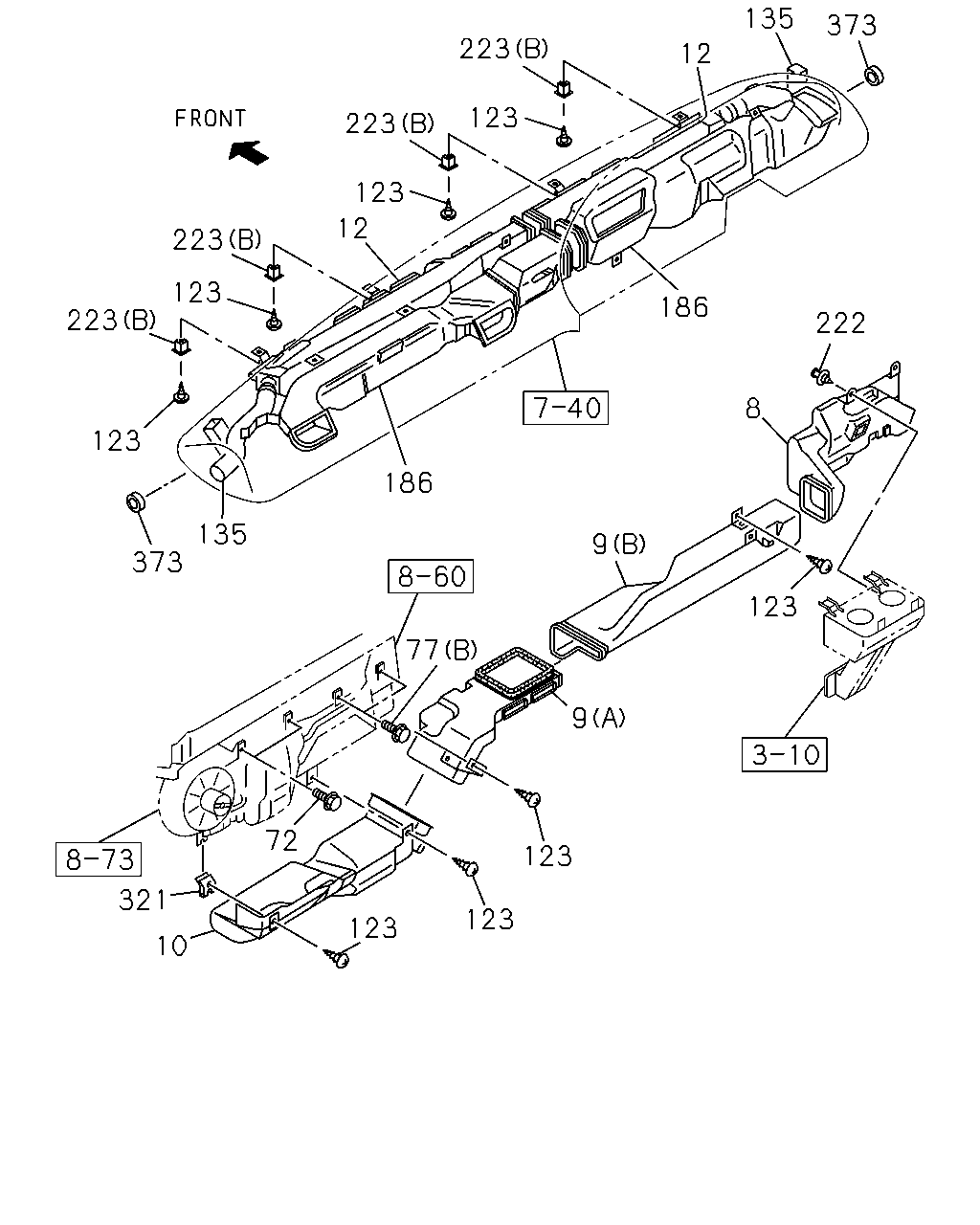

135 373 223 12 123 223 123 12 223 123 186 223 222 8 123 186 135 9 373 123 77 9 72 123 321 123 123 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-208-0	01	1	0604-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-210-1	01	1	0604-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-76377-226-2	01	1	0604-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-204-2	01	1	0604-
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	0604-
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0604-
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0604-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0604-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0604-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	04	1	0604-
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0604-
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0604-
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0604-
186	DUCT; VENTILATOR	1-76377-155-9	01	1	0604-0610
186	DUCT; VENTILATOR	1-76377-243-1	01	1	0611-
186	DUCT; VENTILATOR	1-76377-173-6	01	1	0604-0710
186	DUCT; VENTILATOR	1-76377-246-0	01	1	0711-
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) D6X12.5	8-94146-425-0	02	1	0604-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0710-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0604-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-196-0	01	1	0604-
373	RUBBER; JOINT	1-76378-291-0	02	1	0604-
